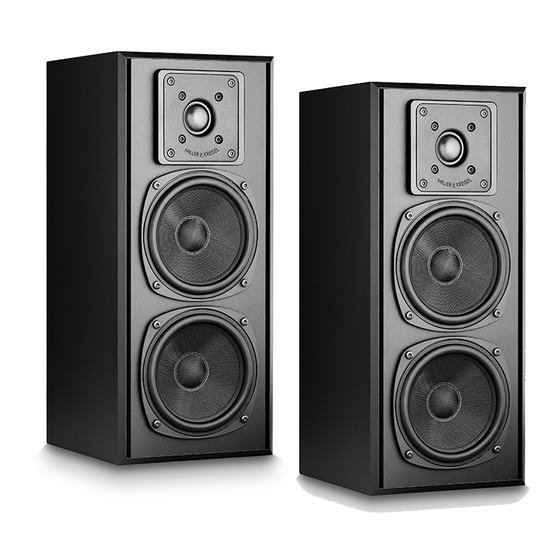

Miller & Kreisel Sound LCR-750THX Operation Manual

Thx select front speakers
Hide thumbs
Table of Contents

Advertisement

Quick Links

operation manual
LCR-750
Center-750
Miller & Kreisel Sound Corporation
10391 Jefferson Boulevard
Culver City, CA 90232 USA
(310) 204-2854
FAX (310) 202-8782
www.mksound.com
© 1999 MILLER & KREISEL SOUND CORP.
Manufactured under license from Lucasfilm Ltd. U.S.
Patent Numbers 5,043,970; 5,189,703; and 5,222,059. For-
eign patents pending. Lucasfilm and THX are registered
trademarks of Lucasfilm Ltd.
THX
THX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCR-750THX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miller & Kreisel Sound LCR-750THX

Summary of Contents for Miller & Kreisel Sound LCR-750THX

  • Page 1 operation manual LCR-750 Center-750 Miller & Kreisel Sound Corporation 10391 Jefferson Boulevard Culver City, CA 90232 USA (310) 204-2854 FAX (310) 202-8782 www.mksound.com © 1999 MILLER & KREISEL SOUND CORP. Manufactured under license from Lucasfilm Ltd. U.S. Patent Numbers 5,043,970; 5,189,703; and 5,222,059. For- eign patents pending.

  • Page 2: Table Of Contents

    2 LCR-750THX & Center-750THX TABLE OF CONTENTS 1. INTRODUCTION......................3 2. THE HOME THX AUDIO SYSTEM................3 3. PLACEMENT OF YOUR M&K THX SPEAKERS..............3 4. SPEAKER HOOK-UP & USAGE................4 ...........................4 HOOK-UP 5. THE M&K HIGH-FREQUENCY PRISM SYSTEM............5 6. CENTER-750THX CENTER CHANNEL..................5 7.

  • Page 3: Introduction

    3 LCR-750THX & Center-750THX 1. INTRODUCTION Congratulations! Your new M&K THX Select speaker system will give you years of unmatched enjoyment and excitement while listening to your favorite musical and audio/video sources. We encourage you to read this owner’s manual, as there is a great deal of information provided here to help you achieve the best possible performance.

  • Page 4: Speaker Hook-Up & Usage

    4 LCR-750THX & Center-750THX FIGURE 1 SPEAKER WIRING LEFT RIGHT AMPLIFIER Both the LCR-750 and Center-750 are magnetically shielded. This means that they can be placed close to a television monitor without distorting the picture. If you place the speaker directly on top of a large screen direct- view monitor, there is some slight possibility of picture distortion.

  • Page 5: The M&K High-Frequency Prism System

    5 LCR-750THX & Center-750THX 5. THE M&K HIGH-FREQUENCY PRISM SYSTEM Your LCR-750 and Center-750 speakers utilize M&K's exclusive High-Frequency Prism System to optimize imaging and coverage of sound throughout the listening area. This system is designed to take into account the effect of the curved mesh metal grilles on your speakers.

  • Page 6: Home Theatre Usage

    6 LCR-750THX & Center-750THX FIGURE 2 SEPARATION BETWEEN LEFT & RIGHT SPEAKERS LEFT SPEAKER RIGHT SPEAKER Line X - Y should equal line A - B. (line A - B appears longer in this diagram due to an optical illusion The delay is very slight, so instead of hearing an echo, you hear a "blurred"...

  • Page 7: Center Channel

    7 LCR-750THX & Center-750THX TIMBRE-MATCHING One of the most important factors in achieving excellent Home Theatre performance is timbre-matching. On film soundtracks, specific sounds are often moved from left to right or from front to back in the room. When the speakers reproducing these sounds have dissimilar characteristics, there will be an audible discontinuity when the sound shifts from one speaker to another.

  • Page 8: Satellite/Subwoofer Phasing Test

    8 LCR-750THX & Center-750THX If you mount the surrounds on the side wall behind the listening position, they can be aimed towards each other or angled towards the back wall or the side wall surface directly behind them. By reflecting sound behind the listening position, you may increase the sense of envelopment in the sound.

  • Page 9: Speaker Damage & How To Avoid It

    9 LCR-750THX & Center-750THX is correct. You need to perform this test because when Main speakers are located separate from a Subwoofer, each speaker is at a different distance from your ear. In some cases, the difference will be just enough so that the output from the Subwoofer arrives out of phase with the output of the Satellites.

  • Page 10: If You Need Service Or Set-Up Assistance

    13. USE WITH M&K STANDS & BRACKETS The LCR-750THX and Center-750THX speakers contain threaded inserts on their back baffles. One set has two 1/4-20 inserts and the other a single 3/8" insert. You can use either of these to securely attach the speakers to an M&K LDM-75 stand, and M&K ST-series speaker stand, or M&K ST wall-mount brackets.

  • Page 11: Specifications

    11 LCR-750THX & Center-750THX 14. SPECIFICATIONS These specifications apply to both the LCR-750THX & Center-750THX, except as indicated: IMPEDANCE 4 ohms MINIMUM POWER: 10 watts RMS RECOMMENDED POWER: amplifiers with between 50 and 200 watts RMS or more (see below)
  • Page 12 12 LCR-750THX & Center-750THX...
