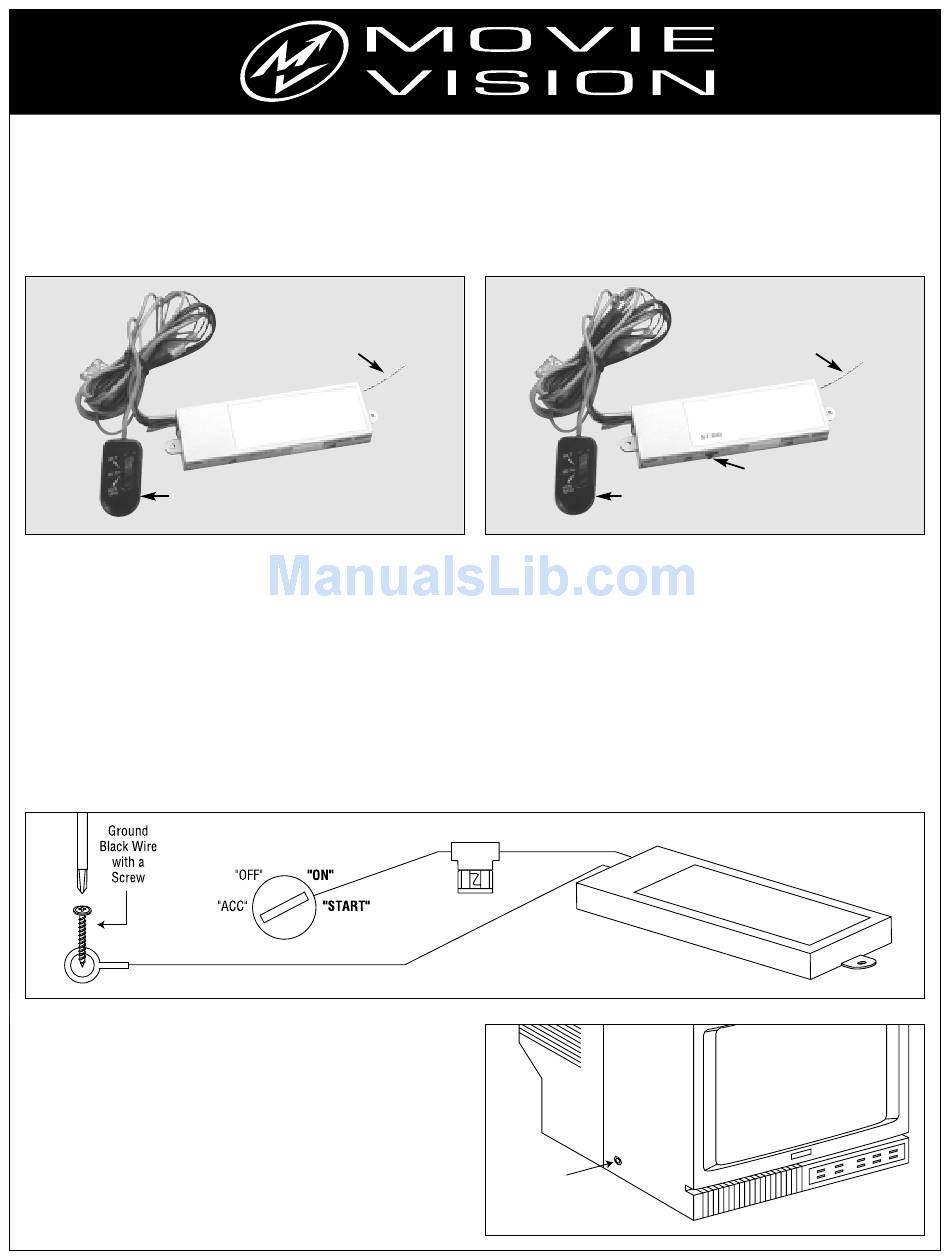

MV-TX1/MV-TX2 Installation and Operations Manual

Introduction:

The MV-TX1 and MV-TX2 are FM radio signal transmitters design to accept audio signals from various signal sources such as VCR audio outputs,
Video games and Camcorder audio outputs or a headphone/external speaker output from a television set (MV-TX1) and convert the signals to FM radio
signals. The converted FM signal can then be received by any FM radio receiver from one of the 3 selectable frequencies provided on the control head.
Control Head
Installation:
(General)
1. Choose a location to mount the MV-TX unit. It is recommended to
locate the MV-TX unit close to the "AUDIO" signal source or with-
in the length of the input wire leads.
2. The MV-TX can be mounted by using screws, wire ties, velcro or
double face tape.
Note: Make sure that the antenna wire is in a "VERTICAL" posi-
tion for best performance.
3. Connect the "RED" wire to a switched +12vdc source. This wire
connection should be controlled by turning "ON" and "OFF" the
vehicles ignition key.
Input Connection:
(MV-TX1)
Note: The input of the MV-TX1 is "MONO". If the headphone jack or
external speaker jack you are connecting into is "STEREO", the MV-TX1
can not be used.
1. Locate the "HEADPHONE" output jack or the "EXTERNAL SPEAK-
ER" output jack on the unit you are connecting to the MV-TX1.
2. Insert the "MINI PHONE" plug of the MV-TX1 (brown and black
wires) into the jack on the unit you are connecting to the MV-TX1.
MV-TX1
(Mono Only)
Antenna
Control Head
4. Connect the "BLACK" wire to the "CHASSIS" of the vehicle
(GROUND).
5. Attach the "CONTROL HEAD" in the desired location using the vel-
cro supplied. WARNING! Do not attempt to lengthen the control
head cable. This will greatly diminish the performance of the MV-
TX unit.
6. Set the "ST/MO" switch on the main control box to "ST". (MV-TX2
Only)
Earphone
Jack
TM
MV-TX2
(Stereo /Mono Selectable)
Antenna
ST/MO Switch
