SunEyes Mini NVR
Product Description

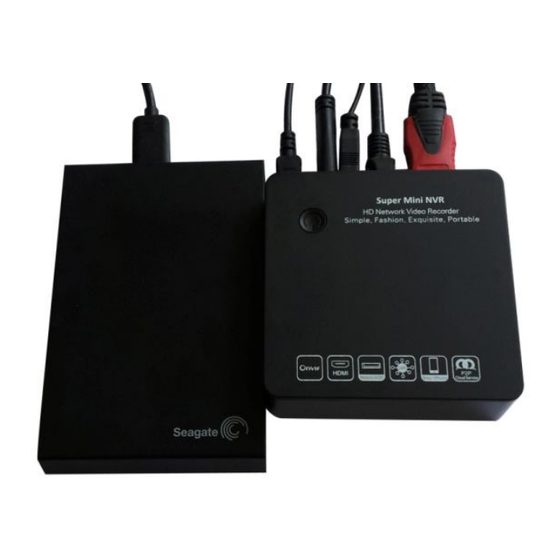

The mini NVR was specially designed for network video surveillance system. It has embedded Linux
operating system which makes the system operation more stable; it has standard H.264 video
compression algorithms which achieve high definition, low bitrate and single-frame play video function.
The mini NVR is small, dimension 88mm*88mm*32mm, but with complete ports and function. It
supports Onvif, 4CH/ 8CH 720P or 1080P IP cameras input, preview and playback; P2P and mobile
phone controller; Mobile HDD, E-SATA hard disk cartridge and E-SATA HDD expansion. HDMI and
VGA output simultaneously. The power supply was made of standard 5V2A micro-mini USB port,
energy saving and environmental protection.
1.1 Declaration：
Thank you for purchasing our NVR. If you need any help, please feel free to contact us.
The manual apply to 8CH mini NVR and 4CH mini NVR
The manual will be updated according to the enhancement of product function. Description of
product or program will be improved or updated periodically. The updated stuff will be added in
new manual without prior notice. If any product description in manual not in conformity with the
real object, subject to the real object.
2 .1 Attentions:
The IP address of all devices in LAN can't conflict with each other.
The gate way should match with IP address, and setting up correctly.
The product supports external HDD only, including mobile HDD, hard-disk cartridge with E-SATA port.
We have tested following HDD brands and model numbers work with the mini NVR:
Seagate Backup Plus 1TB 2.5'' USB3.0 mobile HDD, Model No.: STBU1000300
Seagate Expansion 1TB 2.5'' USB3.0 mobile HDD, Model No.: STBX1000301
Seagate Expansion 2TB 3.5'' USB3.0 external HDD, Model No.: STBV2000300
Western Digital (WD) Elements 1TB 2.5'' USB3.0 mobile HDD, Model No.: WDBUZG0010BBK
SUNEYES MINI NVR Quick Start Manual
Quick Start Manual
第 1 页 共 21 页
Advertisement
Table of Contents
Summary of Contents for SunEyes Mini NVR
-
Page 1: Product Description

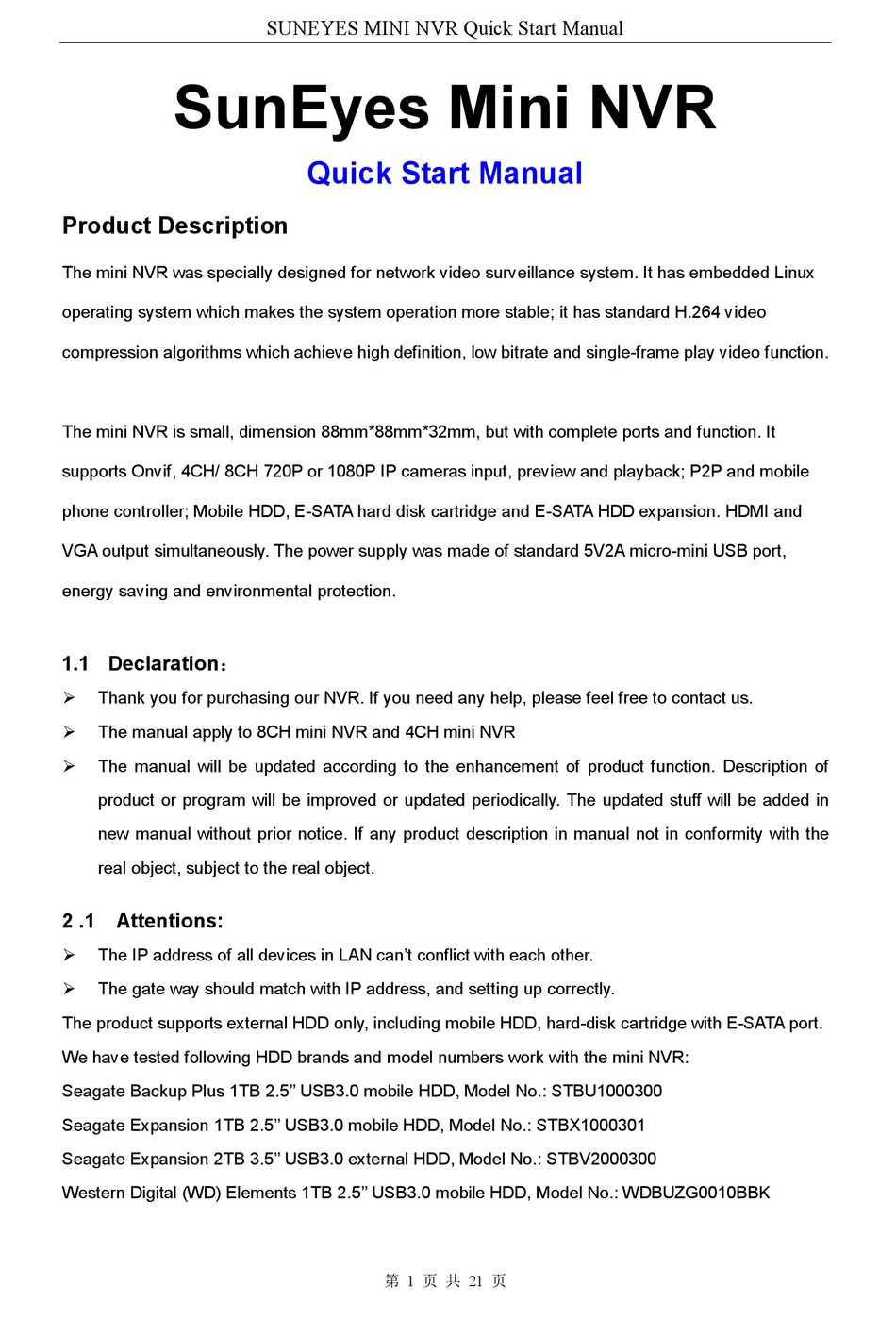

Quick Start Manual Product Description The mini NVR was specially designed for network video surveillance system. It has embedded Linux operating system which makes the system operation more stable; it has standard H.264 video compression algorithms which achieve high definition, low bitrate and single-frame play video function. -
Page 2: Technical Parameters
SUNEYES MINI NVR Quick Start Manual 3.1 Technical Parameters 3.1.1 8CH mini NVR Model Number 8CH Mini NVR Operating System Embedded LINUX operating system Image Code Control Adjustable; variable bitstream and constant bitstream optional Dual Stream Each channel can set main stream and sub stream Video Standard 1080P(1920×1080)30fps/ 960P/(1280×960)/ 720P(1280×720)30fps... - Page 3 SUNEYES MINI NVR Quick Start Manual Working Humidity 10％-90％ Dimension Equipment: 88mm×88mm×32mm, With Packing: 185.5mm×115.5mm×36mm Weight(without HDD) N.W.: 105g; With packing: 250g Outside Carton 30pcs/ carton; Dimension: 365mm×350mm×188mm; Weight: 8 Kg。 Installation Way Desktop Installation 3.1.2 4CH mini NVR Model Number...
- Page 4 SUNEYES MINI NVR Quick Start Manual Capacity Maximum 4TB HDD/ port Support(iPhone，Windows Mobile，BlackBerry，Symbian，Android) smart Mobile View phones Power Supply 5V2A Power Consumption ≤10(without HDD） Working Temperature -10℃～＋55℃ Working Humidity 10％-90％ Dimension Equipment: 88mm×88mm×32mm, With Packing: 185.5mm×115.5mm×36mm Weight(without HDD) N.W.: 105g; With packing: 250g Outside Carton 30pcs/ carton;...
-
Page 5: System Login
SUNEYES MINI NVR Quick Start Manual 5.1 Device Operation 5.1.1 Power On Connect power and mobile HDD, and then switch on the power button (on the right side of NVR). The video output is default multi-screen mode after startup is completed. If the startup time is among the time of setting record, system will auto start timing video recording. - Page 6 SUNEYES MINI NVR Quick Start Manual Reboot: Click “Reboot” button, the device will reboot. Click “Login” button to login the system. User name: admin, password: blank by default; Lock: Click “[ ] Lock”, the menu will be locked. 5.1.3 IP Channel Setting...
- Page 7 SUNEYES MINI NVR Quick Start Manual After power on, click to enter setting menu, set NVR IP address, subnet mask, and gateway and so on. Then use PC to run ping command to check NVR IP has connected with LAN Notice: IP address might conflict with each other, please set the gateway correctly, or NVR might fail to work.
-
Page 8: Automatic Search
SUNEYES MINI NVR Quick Start Manual C- Area is cameras channel setting area——according to the selection sequence in A zone, to sort the 1-36 channels image order. Select All to add IP cameras to the all channel by one click. -
Page 9: Digital Zooming
SUNEYES MINI NVR Quick Start Manual different IPC, which costs about 1 to 60 second. 6.3.3 Digital Zooming Zoom In During image preview and playback, roll mouse roller to do digital zooming, it zoom the image as mouse pointer as the center. The max can do 15X Zoom Out zooming. -
Page 10: Channel Information
SUNEYES MINI NVR Quick Start Manual format, and it is saved in special area, the recording file will not overlay it. The capture image can be viewed or backup in file manage folder 【File Manager】and click Refresh button, Right click to bring main menu, click the captured file shows in the file list area, the file are named by channel number&... -
Page 11: Schedule Record
SUNEYES MINI NVR Quick Start Manual 4) Bitrate Type：set variable bit rate and constant bit rate 5）Bitrate: set the bit rate upper limit for coding main stream are 1080P: 6000kbps, 720P: 4000kbps ; set the bit rate upper limit for coding sub stream is 512-1024kbps 6）Frame Rate：suggest to set full frame 25/30... - Page 12 SUNEYES MINI NVR Quick Start Manual Notice: If NVR stop recording in a regular time, please check schedule record status, the schedule might be in wrong, please adjust them to manual record. 7.1.3 Playback 【playback】to open the menu： Right click to bring main menu, click Channel Select: select the channels that need do playback, system will find the required recording file.
-
Page 13: Record Backup
SUNEYES MINI NVR Quick Start Manual 7.1.4 Record Backup Before back up,please make sure the hard disk has been saved with video. Playback Backup: click Back Up icon in area C of 7.2 Playback Preview Backup: Right click bring main menu, click 【Backup】to enter the backup interface,... -
Page 14: Log Query
SUNEYES MINI NVR Quick Start Manual users as well as configuring user right. 7.3.1 Log Query Right mouse to click , then click “System management” and choose “Log query” as below: Choose Log Style, start and over time; Click query and will display all NVR operation or abnormal information;... -
Page 15: System Maintenance
SUNEYES MINI NVR Quick Start Manual 7.3.5 System Maintenance System maintenance is devided into everyday, every week, once. After enable, users can choose detailed maintenance time. It’s recommended to enable system maintenance to clear system cache to ensure system fluency. - Page 16 SUNEYES MINI NVR Quick Start Manual All , the red point represent recording , and click to set the stream and switch of main stream and sub stream. This doesn't require for router setting, excluding of registering domain name. 9.1 P2P Cloud Function P2P Cloud, simple and stable, doesn't require for router setting, excluding of registering domain name.
- Page 17 SUNEYES MINI NVR Quick Start Manual 9.1.2 IE End Setting Open Website: www.goolink.org Click “Register”, Username, password, snapshot save dir and record video save dir setting randomly. After entering into, remember to install activex. Click “Device Management” to add device.
- Page 18 SUNEYES MINI NVR Quick Start Manual preview. Attachment: NVR Malfunction & Elimination 1. About Firmware Update For access to some functions and requirements, NVR needs to update firmware. Before update, users need to prepare as below: 1） To check Serial No.: Setting→Device→Device info;...
- Page 19 SUNEYES MINI NVR Quick Start Manual , Single image main stream has image, multi-images sub stream is on black screen; , Multi-images sub stream has image, single image main stream is on black screen or still image as well as black-screen playback;...
- Page 20 SUNEYES MINI NVR Quick Start Manual address with NVR local IP address in network, it happens to have image flickering every second. Properly it may have such a phenomenon that image occurs in 1 channel and next second in 3 channel, then next second has no idea in which channel.
- Page 21 SUNEYES MINI NVR Quick Start Manual but fail to get image. For mobile access, user needs to plus 3 based on the remote port. Open IE browser again and it can be access to input static IP address in bar. If you have changed...
