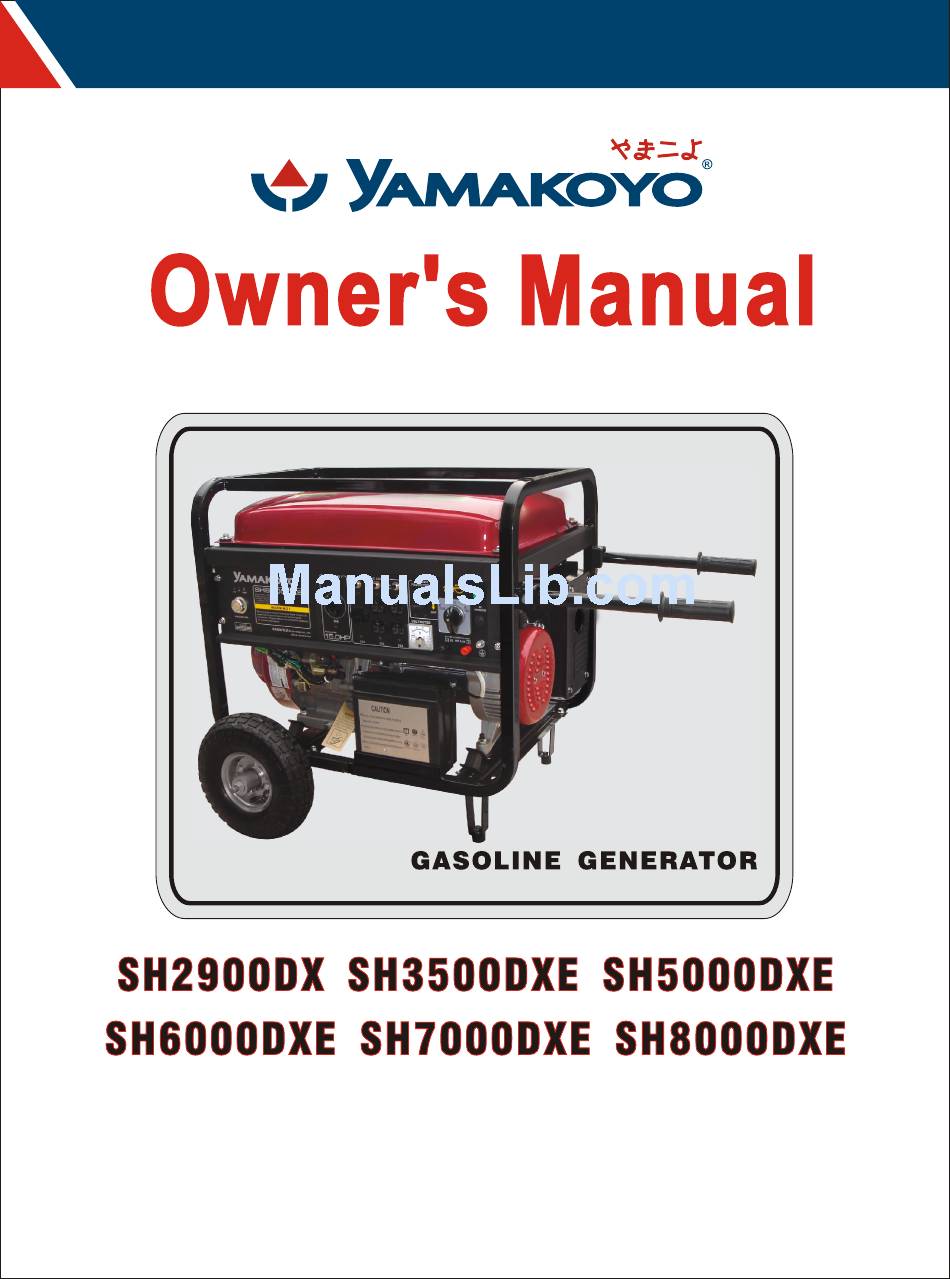

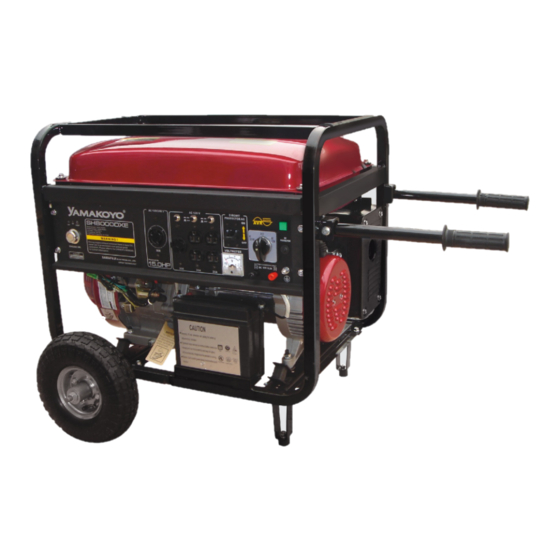

Summary of Contents for Yamakoyo SH2900DX
- Page 2 Thank you for purchasing a generator. We want to help you get the best results from your new generator and to operate it safely. This manual contains the information on how to do that, please read it carefully. This owner's manual describes the operation and maintenance of the Generator. All information in this publication is based on the latest product information available at the time of printing.
-
Page 3: Table Of Contents
CONTENTS SAFETY Safety Label Location Safety Information COMPONENT IDENTIFICATION CONTROLS Engine Switch Recoil Starter Fuel Valve Choke Rod Circuit Breaker Ground Terminal Oil Alert System Pilot Lamp DC Terminals DC Circuit Protector GENERATOR USE Connections to a Building's Electrical System Generator Ground Circuit AC Applications AC Operation... -
Page 4: Safety
SAFETY SAFETY LABEL LOCATION These labels warn you of potential hazards that can cause serious injury. Read them carefully. If a label comes off or becomes hard to read, contact your Generator dealer for a replacement. SAFETY INFORMATION Generators are designed to give safe and dependable service if operated according to instructions. - Page 5 SAFETY Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution. Keep the generator dry. If the generator is stored outdoors, unprotected from the weather, check all electrical components on the control panel, before each use.
-
Page 6: Component Identification
COMPONENT IDENTIFICATION VOLT METER AC RECEPTACLES AC CIRCUIT BREAKER CHOKE ROD PILOT LAMP DC CIRCUIT FUEL VALVE PROTECTOR GROUND AIR CLEANER TERMINAL DC OUTPUT TERMINAL RECOIL STARTER GRIP OIL FILLER CAP ENGINE SWITCH OIL DRAIN PLUG ENGINE SERIAL NUMBER FUEL TANK CAP FUEL METER SPARK PLUG CAP MUFFLER... -
Page 7: Controls
CONTROLS Engine Switch To start and stop the engine. Switch position: OFF: To Stop the engine. Key can be removed/inserted. To run the engine after starting. START: To start the engine by turning the starter motor. Electric Starter Without Electric Starter START PUSH ON PUSH OFF... -
Page 8: Choke Rod
CONTROLS Choke Rod The choke is used to provide an enriched fuel mixture when starting a cold it can be opened and closed by operating the choke rod manually move the rod out toward CLOSED to enrich the mixture. CLOSED OPEN OPEN CLOSED... -
Page 9: Pilot Lamp
CONTROLS Pilot Lamp The pilot lamp is illuminated when the generator is operating normally. DC Terminals The DC terminals may ONLY be used for charging 12 volt automotive type batteries. The terminals are coloured red to identify the positive (+) terminal and black to identify the negative (-) terminal. -
Page 10: Generator Use
GENERATOR USE Connections to a Building's Electrical System Connections for standby power to a building's electrical system must be made by a qualified electrician. The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes. WARNING Improper connections to a building's electrical system can allow electrical current from the generator to backfeed into the utility lines. -
Page 11: Ac Operation
GENERATOR USE Make sure that the electrical rating of the tool or appliance does not exceed that of the generator, Never exceed the maximum power rating of the generator. Power levels between rated and maximum may be used for no more than 5 minutes. NOTICE Substantial overloading will open the circuit breaker. -
Page 12: Disconnecting The Battery Cables
GENERATOR USE The battery gives off explosive gases; keep sparks, flames and WARNING cigarettes away. Provide adequate ventilation when charging or using batteries. 2. Connect the positive (+) battery cable to the battery positive (+) terminal. 3. Connect the other end of the positive (+) battery cable to the generator positive (+) terminal. -
Page 13: Pre-Operation Check
PRE-OPERATION CHECK Engine oil NOTICE Engine oil is a major factor affecting engine performance and service life. Non-detergent and 2-stroke engine oils will damage the engine and are not recommended. Check the oil level BEFORE EACH USE with the generator on a level surface with the engine stopped. - Page 14 PRE-OPERATION CHECK WARNING Gasoline is extremely flammable and is explosive under certain Conditions. Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area where the engine is refueled or where gasoline is stored.
- Page 15 PRE-OPERATION CHECK Oxygenated Fuels Some gasolines are being blended with alcohol or an ether compound to increase the octane. These gasolines are collectively referred to as oxygenated fuels. Some areas of the United States use oxygenated fuels to help meet clean air standards. If you use an oxygenated fuel, be sure its pump octane rating is 86 or higher.
-
Page 16: Starting The Engine
STARTING THE ENGINE 1. Make sure that disconnect all electrical loads from panel receptacles. The generator may be hard to start if a load is connected. 2. Turn the fuel valve to the ON position. 3. The automatic choke will be closed if the engine is cold. If you want to operate the choke manually, move the choke rod out to the CLOSED position. -
Page 17: Stopping The Engine
STOPPING THE ENGINE In an emergency 1. To stop the engine in an emergency, turn the engine switch to the OFF position. In normal use: 1. Turn the AC circuit breaker to the OFF position. 2. Disconnect all electrical loads from panel receptacles. Disconnect DC battery charging cables. -
Page 18: Maintenance
MAINTENANCE Periodic maintenance and adjustment is necessary to keep the generator in good operating condition. Perform the service and inspection at the intervals shown in the maintenance schedule below. WARNING Exhaust gas contains poisonous carbon monoxide. Shut off the engine before performing any maintenance, if the engine must be run, make sure the area is well ventilated. -
Page 19: Air Cleaner Service
MAINTENANCE Oil capacity: MODEL 2900DX 3500DXE 5000DXE 6000DXE 7000DXE 8000DXE Oil capacity(L) OlL DRAIN PLUG UPPER LEVEL CAUTION Used motor oil may cause skin cancer if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil. -
Page 20: Fuel Sediment Cup Cleaning
4. Turn the fuel valve ON and check for leaks. FUEL VALVE SEDIMENT CUP FUEL FILTER O-RING SEDIMENT CUP Spark Plug Service Recommended spark plugs: YK550, YK650, YK800, YK900, YK1100, YK1300, Yk1500, BP6ES(YAMAKOYO) To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. - Page 21 MAINTENANCE If the engine has been running, the muffler will be very hot. Be careful not to touch the muffler. 1. Remove the spark plug cap. 2. Clean any dirt from around the spark plug base. 3. Use the wrench supplied in the tool kit to remove the spark plug. PLUG WRENCH PLUG CAP 5.
-
Page 22: Transporting/Storage
TRANSPORTING/STORAGE When transporting the generator, turn the engine switch and the fuel valve OFF. Keep the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite. WARNING Contact with a hot engine or exhaust system can cause serious burns or fires. - Page 23 TRANSPORTING/STORAGE WARNING Gasoline is extremely flammable and is explosive under certain conditions. Perform this task in a well ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area during this procedure. DRAIN SCREW 2.
-
Page 24: Troubleshooting
TROUBLESHOOTING When the engine will not start: Is there fuel in the tank? Refill the fuel tank. Is there enough oil in the engine? Add the recommended oil. Still Is there a spark from the spark Replace the Take the generator to an spark plug? spark plug. -
Page 25: Specifications
SPECIFICATIONS MODELS 2900DX 3500DXE 5000DXE 6000DXE 7000DXE 8000DXE ENGINE Models Yk550 YK650 YK900 Yk1300 Yk1300 Yk1500 Displacement 12.0 12.0 13.8 Rated 3,000rpm horsepower 3,600rpm 13.0 13.0 15.0 Ignition system Transistor Oil alert system Starting system Recoil, Electric Recoil GENERATOR Type Self-exciting, 2-pole, field rotating type Voltage regulation system Single... -
Page 26: Stallation Of Optional Parts
STALLATION OF OPTIONAL PARTS Wheel Kit Installation... -
Page 27: Stallation Of Optional Parts
STALLATION OF OPTIONAL PARTS Battery Tray Kit 1. Install the battery guard on the frame. Set the battery tray on the battery guard and tighten the bolts. 2. Route the starter cable under the tank and connect it to the starter solenoid. 3.
