Summary of Contents for RAB Lighting Sound Alert
-

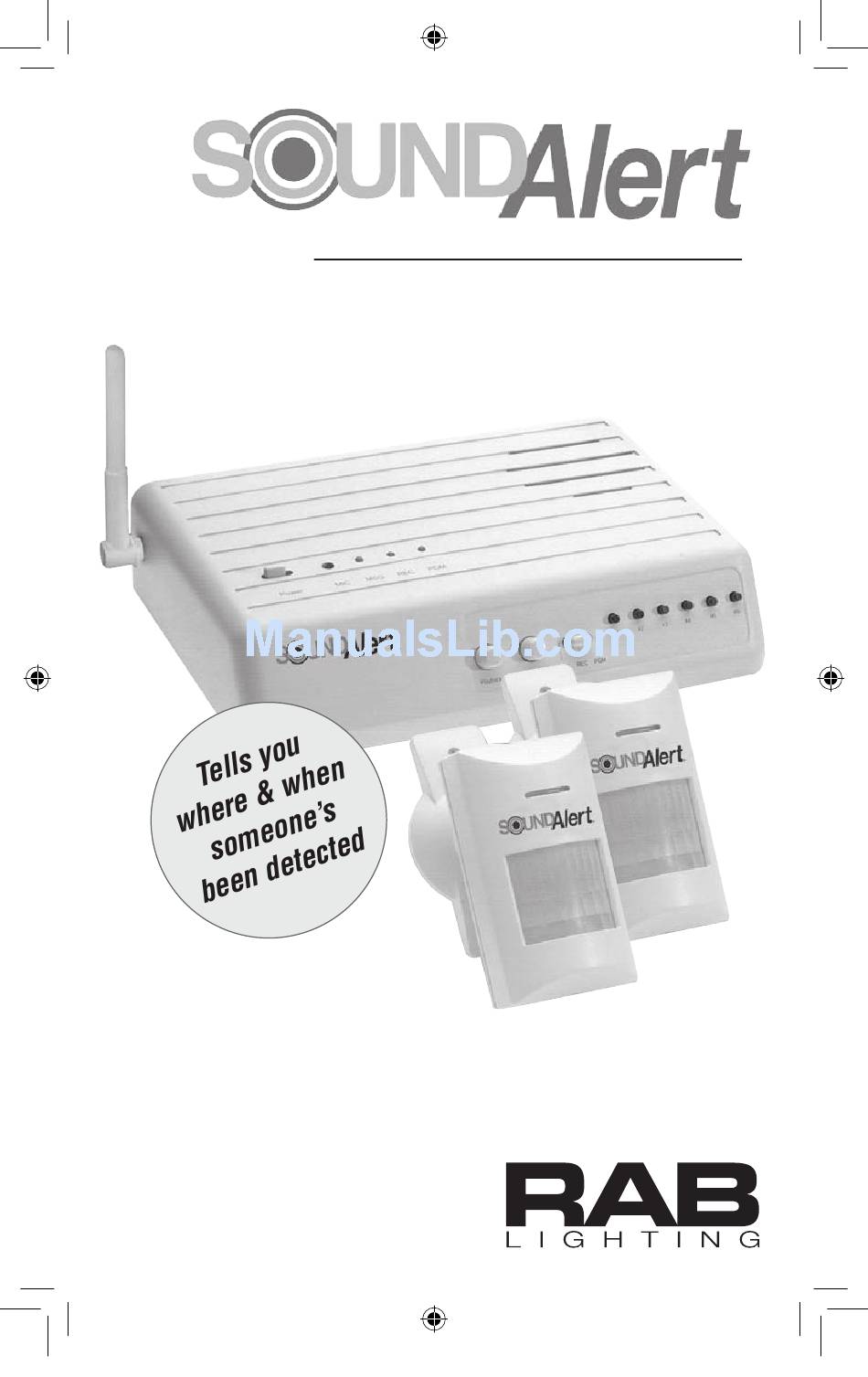

Page 1: Installation Manual
™ Talking Wireless Detection System Installation Manual SA Manuel.indd 1 4/29/05 3:06:43 PM... - Page 2 How SoundAlert Works SoundAlert is the Talking Wireless Detection System that tells you 1 Ba where and when someone’s been 2 Se detected. The Sensor/Transmitters can be 2 Ba located indoors or outdoors and 4 Se when movement is detected, they send a signal to the Base Station.
-
Page 3: Specifications
Contents Basic System SA12: Base Station 1 Base Station 2 Sensor / Transmitters Deluxe System SA24: 2 Base Stations 4 Sensor / Transmitters SA12 Basic System Sensor/Transmitters Shown Specifications Sensor / Transmitter Base Station • Detection range: 40’ x 40’ •... - Page 4 Why the RAB SoundAlert System is Right for You It tells you when and where someone’s coming. Simply put the wireless Sensor/Transmitters wherever you want and you will be notified by a voice message when activity has been sensed in that area.
-
Page 5: Base Station Set-Up
Base Station Set-Up Base Station Controls Antenna Power/ Set-up Microphone Message Low Battery On/Off hole Switch PWR/MSG SETUP LOW BATTERY Playback Volume RECORD PROGRAM Playback Volume Slide Switch with Message Run, Record & Button Control Buttons Knob Program positions Connect Power to the Wall Mounting Base Station Base Station Screw in 2 screws 4 5/16”... -
Page 6: Voice Messages
Changing the Low Battery Reminder Sensor’s Message When any of the Sensor/Transmitters experience a low battery condition, the 1. Move the slide switch on the front of “LOW BATTERY” LED will flash on the the Base Station to “PROGRAM”. top of the Base Station. It will also sound 2. - Page 7 Setting up the Sensor/Transmitter Installing the To set the time delay, use a small screwdriver to turn the adjusting screw Sensor/Transmitter clockwise for longer time delay, 9 Volt Battery counter clockwise for shorter delay. Remove the front cover of the Message delay is factory set for SoundAlert Sensor/Transmitter by 0 minutes.
-
Page 8: Wall Mounting
Test the Sensor/Transmitter for Choosing the best range and correct operation before Location for your permanent installation Sensor/Transmitter If the Base Station doesn’t respond, check that it has been properly pro- Avoid Direct Sunlight grammed to respond to the Sensor/ of e The Sensor/Transmitter should not Transmitter or relocate the Sensor/... -
Page 9: Side View
Sensor/Transmitter Pattern Adjustment Choose the pattern for your Sensor/Transmitter to meet the needs of each monitored zone. The Sensor/Transmitter comes set from the factory with a fan pattern (A) that covers a 40’ x 40’ area, when mounted at 8’ above the ground. Use one of the flexible Pattern Adjusting inserts (included) to choose the pattern for either a vertical fan pattern (B) or a... - Page 10 Programming Changing the Sensor/ Sensor/Transmitters to Transmitter code Activate Additional The Sensor/Transmitter included in Messages the SoundAlert kit comes prepro- grammed from the factory and will The Sensor/Transmitters included in the activate any Base unit within range. usin SoundAlert kits are pre-programmed from If you decide to isolate a Sensor/ (X-1 the factory and will function without modi-...
- Page 11 How to set-up the X-10, Leviton, or Lutron RadioRa If you want to trigger a desk lamp, Interface for example (in addition to playing the voice message) when the You can control lights or other Sensor for Zone #1 detects move- devices with your SoundAlert by ment, you must insert wire (not using a module provided by others...
- Page 12 To set the output duration of each connection: 1. Move the slide switch to the “RUN” position. 2. Press and hold the “PLAYBACK” button for 2 seconds to activate SETUP MODE. 3. In SETUP MODE, toggle through the setting sequence for each message button #1 - #4 to set the output duration for each terminal output connection.
-
Page 13: Troubleshooting
Troubleshooting Poor Distance No Sound • Check the Sensor/Transmitter • Check the “POWER” switch on battery. your Base Station. RIGHT is ON, • Check the Base Station DC LEFT is OFF. Power source. • The slide switch on the Base •... - Page 14 Troubleshooting continued Message Buttons Won’t repl Playback Message prov • Make sure the slide switch is in or m “RUN” position • Check the connection to the Base Station power for i Sensor/Transmitter Battery Goes Dead In A Short Time If yo •...
-
Page 15: Limited Warranty
$75. for the SA12 kit or $100. for the SA24 kit (made out to RAB Lighting). We will repair or replace your unit promptly. Under no circumstances shall RAB be liable for any incidental or conse-... - Page 16 170 Ludlow Avenue, Northvale, NJ 07647 USA 30 warehouses nationwide. Tech Help Line Fax Back Website e-mail 888 RAB-1000 888 RAB-1236 www.rabweb.com sales@rabweb.com SA Manuel.indd 16 4/29/05 3:06:51 PM...
