Page 1: Instruction Manual

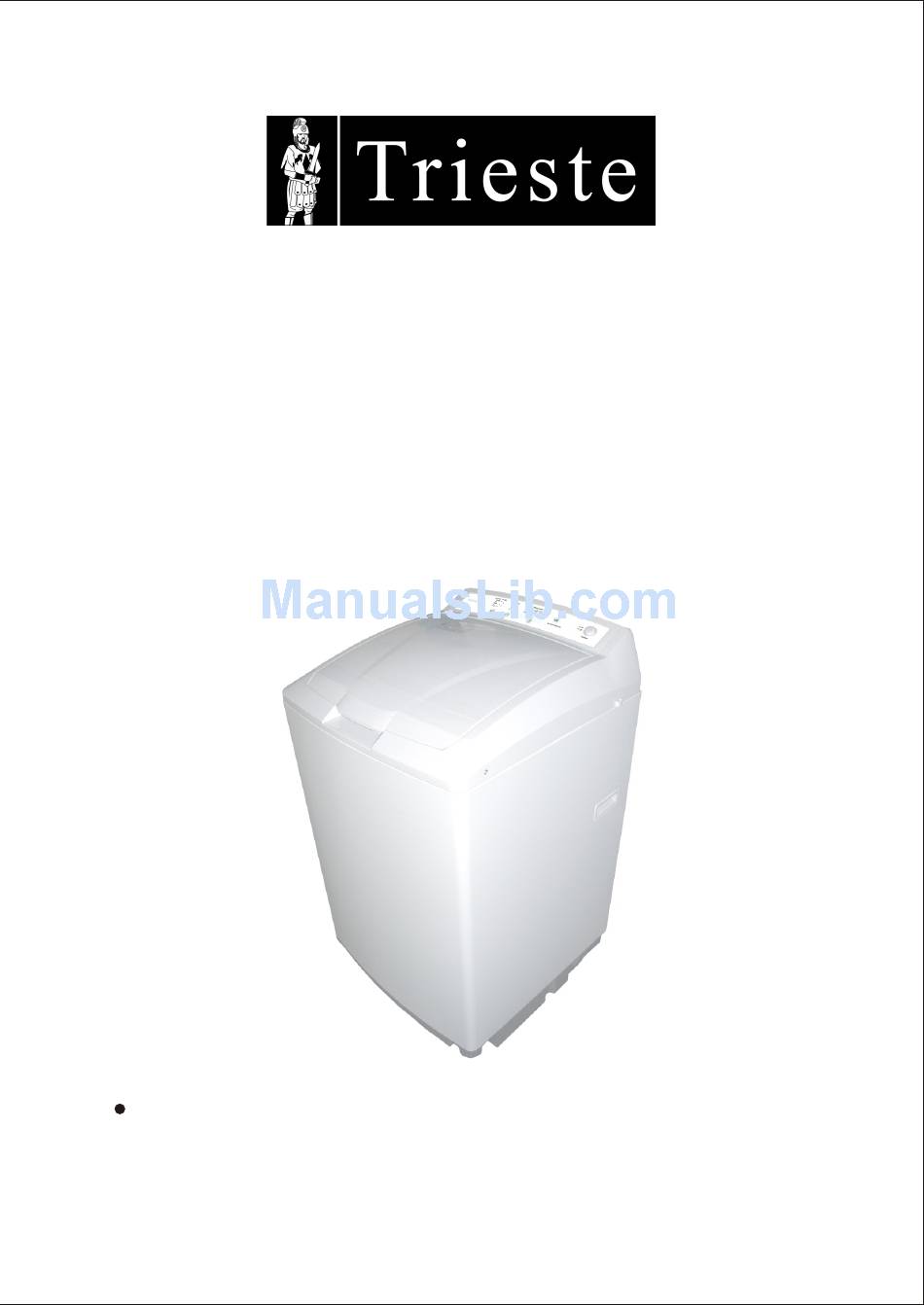

INSTRUCTION MANUAL FULLY AUTOMATIC WASHING MACHINE TR-XQB60-560 Please carefully read this operation manual before using the product. Please keep this operation manual for your future reference. -
Page 2: Table Of Contents
CONTENTS Safety and precaution..........2 Parts identification of the washer......5 Explanation of washer control panel.......6 FIRSTLY You should know Installation of washer..........8 Preparation before washing........9 Operation of normal wash program.......10 Operation of full load of soiled clothes...11 Operation of single wash / rinse / spin program..12 SECONDLY Operation of other full-automatic wash program...13 When you want to use... -
Page 3: Safety And Precaution
SAFETY AND PRECAUTION Observe the following items in order to prevent from injuring yourself, to others and the damage of property: This indicates serious injury or death to human being Warning may be caused. This will remind you that injury to people and damage Caution to property may occur. - Page 4 Warning It is prohibited to wash the clothes Do not let children climb the damped with kerosene, gasoline, machine or peer into the rotating alcohol and other Flammable materials. basket to avoid accidents. Kerosene G as ol in e Alcohol Prohibited Prohibited (Recommendation)
- Page 5 Please do not pull out or insert the For the correct operation of your washer plug with wet hands to avoid electric machine a Please shocking. use 240V AC power source is recommended. Wet hands are prohibited Caution The water temperature shall not exceed Please ensure that the water inlet pipe when washing is connected and the tap is opened...
-
Page 6: Parts Identification Of The Washer
Parts identification of the washer Water inlet valve(in the back) Handle of lid Control panel UpperDrain hose Power switch Handle Softener inlet Bleach filling inlet Power cord Impeller Cabinet Adjustable foot knob Accessories Inlet hose UpperDrain hose Self-tapping screw Base plate (M4 X 12) - Page 7 Explanation of washer operating panel Start / Pause Program selection Five water levels are available . Before start, continuously press this [Start / Pause] button has both function of start button for switching over between and pause. Continuously press this button, the "normal", "...
-
Page 8: Installation Of The Washer
Installation of the washer Remove package ! Remove package and take out the bottom board of the cabinet on the foam cover. ! Open the washer's lid and take out accessories. Convex plastic block ! Remove the convex plastic block placed at the center of foamed plastic cushion of the packing case. -
Page 9: Preparation Before Washing
Water inlet hose Tightly screw another end of water inlet hose on water inlet valve . (with rubber Hot water Cold water seal ring inside). Note: When tightening the clamping nut, Clamping evenly apply the force and do not twist the water inlet valve or hose to avoid breaking of water inlet valve joint. -
Page 10: Operation Of Normal Wash Program
Operation of normal wash program Normal program WATER LEVEL PROCESS PROGRAM Description of the normal wash program Preparation before washing - Plug in the power cord ! "normal" wash program is the - open water tap easiest, most convenient and most common washing program. - Page 11 Operation for full load of soiled clothes Warm program " " WATER LEVEL PROCESS PROGRAM Operation for full load of soiled clothes Preparation before washing - Plug in the power cord ! Close the lid when machine is - open water tap running, otherwise, it will...
-
Page 12: Operation Of Single Wash / Rinse / Spin Program
Operation of single wash / rinse / spin program WATER LEVEL PROCESS PROGRAM Introduction to single wash program Preparation before washing - Plug in the power cord - open water tap ! User can freely select any - load clothes uniformly single process, or - put in suitable amount of detergent... -
Page 13: Operation Of Other Full-Automatic Wash Program
Operation of other full automatic wash program WATER LEVEL PROCESS PROGRAM Introduction to other full automatic washing program Preparation before washing - Plug in the power cord - open water tap - load clothes uniformly ! "cold " program is used for washing the normal Clothes. -
Page 14: About Procedure Of Full-Automatic Wash Program
About the procedure of full automatic wash program Program Heavy Speedy Warm Cold Normal Contents Medium High High High High Water Level Extra low Extra low Extra low Extra low Extra low Wash Time (minutes) Rinsing Times Spin Time (minutes) Complete Time (minutes) - Page 15 Application of detergent, softener and bleach Application of detergent The way for placing the washing powder is to directly put it into barrel of the washer. It is necessary to use proper amount of washing powder. Using a big a mount of detergent will generate suds over clothes.
-
Page 16: Identifying Common Troubles Of Washer
Maintenance of washer Please keep the washer with neat appearance and perform correct maintenance to prolong the service life of washer. Cleaning of water inlet pipe joints Unscrew and remove the water inlet pipe joint from the washer and clean the filtering screen of inlet valve with brush. -
Page 17: Following Phenomena Are Not Problems Of
Following phenomena are not faults of washer Causes Symptom There is water leaks from the This is residual water after the performance test water drain hose when used in the factory. for first time Make up water during During the washing process, the water will be washing process automatically made up when the water level is lower. -
Page 18: Packing List
PACKING LIST Number Description Quantity Washing Machine Inlet Hose Upper drain Hose Operation manual Packing Bag Self-tapping Screw Nail Bottom Board...
