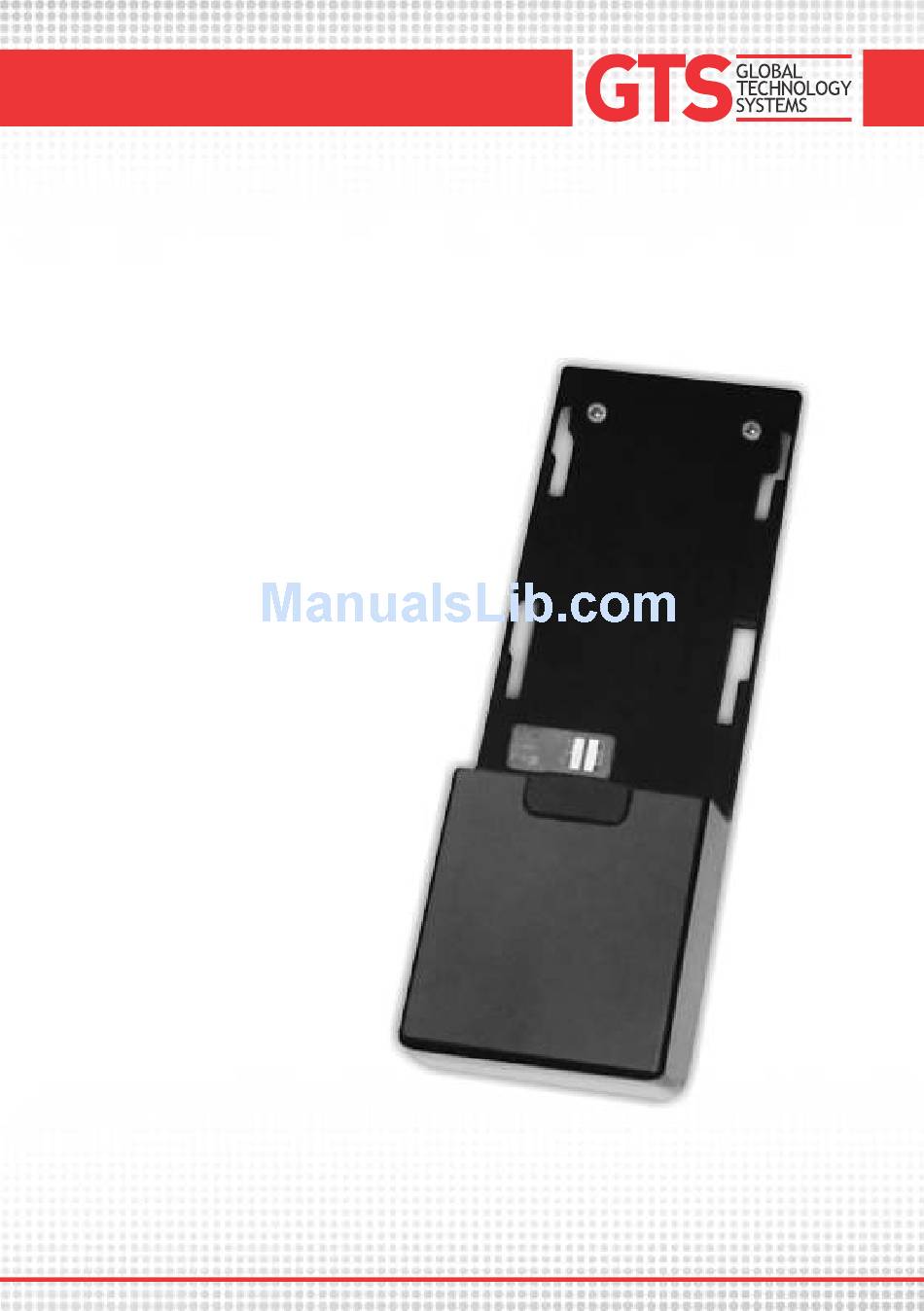

- Page 1 ® PATRIOT KVL30 Adapter ® Designed to link the Motorola KVL 3000/3000+ Radio Key-loader with the GTS H8610-Li High Capacity Lithium Ion rechargeable battery Global Technology Systems - Revision 1...
-
Page 3: Table Of Contents
Contents Introduction Equipment Supplied Safety Guidelines Warning Product Specification Installation Compatible Batteries Compatible Battery Chargers Troubleshooting Cleaning RF Devices Replacement Parts Warranty and Support ... -
Page 4: Introduction
® ® The Patriot KVL30 adapter will key and latch onto the Motorola KVL 3000 / 3000+ series Key-loader, and is designed for use with the GTS H8610-Li High Capacity Lithium Ion rechargeable battery (Figure 3) which provides power to the device, replacing the NTN 7394B 1200 mAh Ni/Cd battery pack. -
Page 5: Equipment Supplied
non-approved batteries may cause personal injury and or damage to the equipment. ® To reduce risk of electric shock, never install the Patriot KVL30 adapter onto the ® Motorola KVL 3000/3000+ Radio Key-loader with the battery already attached Dispose of used batteries in accordance with your state or local hazardous material laws. -
Page 6: Installation
KVL30 Installation ® ® NOTE: Never install the Patriot KVL30 adapter onto the Motorola KVL 3000/3000+ Radio Key-loader with the battery already attached. This can cause damage to the battery or device Installation ® ® To install the Patriot KVL30 latches directly to the Motorola KVL 3000/3000+ Radio Key-loader exactly as if installing the NTN 7394B 1200 mAh Ni/Cd battery pack. - Page 7 Battery pack Installation onto the Patriot KVL30 ® ® NOTE: Never install the Patriot KVL30 adapter onto the Motorola KVL 3000/3000+ Radio Key-loader with the battery already attached. This can cause damage to the battery or device. Installation ®...
-
Page 8: Compatible Batteries
H8294-C (17) 1700 mAh NiCad H8294-C 1500 mAH NiCad H8610-Li (38) 3800 mAh ® GTS batteries for the Motorola HT1000, MT1000, JT1000, MTS2000, MTX8000, MTX9000 ® ® Motorola batteries for Motorola XTS3000, XTS3500, XTS5000 Battery Model Capacity Chemistry NTN9862A 2000 mAh... -
Page 9: Compatible Battery Chargers
The following list is of recommended chargers for batteries which are approved for use ® with the Patriot KVL30 adapter as listed in table 1. ® GTS Patriot Multi-chemistry Charging Systems are compatible with all batteries listed in table 1. -
Page 10: Replacement Parts
Replacement Parts Please contact: Global Technology Systems, Inc., 551 Cochituate Road, Framingham, MA 01701 800.267.2711, In Europe call: 00800.5390.5390, www.GTSpower.com Warranty and Support For warranty and service information call 1-508-650-1172. Outside North America, please contact your local Global Technology Systems representative. Global Technology Systems, Inc. - Page 11 Global Technology Systems, Inc products might be used. An implied license only exists for equipment, circuits, and subsystems contained in GTS products.
- Page 12 Global Technology Systems, Inc. 550 Cochituate Road Framingham, MA 01701 US: 1.800.267.2711 EU: 00800.5390.5390 www.GTSpower.com...
