Roemtech PMA-245 Instruction Manual

Instruction Manual
www.roemtech.com

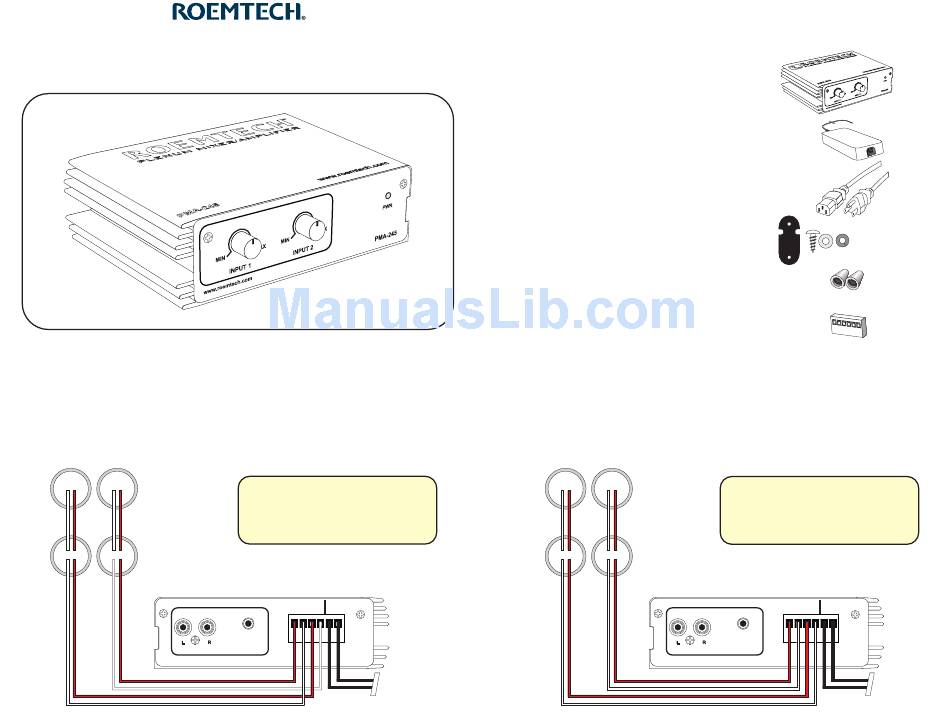

Typical Bridged
Mono Wiring Diagram
Right Left
-/+ -/+
Rear Rear
Speaker Speaker
Left
Right
-/+ -/+
Front
Front
Speaker
Speaker
RCA STEREO
www.roemtech.com
PMA-245
This setup provides bridged
mono audio. All speakers
receive L and R audio signals.
Note: Attach R+ and L- for one channel
and R- and L+ for the other.
SPEAKERS PWR
+ L - + R -
+/- +/-
INPUT 1
INPUT 2
3.5 MM
STEREO
PMA-245
(Power connections are
polarity tolerant at amp.)
1. Plenum Rated Stereo
2. Regulated 60 watt Power Supply
3. Universal 5' Power Cord
4. Mounting Hardware
5. Pair of Wire Nuts
6. Detachable Terminal Block
Right
-/+
Rear
Speaker
Right
-/+
Front
Speaker
To Power Supply
List of Contents
Mixer/Amplifier - 45 watts
(Not Plenum Rated)
(Not Plenum Rated)
Typical Stereo
Wiring Diagram
Left
-/+
Rear
Speaker
Left
-/+
Front
Speaker
INPUT 1
INPUT 2
3.5 MM
STEREO
RCA STEREO
www.roemtech.com
(x 2)
This setup provides
true stereo seperation
SPEAKERS PWR
+ L - + R -
+/- +/-
PMA-245
To Power Supply
(Power connections are
polarity tolerant at amp.)
