QPS-5000N Audio Power Supply
The QPS-5000N Audio Power Supply mounts into the QBB-5001 expansion audio cabinet. The power supply chassis
mounts into the bottom left section of the audio cabinet as shown in Figure 1 below.
On the top portion of the power supply chassis is a battery disconnect relay.

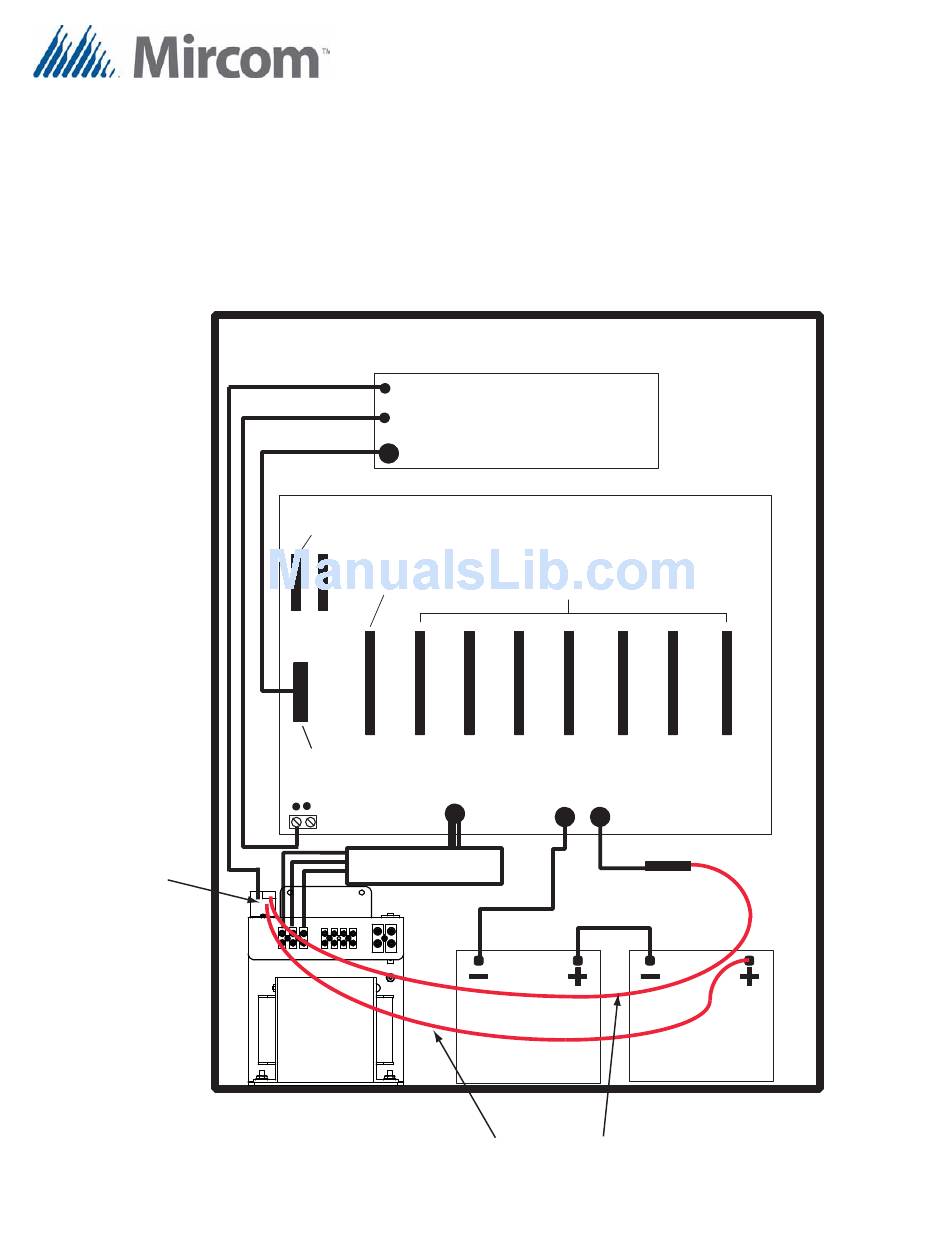

Figure 1: QBB-5001 Expansion Audio Cabinet Module Placement
SECURE QPS-5000N POWER SUPPLY TO BACKBOX WITH LUGS AND NUTS PROVIDED
Battery
Disconnect
Relay
Red
Black
CONNECTORS FOR MULTIPLE
QMB-5000B MOTHERBOARDS
SLOT #1
CONNECTOR IS
NOT USED
IN
OUT
CONNECTOR FOR QBC-5000N
BATTERY CHARGER
XFORMER
JW1
TS1
Orange-White-Orange
(MUST BE IN CORRECT ORDER)
L N
120 or
240 VAC
Input
12 VDC BATTERY
QPS-5000N
POWER
SUPPLY
Connecting wires are provided with the
QPS-5000N Power Supply Chassis.
Installation Instructions
QBC-5000N
BATTERY
CHARGER
SLOTS #2 - #8
CONNECTORS FOR
QAA- STYLE AMPLIFIERS
- BATTERY +
INLINE FUSE 50A
Black
12 VDC BATTERY
LT-1107 Rev. 0
QPS-5000N
Audio Power Supply
QMB-5000B
Motherboard
Red
Jan 2012 Page 1 of 2
Advertisement
Table of Contents
Related Manuals for Mircom QPS-5000N
Summary of Contents for Mircom QPS-5000N
-
Page 1: Installation Instructions
Installation Instructions QPS-5000N Audio Power Supply The QPS-5000N Audio Power Supply mounts into the QBB-5001 expansion audio cabinet. The power supply chassis mounts into the bottom left section of the audio cabinet as shown in Figure 1 below. On the top portion of the power supply chassis is a battery disconnect relay. - Page 2 Battery Disconnect Relay comes from the QBC-5000N Battery Charger (the red wire soldered to the board) with a lug connector on the end (refer to Figure 1). Wire as noted in Figure 2 below. Figure 2: Battery Disconnect Relay Wiring (Relay located on the QPS-5000N Power Supply Chassis)
