Summary of Contents for Aarow BK061

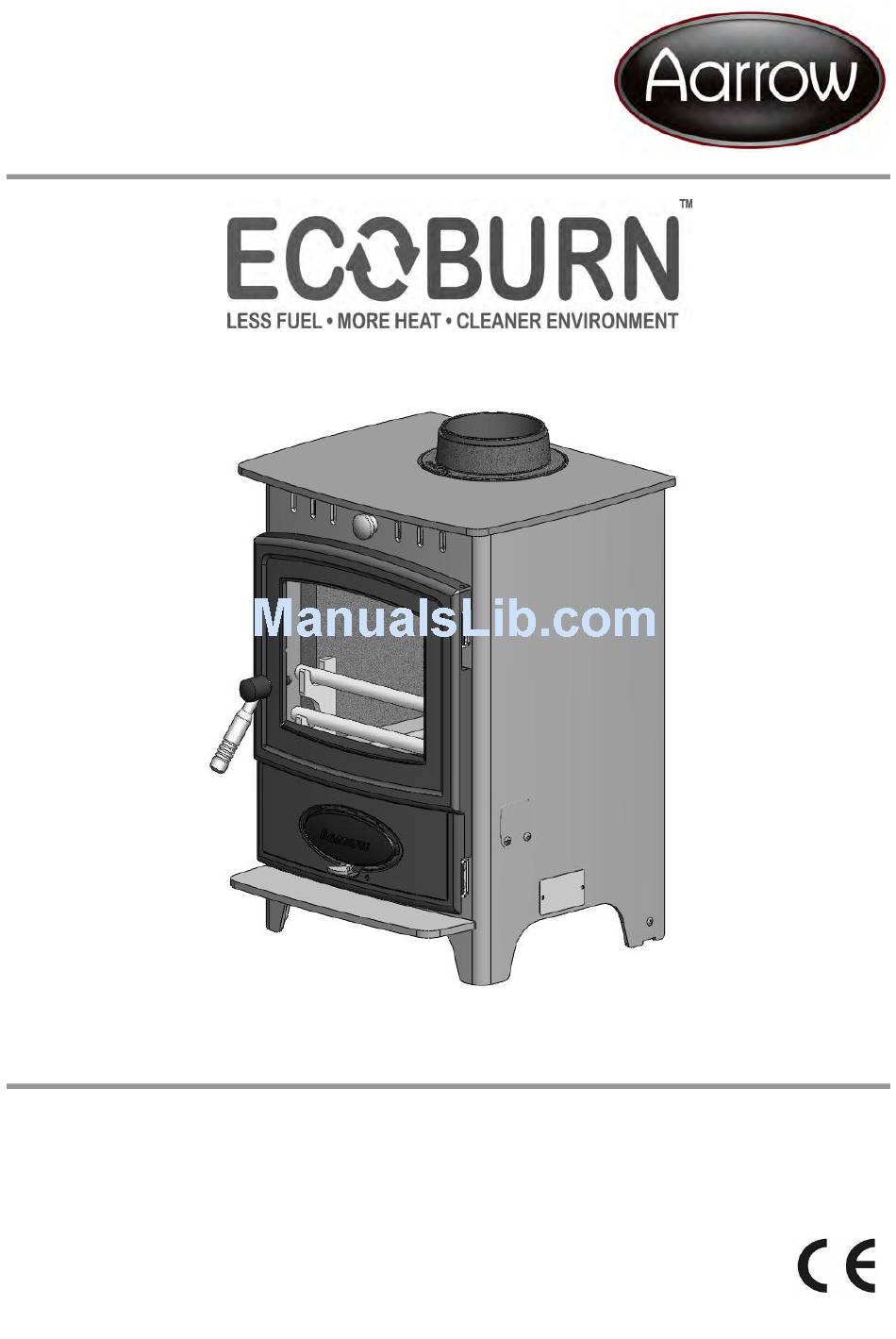

- Page 1 Operating & Installation Manual RANGE OF STOVES PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE Rev 05 BK061 August 2009 Part No. AFS1363 EN 13240:2001+ Amd. A2:2004...
- Page 2 Congratulations on your choice of an Aarrow Stove. More than 20 years experience has been put into the development of our Ecoburn range to ensure ultimate performance and years of trouble free use and enjoyment. Every detail of the stove has been carefully designed and engineered which is why we are so confident in the reliability of our products.
-
Page 3: Table Of Contents
Contents Page No. Page No. INTRODUCTION SERVICE & MAINTENANCE Warning Notice Annual Maintenance Safety Notices Cleaning The Principle Of The Stove Chimney Sweeping Check List Door Glass Data Plate Information Outer Finish Technical data Summer Storage / Non Usage INSTALLATION Adjusting The Door Hinges General Precautions Fuel Retaining Bar-Inspection... -
Page 4: Warning Notice
WARNING IT IS A LEGAL REQUIREMENT THAT THE INSTALLATION OF ALL NEW OR REPLACEMENT, WOOD OR SOLIDFUEL HEATING APPLIANCES ARE REQUIRED TO OBTAIN BUILDING CONTROL APPROVAL FROM YOUR LOCAL AUTHORITY OR THE INSTALLATION WORK MUST BE CARRIED OUT THROUGH A GOVERNMENT APPROVED COMPETENT PERSONS SCHEME SUCH AS OPERATED BY HETAS. -
Page 5: Introduction
INTRODUCTION SAFETY THE PRINCIPLE OF THE STOVE Your Aarrow stove is built to the highest A fireguard conforming to BS 8423:2002 should be used in the presence of children standard of craftsmanship using the best and old or infirm people. materials and the most modern equipment Please note, this appliance should be used available. -
Page 6: Check List
CHECK LIST Inside the appliance body you should find the following: Aarrow Aarrow Aarrow Aarrow Part Description & Visual Aid (not to scale) ECB 5 ECB 7 ECB 9 ECB 11 1. Fuel Retainers 2. Throat Plate 3. Flue Spigot 1, ( 4"... -
Page 7: Data Plate Information
CHECK LIST Inside the appliance you should find the following : Aarrow Aarrow Aarrow Aarrow Description & Visual Aid (not to scale) ECB 5 ECB 7 ECB 9 ECB 11 8. Side Liners 9. Rear Liners 10. Wood Burning Tray 11. -
Page 8: Technical Data
TECHNICAL DATA Aarrow Aarrow Aarrow Aarrow TECHNICAL DATA ECB 5 ECB 7 ECB 9 ECB 11 Nominal Heat Output (Kw) Efficiency Nett (%) 74.7 72.1 71.6 74.7 Mean Flue Gas Temperature (c) Mean CO Emission @ 13% O2 (%) 0.58 0.58 0.68 0.71... -
Page 9: Installation
INSTALLATION HEARTH GENERAL PRECAUTIONS Note : All local regulations, including those The stove shall be installed on a floor with referring to National and European standards need adequate load bearing capacity. If the existing to be complied with, when installing the appliance. construction does not meet this prerequisite, The Building Regulations for England and Wales suitable measures (e.g.: load distributing plate) -
Page 10: Fitting The Flue Outlet & Hotplate
INSTALLATION FITTING THE FLUE OUTLET AND FLUES AND CHIMNEYS HOT PLATE The flue draw is critical on any installation and should be checked to ensure that it matches what The flue outlet spigot is found packed inside the is specified. If it is higher than recommended, appliance . - Page 11 INSTALLATION Due to the gradual introduction of Europe Chimney the rear outlet of the appliance is used, in which Standards chimneys will be specified according to case the horizontal section should not exceed 150mm (6”) in length. their performance designation as defined in BS EN 1443 that covers the General Requirements for chimneys.
- Page 12 INSTALLATION NOTE - Under no circumstances should this appliance be connected to a shared flue system, that serves any other heating appliance. Minimum 150mm (6”) Diameter Flue Maximum 150mm (6”) Horizontal Flue Section Soot Door Fire Retardant Rope Packing Maximum 100mm (4”) Brick Up Aperture Fill Void TYPICAL REAR FLUE OUTLET (as per BS 8303-1)
- Page 13 INSTALLATION Typical Metal Insulated Chimney System Installed To The Chimney Manufactures Instructions In Compliance With Building Regulations And BS 7566 Part 1 to 4 PLAN VIEW OF REGISTER PLATE AND CLEARANCES FOR NON INSULATED FLUES Combustible Register Thick (Plan View Of Steel Register Plate, 1.5mm Plate.
-
Page 14: Adjusting The Self Levelling Feet
INSTALLATION FIREBOX LINER PANELS ADJUSTING THE SELF LEVELLING FEET The Aarrow Ecoburn stoves use firebox liner panels to the sides and back. The throat plate sits The Aarrow Ecoburn stoves are equipped with on top of the sides and rear panels. These should adjustable rear levelling feet, these are ideal for come fitted to your stove, if however they are not, use where the hearth surface is not flat or level. -
Page 15: Final Check
INSTALLATION FINAL CHECK LIST Before handing over the installation to the customer it is a requirement under Document J that the appliance is lit and the functioning of the chimney system is checked for satisfactory operation. Be sure that the chimney is operating and ALL smoke and fumes are vented to the atmosphere through the chimney terminal. -
Page 16: Building Control Consent Checklist
INSTALLATION BUILDING CONTROL CONSENT CHECKLIST Hearths, Fireplaces, Flues and chimneys This checklist is to ensure heaths, fireplaces, flues and chimneys are satisfactory, and show what you have done to comply with the requirements of the Building Regulations 2000 approved Document J 2002 1. -
Page 17: Service & Maintenance
SERVICE & MAINTENANCE ANNUAL MAINTENANCE be cleaned prior to lighting the fire after a prolonged shut down period. It is important that your appliance is regularly serviced in accordance with these instructions. DOOR GLASS This should be carried out at least annually by a qualified person and should consist of the The door glass should remain clear during normal following :... -
Page 18: Summer Storage / Non Usage
SERVICE & MAINTENANCE SUMMER STORAGE / NON Refit the door and check. USAGE Please Note : There is no adjustment to the door lock / catch assembly. However, periodically check the tightness of the Please ensure that your stove is left clean and retaining screw to the end of the door handle moving components are well lubricated for the shaft. -
Page 19: Fire Door Rope Replacement
SERVICE & MAINTENANCE FIRE DOOR ROPE FIRE DOOR GLASS REPLACEMENT REPLACEMENT Periodically, visually check over the fire door rope In the event of the door glass being broken it can seal for any damage, cuts or tears and any easily be replaced. Please follow : detached sections. -
Page 20: Primary Air Oval Inspection / Cleaning
SERVICE & MAINTENANCE FIRE DOOR PRIMARY AIR INLET Once a year inspect the primary air inlet assembly located at the base of the fire door. Lift the door assembly from the stove body and place on a level, work bench, with the rear face upper most. -
Page 21: Service Record
SERVICE & MAINTENANCE Service Record Date of Visit Company Work Carried Out Signature Should you have any questions about your Aarrow Ecoburn stove that are not covered in this manual please contact your Aarrow dealer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits so they can complete the service record chart. -
Page 22: Operating Instruction
OPERATING INSTRUCTIONS For additional further advise on fuels, please refer to FUEL TYPES HETAS, Tel 0845 634 5625 or www.hetas.co.uk and or Solid Fuel Association, Tel 0845 601 4406 or www.solid-fuel.co.uk SAFETY NOTICE The most efficient use of this appliance is with HETAS Approval only covers the use of wood on the the fire door(s) closed at all times, apart from appliance and does not cover the use of other fuels... -
Page 23: Burning Wood
OPERATING INSTRUCTIONS Please Note : To avoid chimney problems your BURNING WOOD appliance should not be burnt at a reduced burn rate without a period of fast burning. Set the fire; by using rolled up newspaper and lay a layer of dry kindling wood on top of this. WARNING : Properly installed, with a suitable flue or chimney, operated and maintained correctly, ... -
Page 24: Over Firing & Chimney Fires
OPERATING INSTRUCTIONS OVER FIRING & CHIMNEY FIRES WARNING : The ash can be very hot. Empty only into a metal container. Even if the ash appears cold, red-hot pieces of ash may be concealed and DO NOT over fire your appliance. Using flammable could easily start a fire or cause an injury liquids or too much wood or firing the stove at maximum for prolonged periods may result in over-... -
Page 25: Air Inlet Controls (Primary/Air Wash)
OPERATING INSTRUCTIONS AIR INLET CONTROLS AIR WASH SYSTEM The Aarrow Ecoburn stoves have two air inlet The air wash has an internal sliding plate with controls. slots, housed in a cover plate, and is located The primary air inlet providing under draught to the above the fire door. -
Page 26: Multi Purpose Operating Tool
OPERATING INSTRUCTIONS MULTI PURPOSE OPERATING TOOL Your Aarrow EcoBurn stove is supplied with a multi purpose operating tool, used for adjusting the air inlet controls and the removal of the ash pan ( See fig. 17 ) TO EMPTY THE ASH PAN The Ecoburn stoves are supplied with a unique ash pan. -
Page 27: Main Fire Door Handle
OPERATING INSTRUCTIONS MAIN FIRE DOOR HANDLE A stove mitten is supplied with your Aarrow Ecoburn stove, this is provided for the operation of the fire door handle whilst the stove is in use. Care must be taken when opening and closing the fire door as any surrounding areas of the stove will be very hot. -
Page 28: Optional Extra/Accessories
OPTIONAL EXTRA / ACCESSORIES Visual Aid Aarrow Aarrow Aarrow Aarrow PART DESCRIPTION (not to scale) ECB 5 ECB 7 ECB 9 ECB 11 Aerosol Touch Up AFS 101a AFS 101a AFS 101a AFS101a Paint Gothic Door ECB 5 ECB 7 ECB 9 ECB 9 Tracery... -
Page 29: Spare Parts List
SPARE PARTS LIST PLEASE NOTE : The serial number of your stove can be found stamped into the casing , centrally between the bottom edge of the fire door aperture and the top edge of the ash pit aperture. Visual Aid Aarrow Aarrow Aarrow... - Page 30 SPARE PARTS LIST Visual Aid Aarrow Aarrow Aarrow Aarrow PART DESCRIPTION (not to scale) ECB5 ECB7 ECB9 ECB11 AFS008 Operating Tool AFS008 AFS008 AFS008 Replacement Glass AFS1214 AFS1215 AFS1216 AFS1216 Replacement Glass Rope Gasket & Clips AFS1365 AFS1365 AFS1365 AFS1365 (Universal Length) AFS047 AFS047...
- Page 31 SPARE PARTS LIST Visual Aid Aarrow Aarrow Aarrow Aarrow PART DESCRIPTION (not to scale) ECB5 ECB7 ECB9 ECB11 Replacement Stove Mitten ( Hot Glove ) AFS1285 AFS1285 AFS1285 AFS1285 Replacement Primary AFS1368 AFS1369 AFS1369 AFS1369 Air Inlet Slider Replacement AFS1405 AFS1405 AFS1405 AFS1405...
-
Page 32: Guarantee
GUARANTEE Guarantee If your appliance proves to be defective as a Once again we would like to thank you for result of faulty materials or workmanship during the guarantee period, we will repair or buying an Aarrow Ecoburn stove. replace it FREE OF CHARGE as long as the When you buy an Aarrow stove, you are not stove has been installed according to this only buying a first class appliance you are... -
Page 33: Guarantee
Lifetime Guarantee For your peace of mind Aarrow stoves gives a Lifetime Guarantee against manufacturing defects of the main body* Of its Ecoburn range of stoves. Additionally, all other parts are covered by a one year no quibble replacement guarantee. This guarantee covers replacement of the item only and does not extend to any other costs, including labour, incurred in its replacement. -
Page 34: Factory Check List
Operating Tool Operating & Installation Manual Stove Mitten Date of Purchase……………………………….. Name and Address of Supplier……………………………………………………………... ………………………………………………………………………………………………….. ………………………………………………………………………………………………….. Arada Ltd The Fire Works Millway Industrial Estate Axminster Devon EX13 5HU United Kingdom Tel: +44(0)1297 35596 Fax: +44(0)1297 35900 www.arada.uk.com BK061...
