Summary of Contents for Novation AudioHub 2x4
-

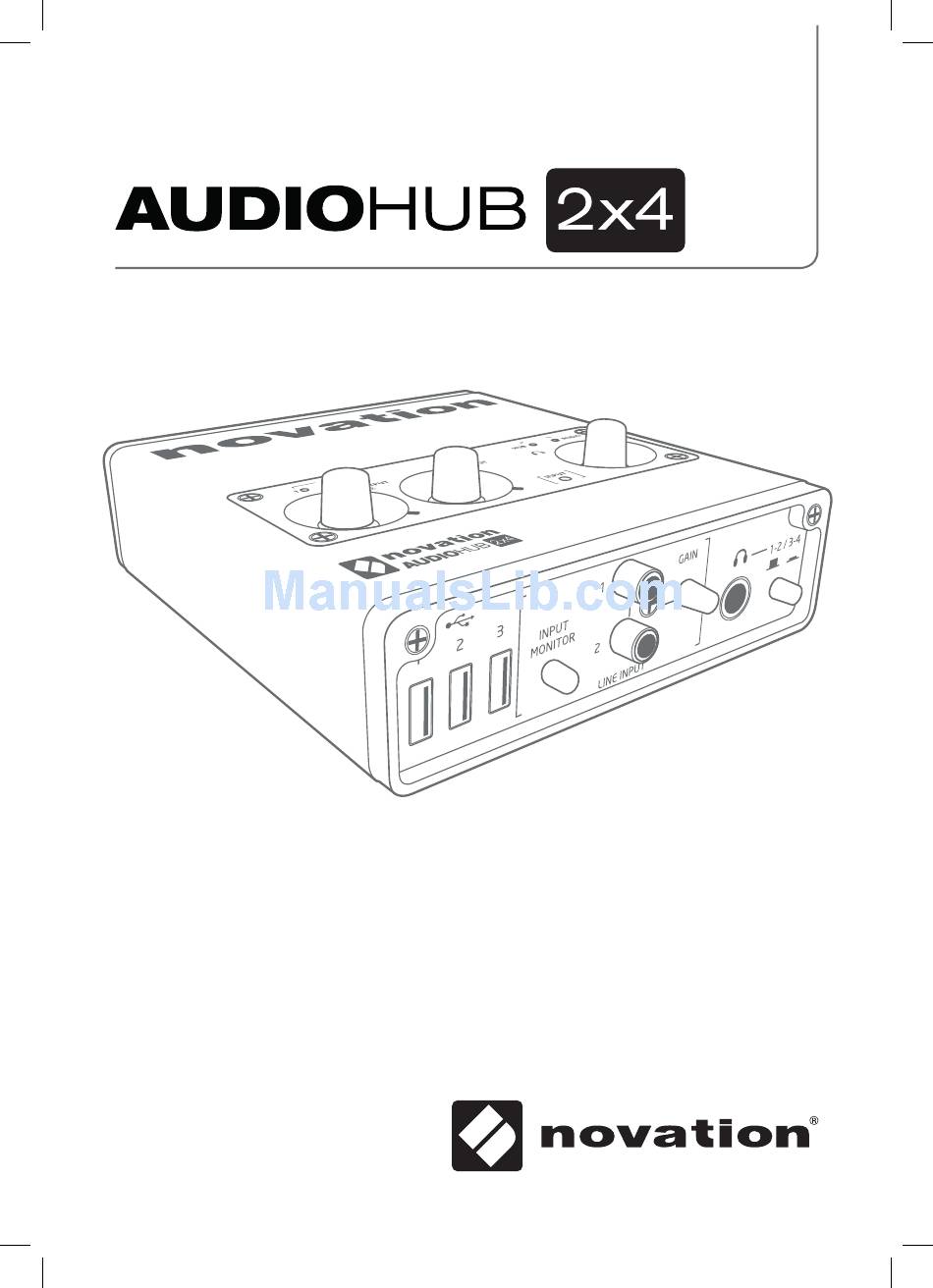

Page 1: Getting Started Guide
Getting Started Guide FFFA001083-01... -
Page 2: What's In The Box
What’s in the box? The Novation Audiohub 2x4 Power Supply USB cable Software / Registration card... -
Page 3: Registering Your Product
Getting Started Overview Novation Audiohub 2x4 is a 2 in, 4 out audio interface and USB hub for PC, Mac and iPad Music Makers and Performers. It has Focusrite Sound Inside meaning that it has been designed by the Engineers at Focusrite to give you a guarantee of high quality audio as well as being Super-Loud! - Page 4 / documentation. iPad To use the Novation Audiohub 2x4 you will need to connect it via an Apple Camera Connection Kit (not included). The Audiohub must also be connected to the included power supply either for audio, USB hub use or both.
- Page 5 Ways of connecting your Audiohub 2x4 Example Setup 1 In this setup the two main jack outputs 1 & 2 are connected to a pair of powered monitor speakers, and a device such as a synth is connected to the RCA inputs (an audio cable will be needed as shown above).
-
Page 6: Installing The Software
Now any audio sent to outputs 3 & 4 will be passed through the effects processor and mixed in with the main outputs 1 & 2. Using your Audiohub 2x4 for the first time REMINDER: The three volume controls on the top of the product should still be all the way down (anti-clockwise) and your amp or monitor speakers should be off. -
Page 7: Hardware Features
Hardware features RCA sockets for unbalanced outputs 1&2, 3&4 Kensington Security Slot Power jack 1/4” TRS jack sockets for balanced outputs 1&2 USB socket LEDs to show when devices are connected to the front USB hub ports Volume controls for outputs 1&2, 3&4 LEDs to show signal/clip at the input RCAs* LEDs to show when Audiohub is working as an audio interface and/or... -
Page 8: Ableton Live Lite
Ableton live lite From Live Lite’s Preferences select the Novation Audiohub 2x4 as both an Audio Input and Audio Output Device. In Input and Output Config select the number of inputs and outputs you wish to use. Support THANK YOU FOR CHOOSING THE NOVATION AUDIOHUB 2X4 For customer support, please contact us online: www.novationmusic.com/support...
