G-Tech 5255A Operation Manual

Operation Manual for 5255A
This compact Solar device, provides power the convenient, eco-friendly way. Can be recharged from direct sunlight, through
an A/C power outlet or via computer. It charges most small electronic devices like an iPod, iPhone, PDA, GPS, digital camera,
MP3 player and most brands of cell phones which provided with 7 attachments.

Checking the battery level

When light is turning red or off, it indicates the power is low, and it needs to be charged. When light is turning green, it
indicates the power is 90% full.

Charging Device from Power Outlet

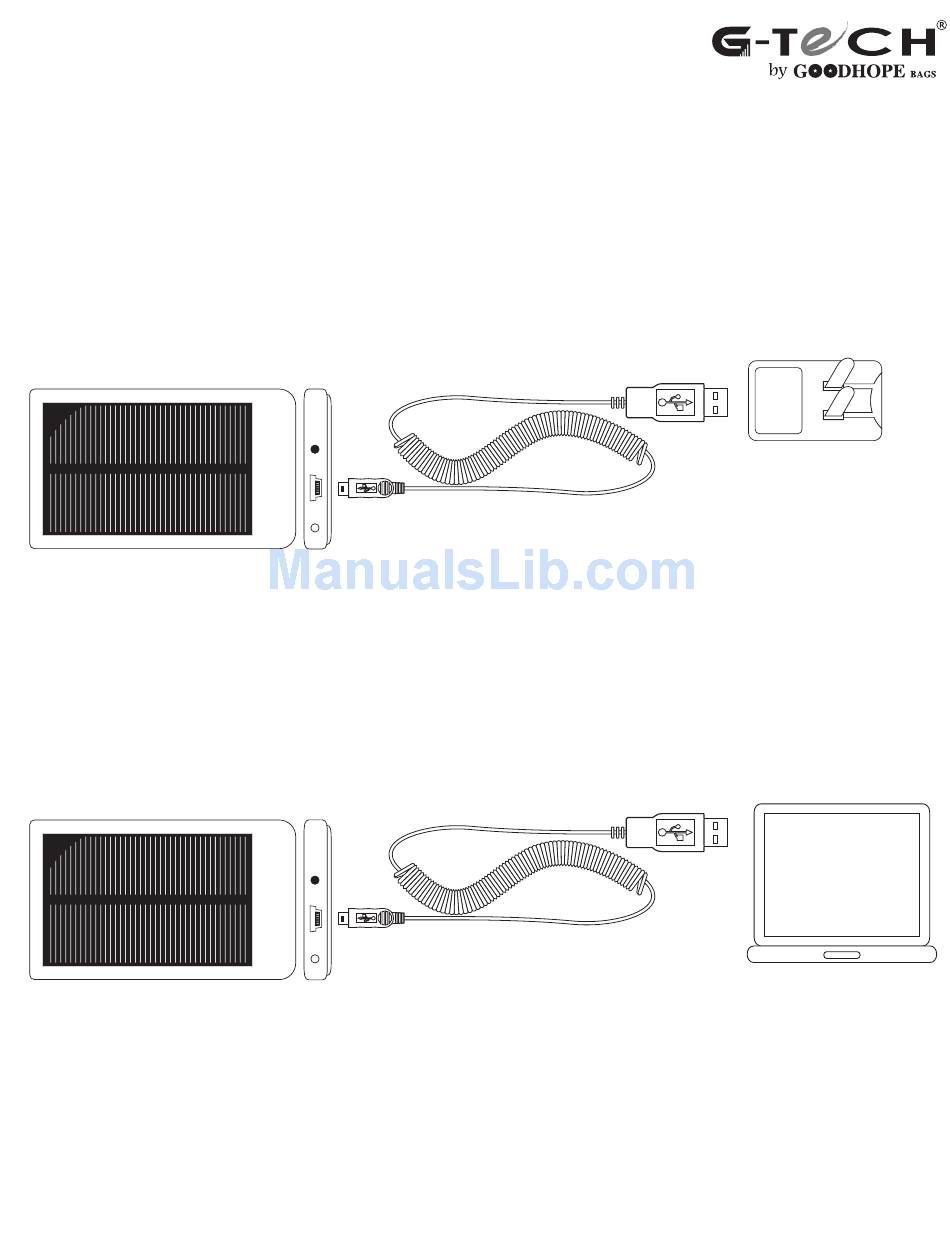

Please refer to the diagram above for connections.
• Take the USB charging cable (2) and plug the mini USB end (1) into the socket of solar charger.
• Insert the USB end (3) into A/C adaptor (4).
• After this connection is completed, plug the A/C adaptor into the power outlet to start charging.
When the green light is on, it indicates the device is fully charged. It takes approximately 4 hours to fully charge
the device by A/C power outlet.

Charging Device via PC

Please refer to the diagram above for connections.
• Take the USB charging cable (2) and plug the mini USB end (1) into the socket of solar charger.
• Insert the USB end (3) into PC to start charging. When green light is on, it indicates the power is fully charged.
It takes approximately 4 hours to fully charge by PC.

Charging Device from Sunlight

It is not necessary to connect any wires in order to charge the device by sunlight. Simply place the device facing to the
sunlight; a 90-degree angle provides optimal charging. Approximately 18 hours of exposure to good sunlight is necessary
to fully charge the device.
USB Charging Cable
(2)
Mini USB
(1)
USB Charging Cable
(2)
Mini USB
(1)
USB
(3)
A/C Adaptor (4)
USB
(3)
PC
