Summary of Contents for Leaf DH 112Y

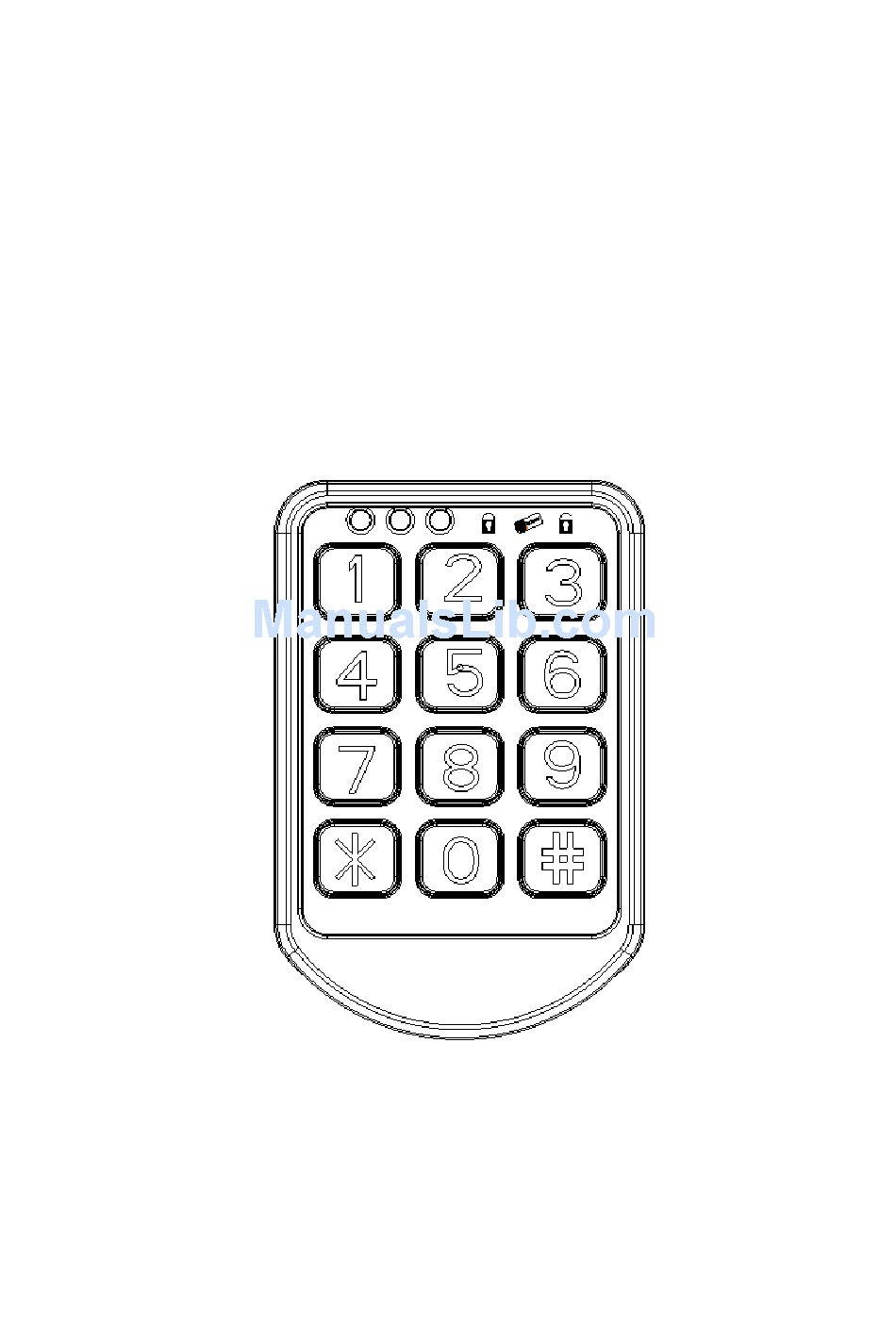

  • Page 1 User manual...

  • Page 2: Table Of Contents

    M anual LEAF TECHNOLOGIES – DH 112Y Catalogue 1. LOCK SIZE AND ACCESSORIES ............. - 2 - Picture:Lock panel structure ....E NDICADOR NÃO DEFINIDO Picture:Lock cylinder structure ..............- 2 - Accessories ....................- 3 - 2. INSTALL AND USE ..................- 4 - 3.OPERATION ....................

  • Page 3: Lock Size And Accessories

    M anual LEAF TECHNOLOGIES – DH 112Y Lock size and accessories  ICTURE OCK PANEL STRUCTURE  ICTURE OCK CYLINDER STRUCTURE - 2 -...

  • Page 4: Accessories

    M anual LEAF TECHNOLOGIES – DH 112Y  Accessories Provide Image Item Usage Remark Rate Open External Set accessory External urgently power pro rata when power supply power loss supply Achieve Automatic Strong elasticity optional open the door lock catch...

  • Page 5: Install And Use

    M anual LEAF TECHNOLOGIES – DH 112Y 2.INSTALL AND USE - 4 -...

  • Page 6: Operation

    M anual LEAF TECHNOLOGIES – DH 112Y 3.OPERATION  HANGE PASSWORD Change Master code Master code（Default is“00000000”）is consist of 4-10 digits number，it can be long term preservation even the interruption of power supply, the master code can change by the manager.The method of changing master code: keep pressing the “#”...

  • Page 7: Turn On Lock

    M anual LEAF TECHNOLOGIES – DH 112Y Public type change the user code The public type don’t need to change user code ，the code which used to turn off(lock) door is the code can open it. The code can set as （Must be consist of 4-10 digits number）...
  • Page 8 M anual LEAF TECHNOLOGIES – DH 112Y 3． Emergency open： 1） When battery have not enough power to drive motor,users can connect external power supply to (Battery case) supply power to turn on lock； 2）When uses forget password,users can input master code or frame hopping to turn on lock；...
  • Page 9 M anual LEAF TECHNOLOGIES – DH 112Y times,lock main PCB will automatic lock 5 minutes, in this period if users press any keypad,it will have not any response.This function is used to avoid password was steal by somebody。 9．Mode convert function Public mode(Type) and Private mode(Type) can use master code to convert。...

  • Page 10: Slectable Functions

    M anual LEAF TECHNOLOGIES – DH 112Y random password) can not more than 20 digits,else system will indicate "it is wrong"  Selectable functions Read cabinet lock information Use PDA can collect latest turn on records（200 pcs）,include turn on time,turn on password,and status ， after collected these information,you can read it on software or PDA。...
  • Page 11 M anual LEAF TECHNOLOGIES – DH 112Y card, test report on quality and so on), and provide 1‰ accessories. 2. guarantee period: one year’s free guarantee period since you buy, promise the normal use of the product in guarantee period. Provide free to repair, maintenance and change in one year;...

  • Page 12: Normal Faults And Solution

    M anual LEAF TECHNOLOGIES – DH 112Y  ORMAL FAULTS AND SOLUTION Solution Noraml fault Analysis of causes Use the external power supply to Lack internal power Cant open when the open, change the battery immediately supply green light on...
