Innovative Programming Systems, Inc.
Scanner Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Monarch 6039 and is the answer not in the manual?

Questions and answers

Summary of Contents for IPS Monarch 6039

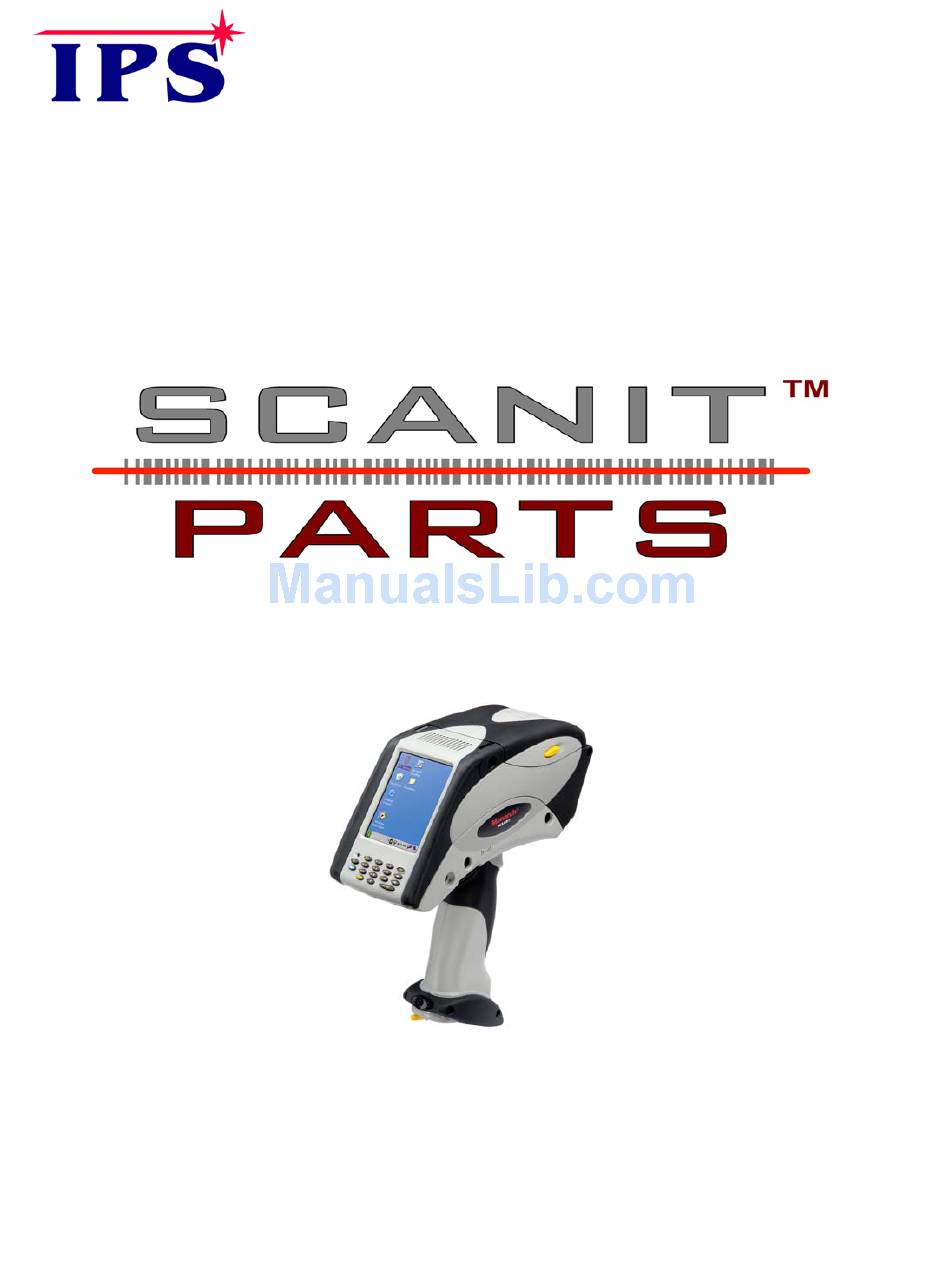

  • Page 1 Innovative Programming Systems, Inc. Scanner Manual...
  • Page 2 ScanIt Parts Overview The ScanIt Parts software begins by automatically logging into the host (ADP/R&R/Arkona/DealerTrack/Automate/Autosoft) computer and downloading all of today’s open orders, special orders, and inventory into the ScanIt Parts PC. Parts are scanned using a radio frequency handheld barcode scanner with a built-in printer.

  • Page 3: Main Menu

    How to use the Monarch Scanner Note: On the ScanIt Parts PC, the Interact window must always be open. To boot the system: Push the power button on the top right side of the keypad. When prompted, touch the screen to connect. Load Labels: Select then select this will print one label.
  • Page 4 Main Menu 1: Receive Print Labels: Select the , select then select which type of label to print: • Barcode • SPO Label Note: You can add up to 2 additional labels using the label designer through Settings from the Main Menu. Automatically Print Labels during Scanning: Select the then turn print mode on by selecting Enter multiple Quantities during Scanning: Select the...
  • Page 5 Main Menu 2: Bin Changes 1) Enter the new bin location. 2) A label will automatically print. Note: If a label does not automatically print, select the button, then select 3) When you are done assigning all of the parts, select the button to return to the Main Menu.
  • Page 6 Main Menu 3: Misc Menu Hot Keys: - Automatically Print Labels during Scanning Other Items Change Batch #: enter the new batch # Print Label: select which type of label to print: • Part # Barcode Note: You can add up to 3 additional labels using the label designer through Settings from the Main Menu.
  • Page 7 Part Inquiry Print Label: select which type of label to print: • Part Inquiry Note: You can add up to 3 additional labels using the label designer through Settings from the Main Menu. Add Lookup Change Current Make: enter the new Make code.
  • Page 8 Main Menu 4: Perpetual Inventory Print Label: Select which type of label to print: • Part # Barcode Note: You can add up to 3 additional labels using the label designer through Settings from the Main Menu. Turn Print Mode ON: will automatically print labels during scanning. Perpetual Inventory Instructions 1) Perpetual Inventory is option 4.

  • Page 9: Charging The Battery

    Charging the Battery ***** Wait 15 seconds after removing the charged battery from the charger, before inserting the dead battery in the charger. To recharge the battery, insert the battery into the charger, with the ribbed end sticking out. Charging time can take up to three hours.
  • Page 10 Load Labels in 10 Steps 1. Turn on the scanner 6. Feed the blank backing paper UNDER 2. Press the latch buttons and open the supply applicator roller, OVER the metal (peel) bar cover. UNDER the label deflector. Application Roller Metal (Peel) Bar 3.
  • Page 11 Scanner units received with broken cases are generally not covered under warranty. Parts and Labor – IPS will provide new or remanufactured parts and labor to correct defects in material and workmanship for the product covered during the 1-year manufacturer warranty period.
  • Page 12 For Support: http://www.scanitparts.com/contact.aspx 2) Call (810) 695-9332, Option 1, Technical Support To Order Labels or Batteries: http://www.scanitparts.com/order.aspx 2) Call (810) 695-9332, Option 3, Supplies...
