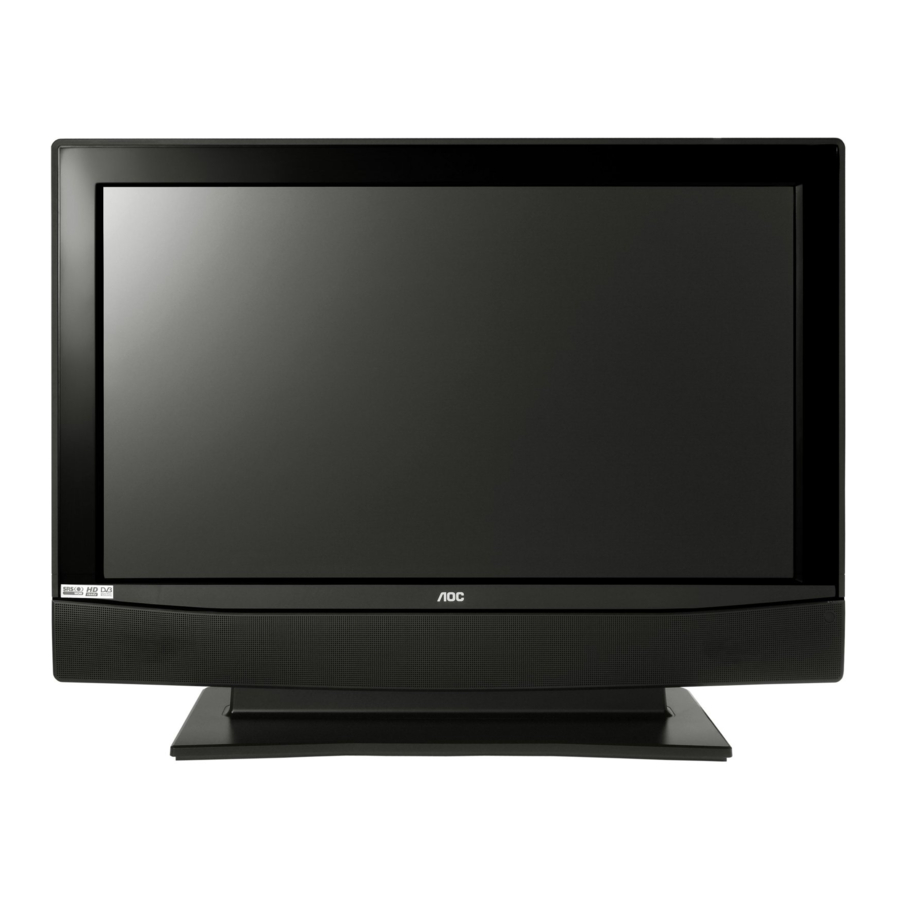

- Page 1 LCD TV User Manual L26W781B L32W781B L37W781B L42W781B...
-
Page 2: Table Of Contents
USER’S MANUAL TABLE OF CONTENTS INSTALLATION ---------------------------------------------------------- 1 For Your Safety ---------------------------------------------------- IMPORTANT SAFETY INSTRUCTIONS ------------------------ PREPARATION ---------------------------------------------------------- 6 OPERATING INSTRUCTIONS -------------------------------------- Use of the remote control --------------------------------------- Teletext -------------------------- ------------------------------------ 9 To use the menus ------------------------------------------------ 10 Main menu --------------------------------------------------------- 10 DTV menu ------------------------------------------------------------ 18 CONNECT PERIPHERAL EQUIPMENT -------------------------- 24 Control Knobs ------------------------------------------------------ 24... -
Page 3: Installation
FOR YOUR SAFETY Before operating the TV please read this manual thoroughly. This manual should be retained for future reference. NOTICE The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 4: Compliance Information
Compliance Information CE Conformity for European Countries The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility”, 93/68/EEC Art.13 with regard to “Safety.” SRS and are registered trademarks of SRS Labs, Inc. This product is designed using SRS technology with permission from SRS Labs, Inc. - Page 5 Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below: Examples of exempted components are: 1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not specifically mentioned in the Annex of RoHS Directive.
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read before operating equipment Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. - Page 7 18. Tilt/Stability – All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design. Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet, which could ultimately overturn the product.
-
Page 8: Preparation
PREPARATION Place the TV on a solid surface. Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover. To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity. - Page 9 Remote control: Remove the cover of the battery compartment. Insert the 2 batteries supplied (Type AA 1.5V). Power: Insert the power cord in the wall socket having an AC power supply . Turn the TV on: Press the power button of the TV to turn it on. When the TV is ON, the indicator turns green.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS USE OF THE REMOTE CONTROL POWER: Press to turn on/off the TV. The TV is never completely powered off unless it is physically unplugged. VIDEO Press this key you could select AV1, S-VIDEO, HDTV and HDMI. SCART Press this key you could select SCART 1 SCART2 and SCART2-S. -
Page 11: Teletext
TELETEXT Teletext is an information service organized like a magazine, which is provided by some TV stations in addition to regular television broadcasting. TELETEXT Press TELETEXT. The Teletext screen appears. To turn off the Teletext mode, press TELETEXT again. Press MIX to superimpose the teletext over a normal broadcast picture. -
Page 12: To Use The Menus
To use the menus Press the MENU button to display or close main menu. Use the cursor up/down to select a menu item. Use the cursor left/right to enter a submenu or enable/disable the function. Press the MENU button to exit the menu. MAIN MENU Press the MENU button to enter the main OSD (On Screen Display). -
Page 13: Options Setup
Balance : adjust the balance between left / right channels as required using the < / > button. Bass : adjust the bass level as required using the < / >button. Treble : adjust the treble level as required using the < / > button. SRS WOW : Using <... -
Page 14: Pc Setup
This menu allows to select the language for the menus as well as the colour of the screen when there is no video input. It allows also to set an automatic shut-off time. Menu Language : To select the language for the menus. Menu Timeout : To set an automatic shut-off time for Menu. - Page 15 H Position : use the < / > buttons to move the picture horizontally on the screen. V Position : use the < / > buttons to move the picture vertically on the screen. Phase : use the < / > buttons to move the picture phase on the screen. Auto Sync : this function is used to automatically adjust the VGA input.
-
Page 16: Installation Setup
Installation Setup : Installation Setup involes selecting all the settings required to be able to search for and store all the channels you can receive. Make sure that the television is switched on and follow all the steps in turn specified on this page. - Page 17 Select Man. Installation using the \/ button. Press the OK button to display the Manual. Installation menu. Use the ^ / \/ buttons to select each option. Prog. Number : Allow to select the program on which you want save a new channel or a program you want to modify.
- Page 18 Once a channel has been found and named, use the \/ botton to select the Store prog. option. Using the < / > buttons, select Save, Insert or Delete and press the OK button to confirm. Swap prog : Allows to swap 2 programme numbers. Using the ^ / \/ buttons select the Prog.
-
Page 19: Input Selection
INPUT SELECTION To select TV/VIDEO source: To select desire input source, press the SOURCE button to display the selection menu. Using the ^ / \/ buttons to select each input sources. Press the OK button to display the desire input source. -
Page 20: Dtv Menu
DTV MENU First-Time Installation When the system is first switched on, the Reference Application attempts to configure itself for the first time. This is called ”First Time Installation”. The user is then asked if they wish to perform an automatic tune for services. Automatic tuning functionality is described later in this document. -
Page 21: Edit Favourites Lists
Edit Favourites Lists A favourites list enables the user to select a subset of services they consider favourite. The Reference Application allows the user to have up to five different favourites lists. Favourites lists are defined in the favourites dialog that can be accessed by selecting the favourites button on the channel list dialog and via the Main Menu. -
Page 22: Language Settings
Configuration Time Zone: Press RIGHT/LEFT to select the time zone you are in. Press DTV MENU to exit this screen. (Inc. GMT/CET) DST: Press RIGHT/LEFT to select or deselect DST mode, Press DTV MENU to exit this screen. Subtitle: Press RIGHT/LEFT to select subtitle on or Off, Press DTV MENU to exit this screen. - Page 23 language to be used for the current selected channel, please note that only languages available with the currently selected channel will be displayed. Installation Automatic Search Manual Search First Time Installation Automatic Search Automatic search is the ability for the reference application to scan each other (Frequency) for services.
-
Page 24: Channel Number
Manual Search Manual tuning: Channel Number: Signal Quality: Signal Level Manual search allows the user to scan an individual channel (frequency) for services .The user can perform a manual tune by selecting an option on the “Main Menu”. Whilst performing a manual tune no service will be selected. The user enters the channel number to be scanned;... -
Page 25: First Time Installation
First time installation Choose this will return to the original condition, you can choose country as first time in installation. And search channel again. When you select it, you will see as following: Are you sure your want to delete all channels and settings for first time installation? Common Interface Common Interface... -
Page 26: Connect Peripheral Equipment
CONNECT PERIPHERAL EQUIPMENT CONTROL KNOBS 1,2: + / - Key : Press to confirm your function selection and adjustment. 3,4: Up / Down Key : Press to perform select function and channel. 5: MENU Key : Press to show the OSD menu and exit OSD menu. 6: Source Key : Press to select your input source. -
Page 27: Preparation
PREPARATION Lay the LCD TV with the screen down on a table, as it will be easier to connect your peripheral equipment. Please take your precautions not to damage the screen. 1: Audio output 2: SPDIF output 3: SCART2(CVBS)/SCART2-S 4: SCART1(RGB/CVBS) 5:DTV 6:ATV 7: Component video(HDTV) -
Page 28: Video Recorder
VIDEO RECORDER How to connect 1. Connect the antenna cable to the RF IN port of your VCR. 2. Connect another FR cable from the port of your VCR to the antenna port of you ATV set. If you have connected the video/audio cable to the video AV port, you may have better sound and picture when playing the VCR . -
Page 29: Camera Camcorder Video Game Set
CAMERA CAMCORDER VIDEO GAME SET How to connect Connect the camera, camcorder and game set to the ports of the audio/video set. The camcorder may get better picture by connecting a S-VHS cable between the S terminal and the Audio set. How to use it Select the video AV or S terminal input. -
Page 30: Headphone
HEADPHONE The headphone jack is located at the side of the TV. The MUTE key on the remote control works on both internal speaker and the headphone. Use volume key to adjust the volume. TIPS Care of the screen Do not rub or strike the screen with anything hard as this may scratch, mar, or damage the screen permanently. -
Page 31: Before Calling Service
BEFORE CALLING SERVICE Please make these simple checks before calling service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty. Symptoms Items to Check and Actions to follow “... -
Page 32: Glossary
GLOSSARY Audio / Video Inputs Located on the rear and the front of the receiver these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options. -
Page 33: Product Specification
Product Specification 26”/32”/37”/42” Wide screen Feature Built-in Full channel Tuner(DTV, Analog) with DVB-T, Nicam, Teletext. Graphic (D-SUB) HDMI Items Screen Size Aspect Ratio Resolution Contrast Ratio Panel Brightness Response Time Lamp Type/Life Color Temperature Analog Tuning System Digital Function Analog Sound System Digital... - Page 34 Items Audio Audio Output: L / R Output OSD language Table Stand Wall Mount Power Power Supply Power Consumption Panel Tilt Forwards/Backwards/ Rotation Dimension W x H x D (with stand) Weight Kg (w/o Accessories) (net) Accessories Video SCART1 SCART2 HDTV Inputs AV/SV(Side)
