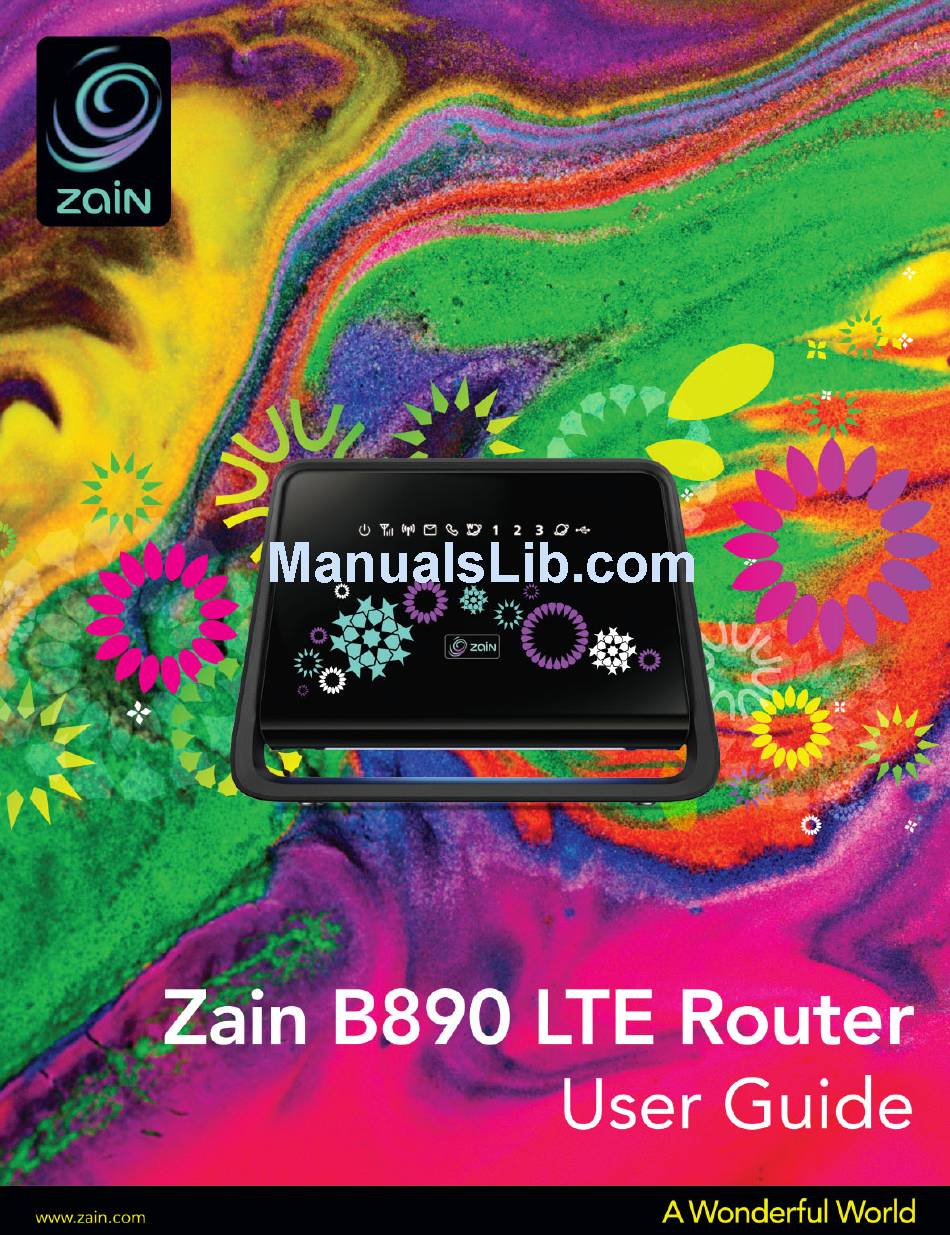

Zain B890L User Manual

Lte router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B890L and is the answer not in the manual?

Questions and answers

Summary of Contents for Zain B890L

  • Page 2 If necessary, contact your local vendor to purchase the relevant accessories • This guide briefly describes the functions of the Zain B890 LTE Router. For details about how to set the management parameters, see the help information on the web management page...
  • Page 3 Getting to Know Your Device Application Scenarios Scenario 1: Use an Ethernet cable to connect your Zain B890 LTE Router to an Ethernet port on the wall to use Ethernet data services. You can also connect your computer to the Zain B890 LTE Router to access...
  • Page 4 Scenario 2: Insert a Universal Subscriber Identity Module (USIM) card into your Zain B890 LTE Router to use 3G/4G data and voice services. You can also connect your computer to the Zain B890 LTE Router to access the Internet or connect a phone to it to...
  • Page 5 LTE Router to an Ethernet port on the wall to use Ethernet data services. Then insert a USIM card into the Zain B890 LTE Router to use 3G/4G voice services. You can also connect your computer to the Zain B890 LTE Router to access the Internet or...
  • Page 6 Appearance 1. Power indicator 11. Register button (Reserved) 2. Network status indicator 12. Power port 3. Wi-Fi/WPS indicator 13. Telephone port 4. SMS indicator 14. USB port 5. Call status indicator 15. LAN ports 6. Wireless dialing indicator 16. WAN port 7.
  • Page 7 Indicators The intuitive indicators on the Zain B890 LTE Router display the router’s status. Indicator Status • On: device powered on • Off: device powered off • Fast red blinking: USIM card unavailable (USIM card not installed or malfunctioning, or PIN code not verified) • Steady blue: device registered with 3G network...

  • Page 8: Installation

    • Off: USB storage device not connected Installation Attention: • After the Zain B890 LTE Router is installed, keep it upright, so the indicators are easy to see. Furthermore, when placed flat, the Zain B890 LTE Router may be damaged due to poor heat dissipation • Only use a Zain B890 LTE Router -compatible power adapter.
  • Page 9 Connect the cables in the sequence indicated in the following figure. Connect cable to the Zain B890 LTE Router’s WAN port and the Ethernet port on the wall. Once connected to a power supply, the Zain B890 LTE Router automatically powers on.
  • Page 10 Scenario 2: Using the USIM Card Step 1: Install the USIM card as follows: 1. Pull out the card slot cover and rotate it to reveal the USIM card slot. 2. Insert the USIM card into the card slot. Ensure that the beveled edge of the USIM card aligns with that of the card slot.
  • Page 11 Step 2: Connect the cables in the sequence indicated in the following figure. Once connected to a power supply, the Zain B890 LTE Router automatically powers on and searches for networks.
  • Page 12 Scenario 3: Using the USIM Card and WAN Interface Step 1: Install the USIM card as follows: 1. Pull out the card slot cover and rotate it to reveal the USIM card slot. 2. Insert the USIM card into the card slot. Ensure that the beveled edge of the USIM card aligns with that of the card slot.
  • Page 13 Step 2: Connect the cables in the sequence indicated in the following figure. Connect cable to the Zain B890’s LTE Router WAN port and the Ethernet port on the wall. Once connected to a power supply, the Zain B890 LTE Router automatically powers on.
  • Page 14 In areas with poor network coverage, connect an external antenna to the Zain B890 LTE Router’s external antenna port for better signal reception. Step 1: Power off the Zain B890 LTE Router and unplug the power adapter. Step 2: Remove the cover from the antenna port.
  • Page 15 Connect a USB device to the Zain B890 LTE Router, as shown in the following figure. For details, see the help information on the web management page. Note: • Do not connect a computer to the Zain B890 LTE Router’s USB port...

  • Page 16: Setting Up A Wireless Connection

    USB port can supply a maximum current of 500 mA. If the current required by a peripheral device, such as a portable hard disk drive, connected to the Zain B890 LTE Router is higher than 500 mA, the Zain B890 LTE Router may fail to recognize the device.
  • Page 17 Step 2: Find and make note of the wireless network (SSID) and password (Wi-Fi Key) printed on the label on the rear panel of the Zain B890 LTE Router. Step 3: Configure the wireless network connection on the computer as follows: 1.
  • Page 18 SSID and Wi-Fi key at regular intervals. For details, see the help information on the web management page Setting Up a Wi-Fi Connection Automatically If the client to which the Zain B890 LTE Router connects supports WPS, a Wi-Fi key is generated automatically.

  • Page 19: Logging In To The Web Management Page

    • For details about operations on the client side, see the client user guide Logging In to the Web Management Page You can configure and manage the Zain B890 LTE Router settings using the web management page. 1. Launch a web browser, and enter http://192.168.1.1 in the address bar.

  • Page 20: Accessing The Internet

    You can then access the Internet through the 3G/4G network. Note: • If the Zain B890 LTE Router fails to connect to the network, log in to the web management page to verify the wireless network parameters. For details, see the help information on...
  • Page 21 Internet through the Ethernet network. Note: • If the Zain B890 LTE Router fails to connect to the network, log in to the web management page to verify the wireline network parameters. For details, see the help information on the web management page.

  • Page 22: Restoring Factory Defaults

    RESET button until the signal indicators on the bottom blink. Note: • After the factory defaults are restored, the Zain B890 LTE Router automatically restarts • Restoring the factory defaults will delete all settings defined by the user and restore all settings on the web management page...

  • Page 23: Troubleshooting Tips

    Troubleshooting Tips If the Zain B890 LTE Router does not work properly: • See the help information on the web management page • Restart the Zain B890 LTE Router • Restore the Zain B890 LTE Router to its factory defaults...
