FIRMADOOR 1 Series Installation Instructions Manual

Hide thumbs

Advertisement

Table of Contents

Your new FIRMADOOR
has been designed to provide security, attractive appearance and smooth, low effort operation.
®
Your door will not provide optimum performance unless it is installed correctly.
Please follow the instructions carefully.
WARNING: No guarantee will be given or responsibility accepted by the manufacturer if the door is not installed as instructed.
For satisfactory door operation please follow the instructions carefully.
WHAT YOU SHOULD LOOK AT BEFORE STARTING

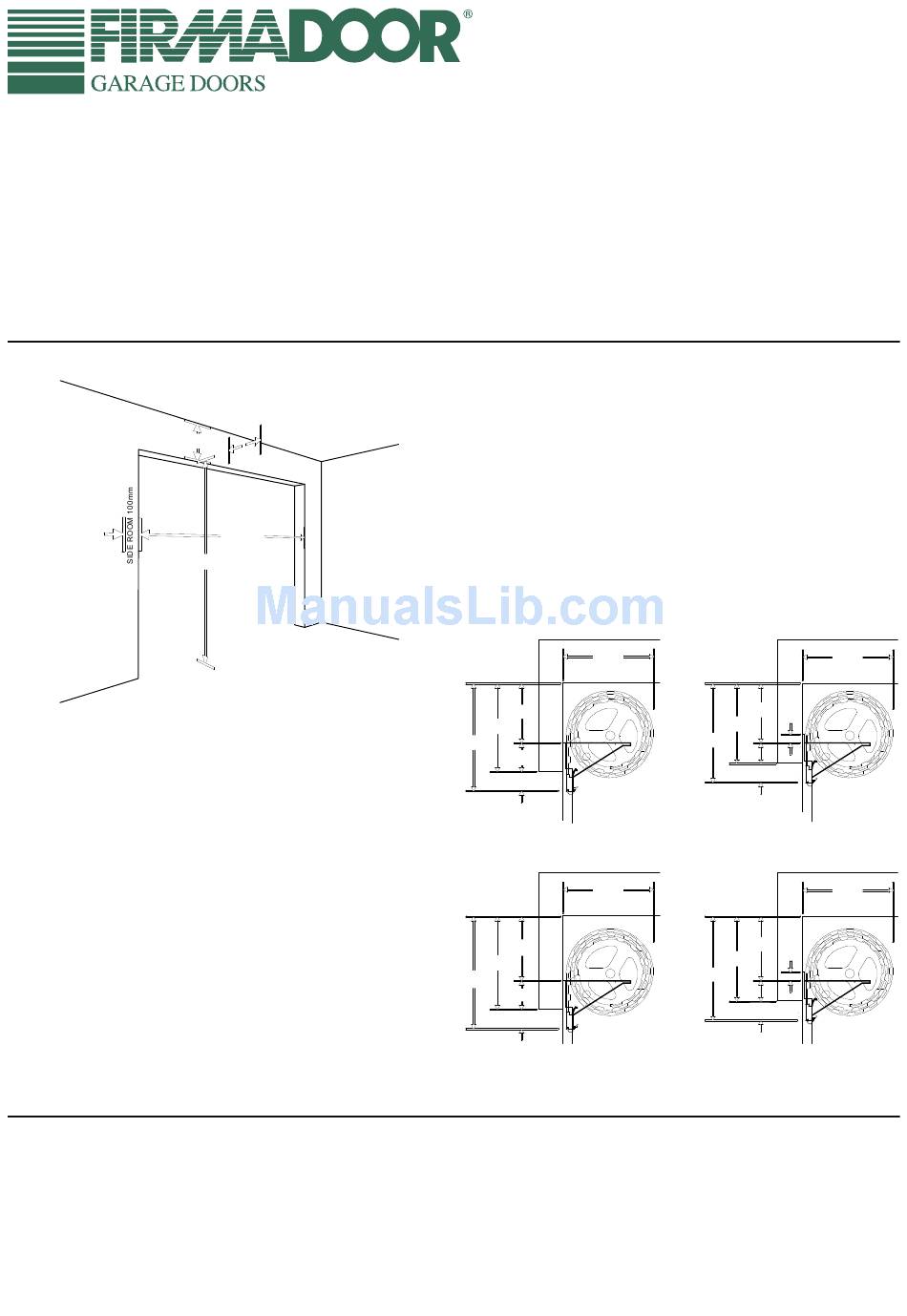

OPENING REQUIREMENTS
HEAD ROOM 350mm
The door is designed to be mounted behind the opening, therefore
you will need to measure and check:
OPENING WIDTH - As the door overlaps each side by 25 mm or
more, the door should be 50 mm wider than the opening. A wider
door can be fitted as long as additional side room and fixing is
available. If the door is too narrow, the opening should be reduced
by fitting jambs to the inside of the opening ( Alternative Fixings No
1 ).
OPENING HEIGHT - The door will fit any opening height up to
the marked door size (the guides can be cut to suit). After
installation the walk-in clearance, under the door when installed,
will be reduced by approximately 80 mm.
LEVEL AND PLUMB - The door must be installed in an
absolutely level condition, if opening is not level and square,
appearance and/or sideroom requirements will be affected. Where
jambs are out of plumb, extra sideroom or opening modifications
may be required to allow the door guides to stand back from the
opening edge. The floor should be level or recessed across the
opening to avoid gaps.
STRUCTURAL SUITABILITY - Ensure the opening is strong
enough to support the door.
FIXINGS
Coach screws are supplied with the door for fitting to timber.
Correct and safe fastening to other materials may require different fasteners.
The installer must select and use fasteners appropriate to the material into which they are being fixed.
NOTE - It is the installer's responsibility to ensure that the fixing methods are sound.
460mm
WIDTH
HEIGHT
Series 1
model

INSTALLATION INSTRUCTIONS

SIDEROOM - A minimum of 75 mm (100 mm desirable) of
sideroom is required behind the opening and should extend above
the head to allow for bracket fixing. Sideroom on one side of at least
115 mm is required if a Firmamatic
fitted now or in the future.
OBSTRUCTIONS - Ensure that the surface where the door will be
fitted is flush and smooth, and the area behind the opening is free
from any protrusions.
HEADROOM - See diagram below If the door is installed lower
into the opening than shown, additional loss of walk-in clearance
will result. The fitting of a false head may also be necessary, in
order to improve the external appearance (See Alternative Fixings).
460
230
350
430
120
80
NORMAL HEADROOM
UP T0 2200 mm HIGH
460
250
370
450
120
80
NORMAL HEADROOM
OVER 2200 mm HIGH
garage door opener is to be
®
460
230
35
315
395
85
80
RESTRICTED HEADROOM
UP TO 2200 mm HIGH
460
250
35
335
415
85
80
RESTRICTED HEADROOM
OVER 2200 mm HIGH

Advertisement

Table of Contents
loading

Related Manuals for FIRMADOOR 1 Series

Summary of Contents for FIRMADOOR 1 Series

  • Page 1: Installation Instructions

    Series 1 model INSTALLATION INSTRUCTIONS Your new FIRMADOOR has been designed to provide security, attractive appearance and smooth, low effort operation. ® Your door will not provide optimum performance unless it is installed correctly. Please follow the instructions carefully. WARNING: No guarantee will be given or responsibility accepted by the manufacturer if the door is not installed as instructed.

  • Page 2: Tools Required

    - 4 mm x 6 mm locking bar screws - 50 mm x 10 mm coach screws and washers 8-12 - 40 mm x 8 mm coach screws and washers INSTALLING YOUR FIRMADOOR ® ROLLING GARAGE DOOR STEP 1. FIRST BRACKET a) Measure the door curtain width and mark where edge of the curtain will be allowing for overlap on each side of the opening.

  • Page 3: Step 3. Place Door On Brackets

    STEP 2. SECOND BRACKET WATER LEVEL a) Using a water level mark the position for the second bracket. NOTE: The brackets must be perfectly level for the door to operate EQUAL correctly. EQUAL b) Re-check levels then drill and fix as with first bracket. HOSE STEP 3.

  • Page 4: Step 5. Tension The Springs

    STEP 5. TENSION THE SPRINGS FIRST PREPARE A SOFTWOOD CHOCK, ABOUT 400 mm LONG. WOOD CHOCK THEN Ensure that bottom rail is at the 3 o’clock position as shown in Step 4 - if not, refer to Step 4. Ensure both “U”bolts are tightened, then - Rotate the door 1 1/2 turns in a forward direction to apply tension.

  • Page 5: Step 8. Centre Lift Lock

    STEP 8. CENTRE LIFT LOCK a) Raise the curtain until the lock corrugation is visible above the door guides b) Install locking bar retainer in line with lock corrugation by pushing retainer towards door edge, sliding the legs under the Nylon Running Strips and hooking them over the curtain edge (it is easier to hook legs one at a time).

  • Page 6: Step 10. Final Adjustment

    STEP 10. FINAL ADJUSTMENT If the door is hard to operate in ANY DIRECTION check that the door is not jamming in the guides. Check: a) the guide clearances. b) that guides are plumb. c) that the guide surfaces are clean and free from oil. d) that locking bars are the correct length e) weather seal is correct length If the door is hard to operate in ONE DIRECTION, the spring tension requires adjustment.

  • Page 7: Fixing Alternatives

    Note that the false head must not be installed too close to the curtain face. 250 mm 230 mm 370mm FIRMADOOR Head lnfill Panels are available to match or contrast ® with your door(s). 80mm...

  • Page 8: After Installation

    The effort required to manually open Touch-up paint, if required, is available from your FIRMADOOR ® and to manually close the door should be about the same (if door has dealer.
