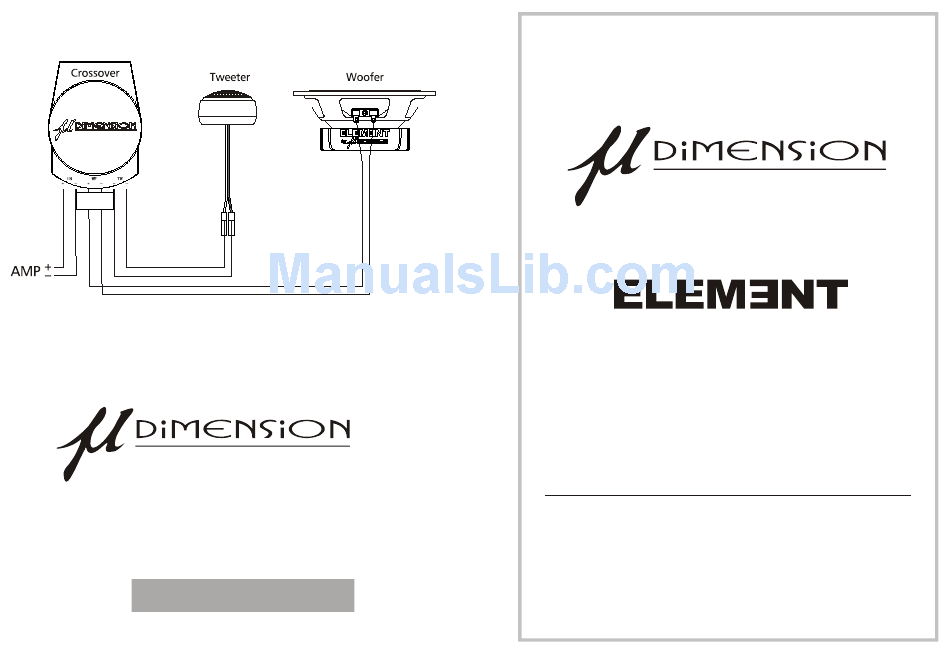

Wiring Diagram
6.8 Ohm / 5W
TW -3dB
OPTIONAL
Friedrich-Ebert-Str. 42
D-92637 Weiden / Germany
www.u-dimension.eu
manufactured for
Europe
A Division of CHPW
OWNER'S MANUAL
EL COMP 5
Woofer Size
130mm
Woofer V.C. Diameter
25mm
Tweeter V.C. Diameter
25mm
System Impedance
4ohms
Power Handling (RMS)
50W
Power Handling (Max)
120W
Frequency Response
80-22k Hz
Sensitivity
89dB (1W/m)
Crossover Frequency
4500Hz
Acoustic Research
EL COMP 6
165mm
25mm
25mm
4ohms
70W
150W
60-22k Hz
90dB (1W/m)
4500Hz
Advertisement
Table of Contents
Related Manuals for µ-Dimension Element
Summary of Contents for µ-Dimension Element
- Page 1 Wiring Diagram Acoustic Research 6.8 Ohm / 5W TW -3dB OPTIONAL manufactured for OWNER'S MANUAL Europe EL COMP 5 EL COMP 6 Woofer Size 130mm 165mm A Division of CHPW Woofer V.C. Diameter 25mm 25mm Friedrich-Ebert-Str. 42 Tweeter V.C. Diameter 25mm 25mm System Impedance...
-
Page 2: Woofer Installation
Tweeter Installation or rear deck steel. Due to their structural integrity and Pre-Installation Instructions accessibility. These precutmounting holes should be It is recommended that you have your new ELEMENT used whenever possible. Autom otive Loudspeakers professionally installed by your...
