Fonewise Electronic Hook Switch Adapter Installation Manual

Before you start

Before starting the installation process, please ensure:
- That you have an Ericsson-LG iPECS LIP 8012, 8024 or 8040 phone.
- That you have an EHS adapter (you need the 1492-30)
- That you have a wireless office headset from GN Netcom/Jabra, Plantronics or Sennheiser
Communications.
o Furthermore, you need the audio cable supplied with your headset
o If you are using a headset from Sennheiser Communications, you will additionally
need an adapter cable (1492-35). This cable is available from your distributor.
Installation
Please follow the steps below to setup your system:
- Disconnect the power cable or remove the network cable to ensure that your phone is off.
- Connect the flat cable on the EHS adapter to the DSS port on the phone (see fig 2).
o The red marking on the flat cable must turn upwards (towards the small arrow on the
phone).
o If a DSS panel is attached to the phone, then the EHS adapter should be connected to
the DSS port on the side panel.
- Connect one of the signaling cables supplied with the EHS adapter between the EHS adapter
and the wireless headset base station.
o If you are using a headset from GN Netcom /Jabra, please use the eight way (RJ45)
modular cable (fig 4).
o If you are using a headset from Plantronics, please use the 3.5 mm jack cable (fig 3).
- Connect the audio cable supplied with the headset between the wireless headset base station
and the headset port on the phone (the port marked with a headset symbol).
- The handset must be connected to the phone in the port marked with a handset symbol.
- Reconnect power and/or connect the network cable and wait for the phone to start.
- Observe that the solution works by pressing the button on the headset. You should now see
that:

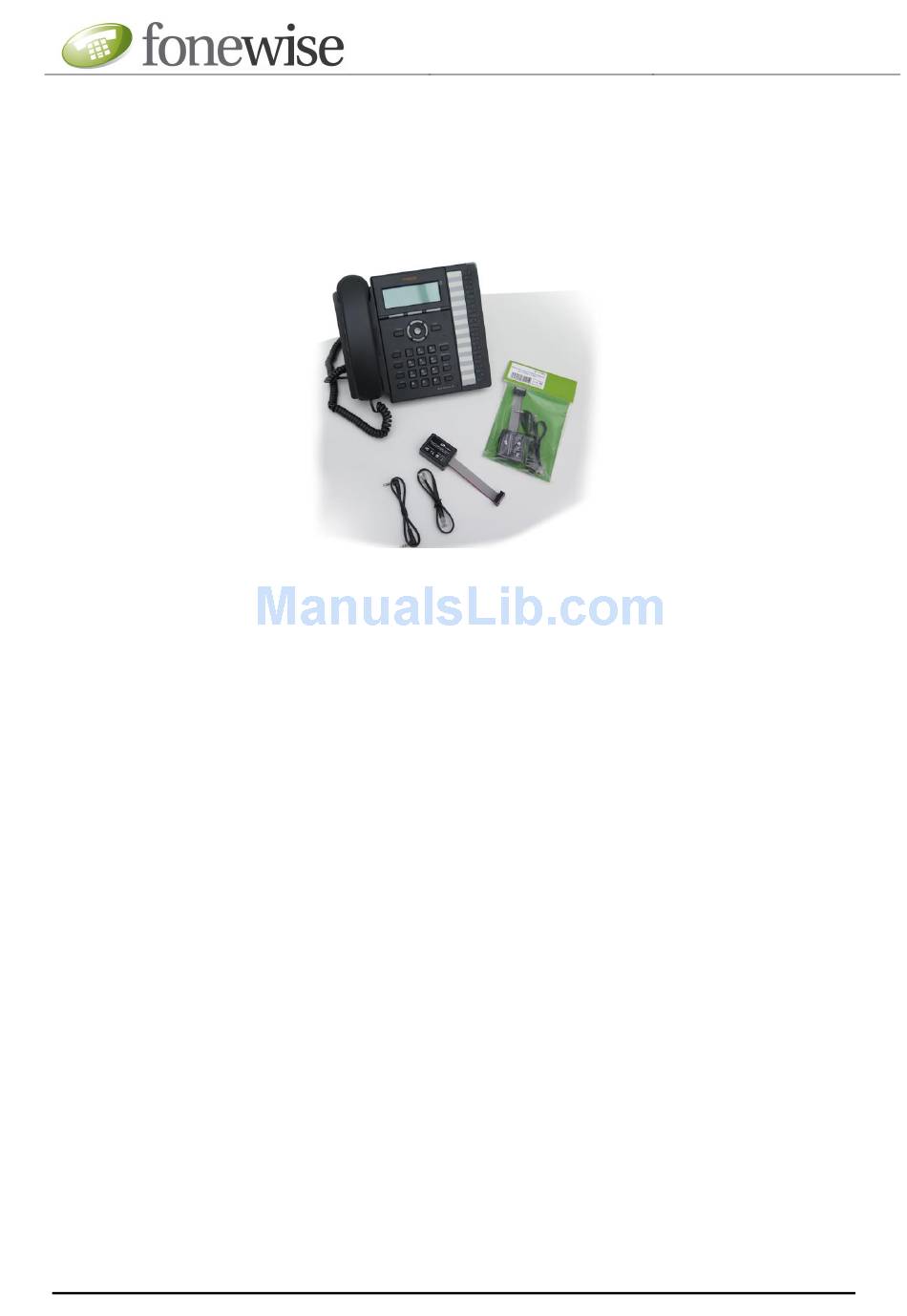

Electronic Hook Switch Adapter for
Ericsson-LG iPECS LIP 80xx

Installation Guide

www.ehs-adapter.com
Communication Solutions
NNE/fw/180914/1492-30/InstGuide/EN
