Solwise UMD-606N User Manual

Umd-606n micro 802.11n usb adapter 11n micro dongle
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UMD-606N
11n Micro Dongle
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UMD-606N and is the answer not in the manual?

Questions and answers

Summary of Contents for Solwise UMD-606N

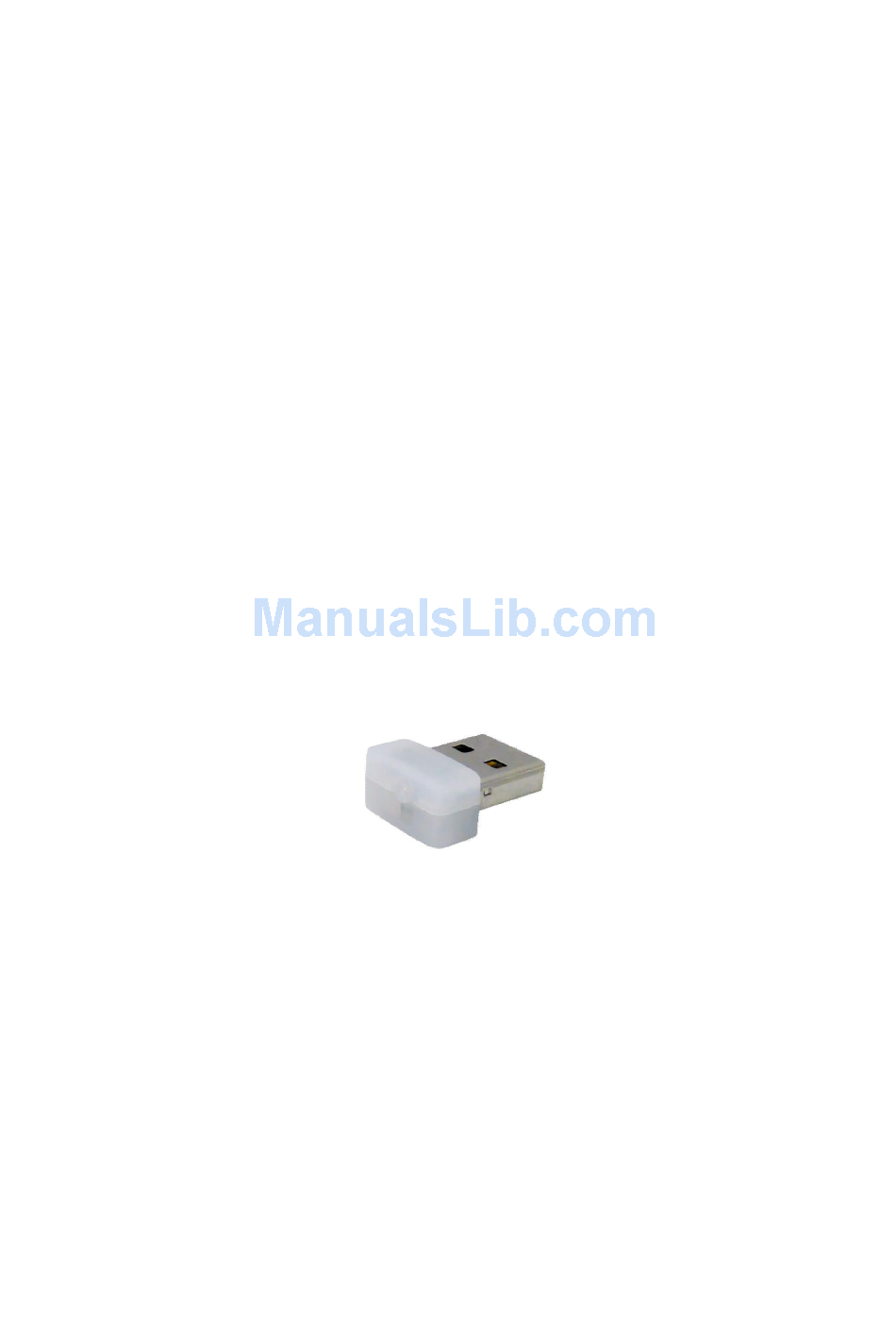

  • Page 1 UMD-606N 11n Micro Dongle User Guide...

  • Page 2: Table Of Contents

    Index Product Overview........................3 1.1. Introduction........................3 1.2. Product Appearance....................3 Installation..........................4 2.1. Installing the Software of the Micro USB adapter..........4 Connect to Internet- Station Mode..................7 3.1. Setup in Wireless Utility..................7 3.2. Setup Wireless LAN with WPS PBC..............9 3.3.

  • Page 3: Product Overview

    1.1. Introduction The UMD-606N Micro 802.11n USB Adapter is, in our opinion, the world’s smallest wireless adapter which provides a simple (physical WPS button) and secure (64/128bit WEP, WPA, WPA2 WLAN security) way to enable 150M 802.1n wireless access to your notebook or desktop computer.

  • Page 4: Installation

    Page 4 Solwise Ltd UMD-606N 2. Installation Describes the procedure for installing the UMD-606N. 2.1. Installing the Software of the Micro USB adapter (1). Don’t insert the Micro-dongle yet. First of all insert the product CD in to your PC.
  • Page 5 Page 5 Solwise Ltd UMD-606N Waiting for system running. (2). Restart your computer Once the installation is finished, click Finish to restart you computer. (3). Connect the USB Adapter Now plug the Micro Adapter into USB adapter on your Laptop or Desktop computer.
  • Page 6 Page 6 Solwise Ltd UMD-606N Click on the Available Network tab to view all the access points with the range of this adapter. Double click on the SSID that you want to connect. If the wireless network you selected requires security, the utility will guide through the appropriate security setup.

  • Page 7: Connect To Internet-Station Mode

    UMD-606N 3. Connect to Internet-Station Mode Used as client to connect to an access point such as wireless LAN router. The UMD-606N has 3 setup methods. 3.1. Setup in Wireless Utility Below illustrates how to select and connect to an access point through the installed Wireless Utility.
  • Page 8 Page 8 Solwise Ltd UMD-606N Make sure the Micro Adapter is under “Station Mode”. Click on Available Network tab to find the access points and double click on its SSID. If the access point you are connecting is not in the list, click “Refresh” to renew the list.

  • Page 9: Setup Wireless Lan With Wps Pbc

    Page 9 Solwise Ltd UMD-606N You can check General information once the wireless network connected successfully. 3.2. Setup Wireless LAN with WPS PBC If your wireless router /access point is WPS supported, you can make the connection by just pressing the WPS button.

  • Page 10: Setup Wireless Lan With Wps Pin

    Page 10 Solwise Ltd UMD-606N You can check General information once the WPS connection is established. 3.3. Setup Wireless LAN with WPS PIN Setup the wireless LAN with a PIN code if the wireless router /access point supports WPS PIN function.
  • Page 11 Page 11 Solwise Ltd UMD-606N Click on the SSID which you want to connect. If the access point you are connecting is not in the list, click “Refresh” to renew the list The Micro Adapter is waiting for connection with your selected Access Point.

  • Page 12: Connect To Wifi Devices- Ap Mode

    UMD-606N 4. Connect to WiFi Devices- AP Mode Use the UMD-606N as a wireless access point, and you can create direct WiFi links with other WiFi supported devices such as gaming machines or a mobile phone. (1). Switch the Mode type to Access Point Select Access Point mode and wait for the system changed.
  • Page 13 Page 13 Solwise Ltd UMD-606N Select the Internet connection you want to share and the Wi-Fi security setting to use for access point will be displayed. Using you WiFi device to search for WiFi Connection. You can find the AP in the...

  • Page 14: Troubleshooting

    Page 14 Solwise Ltd UMD-606N Troubleshooting Problem Corrective Action Make sure you have turned on your computer Check the utility and driver for your WLAN adapter have None of the LEDs turn on installed correctly. when I plug in the wireless Restart your computer and plug in the adapter again.
