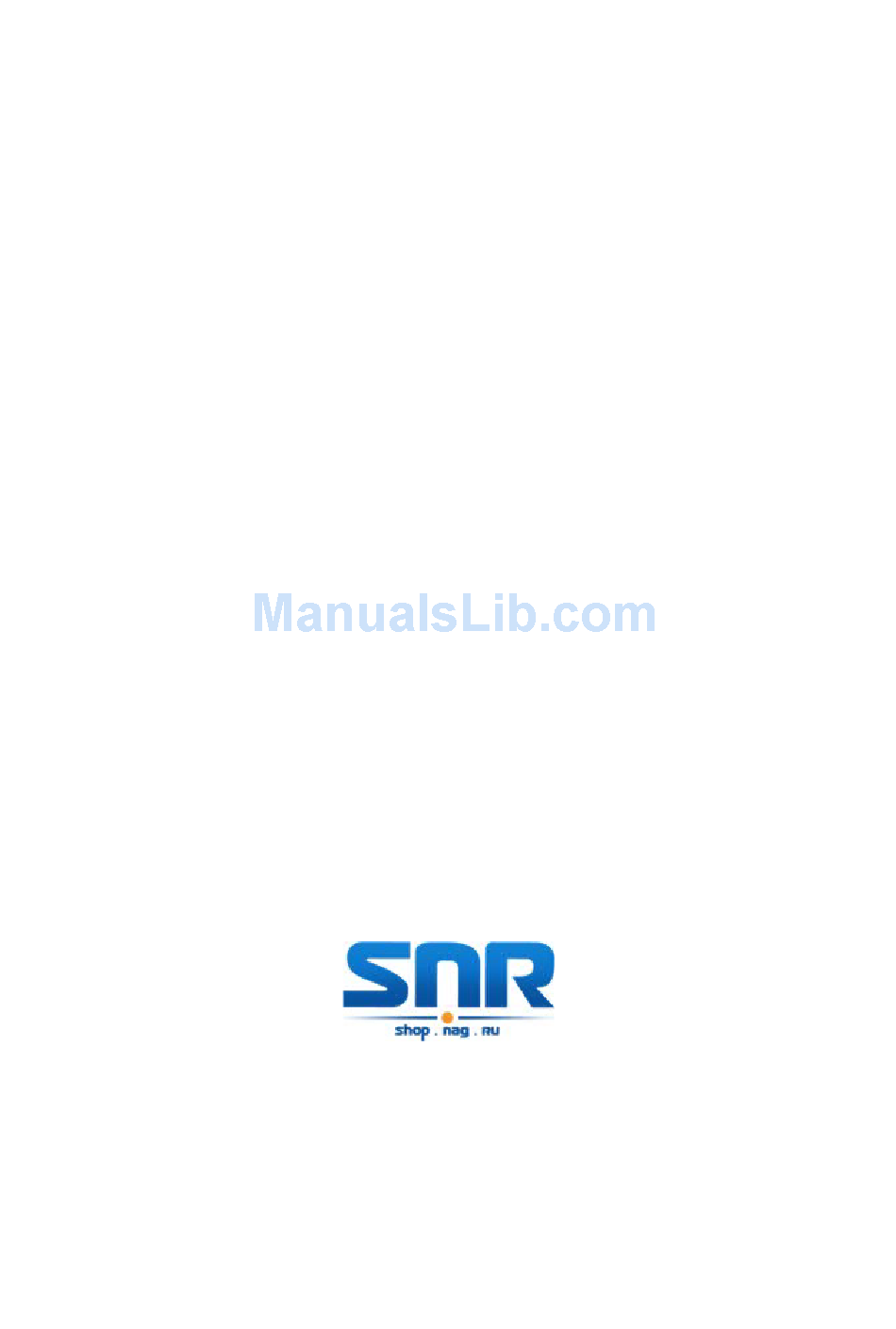

10G SNR-CVT Series

Media Converter

User's Manual
Ver 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the 10G SNR-CVT Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SNR 10G SNR-CVT Series

  • Page 1: Media Converter

    10G SNR-CVT Series Media Converter User’s Manual Ver 1.0...
  • Page 2 Table of Contents...
  • Page 3 1. 10G SNR-CVT Overview 1.1. General Descriptions of 10G SNR-CVT 10G SNR-CVT series converters is a complete and versatile solution for applications such as FTTx, CWDM, and carrier Ethernet. By the diversified speeds of 1,000Mbps and 10Gbps, SNR provides standalone 10G SNR-CVT for different applications and can be applied according to your ideal network topology.
  • Page 4 1.2. Features, Key Advantages, and Main Applications of 10G SNR-CVT Features  Diversified interfaces including SFP, SFP+, RJ45, XFP and CX4  Supports 3R (Re-generation, Re-timing, Re-shaping) Performance Supports Jumbo Frame   Supports D/D (Digital Detection) functioned optical transceivers and overload protection ...
  • Page 5 1.3.1. 10G SNR-CVT Outer Case 10G SNR-CVT’s outer case consists three parts: Front Panel, Cooling Fan, and Back Panel. The figure above shows the outer case of SNR-CVT-XFP. Outer cases of other 10G SNR-CVT are quite the same and can be related.
  • Page 6 1.3.2. 10G SNR-CVT Front Panel As mentioned in “1.3.1. 10G SNR-CVT Outer Case”, 10G SNR-CVT comes with various different types of ports, providing media converting platforms for different types of media. Please see the sections down below for more detailed information/specification for 10G SNR-CVT.
  • Page 7 B. Front Panel of SNR-CVT-SFP/XFP SNR-CVT-SFP/XFP Front Panel Specification Interface Port A SFP + Port B Data Transfer Rate 1000 Mbps Ethernet Mode 10GBase-LR 10GBase-SR LED Status Power Green ON SNR-CVT-SFP/XFP is power on. Green OFF SNR-CVT-SFP/XFP is power off.
  • Page 8 LED Status Power Green ON SNR-CVT-SFP/T is power on. Green OFF SNR-CVT-SFP/T is power off. Green ON SNR-CVT-SFP/T is booting properly and is ready for tests. Yellow ON Error occurred when booting SNR-CVT- SFP/T. Green ON Port A/B is connected.
  • Page 9 Power Green ON SNR-CVT-XFP is power on. Green OFF SNR-CVT-XFP is power off. Green ON SNR-CVT-XFP is booting properly and is ready for tests. Yellow ON Error occurred when booting SNR-CVT-XFP. Green ON Port A/B is connected. Green Blinking Port A/B is transmitting/receiving data.
  • Page 10 1.3.3. 10G SNR-CVT Back Panel 10G SNR-CVT Back Panel Description A Management Port 100 Mbps RJ45 Management Port for connecting 10G SNR-CVT series to a network, thus allowing users to access 10G SNR-CVT’s management web pages B Diagnostic Port 2.5mm Phone Jack for connecting PC’s RS 232 port, thus allowing users to make configurations via hyper terminal softwares.
  • Page 11 2. 10G SNR-CVT Series Installation As a media convertor platform, installing 10G SNR-CVT series is very easy and simple: all you have to do is to plug the proper fiber/UTP cables into 10G SNR-CVT series’ ports like a general Ethernet switch without any extra configurations.
  • Page 12 2.1.2. 10GBASE-R (Optical Fiber) 10GBASE-R is 10Gbps Ethernet connection that based on IEEE802.3ae. It uses fiber as transmission media with different specification of fiber, connector and transceiver. 10G SNR-CVT uses two standards, 10GBASE-LR and 10GBASE-SR. 10GBASE-SR 10GBASE-SR ("Short Range") uses 64B/66B encoding and 850 nm wavelength lasers. It is designed to support short distances over deployed multi-mode fiber cabling, it has a range of between 26 meters (85 ft) and 82 meters (270 ft) depending on cable type.
  • Page 13 Just plugging the RJ45 connector into the port of 10Gbps and it is ready to work. When connected properly, the Link/ACT LED located under the RJ45 Port will be on accordingly. 2.2.2. 10GBASE-R (Optical Fiber) Please see the figure down below for connecting the optical fiber, transceiver, and 10G SNR-CVT’s SFP+ Port.
  • Page 14 SFP+/XFP Transceivers can be plugged into 10G SNR-CVT’s SFP+/XFP Ports. SFP+/XFP Transceivers are active components that consume power from 10G SNR-CVT and are capable of converting signals between optical data flow and electronic data flow. For different transmission purpose, the component inside SFP+ form factor...

  • Page 15: Applications Examples For Your Network

    10BASE-LR mode, which can extend the distance beyond tens of kilometers. 10G SNR-CVT, which is located at the computer center of university. After the conversions made by 10G SNR-CVT, expensive equipments for transmitting/receiving network data via optical fiber are not required anymore.
  • Page 16 2.3.2. Application for Online Game Company For ISPs or online game companies, 10G SNR-CVT series provide a more economical solution for control room cabling. ISP runs lots of customer's service such as e-mail servers, web servers or any co- located network services in the control rooms. These equipments may not have the interface for the connection of optical fibers.
  • Page 17 (Technologies such as VDSL provide high speed, short-range link are used often in FTTx service) E Different rooms of homes or different compartments in the same building. F 10G SNR-CVT can be located at any place that near or away from building, depending on the service to home users.
  • Page 18 3.1. Managing 10G SNR-CVT with Management Webpage 10G SNR-CVT Series is embedded with a management webpage, and can be accessed by connecting 10G SNR-CVT Series’ Management Port to the network which your PC is connected to via an RJ45 cable.
  • Page 19 10G SNR-CVT Series’ default IP address (192.168.1.8) in web browser’s URL field as shown in the figure on the right side. If you’ve changed 10G SNR-CVT Series’ IP address, please input the IP address you’ve changed to instead.
  • Page 20 10G SNR-CVT Series Management Webpage Overview Port Status This field displays the port status of your 10G SNR-CVT series. You can view the media type of a specific port by moving the mouse to it. If 10G SNR-CVT’s port is not connected, the Port Status ...
  • Page 21 Port B SFP Factory The manufacturer of the transceiver plugged in Port B. SFP Wavelength The wavelength of Port A/B. Management Port IP Mode This field displays how 10G SNR-CVT Series acquires its IP address. • Static: 10G SNR-CVT Series’ IP, subnet mask, and gateway addresses are assigned manually. •...
  • Page 22 3.1.3. 10G SNR-CVT Management Webpage – Management There are 3 options available for Management, which includes: • IP Configuration: Allows you to set how 10G SNR-CVT will acquire its IP, subnet mask, and gateway addresses. Also, you could input these addresses manually here. •...
  • Page 23 B. User Settings For issues regarding to system security, 10G SNR-CVT has 2 different user security levels, which are: • Administrator: User with Administrator privilege can change 10G SNR-CVT system settings and view system information/statistics. • Guest: User with Guest privilege can only view system information/statistics.
  • Page 24 System Configuration System Name Input the alias for 10G SNR-CVT here in this field. Apply Apply the changes you’ve made here.
  • Page 25 Apply the changes you’ve made here. 3.1.4. 10G SNR-CVT Management Webpage – Counter A. Device Counter The Counter Report can display statistics reports of 10G SNR-CVT’s Port A/B. Device Counter Auto Refresh Click the check box here allows the statistics table to refresh automatically.
  • Page 26 A. Save Changes Save Changes Save If you don’t save the setting you’ve made via 10G SNR-CVT’s configuration webpage, all settings will be erased after rebooting 10G SNR-CVT. Please click the “Save” button to save the settings to 10G SNR-CVT’s NV-RAM.
  • Page 27 Click this button to start uploading 10G SNR-CVT’s config file. G. Factory Defaults Factory Defaults Restore You can set all 10G SNR-CVT’s settings to the default value by clicking the “Restore” button. Please note that all unsaved data/settings will be lost after restoring 10G SNR-CVT’s settings to default value.
  • Page 28 HyperTerminal commands for other 10G SNR-CVT s are quite the same and can be related. 3.3.1. HyperTerminal Settings for 10G SNR-CVT After connecting the PC’s serial port to 10G SNR-CVT’s Console Port via a 2.5mm Phone Jack to RS-232 cable, please start the HyperTerminal software installed on your PC and establish connection...
  • Page 29 Establishing Connection with 10G SNR-CVT 1. Input a name for this connection, such as 10G SNR-CVT, and also select an icon for this connection. Click “OK” to continue. 2. Select the COM port of PC for this connection. Click “OK” to continue.
  • Page 30 Establishing Connection with 10G SNR-CVT Click the “Enter” key on your keyboard to start setting 10G SNR-CVT via HyperTerminal. To log in, please type 10G SNR-CVT’s user name and password: • Default User Name: admin • Default Password: admin (Both the User Name and Password are case-sensitive.) If you change 10G SNR-CVT’s user name and password with 10G SNR-CVT’s configuration...

  • Page 31: Command Alias

    3.3.2. 10G SNR-CVT HyperTerminal Commands After logging in 10G SNR-CVT via HyperTerminal, a 10G SNR-CVT Command Menu will be displayed, showing 10G SNR-CVT’s HyperTerminal commands. Please see the table down below for brief descriptions of 10G SNR-CVT commands: Command Alias...
  • Page 32 The <parameter> can be public, private, or user names. save The system save command allows you to save the current settings to 10G SNR-CVT’s NV-RAM. Please note that all unsaved settings will be lost after system reboot. update firmware/FPGA The system update [firmware/FPGA] commands allow you to upgrade 10G SNR-CVT’s firmware/FPGA.
  • Page 33 7. 10G SNR-CVT will reboot when finishing upgrading its firmware. reset The system reset command allows you to reset all 10G SNR-CVT’s settings back to the default values. reboot The system reboot command allows you to reboot 10G SNR-CVT. Please note that all...
  • Page 34 The ip show command allows you to view information of 10G SNR-CVT’s IP configuration. status The ip status command allows you to view information of 10G SNR-CVT’s IP status. mode dhcp The ip mode dhcp command allows you to set 10G SNR-CVT’s IP acquiring mode to DHCP, allowing 10G SNR-CVT to acquire IP automatically from DHCP server.
  • Page 35 D. 10G SNR-CVT HyperTerminal Command – cls Command Descriptions – cls The cls command allows you to clear HyperTerminal screen. E. 10G SNR-CVT HyperTerminal Command – logout Command Descriptions – logout logout The logout command allows you to log out of 10G SNR-CVT’s HyperTerminal configuration session.
  • Page 36 4. 10G SNR-CVT General Specifications System Control System Control Transceiver Power ON/OFF Link Connection Mode: Slave/Segment   Selectable Auto/Force Media Type System Upgrade (F/W, FPGA)   Device Status Report Status Report Information Module Detection   Link Status Fiber Module Detection ...
