- Page 1 RX7 Receiver Installation, Commissioning and Maintenance...
-
Page 2: Installation, Commissioning And Maintenance

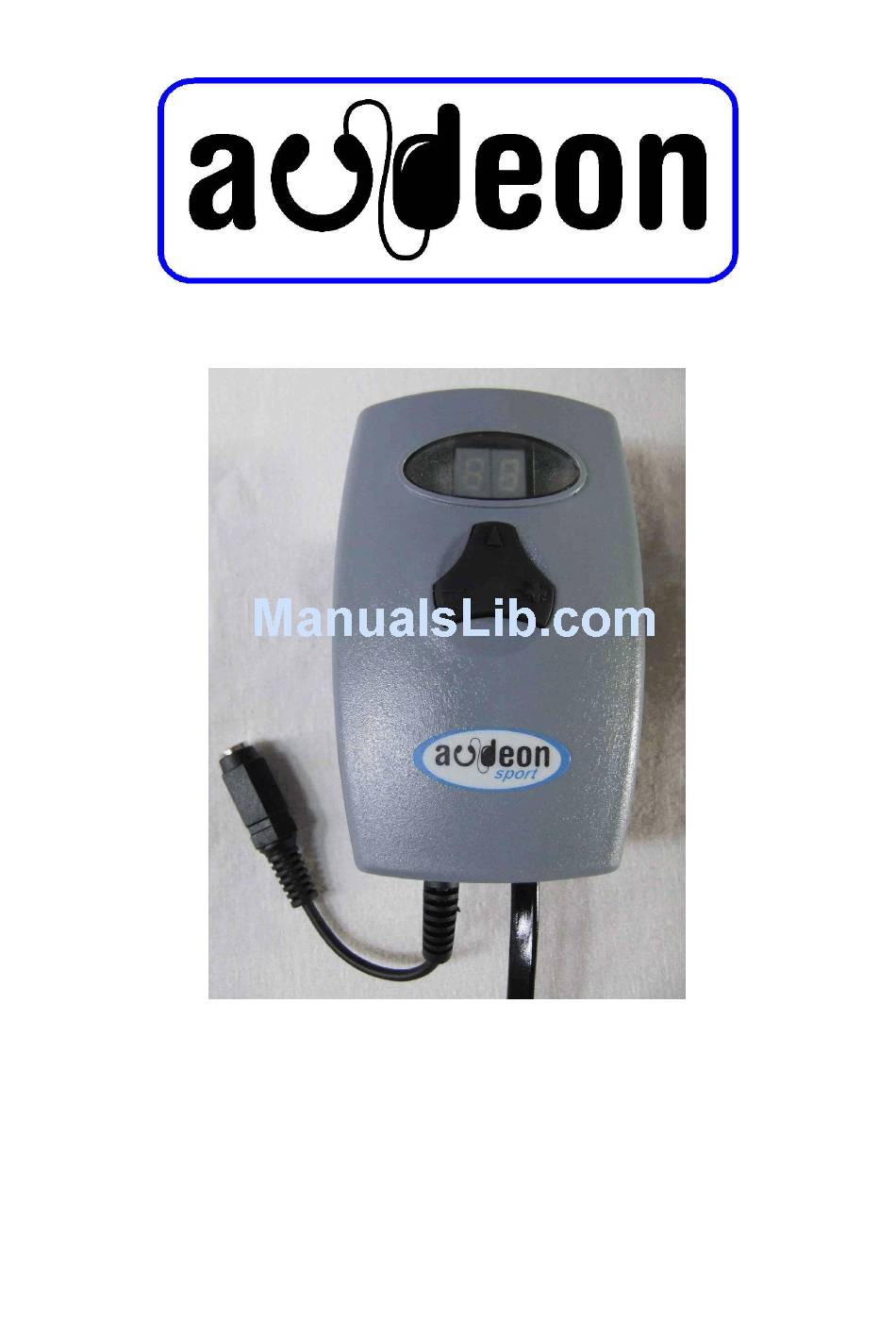

RX7 Receiver Installation, Commissioning and Maintenance This note applies to the RX7 receiver and describes the installation of the system into a fitness studio, though it is applicable to many other situations. Introduction - RX7 Receiver The RX7 is a 16 channel stereo UHF radio receiver designed as part of the Audeon wireless audio system. It receives frequency modulated radio signals with Zenith-GE stereo encoding in the 864 MHz ISM band and in TV channel 69 (854 MHz to 862 MHz). - Page 3 RX7 Receiver - Installation, Commissioning and Maintenance in most venues but metal pillars and similar objects which are in direct line of sight will obstruct the radio signals Installing the Receivers The receivers are supplied with the internal jumper link set to 8 channel operation unless the installer has requested a different frequency plan.
- Page 4 RX7 Receiver - Installation, Commissioning and Maintenance receiver is switched on. Do not hold the channel select button down whilst ‘HELLO’ is displayed unless you wish to re-enter the programming mode. The selection can be easily changed back to the standard frequency plan using menu ‘C’ (see ‘C’ to clear selection), or reprogrammed with an alternate plan ‘A’...
- Page 5 RX7 Receiver - Installation, Commissioning and Maintenance Fastening the Receiver to a machine Fasten the receiver to the machine in a position where the receiver is easily accessible for the user and it is out of the way of moving parts.
-
Page 6: Other Facilities
RX7 Receiver - Installation, Commissioning and Maintenance Other facilities Hours Used Counter The receiver will record the total time that the unit has been operating which will provide the factory with useful information when the receiver is serviced. Switch On Counter This counter will record the number of times the receiver has been switched on so that we can determine how much use the receiver has had. -
Page 7: User Instruction
Maintenance Service In the UK Audeon has a dedicated service line (0113 252 5582) to coordinate maintenance and repairs of Audeon equipment. The operator should be made aware of the benefits of expert advice and support. The telephone line is staffed by experienced engineers who are familiar with the Audeon range of products. They can provide advice, online help and will arrange for maintenance from you, the dealer, if required. - Page 8 RX7 Receiver - Installation, Commissioning and Maintenance Appendix I Standard Channel Plan - Radio Frequencies ISM licence free band UHF channel 70 Channel 1 863 10 MHz Channel 2 863 35 MHz Channel 3 863 60 MHz Channel 4 863 85 MHz...
- Page 9 This occurs when users try to move the receiver whilst exercising. Correctly fastened bracket attached to a large flat or round bar - no distortion of the bracket For further information please contact the Audeon service line 0113 252 5582...
