Summary of Contents for Spartz MATRIX-X1616

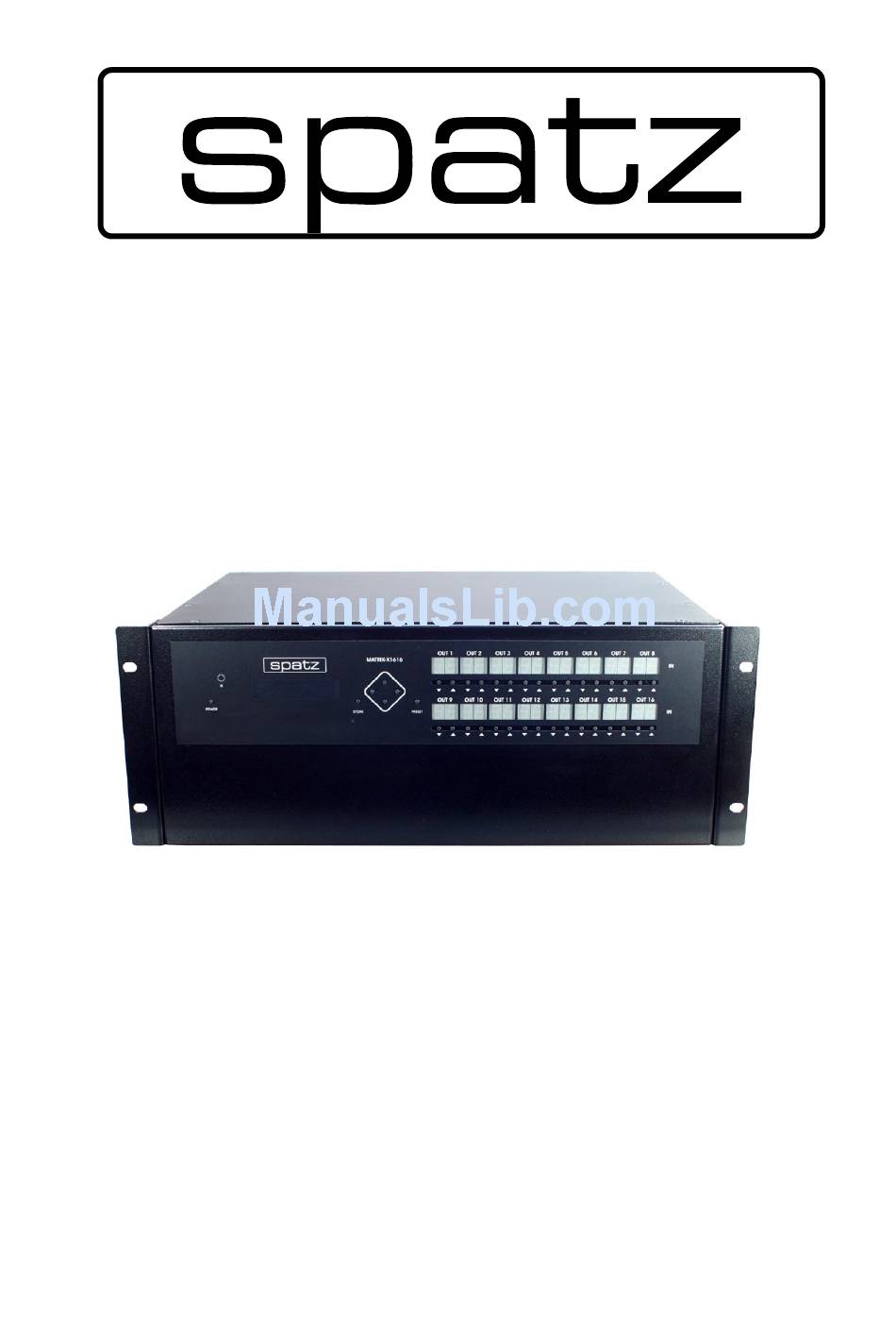

- Page 1 Manual MATRIX-X1616 09/2012 2012 SPATZ Technical changes reserved www.spatz-tech.de...
- Page 2 2. What have you got ? The SPATZ MATRIX-X1616 offers a variety of features that seperate it from typical low cost products made in Asia. The unit was designed to meet the requirements of installation professionals and rental companies.
-
Page 3: How It Works
4. Operate it IR Remote control Like any infrared controlled device the MATRIX-X1616 has limitations for distance and angle. Typically you will need a direct line of sight. The remote control uses standard commands and carrier frequencies so there should be no problem to learn the commands. You may download Crestron and RTI files from our website. -
Page 4: Ir-Commands
4.1.1 General operation You may fully operate and configure the MATRIX-X1616 from the front panel. Configuration of EDID information is possible using the arrow buttons and STORE button. There are 3 main submenus that can be reached using the right arrow button and then the UP and DOWN button. -
Page 5: Device Group
LEFT button ! 4.1.5 EDID MANAG. GROUP The most powerful tool of our MATRIX-X1616 is the EDID management and our unique SingleEDID technology. Opposite to extenders that should be EDID transparent and forward the display EDID to the source a matrix requires the exact opposite. -
Page 6: Color Space
LEARNED This mode uses the EDID table that can be learned of any of the outputs. Please LEARN the EDID before using this setting. After RESET or without learning EDID the memory contains the EDID table of a monitor with 1920x1200 native and many PC and HD resolutions. - Page 7 4.1.6 Preprogrammed Video standards 640x480/60 1280x1024/50 1920x1080i/50 640x480/75 1280x1024/60 1920x1080i/50 848x480/60 1280x1024/75 1920x1080i/60 800x600/50 1366x1024/60 1920x1080p/24 800x600/60 1400x1050/50 1920x1080p/25 800x600/75 1400x1050/60 1920x1080p/30 1024x768/50 1400x1050/75 1920x1080p/50 1024x768/60 1680x1050/60 1920x1080p/50 1024x768/75 1600x1200/50 1920x1080p/60 1152x864/75 1600x1200/60 2048x1080p/50 1280x768/50 1920x1200/50 2048x1080p/50 1280x768/60 1920x1200/60 2048x1080p/60 1280x768/75 480i/59,94 640x480/60...
-
Page 8: Installation
Constant changes in HDMI/DVI standards and more troublesome PCs or other sources may require that you update the MATRIX-X1616. If there is a newer firmware than what is displayed in the LCD you will find it for download on our website www.spatz-tech.de... -
Page 9: Technical Data
Front The MATRIX-X1616 is showing all relevant parameters on the LC-display. The main screen shows the firmware and in the upper right corner what type of remote option has been configured. You will see either R,E or T go to 4.1.4 to learn more about the remote options ! The whole switch configuration is displayed in the OUT 1- 16 displays, the number you see there is the input number the output is assigned to. - Page 10 You will need a standard extension cable with male and female connector, if you make it yourself you will need to connect Pin 2,3 and 5 on both sides. You have full control using the serial interface to control the MATRIX-X1616. The universal RS-232 port can communicate with a PC or a control system like AMX/CRESTRON.
