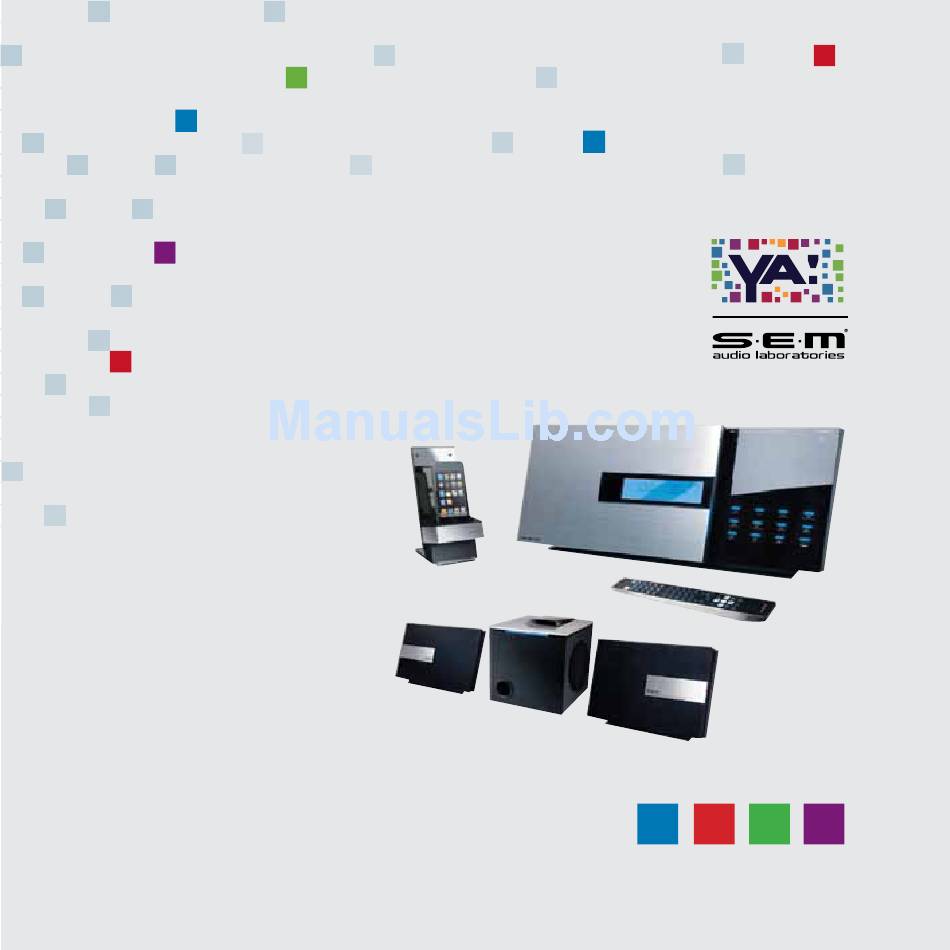

Page 1 DE – Betriebsanleitung FR – Mode d‘emploi IT – Istruzioni per l’uso EN – Instruction manual Fusion Z-7799...
Page 2 2 Fusion Z-7799...
Page 3: Dear Customer
Dear customer Finally arrived at YA! Take a seat and enjoy the world of YA! You will see: It is a wonderfull place to be. The appliance must only be used for the intended purpose according to these instructions. Keep the instructions carefully and pass them on to further users.
Page 4: Safety Instructions
■ Regularly check if the mains cable / appliance / extension lead is defective. ■ Only trained personnel should repair electrical appliances. Unskilled repairs can cause considerable danger to the user. ■ Do not use attachments not recommended by the manufacturer. ■ Never put the appliance / cable on hot surfaces or near open flames. 4 Fusion Z-7799...
Page 5 ■ Switch the appliance off and pull the plug out of the mains when it is not in use. Don’t pull the cable around the appliance. The appliance is only cut from the mains if the plug is pulled out! WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water. 5 Fusion Z-7799...
Page 6 There is a danger of explosion if batteries are exchanged improperly. Only replace batteries with ones of the same type. ■ Do not put any container (f. ex. vases, etc.) containing liquids on or in the surroundings of the appliance. ■ Subject to technical modifications. No liability for typographical errors. 6 Fusion Z-7799...
Page 7: Key To Symbols
NOTE This symbol and the heading NOTE apply to technical requirements that the user must pay attention to during the activities. 7 Fusion Z-7799...
Page 8: Proper Use Of The Appliance
Improper use of the appliance No warranty for any possible damage can be accepted if the appliance is improperly used, incorrectly operated or repaired unprofessionally. In such a case, any warranty claim is void. 8 Fusion Z-7799...
Page 9: Disposal Of Old Electrical Appliances
“wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. 9 Fusion Z-7799...
Page 10: Scope Of Delivery
Scope of delivery 1 x Fusion Z-7799 Home Cinema System 2 x Speaker 2 x Stand (for loudspeakers) 1 x Stand (for Home Cinema System) 1 x Subwoover 1 x Docking station 8 x Screws and dowels 1 x Mains plug/mains cable 1 x Remote control (incl.
Page 11: Technical Data
Docking station: 86 x 192 x 110 mm Weight Appliance: 2.3 kg Speaker: 2.3 kg Subwoofer: 5.5 kg Docking station: 0.34 kg Speaker 28 W x 2+18 W x 2 + 35 W Amplifier 10 W x 2 + 20 W = 40 W (RMS) Protection Class 11 Fusion Z-7799...
Page 12: Position The Appliance
Place the stand under the unit and slide it forward Stop when the indicator arrow mark is aligned with the mark at the unit. (To release the stand press the clip and and slide the stand downwards) Indicator mark LOCK 12 Fusion Z-7799...
Page 13: Operation
The backup batteries save the wake-up function in the event that the power supply is interrupted. Insert two 1.5 V batteries (AA/UM-4/LR03) (not included). The remote control can only be used with batteries. Insert 2 x 3 V, CR 2032 battery (included in the scope of delivery). 13 Fusion Z-7799 Technical data...
Page 14 The display is dimmed in standby mode, time is displayed. ■ Power consumption is reduced in standby mode. ■ Remote control Carefully remove the transparent plastic foil from the battery compartment and ■ test if the appliance reacts on the remote control with ON / STANDBY 14 Fusion Z-7799...
Page 15 This unit can be fastened to the wall. ■ Screws: 3.5 x 34 mm (8 screws supplied) ■ WARNING The unit may only be mounted on vertical walls. Check before installation whether the wall can bear three times the weight of the unit. Bring in a qualified craftsman if in doubt, and in any case to drill the holes. 15 Fusion Z-7799...
Page 16 ■ Locate the loudspeakers in the room to give the best sound quality Bass control subwoofer ■ The bass can be set at any time at the back of the subwoofer with the Bass Level Control knob. 16 Fusion Z-7799...
Page 17 The dock distributes uncompressed signals in all directions. These are reflected by walls,. ceilings and even the device itself and thus always reach the 2.1 loudspeakers, regardless of where they are placed. They thus attain an incomparable quality of sound. 17 Fusion Z-7799...
Page 18 Overview Fusion Z-7799 10 11b 20 21 18 Fusion Z-7799...
Page 19 43 Display mains current and audio source 22 HDMI OUT 44 Dock for adaptor 23 AUDIO OUT 45 Stand 24 COAXIAL OUT 46 Dock for iPod 25 VIDEO OUT 47 iPod Docking Station connecting cable 26 S-VIDEO OUT 19 Fusion Z-7799...
Page 20 Overview remote control Fusion Z-7799 20 Fusion Z-7799...
Page 21 15 ANGLE / PLAYLIST - 35 DOWN 16 ZOOM / ALBUM - 36 MEM + 17 SUBTITLE / TRACK - 37 MENU 18 OSD / INFO 38 SETUP 19 A-B / RDS 39 PROG. / MEM 20 REPEAT 40 Battery 21 Fusion Z-7799...
Page 22: Set Clock
DOWN Confirm Press CLOCK Set hour resp. DOWN Confirm Press CLOCK Set minutes resp. DOWN Confirm Press CLOCK NOTE If no key is pressed for 10 seconds, the appliance automatically returns to its initial function. The programming is not saved. 22 Fusion Z-7799...
Page 23: Set Alarm
Press TUNER FM the remote control to switch off the timer. Symbol disappears. If had been selected as a wake-up function, playback of the radio frequency that had last been selected starts. 23 Fusion Z-7799...
Page 24 EQ OFF / CLASSIC / ROCK / POP / JAZZ / Bass Setting the alarm (beep beep) Switch off appliance ON / STANDBY Press ALARM resp. DOWN Set hour Confirm Press ALARM DOWN Set minutes resp. Confirm Press ALARM 24 Fusion Z-7799...
Page 25 CLICK during the adjustment. The clicking stops once the desired loudness is achieved. Playback Start playback Interrupt playback STOP Stop playback Select track TUNE- resp. TUNE+ Fast forward or reverse within the actual track Press and hold PREV resp. NEXT 25 Fusion Z-7799...
Page 26 MEM - MEM + Select memory slot number Press resp. Press PROG / MEM Confirm on the remote control Find a MEM - MEM + saved frequency resp. Overwrite saved positions: save the new frequency on the desired position. 26 Fusion Z-7799...
Page 27 Back to title 1 Press STOP Select track Press TUNE DOWN resp. TUNE UP Fast forward or reverse within the actual track: Press TUNE DOWN resp. TUNE UP repeatedly Speed 2x Set the normal playback speed again: press 27 Fusion Z-7799...
Page 28 Back to title 1 Press STOP then press Select track Press MEM - resp. MEM + Fast forward or reverse within the actual track: Press TUNE DOWN resp. TUNE UP repeatedly Speed 2x Set the normal playback speed again: press 28 Fusion Z-7799...
Page 29 The external screen immediately shows that it is connected: Press the Numbers Button to input the title and section at the current item. Go to the next item with TUNE DOWN resp. TUNE UP Confirm list Press ENTER Playback then starts automatically. 29 Fusion Z-7799...
Page 30: Usb And Sd Card
Press ENTER Interrupt playback Select track Press MEM - resp. MEM + Fast forward or reverse within the actual track: Press and hold TUNE DOWN resp. TUNE UP Speed 2x Set the normal playback speed again: press 30 Fusion Z-7799...
Page 31 It can take up to 60 seconds. CAUTION Switch off the appliance before removeing the USB Sticks/ SD Card. Do not use an USB FLASH DRIVE with this appliance. Always connect the USB without cable. 31 Fusion Z-7799...
Page 32 Switch on appliance and iPod docking station and conect iPod with docking station. ipod Press FUNCTION repeatedly Start playback Interrupt playback Select track TUNE DOWN resp. TUNE UP Fast forward or reverse within the actual track: Press and hold TUNE DOWN resp. TUNE UP 32 Fusion Z-7799...
Page 33 When connected to the appliance the iPod automatically charges. ■ Note If an iPod Video is connected, this error message appears on the display: The currently attached accessory is not supported by this iPod. The audio functions can be used despite this message. 33 Fusion Z-7799...
Page 34 Press Playback Press Stop playback Press STOP Playback REPEAT Press repeatedly to select between the following options: REPEAT 1 Repeat actual track REPEAT DIRECTORY repeat current folder REPEAT ALL repeat all titles (entire CD) 34 Fusion Z-7799...
Page 35 Section and scene are saved and start again at the next playback MEM - MEM + Change scene / section Press resp. Fast forward or TUNE DOWN bzw. TUNE UP –reverse Press repeatedly Speed 2x Slow-motion playback Press SLOW repeatedly Speed 1/2 35 Fusion Z-7799...
Page 36 The audio language is shown on the display. The languages available depend on the DVD. Sub-titles SUBTITLE / TRACK- Select sub-titles Press repeatedly The sub-title language is shown on the display. The languages available depend on the DVD. 36 Fusion Z-7799...
Page 37 If the DVD does not have an angle option, the display showsy invalid key Display display (OSD) Display information Press Hide information Press again Menu MENU TITLE / PLAYLIST+ Display menu Press TUNE DOWN TUNE UP DOWN Navigate in the menu resp. resp. Confirm selection Press ENTER 37 Fusion Z-7799...
Page 38 GO TO / Track+ Title Current Titles Chapter Current Sections Running time Title total section total Navigate Press TUNE DOWN resp. TUNE UP Input numbers directly Confirm Press ENTER Set normal playback again: Press GO TO / Track+ again. 38 Fusion Z-7799...
Page 39 PLAY TUNE DOWN resp. TUNE UP resp. DOWN Confirm Press ENTER Set normal playback again: Press PROG / MEM again Repeat Repeat sections / REPEAT scenes / titles Press Selection REP OFF REP CHAPTER REP TITLE REP ALL 39 Fusion Z-7799...
Page 40: Dvd System Settings
DOWN . E.g. Audio. With DOWN call up the menu option and with TUNE UP navigate in the sub-menu. To quit the menu, press SETUP at the remote control. 40 Fusion Z-7799...
Page 41: Screen Saver
P-SCAN if a video cable is connected to the TV set or an Interlace or Progressive Scan TV set is being used. CAUTION Do not connect a video cable and an S-video cable at the same time. 41 Fusion Z-7799...
Page 42 DVD player is connected with an HDMI cable. TV TYPE Setting the picture format. NOTE The picture format depends on the DVD and the TV set. PASSWORD The password option is blocked. Input 0000 to unblock it and confirm ENTER with . To input a password, first input the old password and then input a new 4-digit password. 42 Fusion Z-7799...
Page 43: Osd Language
Under 18 only under parental supervision 7 NC-17 For adults, not under 17 Only for adults NOTE The option cannot be used if the password has not been unblocked. RESTORE Reset all settings. OSD LANGUAGE Set the display language and confirm with ENTER 43 Fusion Z-7799...
Page 44: Dynamic Range
The function can be set if music with a high dynamic range is being played back in a noisy environment. Quiet music becomes louder and loud music becomes quieter. DUAL MONO (left & right) Tone setting. NOTE Mix Mono is used for karaoke. 44 Fusion Z-7799...
Page 45 DVD system settings BRIGHTNESS Set brightness. CONTRAST Set contrast. SATURATION Set saturation. ANGLE SWITCH Set angle. 45 Fusion Z-7799...
Page 46: Audio Out
DVD system settings DOWNMIX Adjust speaker: LT / RT Dolby Digital STEREO 2 channel tone 5.1 channel format AUDIO OUT Spdif / off No audio signal from the coaxial output. Spdif / Raw DVD player is connected to an amplifier with a coaxial cable. Spdif / PCM DVD player is connected to 2 channel stereo amplifier. 46 Fusion Z-7799...
Page 47 Imported by: CECONET AG Hintermättlistrasse 1 CH-5506 Mägenwil...
