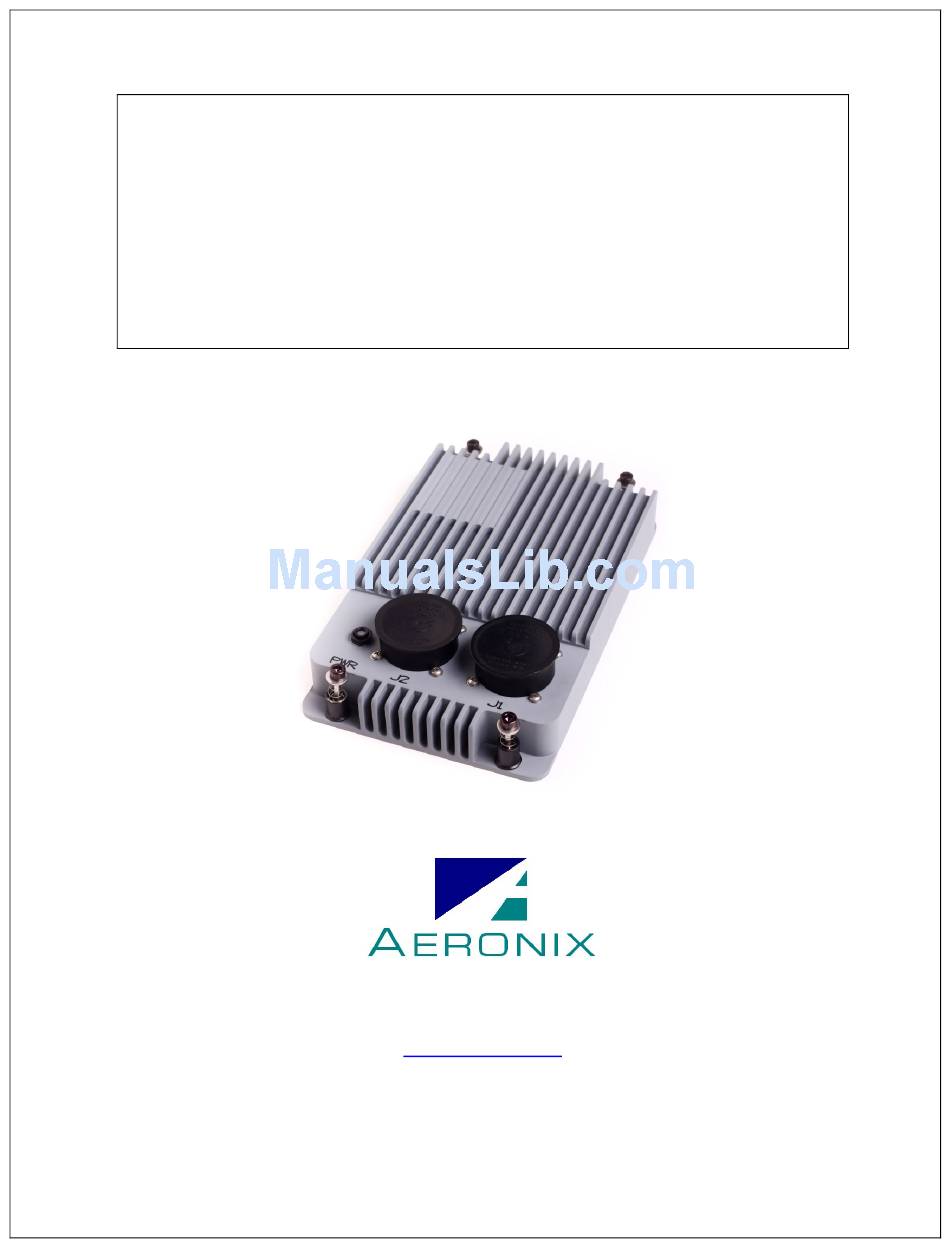

Gigabit Ethernet Switch (GES) Quick Start Guide 1775 West Hibiscus Blvd, Suite 200 Melbourne, FL 32901 (321) 984-1671 www.Aeronix.com... - Page 2 This manual applies to the Aeronix AE101264-002 12-Port Gigabit Ethernet Switch This Quick Start Guide is Part Number AE301098-001 Aeronix places no restriction on the duplication or distribution of this document; however, it must remain unaltered and in its entirety. © Copyright 2013 by Aeronix, Inc.
-
Page 3: Table Of Contents
GES – Quick Start Guide ______________________________________________________________________ Table of Contents OVERVIEW ......................1 BLOCK DIAGRAM ....................1 ELECTRICAL CONNECTIONS ................2 3.1. J1 C ....................2 ONNECTOR 3.2. J2 C ....................2 ONNECTOR 3.3..................4 NTERFACE ETAILS 3.3.1. Ethernet Ports .................... 4 3.3.2. -
Page 4: Overview
This document is intended to provide a quick reference to the features and capabilities of the Aeronix Gigabit Ethernet Switch (GES) hardware. The part number of the Aeronix 12-Port Gigabit Ethernet Switch is AE101264-002. 2. Block Diagram The basic functional blocks within the GES and their basic interactions are shown in Figure 2-1. -
Page 5: Electrical Connections
GES – Quick Start Guide ______________________________________________________________________ 3. Electrical Connections The GES has two electrical connectors, J1 and J2. 3.1. J1 Connector J1 is a 100 pin M38999 Series II connector, Part Number MS27508E22B35P. An example mating cable connector for J1 is Part Number MS27473E22B35S. J1 contains the following electrical interfaces: •... - Page 6 GES – Quick Start Guide ______________________________________________________________________ Signal Signal Signal Signal Chassis Ground Chassis Ground Chassis Ground Chassis Ground Port 0 - A(+) Chassis Ground Port 6 - A(+) Chassis Ground Port 0 - C(-) Port 3 - A(+) Port 6 - C(-) Port 9 - A(+) Port 0 - D(+) Port 3 - C(+)
-
Page 7: Interface Port Details
GES – Quick Start Guide ______________________________________________________________________ 3.3. Interface Port Details 3.3.1. Ethernet Ports All connections in Table 3-1 that have a white background are Ethernet Port connections. 3.3.2. Serial and Programming Ports All connections in Table 3-1 that have an Orange background are Serial Port connections. -
Page 8: In-Band Interface
• Lookup engine supports 16384 MAC address entries with learning and aging • Auto-MDI/MDIX and polarity correction Aeronix can create custom loads for the Management Processor that will allow increased GES management functionality and/or customer defined custom applications that would be hosted on this processor. -
Page 9: Hardware Mounting
GES – Quick Start Guide ______________________________________________________________________ 6. Hardware Mounting The GES weighs 2 pounds 12 ounces and is mounted via its four 10-32 captive screws. The recommended clearance for the mounting hardware below the mounting surface is 0.750”. The GES mounting screws extend 0.665” below the bottom of the chassis. Previous versions of the GES had shorter mounting screws. -
Page 10: Qualifications
GES – Quick Start Guide ______________________________________________________________________ 8. Qualifications Detail Characteristic 12 - 1000Mbps full duplex,10Mbps or 100Mbps full or half duplex Ports Dimensions 8.25" x 5.1" x 1.38" 2 lb 12 oz (1.25 kg) Weight Management Management Processor available for custom configurations MIL-C-38999 (Signal and Power) Connectors Military Specification... -
Page 11: Performance Parameters
GES – Quick Start Guide ______________________________________________________________________ 9. Performance Parameters Dimensions 8.25" x 5.1" x 1.38" Operating Temperature -40°C to +71°C Non-Operating Temperature -57°C to +95°C Cooling Radiant Cooling (Requires only ambient air) Weight 2 Lb. 12 Oz (1.2 kg) Power Requirements <... -
Page 12: Warranty
The GES does not contain any user serviceable parts. Any modification or use other than consistent with the intended design shall void the warranty. Owner must contact Aeronix at (321) 984-1671 and be issued a Return Material Authorization (RMA) number before returning a unit for warranty repair. -
Page 13: Products And Services
GES – Quick Start Guide ______________________________________________________________________ Products and Services Aeronix offers an extensive line of Engineering Services including the creation and implementation of custom management configurations for the GES. Visit the Aeronix web site at www.Aeronix.com for additional information about our products and services. - Page 14 GES – Quick Start Guide ______________________________________________________________________ 1775 West Hibiscus Blvd, Suite 200 Melbourne, FL 32901 (321) 984-1671 www.Aeronix.com Copyright Aeronix, Inc. 2013 ______________________________________________________________________ Page 11 of 11...
