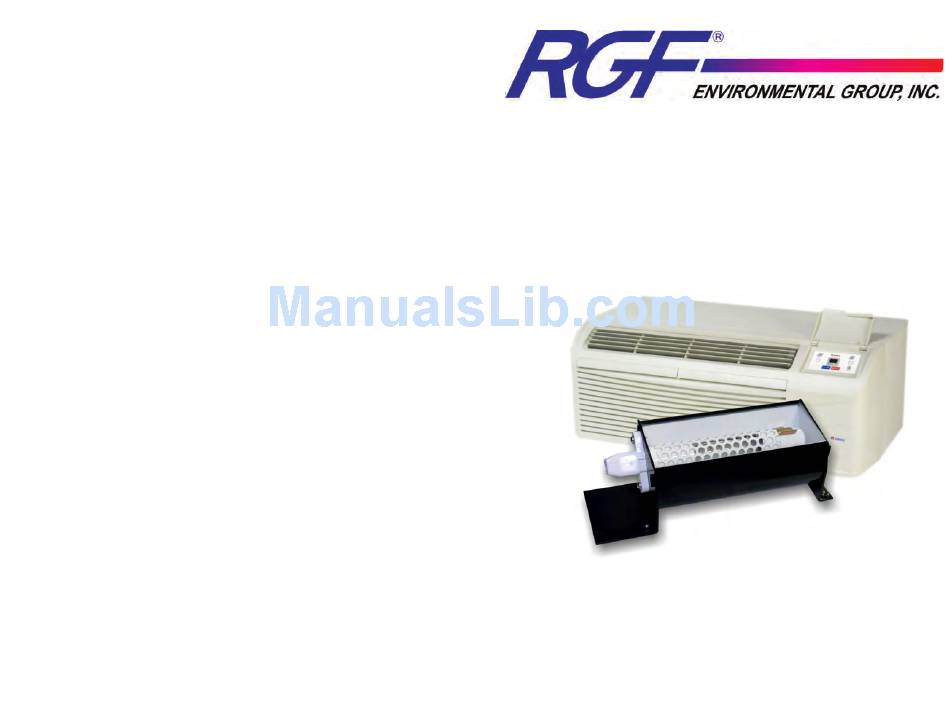

For PTAC & ETAC Units NOTE: Please take time to read the attached assembly instructions. All instructions and precautions should be adhered to while operating this system. Manufactured in the USA by RGF Environmental Group, Inc. RGF Environmental Group, Inc. PTAC 9-2012 Copyright 2012...
Page 3
® (PHI) process. The PHI Cell easily mounts into existing PTAC air conditioning, heating and heat pump units. When the PTAC system is in operation, the PHI Cell uses an Advanced Oxidation Process to reduce airborne contaminants. Typical Installation Purified air distributed to...
All are friendly oxidizers that revert back to oxygen and hydrogen after the oxidation of the pollutant. INSTALLATION INSTRUCTIONS: 1. Remove plastic housing from PTAC unit by carefully lifting tabs off metal frame. Guardian Air REME HVAC Cell REME or Re-...
Sales Person, Distributor, or Dealer, or contained in the written instruc- tions or other brochures or informational documents related to this product. Manufacturer warrants the new PTAC PHI equipment to be free from defects in material and workmanship under normal use and service when operated and maintained in strict accordance with manufacturer’s instructions for a period of...
Page 6
•Your supplier will repair or exchange the defective unit with a work- ing replacement. Things I should do to avoid problems or injuries when running my PTAC PHI Equipment. •Thoroughly read and understand all Operating Instructions, Warnings and Precautions before commencing application.
Page 7
• Replace enclosure cover • Using wire strippers remove 1/2” of insulation from ends of ballast wires • Ensure PHI power cord is routed as shown (see figure 18) and cell wires. • Ensure wire does not interfere with squirrel cage operation. Figure 12 Figure 18 •...
Page 8
• Locate input power cord terminal (directly below capacitor) and connect • To use the wire tap splice terminal first place around wire and press firmly. black wire (line) using supplied wire tap splice connector. • Now remove 1/2” of insulation from ballast power wire and press into holes on wire tap splice.
