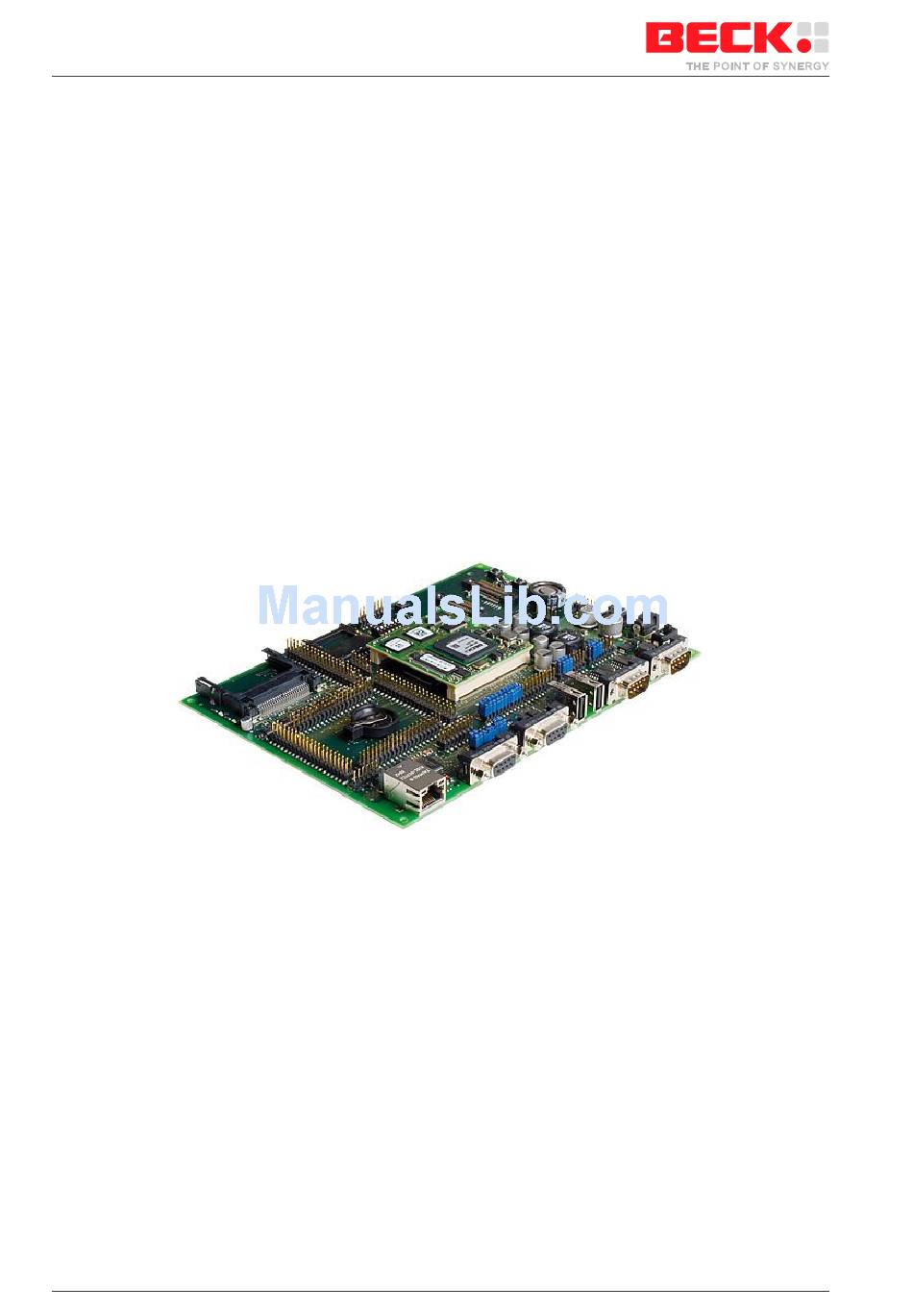

- Page 1 IPC@CHIP DB240 Hardware Manual V1.00 [08.05.09] Hardware Manual IPC@CHIP Development Board DB240 High Performance IPC@CHIP SC243 Embedded Webcontroller Order No. Development Board DB240: 563964 Development Kit DK241: 563965 ©2000-2009 BECK IPC GmbH Page 1...
- Page 2 IPC@CHIP DB240 Hardware Manual V1.00 [08.05.09] Copyright & Trademark IPC@CHIP® is a registered trademark of Beck IPC. Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos or other designations mentioned herein are trademarks of their respective owners.
-
Page 3: Table Of Contents
Technical data ......................18 Climatic data ..........................18 Mechanical data .......................... 18 Electromagnetic Compatibility ....................18 Electrical data ..........................18 General conditions of use ..................19 Exclusion of warranty and liability ................20 History ........................21 ©2000-2009 BECK IPC GmbH Page 3... -
Page 4: Overview
563966 ZT200 pulling off device for SC2x3 1.3 Getting Started The initial commissioning of the DB240, the software and the tools which are required, are described in the document IPC@CHIP® SC2x3 ―Getting Started‖. It is available at: http://www.beck-ipc.com/ipc/gettingstarted On this page you get also links to the required tools, as well as other useful documentation (SC2x3 Hardware Manual;... -
Page 5: Block Diagram
Six serial interfaces (two with 8-bit DIP switch RS232 level) Extension pin header Two CAN interfaces including PIO pins transceiver CPLD for demultiplexing Local Plus Real Time Clock with power buffering WLAN/Bluetooth-AddOn connectors SPI interface ©2000-2009 BECK IPC GmbH Page 5... -
Page 6: Assembly Top
IPC@CHIP DB240 Hardware Manual V1.00 [08.05.09] Assembly Top Figure 3-1: Assembly Drawing Top ©2000-2009 BECK IPC GmbH Page 6... -
Page 7: Assembly Bottom
IPC@CHIP DB240 Hardware Manual V1.00 [08.05.09] Assembly Bottom Figure 4-1: Assembly Drawing Bottom ©2000-2009 BECK IPC GmbH Page 7... -
Page 8: Electrical Functions / Interfaces
Electrical Functions / Interfaces 5.1 Power supply The 24V power supply input of the DB240 is protected against reverse polarity and transient over-voltages. An operating voltage indication for the 3.3V and 5V power is located near the power supply socket. -
Page 9: Sc2X3
5.7 X18, X19 – RS232 COM Ports The DB240 provides two RS232 COM ports (through UART1 and UART3) on SUB-D male connectors. For both interfaces TxD and RxD comes directly from the SC2x3 with RS232 levels. To support the hardware handshake with RTS, CTS and DCD, additional transcivers are used. -
Page 10: X4, X16 - Usb Host
5.8 X4, X16 – USB Host The DB240 provides two USB host interfaces. The USB1 pins of the SC243 are shared with the pins of UART4, UART5 and some PIO pins. If these pins are not used for the function USB1, the connection to the USB transceiver (IC1, USB1T11A) and the 5V switch (IC17, MIC2025) can be cut off through the jumpers at X1 to use the pins at the Extension Port. - Page 11 D28 (muxed address and data) USB2_RXD/UART3_CTS/PIO13 D29 (muxed address and data) USB2_RXP/UART3_DCD/CS6#/PIO14 D30 (muxed address and data) USB2_RXN/CS7#/PIO15 D31 (muxed address and data) USB2_PRTPWR/SPI_MOSI/PIO16 I²C1 CLK USB2_SPEED/SPI_MISO/PIO17 I²C1 DATA USB2_SUSPEND/SPI_SS/PIO18 I²C2 CLK USB2_OVRCNT/SPI_CLK/PIO19 I²C2 DATA ©2000-2009 BECK IPC GmbH Page 11...
- Page 12 USB1_RXP/UART4_CTS UART1_RTS/PIO2 USB1_RXN/UART5_TXD UART1_CTS/PIO3 USB1_PRTPWR/UART5_RXD/PIO25 UART1_DCD/PIO4 USB1_SPEED/UART5_RTS/PIO26 UART2_DCD/PIO9 USB1_SUSPEND/UART5_CTS/PIO27 CAN2_RX/UART2_CTS/PIO8 USB1_OVRCNT/PIO28 CAN2_TX/UART2_RTS/PIO7 TIMER0/PIO32 CAN1_RX/UART2_RXD/PIO6 TIMER1/PIO33 CAN1_TX/UART2_TXD/PIO5 TIMER2/PIO34 UART6_TXD/PIO22 TIMER3/PIO35 UART6_RXD/PIO20 TIMER4/PIO36 UART6_RTS/PIO23 TIMER5/PIO37 UART6_CTS/PIO21 TIMER6/PIO38 PO_RESET# TIMER7/PIO39 HRESET# LP_TS# SRESET# IRQ3 Designation Designation 3.3V ©2000-2009 BECK IPC GmbH Page 12...
-
Page 13: X9,X10 - Ata/Ide Interface
Hardware Manual V1.00 [08.05.09] 5.10 X9,X10 – ATA/IDE Interface The DB240 provides two parallel ATA/IDE interfaces. X9 is a standard IDE connector for a 40 pin parallel Hard Disk Cable. X10 is the socket for Compact Flash Disks Type I + II. -
Page 14: X5 - Fast Ethernet 10/100Mbit Interface
5.11 X5 – Fast Ethernet 10/100Mbit Interface The DB240 provides a Fast Ethernet interface according to IEEE802.3 for 10/100Mbit. The used transceiver is a LXT971A, the JR45 connector is a FM24 (see SC2x3 Hardware Manual). Some special modes of the LXT971A can be tested through pin header X3. -
Page 15: X12 - Backup Battery
5.12 X12 – Backup Battery Socket The SC2x3 integrates a low power SRAM, wich can be used to store non-volatile data. A battery on the DB240 is necessary, if the onboard SRAM of the SC2x3 is used to hold data without powering the DB240. The socket X12 can hold a 3V Lithium battery of the type CR2032. -
Page 16: X17 - Sd/Mmc-Card Socket
5.16 X20, X22 – CAN Interface The DB240 is equipped with the two CAN interfaces CAN1 and CAN2, including two CAN transceivers on SUB-D females. The 120 Ohm termination resistors can be connected through a jumper on pin header X25. -
Page 17: Real Time Clock
Hardware Manual V1.00 [08.05.09] 5.19 Real Time Clock The DB240 includes a Real Time Clock in addition to the built in RTC of the SC2x3, because the built in RTC can not be powered via any battery or external capacitor. -
Page 18: Technical Data
Operational ambient temperatures: 0°..55° C 6.2 Mechanical data DB240 board module dimensions (H x L x D): 18mm x 150mm x 212mm (+/-1 mm) 6.3 Electromagnetic Compatibility The DB240 is a development board without the CE mark. 6.4 Electrical data 9…30 VDC... -
Page 19: General Conditions Of Use
Hardware Manual V1.00 [08.05.09] General conditions of use Use of the DB240 Development Board or DK241 Development Kit is permissible exclusively in accordance with the terms and conditions stated below. These terms and conditions of use shall be deemed as accepted with the commissioning of the development board. -
Page 20: Exclusion Of Warranty And Liability
Use of the development board outside the specified environment is the responsibility of the user and shall be carried out at his or her own risk, exempting Beck from any liability. Claims by the user for compensation against Beck in conjunction with the use of this product shall be excluded. -
Page 21: History
GmbH. The information in this document is subject to change Right to make changes — BECK IPC GmbH reserves the right without notice. Devices sold by BECK IPC GmbH. Are covered to make changes, without notice, in the products, including...
