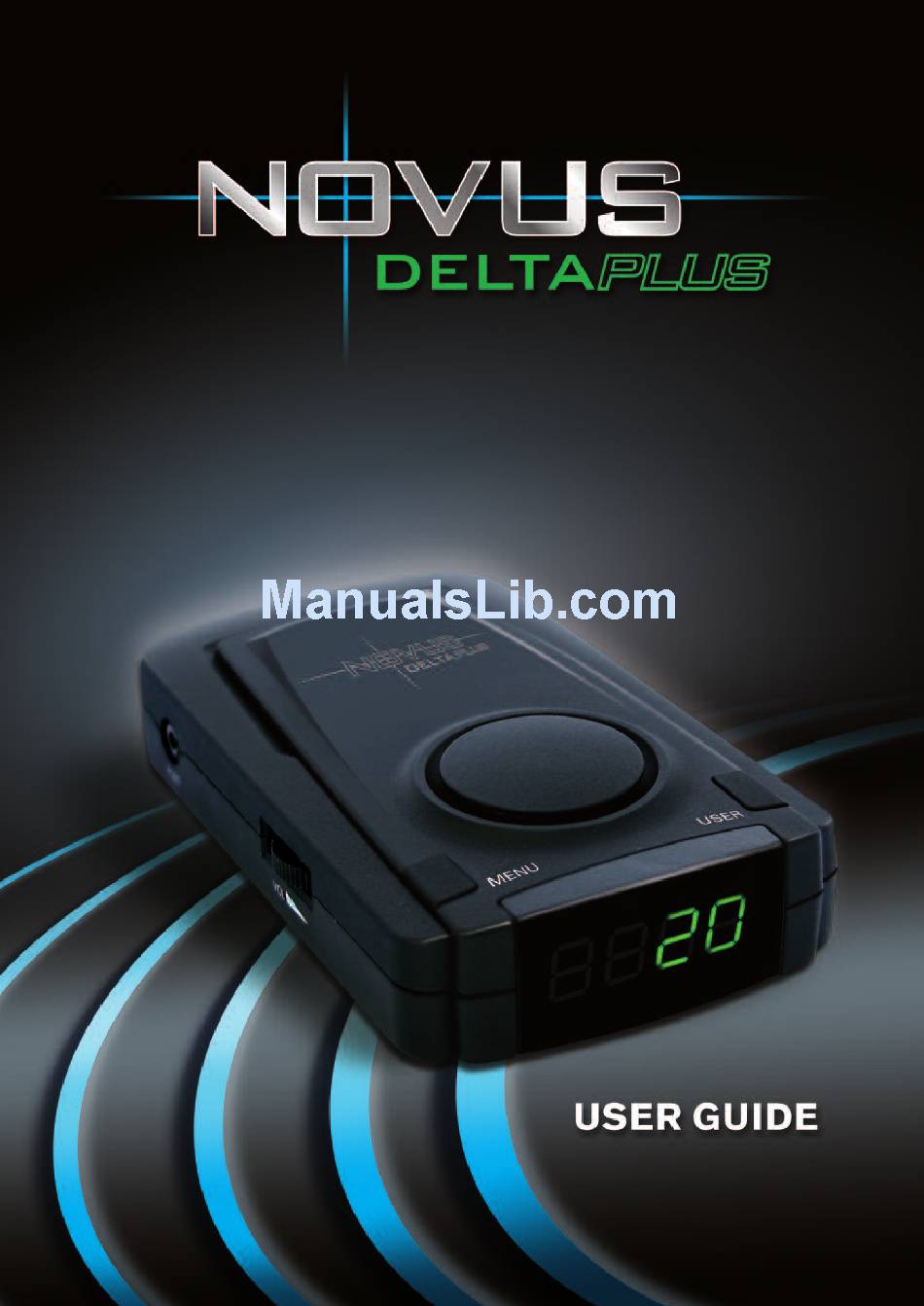

Novus Delta plus User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delta plus and is the answer not in the manual?

Questions and answers

Related Manuals for Novus Delta plus

Summary of Contents for Novus Delta plus

  • Page 2 Description Novus Delta Plus Part Number 09-100-001-100 Helpline Number 0845 6590959 Support email address support@novusgps.com www.novusgps.com...
  • Page 3 Package contents Specification Installation The Novus Delta Plus 9-12 Operating Instructions 13-14 Announcements & LED display 15-16 Caution Troubleshooting Support...

  • Page 4: Usb Cable

    What is the warranty covers The Novus Delta Plus Unit has 2 years Manufacturer’s Warranty. This warrants the hardware will be free from defects in workmanship and materials under normal use for a period of two (2) years from the date that the hardware was purchased.

  • Page 5: Magnetic Mount

    The system is operated and controlled solely by the Government of the United States of America, who are responsible for it’s availability and accuracy. Novus Systems Ltd. cannot accept any liability for changes to GPS accuracy and availability, or in environmental conditions, which may impact upon the operation of your Novus Delta Plus product.

  • Page 6: Specifications

    Specifications Novus Delta Plus Unit Cigar Lighter Charger Input Voltage: 9V – 24 V dc. Input Voltage: 9V – 24V Current Consumption: 250 mA Capacity: 250V, 2A (Fused) MAX. Speaker Output: 0.3W. GPS Engine Operating Temp: -10C - +70C Sirf Star III Dimensions: 102mm(W) x 67mm(D) Frequency: L1 (1575.42MHZ)

  • Page 7: Installation

    Position it in order that Novus Delta Plus has visibility of the sky. Warning: Do not mount on airbags. Place the Novus Delta Plus unit on the Step 2 magnetic mount. Select the operating mode either CAM or NORMAL.
  • Page 8 Power socket Used to provide power to the unit. Mode selection switch This switch allows the user to select the operating mode of the Novus Delta Plus unit. USER button This button allows recording and deletion of user defined positions.
  • Page 9 Data download port Speaker Volume switch MENU button Data download port Used to download the latest database information from a PC connected to the internet. Use the enclosed USB download cable. LED display When driving normally the LED diplay shows the current speed of the vehicle.

  • Page 10: Operating Instructions

    Operating Instructions 1) Installation and power Insert the power connector of the Car Power lead into the cigar lighter socket and the mini jack into the Novus Delta Plus unit in the socket marked “Power”. 2) Mode Selection After supplying power to the Novus Delta Plus, switch to either CAM or NORMAL mode by using the slide switch on the side of the unit.
  • Page 11 General Announcements. When the Novus Delta Plus unit is switched on it will give an active chime and in ‘Normal Mode’ only it will announce “Fasten Seat Belt”. It will flash the internal database version information in the display window, then show the current time.
  • Page 12 If the vehicle is travelling in excess of the speed limit in close proximity to the camera site, then the Novus Delta Plus unit will make an announcement advising that the driver should reduce speed. (Drivers should obey the posted speed limits in preference to the information provided by the Novus Delta Plus unit).
  • Page 13 Pressing and holding down the MENU button for 5 seconds will force the Novus Delta Plus unit to restart. This should only be done if the Novus unit has been switched on for more than 5 minutes and does not display the current speed (or time if stationary).
  • Page 14 Voice announcement & LED display Classification When Tone Announcement LED Display Start Up Power on D/C Hello - Novus system Active Database version (NMO) Date Time Time Check On the hour None GPS Time check at... Time blinks three times O’Clock (NMO)
  • Page 15 Classification When Tone Announcement LED Display 500 Yard Red 500 yards from D/C Warning Red Light camera Speed limit at camera Light Camera Red Light camera 500 Yards ahead limit..miles position flashes for Warning per hour [be aware some red 8 seconds - then shows light cameras now have a current speed with LED segment...
  • Page 16 Caution 1. When using Novus Delta Plus for the first time the unit may require a warm up time of approximately 5 - 10 minutes. 2. Position Novus Delta Plus system with a good view of the sky. 3. It should be remembered that satellite signals will be lost in tunnels underground car parks.
  • Page 17 10. Do not attempt to open or modify the unit as this will invalidate the warranty. 11. The Novus Delta Plus is ready for use, preloaded with a comprehensive database of camera positions. It is possible to update the database via a computer (with internet access) by visiting www.novusgps.com and...

  • Page 18: Troubleshooting

    2 Novus Delta Plus does not have a clear view of the sky* 3 If driving without a clear view of the sky for a long period and the Novus Delta Plus does not appear to operate normally, then, when next in a clear view remove and re-apply power.
  • Page 19 Support Novus Delta Plus is shipped with a comprehensive database installed. If you wish to regularly update your Novus Delta Plus unit, visit novusgps.com and follow the download instructions. Technical Support For any technical support problems please contact us either via email - support@novusgps.com...
  • Page 20 www novusgps com Manufactured under license by: GPS Location and Timing Ltd. Unit 15, Henfield Business Park, Shoreham Road, Henfield, West Sussex BN5 9SL...
