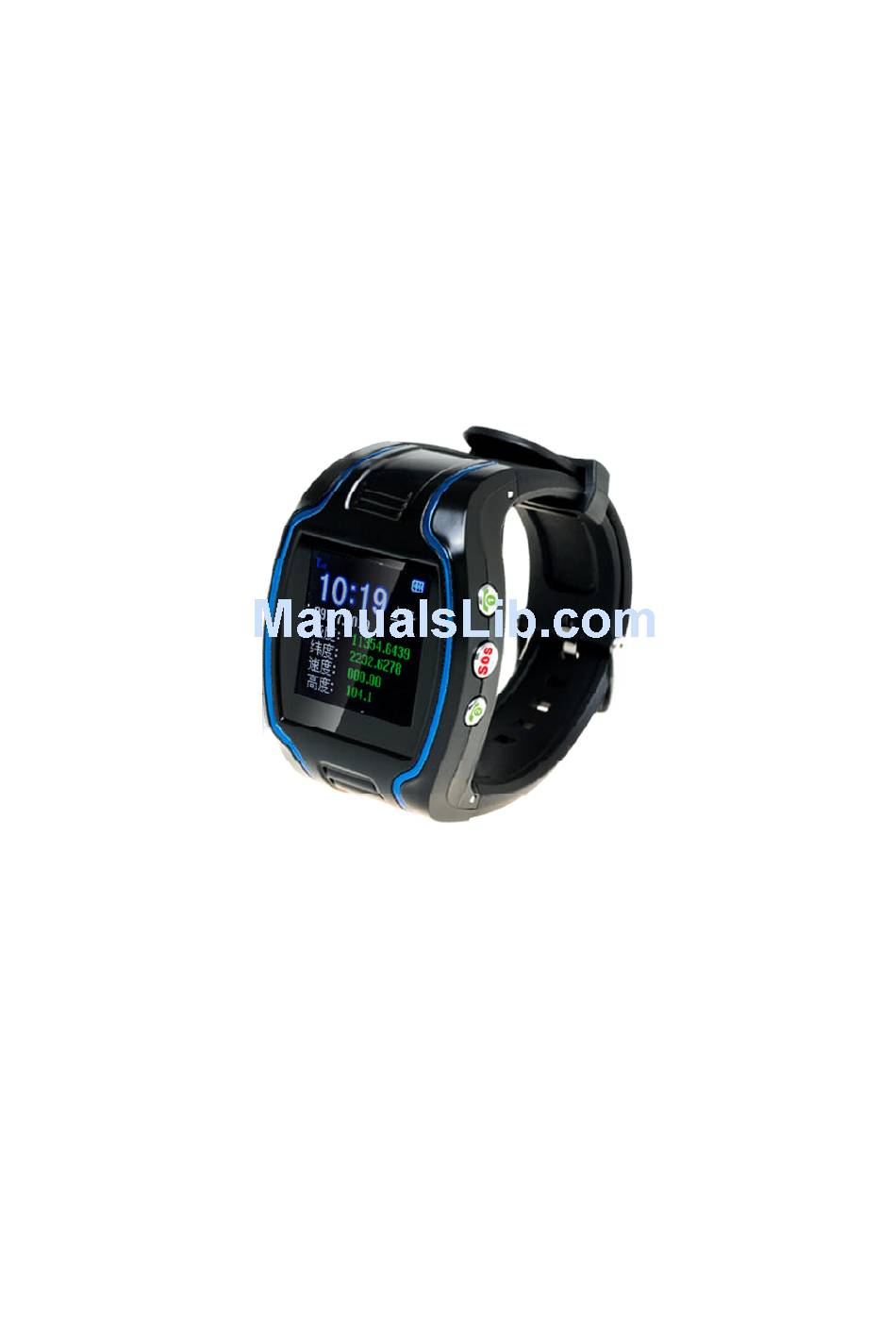

Hencent HC608 User Manual

Gps watch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GPS Watch User' s Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC608 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hencent HC608

  • Page 1 GPS Watch User’ s Manual...

  • Page 2: Table Of Contents

    Table of Contents Chapter I Preface… … … … … … … … … … … … … … … … … … … … ..4 I．General… … … … … … … … … … … … … … … … … … … … … … … ...4 II．Notices…...
  • Page 3 of Basic Functions… … … … … … … … … … … … … … .11 1. Location Inquiry… … … … … … … … … … … … … … … … … … … .12 (1) SMS Inquiry… … … … … … … … … … … … … … … … … … … … 12 (2) Platform Inquiry…...

  • Page 4: Chapter I Preface

    (2). Fence Reading Function… … … … … … … … … … … … … … … .20 (3). Function of Canceling Fence… … … … … … … … … … … … … ..21 15. Auxiliary Functions… … … … … … … … … … … … … … … … … … 21 Notices…...

  • Page 5: Chapter Ii About The Device

    operation steps are inconsistent with those for the actual product, the latter will prevail. 3. The defaulted password of this product is 0000. Chapter II about the Device GPS Watch, as a personal remote positioning device made up of GPS module and GSM/GPRS module, is compact in dimensions with high accuracy.

  • Page 6: Product Features

    2 Product Features ● Inbuilt GPS Module ● Internet positioning service center, used to receive and send positioning information ● GSM /GPRS modem supports Quad frequency bands, i.e. 850/900/1800/1900 MHz ● High-sensitivity, new workmanship and the most advanced GPS chip ●...

  • Page 7: Others

    GPS sensitivity -163dBm center L1, 1575.42MHz frequency positioning 0-15m accuracy positioning 50-500m accuracy Speed accuracy 0.1 m/s Time accuracy Synchronous with GPS GPS Datum WGS-84 Hot start < 1s Warm start < 38s Max. altitude 18000m Max. speed 515m/s ﹤4g Gravitational acceleration (2).

  • Page 8: Chapter Iii Usage Preparation

    Power supply DC5V Standby time >48h Buttons SOS button for emergency aid; Call 1, Call 2, Switch on / off buttons, interface switch button Chapter III Usage Preparation I. Accessories 1. Main unit 2. USB data cable 3. Charger 4. Headset cable (optional) 5 Battery II.

  • Page 9: Interface Definition

    2. Interface Definition GSM signal strength is indicated on the upper left corner of the main interface as showed in picture 2: Bottom left button is for interface switch as showed in picture 3: III. Charge the Battery  Please use up the battery and discharge it for 2-3 times and then charge the battery for at least 12 hours for initial use, in order to keep the quality of the battery.
  • Page 10  Put the battery into the inside of the terminal and connect the charger to 100V/220V AC power supply to charge the battery. Then the power indicator on the upper right corner of the terminal screen will keep strolling as showed in picture 3-1: ( picture 3-1 ) ...

  • Page 11: Iv.installation Of Sim Card

    the battery may vary due to difference of internet service, functional mode and usage mode.  Disconnect the terminal and charger as soon as possible after the battery is well charged. IV. Installation of SIM Card Open the back cover, then you will see the place where the SIM card is placed.

  • Page 12: Location Inquiry

    1. Location Inquiry (1) SMS Inquiry Create 988 + password command (defaulted password as 0000) via mobile phone and send it to the terminal mobile phone number; after successful sending, the guardian’ s mobile phone will receive a piece of message.

  • Page 13: Platform Inquiry

    the terminal will return a piece of detailed latitude and longitude message. (2) Platform Inquiry Step 1: Log onto the platform (Please contact with the service provider to get the platform address). Step 2: Click the terminal of the ward, then the location of the ward will be displayed on the map.

  • Page 14: Adjust Receiver Volume

    “ &710&successful setting&&”response message from the terminal. Setup format: #711# Call1# Call2 # Call3 # 0000## incoming call interface and call duration interface Notes: After the setup is successful, press the upper right button for a while, then the terminal will automatically dial the first phone number. Press the bottom right button, then the terminal will automatically dial the second phone number.

  • Page 15: Monitoring Function

    SOS button for emergency aid interface SOS SMS format: IMEI number: SOS (information about latitude and longitude or base station) Example: 356823031017473:SOS（11354.6397,E,2232.6283,N） or 356823031017473:SOS（26280E77） Remarks: when interface in picture 5 appears on the phone, the terminal will skip to standby mode automatically; sound and interface during the dialing will be completely shielded.

  • Page 16: Regular Upload Interval Setup

    SMS format: 5550000 Remarks: 0000 is the initial defaulted password and in practice the password could be set by the user. 7. Regular Upload Interval Setup The defaulted upload interval of this product is 0, meaning that the defaulted GPRS is closed. The user may change the parameter according to actual demand.

  • Page 17: Set User Name Command

    password is wrong, as shown in the following picture: ① Send command to the terminal. ② The terminal return confirmation message to the mobile phone. 9. Set User name Command SMS Command Format: #801#4~20-digit letters or numbers #4-digit password ## Example: #801#13900139000#0000## Notes: After executing this command, the user name of the terminal on GPRS mode is required to be set up according to actual demand.

  • Page 18: Set Server Address Command

    10. Set APN Command Create the SMS “ 802#APN letters or digits, 4-20 bits # Log user name letters or digits 4-20 bits in # Log password letter or digits 4-20 bits in # terminal password 4 bits ##”and send it to the terminal; after executing this command, the terminal will automatically restart and connect to GPRS with APN set.

  • Page 19: Low Voltage Alarming Function

    Setup via domain name: Example: #803#www.heacent.com#9876#0000## 12. Low-Voltage Alarming Function If the terminal of the ward has a very low power and needs to be powered off, the terminal of the ward will automatically upload one piece of low-voltage alarming command to the monitoring center number. SMS Format: IMEI Number: low power;...

  • Page 20: Electronic Fence Function

    When satellite time is corrected to GMT automatically, send SMS command 8960000E08 and the time will change into Beijing time. 14. Electronic Fence Function (1)GPS Fence Function The guardian could get the center spot of a fence through Google map or single inquiry.

  • Page 21: Function Of Canceling Fence

    (2) Fence Reading Function Send commands to the terminal: # command number (752) # user password 4 digits ##; after the command is set successfully, the terminal will read the data of the module fence working status and return message to the sending mobile phone, or PASSWORD ER if the password is wrong.

  • Page 22: Auxiliary Functions

    (3) Function of Canceling Fence Command name: # command number (760) # user password 4-digits ## Example: #760#0000## After the terminal receiving this command, all fence settings will be cancelled. Advice: Do not set GSM fence and GPS fence at the same time. 15.
  • Page 23 5. This device supports the dual positioning mode of GPS and GSM/GPRS. 6. Please use this device in a legal area, any illegal consequence will be borne by the user. Notes: due to the high sensitivity of the GPS module adopted by this product, it is normal to be drifting with weak GPS signal.
