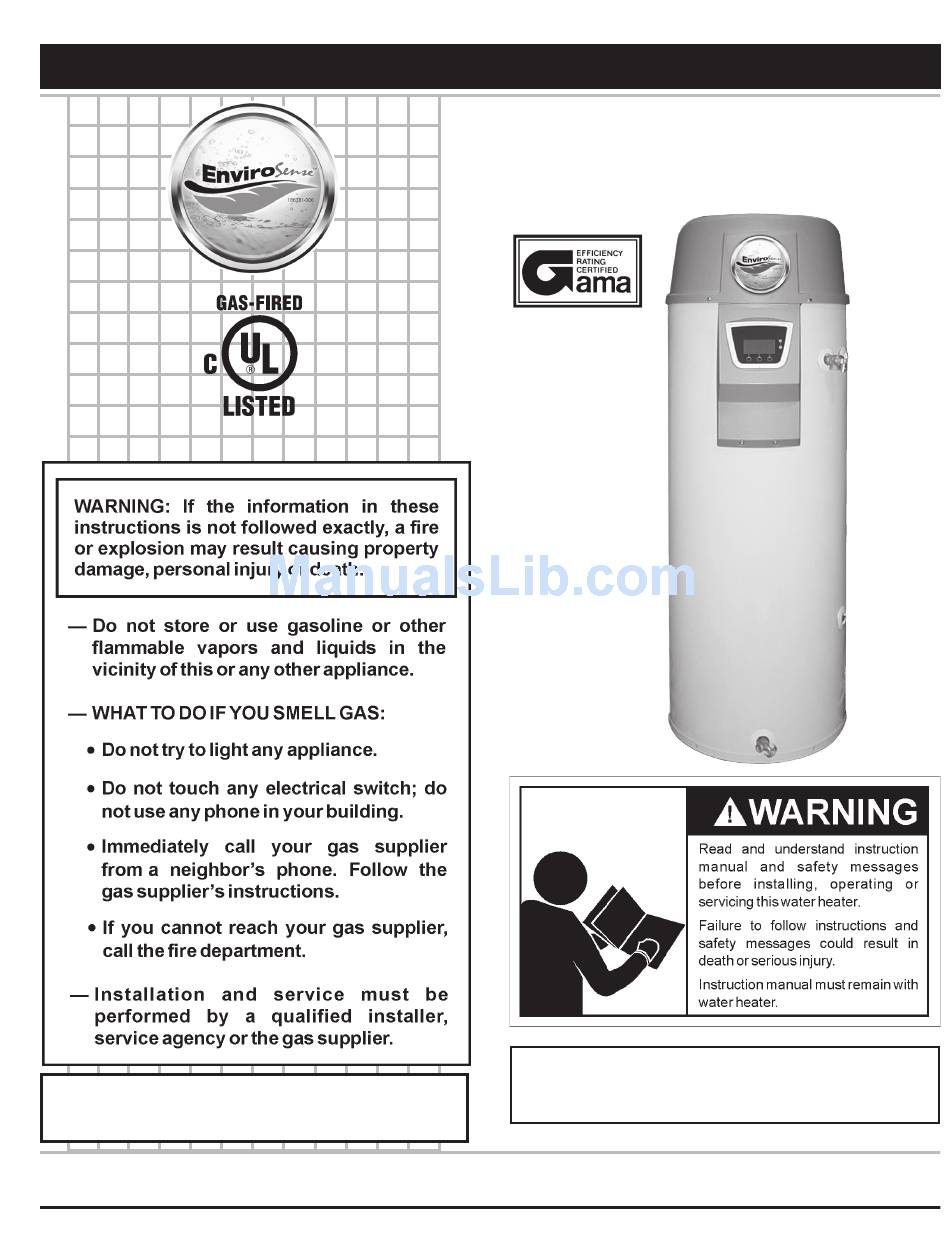

Thank you for buying this energy efficient water heater.
We appreciate your confidence in our products.
all technIcal and warrantY questIons: SHOULD BE DIRECTED TO THE LOCAL DEALER FROM WHOM THE WATER HEATER WAS
PURCHASED. IF YOU ARE UNSUCCESSFUL, CALL THE TECHNICAL SUPPORT PHONE NUMBER SHOWN ON THE WATER HEATER LABELING.
PRINTED 1111
resIdentIal Gas water heaters
Keep thIs Manual In the pocKet on heater for future reference
whenever MaIntenance adjustMent or servIce Is requIred.

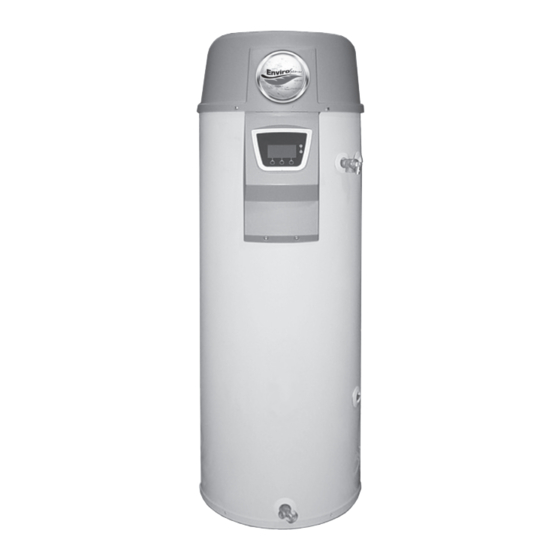

Instruction Manual
power vent/power dIrect vent Gas Models
Model 6G50100 pdvh serIes 124/125
complies with scaqMd low nox rule 1146.2
•

for Your safety

AN ODORANT IS ADDED TO THE GAS USED
BY THIS WATER HEATER.
1
wIth hot surface IGnItIon
•
322290-000
