Masterplug TVRC1N Operating Instructions Manual

1 in 1 remote control tvrc1n masterplug
Hide thumbs

Advertisement

Quick Links

TVRC1N
1 IN 1 Remote Control
Operating Instructions and
Device Codes

Advertisement

loading
Need help?

Need help?

Do you have a question about the TVRC1N and is the answer not in the manual?

Questions and answers

Summary of Contents for Masterplug TVRC1N

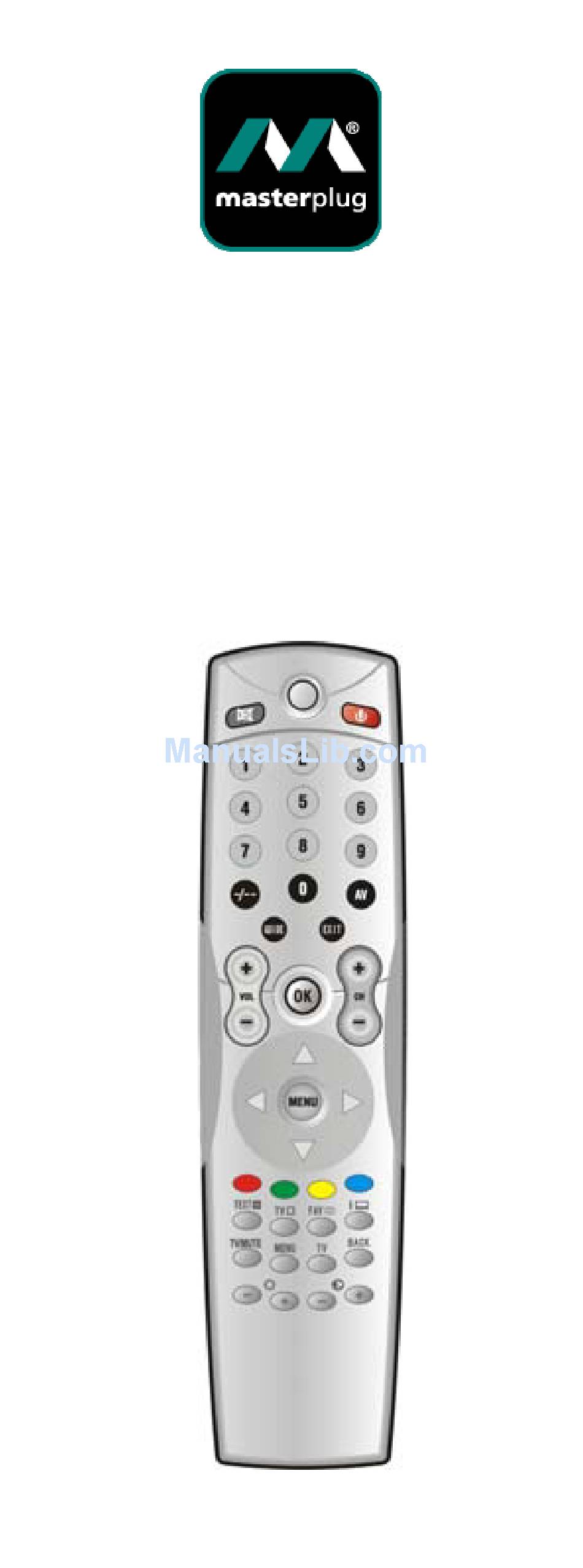

  • Page 1 TVRC1N 1 IN 1 Remote Control Operating Instructions and Device Codes...

  • Page 3: Table Of Contents

    Contents Batteries ………...………………...……………………….…. 3 Button functions …….……….……….……….………...…4 A. Direct code entry …………………...…………….…….7 B. Global Search Remote Control Programming…8 C. Current Code Display ……...…………………………10 Codes ………………………...………………………………….…11 Batteries This product requires 2 AAA/LR03 Alkaline buttons. 1. Slide the battery cover in the direction of the arrow away from the body of the remote control.

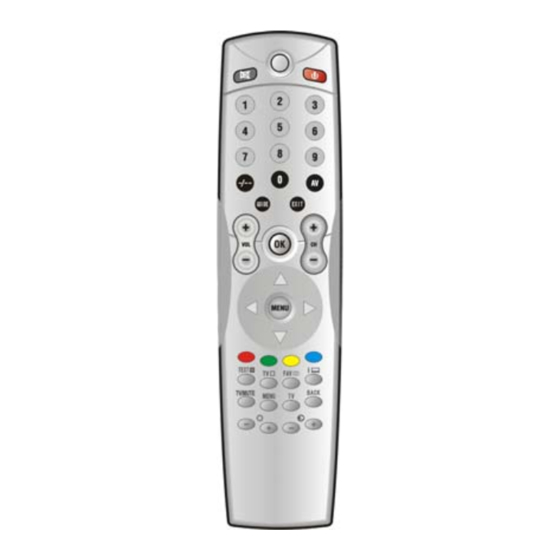

  • Page 4: Button Functions

    Button function 1. LED LED blinks to show that the remote is working. 2. MUTE Turn sound OFF or ON.
  • Page 5 3. POWER Switch devices ON or OFF. 4. Number keys These operate as they did on your original remote control. 5. -/-- Use to enter 1 or 2 digit numbers. 6. AV Select TV or AV (VCR). (Note. 1) 7. Guide (Note 1) Shows the guide screen.
  • Page 6 13. UP/DOWN/LEFT/RIGHT (Note 1.) Move the Cursor in the program guide and menu screens 14. Fast text buttons (Note 1) These operate the fast text on your TV as with your original remote control. 15. Video/Telex (Note. 1) These operate the VCR when it is selected. 16.

  • Page 7: Direct Code Entry

    DIRECT CODE ENTRY Warning: program one appliance at a time! Turn on the appliance to be programmed. Look for the brand of the appliance you want to program in the code list and make a note of the first code in the list (e.g. Philips TV 1050 –...

  • Page 8: Global Search Remote Control Programming

    GLOBAL SEARCH REMOTE CONTROL PROGRAMMING This operation can take up to 20 minutes and should be carried out if you have not succeeded in programming the remote control by means of the other methods. Warning: program one appliance at a time! B.1.
  • Page 9 N.B. THE LIGHT INDICATOR STOPS FLASHING. The remote control exits programming mode and the light indicator stops flashing: If no buttons are pressed for 15 seconds If a button other than POWER button is accidentally pressed If the end of the code search list has been reached.

  • Page 10: Current Code Display

    CURRENT CODE DISPLAY Press and hold the Device button for 5 seconds. When the button is released it will start to flash; press and release the -/-- key within 8 seconds. After a few seconds, the light indicator produces 4 series of flashes, with a pause between each series, corresponding to the current code.
  • Page 11 NO. Brand or TV A.R.S. 1050 1281 ACCENT 1109 1281 1385 1402 ACER 1384 ACTION 1110 ADMIRAL 1109 1110 1184 1185 1198 1275 1309 1322 1380 1407 AGASHI 1050 1281 1402 AIKO 1074 1109 1259 1050 1078 1111 1339 1388 1402 10 AIOSTAY 1077 1104 1109 1199 11 AIWA...
  • Page 12 33 AR SYSTEM 1078 1221 34 ARCELIK 1236 35 ARDEM 1091 1236 1376 36 ART-TECH 1110 1258 1408 1409 1410 37 ASA 1055 1088 1104 1105 1198 1275 1344 1408 1410 38 ASBERG 1050 1098 39 ASTHON 1380 1410 40 ASTRA 1050 1109 1280 41 ASTROSOUND 1078 1190 1227 1380 1410...
  • Page 13 67 BLAUPUNKT 1056 1082 1083 1084 1085 1086 1221 1329 68 BLAUSONIC 1074 1077 69 BLOOM 1310 1380 1397 70 BLUE STAR 1186 1190 1199 1204 71 BLUESKY 1050 1158 1213 1236 1243 1259 1303 1376 1380 1383 1388 1394 1397 1407 72 BONDSTEC 1070...
  • Page 14 100 CONTI 1402 101 CONTINENTAL 1050 1112 1376 1380 1402 1410 102 COSMEL 1050 1109 1110 1219 1408 103 COSMOS 1110 104 CROWN 1050 1080 1089 1090 1091 1098 1109 1110 1236 1259 1378 1380 1410 105 CRYSTAL 1050 1091 1373 1376 1380 1402 1410 1070 1077 1259 CS ELECTRONICS...
  • Page 15 131 DUAL-TEC 1050 1071 1074 1077 1093 1101 1109 1110 1163 1179 1183 1185 1189 1194 1199 1202 1243 1373 1376 1380 1381 1383 1388 1400 1402 132 DUMONT 1050 1088 1098 1104 1105 1205 1227 1234 1275 1276 1341 1344 1376 1380 1383 1410 133 DUNAI 1199...
  • Page 16 164 FENNER 1090 1109 1111 1221 1258 1376 1406 1408 1410 165 FIDELIS 1050 1074 1077 1109 1110 1402 166 FIDELITY 1074 1077 11101177 1202 1280 167 FILSAI 1074 168 FINLANDIA 1178 1196 1205 169 FINLUX 1055 1073 1088 1098 1104 1105 1109 1166 1168 1170 1179 1181 1205 1206 1224 1227 1228 1234 1235 12421344 1394 1408 1410...
  • Page 17 190 GEC 1065 1073 1074 1179 1188 1198 1203 1206 1207 1209 1224 1225 1354 191 GELOSO 1071 1073 1109 1110 1111 1198 1199 1205 1259 192 GEMSOUND 1109 1259 193 GENERAL 1110 1111 TECHNIC 194 GERICOM 1332 195 GIANT 1050 1074 1138 196 GITEM 1050 1056 1177 1200 1204 1251...
  • Page 18 218 HANTAREX 1050 1073 1081 1095 1109 1332 1353 219 HARROW 1380 220 H-B 1380 221 HCM 1074 1109 1110 1199 1258 1409 222 HEMMERMANN 1074 1193 1202 1227 1254 223 HIGASHI 1074 1077 224 HILINE 1109 225 HINARI 1050 1065 1109 1179 1204 1213 1233 1259 1281 1319 1376 1408 1410 226 HISAWA...
  • Page 19 245 INGERSOLL 1109 246 INNO HIT 1050 1071 1073 1074 1103 1109 1110 1205 1223 1224 1258 1259 1280 1281 1378 1380 1381 1402 1407 1408 1409 1410 247 INT 1281 248 INTERBURG 1109 249 INTERBUY 1070 250 INTERDISCOUNT 1050 1052 1251 251 INTERFUNK 1050 1100 1179 1200 1206 1207 1215 1234 1275 1402...
  • Page 20 1378 1402 1408 271 KAWASHO 1608 272 KAYA 1110 1281 273 KENDO 1050 1071 1074 1109 1184 1185 1196 1199 1227 1232 1242 1315 274 KENNEDY 1071 1092 1093 1183 1185 1205 1242 1245 1246 1309 275 KENNEX 1050 1243 1376 1380 1381 1407 276 KERION 1050 1380 1410 277 KEYMAT...
  • Page 21 1199 1232 1236 1239 1279 1281 1282 1312 1334 1336 1342 1376 1380 1400 1402 1408 1409 1410 305 LIESENKOTTER 1050 1402 306 LIFE 1109 1230 307 LIFETEC 1243 1376 1380 1409 308 LLOYD'S 1074 1206 309 LOEWE OPTA 1073 1088 1274 1275 1385 1386 1402 1593 310 LOGIK 1050 1213...
  • Page 22 335 MAXIMAL 1204 336 MAXON 1110 337 MAXWELL 1076 1227 1376 338 MC PERSON 1327 339 MCE 1137 1281 340 MECOA 1376 341 MEDION 1230 1277 1303 1310 1376 1380 1388 1409 342 MELECTRONIC 1050 1055 1056 1069 1071 1088 1101 1104 1105 1109 1111 1167 1168 1170 1193 1202 1242 1344 1371 1378 1380 1381 1385 1388...
  • Page 23 1351 1352 1430 1432 1433 363 NESCO 1070 1319 364 NEU 1371 1381 365 NEUFUNK 1374 1380 366 NEWMAR 1074 1077 1186 1199 367 NEWTECH 1051 1077 1110 1402 368 NEXIUS 1237 1302 1378 1379 1396 369 NIKE 1376 370 NIKKAI 1074 1239 1281 371 NIKKEI 1050 1217 1243 1281 1380...
  • Page 24 397 OSAKI 1281 1317 1408 398 OSIO 1103 399 OTF 1050 1199 400 OTTO VERSAND 1050 1051 1052 1056 1060 1074 1082 1083 1091 1101 1108 1125 1178 1179 1187 1205 1232 1315 1317 1380 1385 1388 1402 1410 401 OVP 1050 402 PAEL 1077 1100...
  • Page 25 427 PRINZ 1317 428 PROFESSOR 1050 429 PROFEX 1098 1109 1178 1189 1197 430 PROFITRONIC 1050 1227 431 PROLINE 1057 1116 1242 1316 1380 1383 432 PROSOSNIC 1376 1402 1409 433 PROTECH 1050 1091 1109 1110 1199 1234 1238 1243 1376 1380 1388 1402 1408 1409 1410 434 PROVISION 1111 1370...
  • Page 26 459 ROYAL 1050 1074 1109 1259 1281 460 RUNCO 1330 1590 1530 461 SABA 1051 1057 1073 1122 1154 1155 1159 1206 1207 1212 1214 1215 1216 1250 1251 1253 1275 1278 1311 1380 462 SAGEM 1304 1335 463 SAISHO 1050 1074 1078 1111 1193 1213 1259 1315 1317 464 SAKURA...
  • Page 27 478 SEELVER 1380 479 SEG 1050 1071 1072 1074 1098 1182 1199 1227 1233 1243 1259 1376 1380 1410 480 SEIKO 1111 481 SEITECH 1217 1237 482 SELECO 1050 1065 1092 1093 1105 1150 1179 1183 1184 1185 1198 1199 1208 1214 1242 1245 1246 1309 1322 1328 1381 1383 1392 1393 1399 1406 1408 1410...
  • Page 28 507 SOLAVOX 1177 1179 1202 1204 1239 508 SONIKO 1376 509 SONITRON 1074 1275 1339 1343 510 SONOKO 1050 1075 1077 1109 1110 1258 1281 1376 1408 1409 1410 511 SONTEC 1070 1089 1110 1376 1380 1408 1410 512 SONY 1050 1052 1058 1060 1061 1063 1082 1094 1161 1180 1213 1341 1608...
  • Page 29 541 TATUNG 1050 1073 1074 1213 1223 1224 1225 1229 1402 1408 1410 542 TD DESIGN 1385 543 TEAK 1050 1074 1109 1385 1402 544 TEAM 1258 545 TECCO 1072 1074 1109 1215 546 TECHLINE 1376 547 TECHNICA 1259 548 TECHNICAL 1380 549 TECHNICS 1148 1149 1452...
  • Page 30 1275 1278 1311 1376 573 THORN- 1050 1051 1052 1055 1056 1057 FERGUSON 1060 1062 1063 1065 1073 1074 1078 1082 1083 1088 1100 1105 1108 1109 1138 1146 1155 1161 1177 1179 1185 1186 1189 1199 1200 1202 1204 1207 1213 1214 1215 1216 1224 1225 1229 1249 1250 1251 1255 1267 1281 1339 1340 1342 1343 1344 1346 1350...
  • Page 31 601 VECO 1109 1408 602 VESTEL 1050 1189 1243 1374 1376 1380 1388 1407 1410 603 VEXA 1050 1074 1109 1258 604 VICEROY 1074 605 VIDEOCON 1050 606 VIDEOLOGIC 1074 1259 607 VIDEOMAC 1074 608 VIDEON 1376 609 VIDEOSYSTEM 1050 610 VIDIKRON 1050 1201 611 VIDION...
  • Page 32 633 WORLDTECH 1050 634 WORLDVIEW 1050 1109 1221 635 XCELLENT 1408 1409 1410 636 XENA 1252 637 XONYCS 1376 1408 638 XRYPTON 1234 1376 1378 1409 639 YAMISHI 1110 1221 640 YOKO 1050 1074 1090 1109 1178 1251 1343 1376 1378 641 YOSHITA 1050 642 YPRK...
