Cooper Controls EG2 Installation Manual

Ethernet gateway light
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
EG2
Ethernet Gateway
Installation guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EG2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cooper Controls EG2

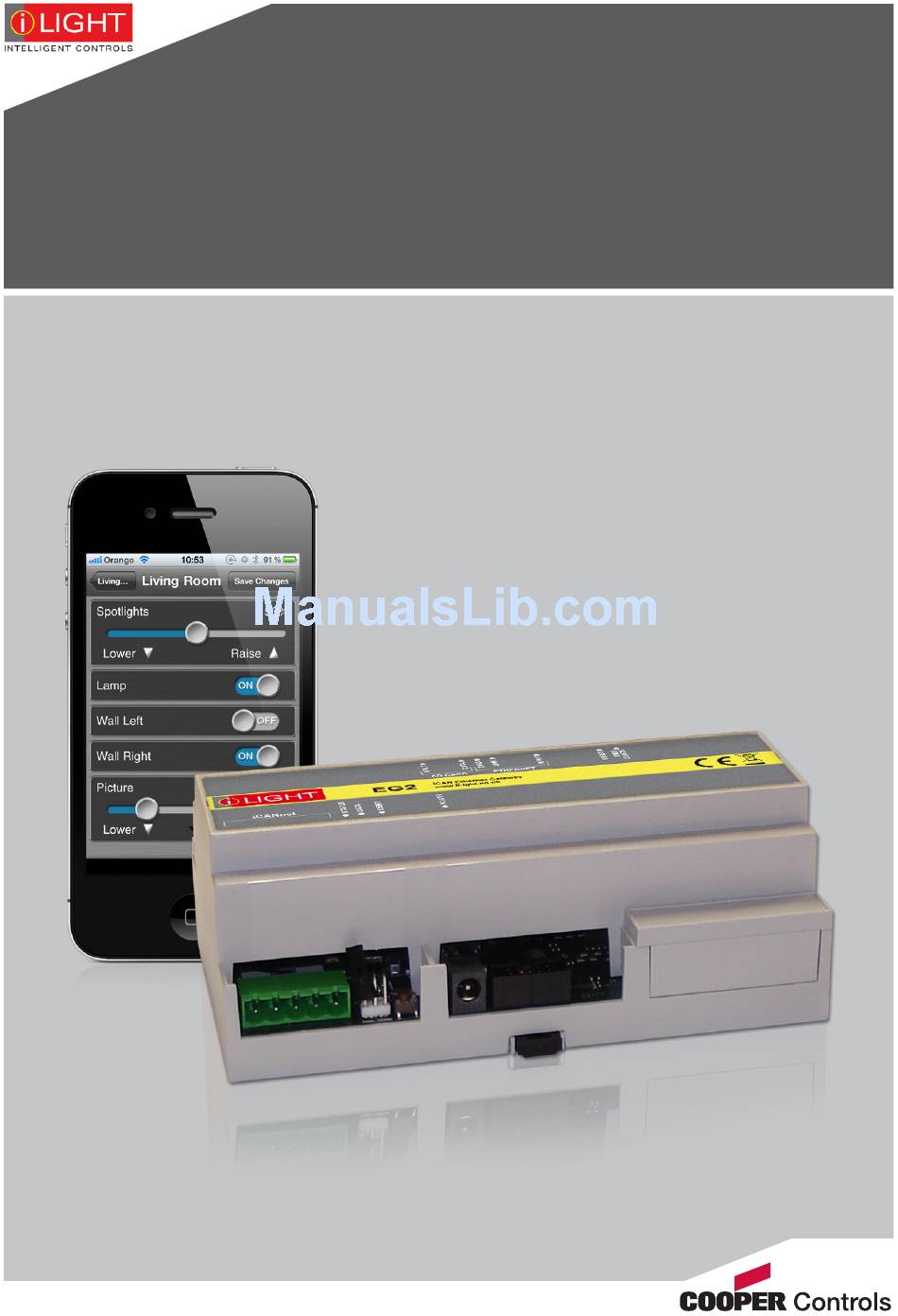

  • Page 1 Ethernet Gateway Installation guide...

  • Page 2: Product Overview

    PC rather than by connecting directly into the network. WARNING The EG2 also facilitates connection to the internet when installed behind a firewall. This then enables remote connection for controlling, programming and obtaining diagnostics of the To reduce the risk of fire or electric shock, lighting control system.
  • Page 3 Installation Location The EG2 should be installed in a dry ventilated location, where ambient conditions are maintained within the requirements of the unit. The unit has ventilation slots on its sides to allow convection cooling and in no circumstances should these be blocked.
  • Page 4 Red LED on indicates a iLight network CANbus error connection iCAN IDENT (See P6 for Switch that causes the EG2 wiring details) iCAN status to send a message on the Green flashing LED indicates CAN BUS to identify itself normal operation...
  • Page 5 CAT5 FTP. Set Up Instructions iCANnet Connect the EG2 to the CAN network using the iCANnet connector. If the EG2 is at the end of a network set the Term link to ON otherwise set to the OFF position. Ethernet Ethernet connection by RJ45 (568B).

  • Page 6: Setting The Ip Address

    Set Up Instructions Configuration iCAN Device Number The EG2 is supplied with a iCANnet Device number with Segment number 255 and a node number in the range 1-255. Both Segment and Node number can be changed using iCANsoft. Factory Default IP settings Note the EG2 default settings are to use a fixed IP address of 192.168.0.100.
  • Page 7 • Gateway 192.168.0.1 To connect the EG2 directly to the PC, it may be necessary to use a Crossover Cable, however, most modern computers are able to connect directly to another Ethernet device without a crossover cable. The Ethernet port of your computer will need to configured to a compatible IP address.
  • Page 8 F: +44 (0)1923 228796 www.iLight.co.uk All products manufactured by Cooper Controls and identified with the iLumin/iLight brand are warranted to be free from defects in material and workmanship and shall conform to and perform in accordance with Seller’s written specifications.
