  • Page 1 Diezel Columbus Operating instructions...
  • Page 2 Chapter 1: Intended purpose, warning and warranty references 1.1 Warning references and safety regulations 1.2 Terms of the warranty Chapter 2: Start-up of the Columbus 2.1 General functions, structure, Midi channel 2.2 Connection at the Herbert/Hagen 2.3 Connection at the VH4 or VH4S 2.4 The operation with external power supply unit at other Midi capable devices...

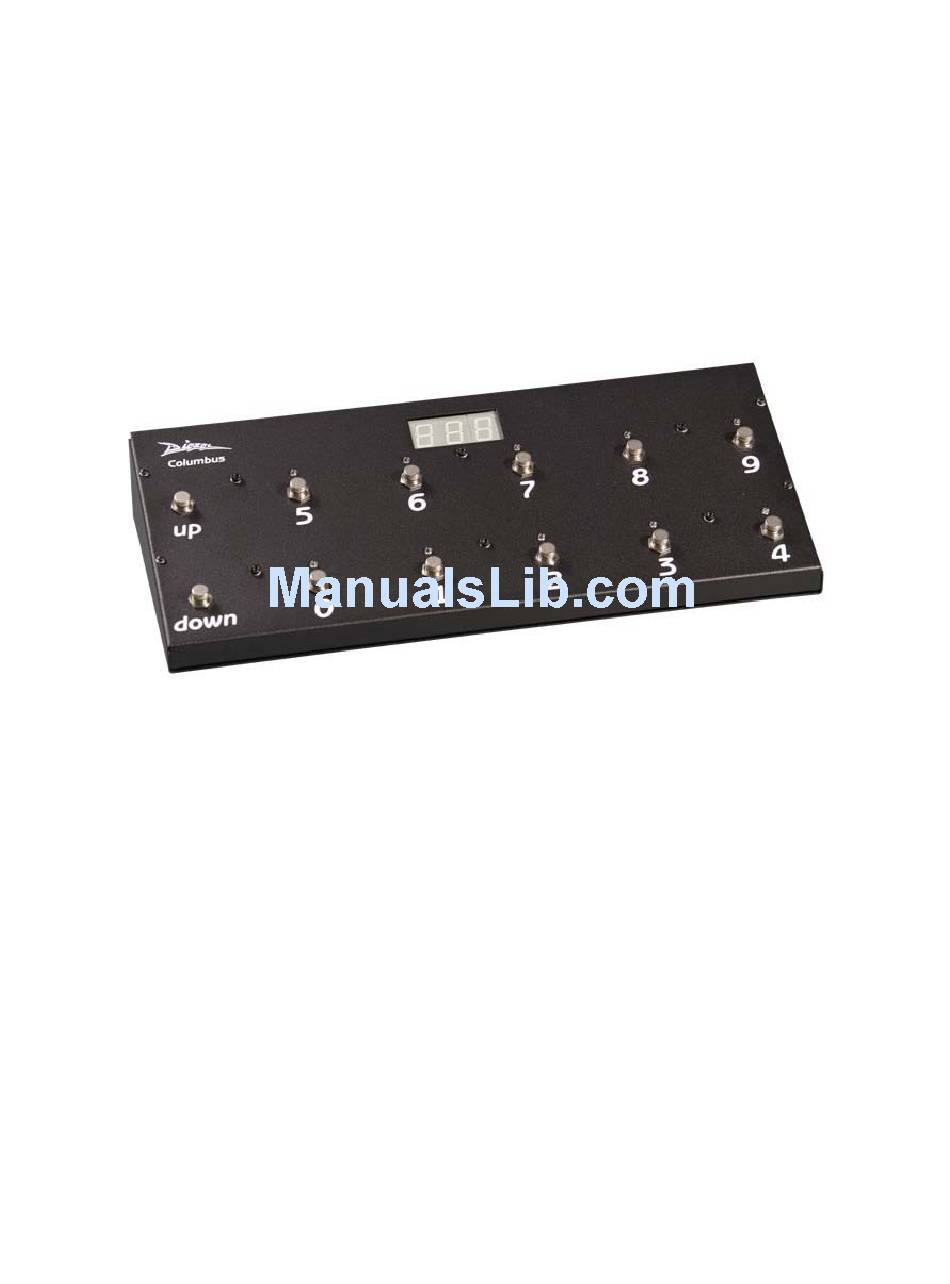

  • Page 3 Chapter 1: Warning and warranty references 1.1 intended purpose, warning references and terms of the warranty Intended purpose: The Columbus is a Midi pedal and serves for the transmission of Midi signals at Midi capable amplifiers or effect devices. The operation with Diezel amplifiers, the phantom powering possess, is not necessary the enclosed power supply unit.
  • Page 4 LED, which is above each tracer. In the work condition the Columbus sends its signal on Midi channel 1 to the Amp or Effect equipment. Is to be selected for more complex Midi Setups a certain channel on the Columbus sends, then one presses at the same time UP and down for 3 seconds and selects then with the UP or down tracer the appropriate channel to e.g.
  • Page 5 The back of the Columbus: From left to right: 1) Diezel Out by XLR socket 2) Midi Out by DIN socket 3) DC power (power pack socket)
  • Page 6 Midi of cable the equipment at its Midi in with the Midi Thru socket of the harsh blank . Alternatively to the use of a XLR of cable the Herbert/Hagen can supply the Columbus (please the Midi in to then use) also via the Midi in socket with river and so are steered.
  • Page 7 Also the VH4 (or VH4S) offers the comfort without a power supply unit to do, since power will transfer from the Amp to the Columbus. However one connects here with Midi in designated socket at the VH4/VH4S and the Midi the Out socket at the Columbus with 5 pole and 5 socket standard Midi cable.
  • Page 8 2.4 The Operation with external power supply unit at other Midi capable devices Of course one can use Columbus also in another environment. For this one serves of the external power supply unit, connects themselves this with on the front side the present and with 3 designated socket as well as the devices which can be switched by the socket by 5-pin Midi cables.
