Summary of Contents for Subtronic Pro 160 Fusion

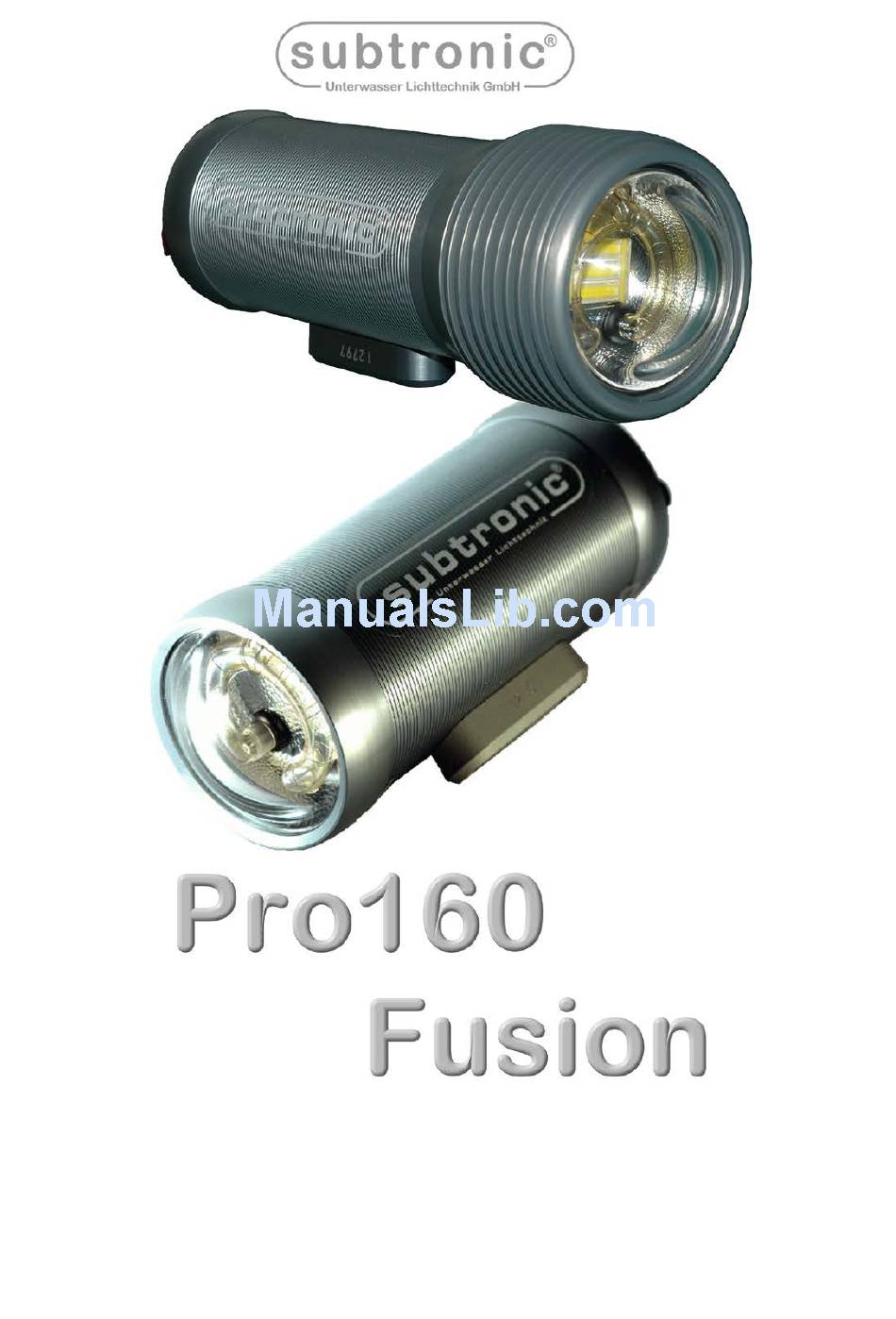

- Page 1 user manual user manual 3/2010...
-
Page 2: Table Of Contents
Register CONTROL PANEL............................3 POWER SUPPLY – CHARGING EXTERNAL ACCUMULATOR..............4 START-UP ............................... 5 PILOT LAMP / VIDEO MODE (FUSION)......................6 AUTOMATIC TTL MODE ON ANALOGUE CAMERAS ..................................6 MIXED LIGHT PHOTOS ..........................7 AUTOMATIC TTL MODE ON DIGITAL CAMERAS ..................7 MANUAL POWER STEPS.......................... -
Page 3: Control Panel
TTL= analogue Ixx = I-TTL Exx = E-TTL Oxx = Olympus Pro160 subtronic accu connector synchronous connector mode- pilot switch push button ready lamp version TTL= analog Ixx = I-TTL Exx = E-TTL... -
Page 4: Power Supply - Charging External Accumulator
power supply – charging external accumulator The revolutionary lithium-manganese-cells are reliably, robust and harmless. On a malfunctioning f.e. collapse of a cell by overloading or by aging there is no danger of a lithium cobalt reaction (metallic fire like an explosion). These most modern lithium accumulator technology allows the construction of a very safe, small and high performance external accu system, which is included in the lightning arm. -
Page 5: Start-Up
start-up check before inserting the camera into the camerahousing the hotshoe, as well as all cable connections in the camerahousing for mechanical damages. Broken wires and/or bad contacts in the feeder lines can lead to malfunctionings or damage to camera or flash appartuses. -
Page 6: Pilot Lamp / Video Mode (Fusion)
Pilot lamp / Video mode (Fusion) The installed pilot lamp allows a better orientation during a night dive. Similarly this LED illuminate the object for autofocus and the cameradisplay . To start the pilot lamp push the pilot button on the rear of your flash. Pro160: to switch off the lamp push the button again. -
Page 7: Mixed Light Photos
mixed light photos In small depths, the daylight is enough, in order to expose the film correctly. But the colors disappears, beginning with red, to yellow, etc. Flashes are only necessary to receive colours with increasing depth. The substantial on mixture light photographs is an easy underexposure, related to the ambient brightness. -
Page 8: Manual Power Steps
“synchronous” and the “ground” contact must be connected with the camera. For malfunctions or damages by another kind of connections or wrong connections subtronic excludes liability and/or payment of damages. if the digital converter is build-in in the camera housing or between the camera ... -
Page 9: Protection And Care
protection and care All parts of the unit are build in anodized seawater resistant aluminium or plastic. It is recommended anyway, to wash the unit after a saltwaterdive with fresh water. This is particularly valid for the operating board. The synchronous cable should be removed only after rinsing from the camera. -
Page 10: Cable - Connections
The flash arm connector on the bottom side of the system contains two threads. One of them is M8 and the other one tripod winding. If you use no original subtronic screws, be sure that the length of the screw is less than 8mm. Longer screws can damage the mountingplate Our arm system is connected directly with a M8 screw on the bottom side of the flash unit. -
Page 11: Form Up The Flash Capacitor
• In no way pull the electronic system out of the body, as the voltage level on the electronic board is extremely dangerous (up to 400 V). • Close lid and return the device to subtronic as quickly as possible. • All warranty claims will become void if the lid is opened without due cause, unless the case described above occurs during the warranty period and was caused by a factory fault. -
Page 12: Safety Instructions
• When you have been using the device for a few years, treat it to a check-up at subtronic as the O-rings will not live forever and at some point the accumulator will give up the ghost, as well. -
Page 13: Malfunctions / Possible Causes / Possible Solutions
malfunctions / possible causes / possible solutions malfunktion possible causes possible solution Equipment not switched on switch on the flash no ready Accumulator not correctly check the connection signal on the flash attached accumulator empty charge the accu Sync cord not correct attached or damaged no ready signal check the connection... -
Page 14: Technical Datas Pro160
Technical Datas Pro160 pro160 Technical Data 160 Ws Energy UW-Guide number, 2m optical path lenghs Illumination under water. circular, 116° DIN 19011, Dome port recycle time: (minimal / full power) 0.1 – 2.5 sec. ~ 120 full flashes / 1,3 Ah accu colour temperature over water, warm light by toned 4600K flash tube... -
Page 15: Technische Daten Fusion
Technische Daten Fusion pro160 Technical Data energy 160 Ws UW-Guide number, 2m optical path lenghs illumination under water. circular, 116° DIN 19011, Dome port recycle time: (minimal / full power) 0.1 – 2.5 sec. full flashes / 1,3 Ah accu ca. -
Page 16: Warranty
8. Please return faulty devices either to your specialist retailer or directly to subtronic GmbH together with the proof of purchase, in transport-proof packaging, and accompanied by a full and accurate description of the complaint. -
Page 17: Service-Order
Service-Order Name: address : city phone number: E-Mail desired deadline if needed* changed delivery address Model Serial number contents of parcel: Charger Accu Synccord caps. quantity______ ______________________ others Error description: * normally we need ~ 14 days for standard repairs. For repairs, which must be implemented within 5 working days. -
Page 18: Service-Address
Michael-Becker-Strasse 9A D-73235 Weilheim Deutschland / Germany Office : Mo. - Fr. 9.00 - 12.00 and 13.00 - 16.00 Tel.: 0049 (0) 7023 74669-0 Fax:-16 E mail: service@subtronic.de visit us in Internet: http://www.subtronic.de... -
Page 19: Service-Order
Service-Order Name: address : city phone number: E-Mail desired deadline if needed* changed delivery address Model Serial number contents of parcel: Charger Accu Synccord caps. quantity______ ______________________ others Error description: * normally we need ~ 14 days for standard repairs. For repairs, which must be implemented within 5 working days. - Page 20 D- 73235 Weilheim Deutschland / Germany Office: Mo. - Fr. 9.00 - 12.00 and 13.00 - 16.00 Tel: 0049 ( 0 ) 7023 74669-0 Fax:-16 Email: service@subtronic.de visit us in Internet: http://www.subtronic.de Your Subtronic Dealer: serial number date of delivery...
