USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
КЕРІВНИЦТВО КОРИСТУВАЧА
EG-PM1W-001 SMART HOME SOCKET

Advertisement

loading
Need help?

Need help?

Do you have a question about the EG-PM1W-001 and is the answer not in the manual?

Questions and answers

Related Manuals for Energenie EG-PM1W-001

Summary of Contents for Energenie EG-PM1W-001

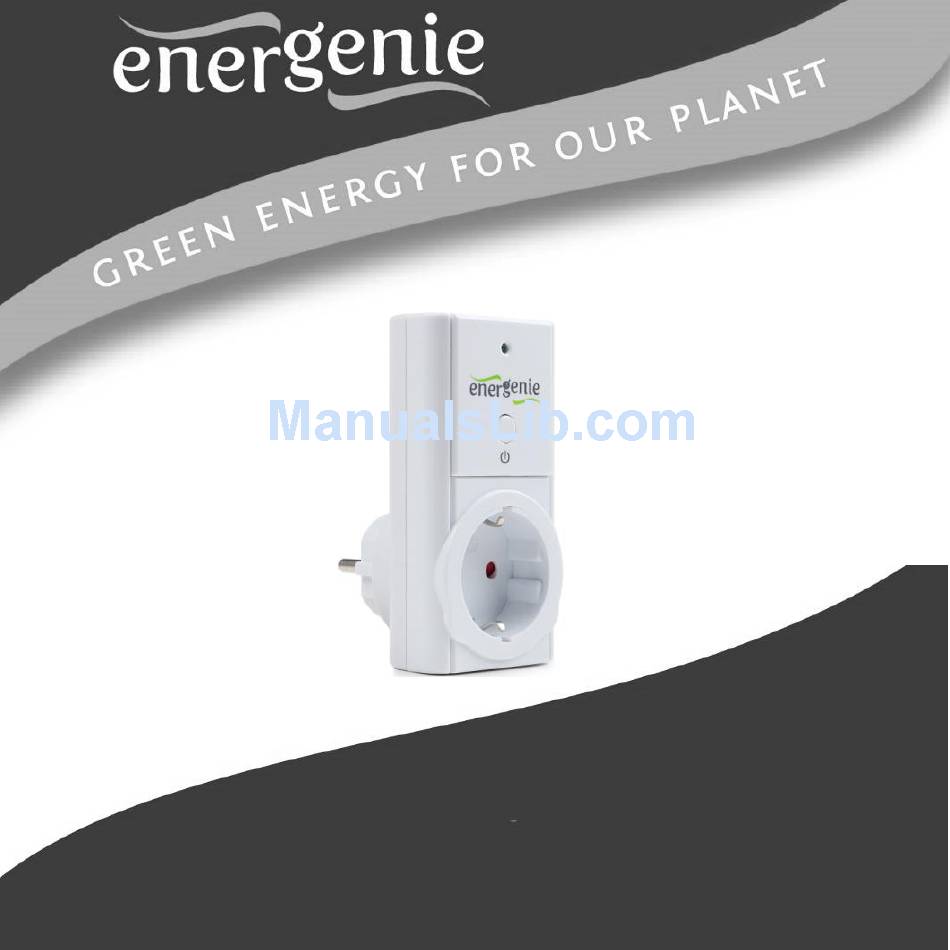

  • Page 1 USER MANUAL HANDBUCH HANDLEIDING MANUEL DESCRIPTIF РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ КЕРІВНИЦТВО КОРИСТУВАЧА EG-PM1W-001 SMART HOME SOCKET...
  • Page 2  NEVER connect appliances which do not allow unattained operation! 1. Introduction Congratulations with your purchase of this Smart home socket. Your EG-PM1W-001 is an advanced power socket protector with power All brands and logos are registered trademarks of their respective owners...
  • Page 3 With your free personal user account at EnerGenie.com you can manage your EG-PM1W-001 via the Internet from all over the world, even from your smartphone. EG-PM1W-001 can also be used as a WiFi repeater to extend the range of your existing network. 1.1. Features ...
  • Page 4  IPFilter 64-bit password protected data encryption guarantees secure internet access to EG-PM1W-001.  EG-PM1W-001 has a built-in battery for the timer schedule, so the timer schedule remains active even when EG-PM1W-001 is temporarily turned off.
  • Page 5 EG-PM1W-001 SMART HOME SOCKET  Maximum load current: 16 A  Maximum power consumption: 2.5 W  Hardware schedule features: Maximum number of independent hardware schedule events – 45 per socket Time setting accuracy in seconds Combine repeating and one time events ...
  • Page 6 EG-PM1W-001 SMART HOME SOCKET 1.3. Hardware requirements  Local area network with WLAN router  Any Internet-enabled computer connected to the local area network  Computer running Windows® 2000/XP/7/8 is required for using the Power Manager software (use of this software is not compulsory) 1.4.
  • Page 7 EG-PM1W-001 SMART HOME SOCKET 2. Indicators and controls of EG-PМ1W-001 Figure # 1 ON indicator Reset configuration button (pinhole) ON/OFF switch All brands and logos are registered trademarks of their respective owners...
  • Page 8  Connect your EG-PM1W-001 to the power socket and wait around 15 seconds for socket initialization.  Your EG-PM1W-001 can now be switched on and off by means of the ON/OFF switch. If the ON indicator is green, this means that the socket is now live and connected to the power supply.
  • Page 9 “repeater” mode follow the steps described in the following section (3.2). 3.2.Setting the WiFi repeater mode  Log into the EG-PM1W-001 web interface, as described in section 3.1.  Select Wireless Network in the left menu (see Figure #3).  If it is required by the WLAN network configuration, choose Static...
  • Page 10 WLAN network. In this case, leave Set the AP security with this information option checked.  Click “Apply”. At this point, the EG-PM1W-001 should be in WiFi repeater mode. The default SSID is “EG-PM1W_xxxxxx”. You can change the repeater’s SSID to the SSID of your host network, WiFi channel, or encryption type and password in the Wireless Network page.
  • Page 11 IP address and port of your EG-PM1W-001. 3.4. Setting up EnerGenie.com device interface  Log into the EG-PM1W-001 web interface and go to the Socket page.  Click Register. The energenie.com login page will be opened in a new browser window.
  • Page 12 EG-PM1W-001 SMART HOME SOCKET  Return to the Socket page and click Activate. Wait a few seconds until the status under the button shows “Connected and Activated”. The EG-PM1W-001 can now be managed via your user’s account on EnerGenie.com. 4. The web server...
  • Page 13 EG-PM1W-001 SMART HOME SOCKET username: admin password: admin The default login is: It is recommended to change the password on the System page after the first login. After successfully logging in, you will arrive at the Socket page 4.2. Socket...
  • Page 14 The Network section shows you the current WLAN network settings and status. The Socket page also allows you to set up how the EG-PM1W-001 can be accessed and managed over the internet via EnerGenie.com when there is no static external IP address. Through the EnerGenie.com interface, it is possible to switch the device on and off, as well as set or check the time schedule.
  • Page 15 EG-PM1W-001 SMART HOME SOCKET All brands and logos are registered trademarks of their respective owners...
  • Page 16 EG-PM1W-001 SMART HOME SOCKET 4.3. Power Schedule On the Power Schedule page (see Figure #4) it is possible to set up the time schedule for switching the socket ON or OFF. You can add or remove up to 45 schedule events (use + and – buttons). For each event, you can set the date and time when it occurs and select whether it is executed only once or periodically.
  • Page 17 EG-PM1W-001 SMART HOME SOCKET 4.4. Wireless Network Settings On the Wireless Network page (see Figure #5) you can set up the EG- PM1W-001 IP and WLAN settings. In the Basic Network section, you can choose whether to connect automatically through DHCP or provide a static IP address.
  • Page 18 EG-PM1W-001 SMART HOME SOCKET configure the WLAN network settings assigned to EG-PM1W-001. Newly chosen settings will be implemented after clicking Apply. These settings also work when the device is in Repeater mode provided that a connection to the host AP is established. To set up this connection, click Site survey.
  • Page 19 EG-PM1W-001 SMART HOME SOCKET All brands and logos are registered trademarks of their respective owners...
  • Page 20 EG-PM1W-001 SMART HOME SOCKET Figure # 6 All brands and logos are registered trademarks of their respective owners...
  • Page 21 For example, if the socket is connected to the TV, then the socket name should be set to “TV”. Before the EG-PM1W-001 schedule can be set up, the internal clock must be correct. Click Sync with Client Time to copy the time from the client computer used to access the web server.
  • Page 22 Default settings: All time schedules cleared Network type (in Repeater mode): DHCP client Wireless Name (SSID): “EG-PM1W_xxxxxx”,where “xxxxxx” are the last 6 digits of the EG-PM1W-001 MAC address. Wireless Channel: 6 Authentication: NO SECURITY IP address: 10.10.10.254 Subnet mask: 255.255.255.0 Socket Name: Name1 System time: 1.1.1970 00:00:00...
  • Page 23 EG-PM1W-001 SMART HOME SOCKET All brands and logos are registered trademarks of their respective owners...
  • Page 24 With your free personal account from EnerGenie.com you will be able to access your EG-PM1W-001 from anywhere in the world using any internet-enabled device (desktop PC, laptop, smartphone etc). See section 3.4 on how to register your EG-PM1W-001 on the server and set up the connection. 5.1. Logging in To login into your EnerGenie.com account just open the webpage...
  • Page 25 EG-PM1W-001 SMART HOME SOCKET Check Remember me for automatic login in the future (the website will then save a cookie on your computer). If you lose your password, click the Forgot Password button. 5.2. Device management page After a successful login you will see the list of your registered devices and their corresponding sockets.
  • Page 26 EG-PM1W-001 SMART HOME SOCKET This page will automatically update itself and will show you the time when your device was last seen online (the last time the device communicated with the server) and the status of each socket. Click your device name to change the device name.
  • Page 27 EG-PM1W-001 SMART HOME SOCKET Click the socket name to change it and show the time schedule on socket. You can also set the time schedule from here. Click the On/Off buttons to switch the socket on or off. Note that these actions can only be properly executed if the device is switched on, connected to the internet and activated.
  • Page 28 6.1. Managing EG-PM1W-001 Install the Power Manager software and follow the instructions in section 3.3 to connect the EG-PM1W-001. Click the socket icon in the device list window (see Figure #10). A device control panel will appear (see Figure #11).
  • Page 29 EG-PM1W-001 SMART HOME SOCKET The panel will show the status of each socket (green for on, red for off). Each socket can be toggled on or off by double-clicking on it. Clicking on the Settings button will display the Settings dialog box (see Figure #12).
  • Page 30 EG-PM1W-001 SMART HOME SOCKET  The device and socket can be renamed (for example Printer or Scanner) by clicking Rename.  Check the System tray checkbox if you want to put the icon of the socket into the system tray. You can choose the icon from drop down list box.
  • Page 31 EG-PM1W-001 SMART HOME SOCKET  You can also assign a hot key to switch the socket on/off. Check Switch ON and/or Switch OFF and specify the hot keys  To switch the socket on/off on Windows startup (wake up), check On Windows startup and choose the required action ...
  • Page 32 EG-PM1W-001 SMART HOME SOCKET  6.2. Setting up the hardware schedule Using the Hardware schedule button available from the Settings window you can create the hardware timer schedule (see Figure #13). To add a new record, click the Add button.
  • Page 33 EG-PM1W-001 SMART HOME SOCKET  In the window which appears, specify the required time and the action. Figure # 14  To edit the record, select it and click the Edit button or just double click on the entry (see Figure #13). An Edit entry window will appear ...
  • Page 34 EG-PM1W-001 SMART HOME SOCKET  To repeat your event (for example if you want to perform the same events every day) Click Loop, (see Figure #13) and specify the loop time period in the Edit loop period window (see Figure #15).
  • Page 35 EG-PM1W-001 SMART HOME SOCKET The above actions can also be performed through the pop-up menu which appears when you right-click over the event line in the table (see Figure #13). The hardware schedule keeps running even when the device is powered off.
  • Page 36 EG-PM1W-001 SMART HOME SOCKET  To add a new task, click the Add button. The Add task window will appear (see Figure #17) Figure # 17 All brands and logos are registered trademarks of their respective owners...
  • Page 37 EG-PM1W-001 SMART HOME SOCKET In the Add task window, check Switch ON time and/or Switch OFF time and specify the time to switch the socket on and/or off. If you want the same event to be performed periodically, check Perform task every and specify the time interval.
  • Page 38 EG-PM1W-001 SMART HOME SOCKET Figure # 18  To remove the task, select it and click Remove (see Figure #16). You may select multiple tasks using Ctrl and Shift keys. You can also remove all tasks by clicking Clear. The above actions can also be performed through the pop-up menu which appears when you right-click over a task in the table (see Figure #13).
  • Page 39 EG-PM1W-001 SMART HOME SOCKET 6.4. Setting up application events Using the Application events window you can specify the socket events when a certain application is launched or closed. You can also associate switching the sockets off or on with the placement and removal of particular files in certain folders.
  • Page 40 EG-PM1W-001 SMART HOME SOCKET  To add a new program event, click Add app. The Add program event dialog will appear (see Figure #20). Figure # 20 Specify the application title and path to it using the Browse (…) button or by manually entering the Title and Path name fields.
  • Page 41 EG-PM1W-001 SMART HOME SOCKET via the shortcut if possible. After you have specified the application, check On run and/or On exit and choose the event (switch on or off). The On run event will take place when the first window of the selected application is opened.
  • Page 42 EG-PM1W-001 SMART HOME SOCKET Specify the path to the folder you would like to monitor using the Browse (…) button or typing it manually in the Path name field. The wild card characters * and ? can be used to select a group of files. Check On placing and/or On removal and select the event and delay.
  • Page 43 EG-PM1W-001 SMART HOME SOCKET Setting up file events in this way allows your device to operate as an advanced standby-killer. For example, your printer can be turned on before printing and turned off after printing by checking whether there are any files in the print queue.
  • Page 44 EG-PM1W-001 SMART HOME SOCKET  To remove the event, select it and click Remove (see Figure #20). You can select multiple events using Ctrl and Shift keys. You can also remove all events by clicking the Clear button. The above actions can also be performed through the pop-up menu which appears when you right-click over an event in the table (see Figure #19).
  • Page 45 EG-PM1W-001 SMART HOME SOCKET 7. Managing EG-PM1W-001 via your own software To let you switch the sockets on or off from your own applications the following command line interface syntax is supported:  pm.exe -[on | off] -device name -socket name Examples: ...
  • Page 46 EG-PM1W-001 SMART HOME SOCKET Example: "C:\Program Files\Power Manager\pm.exe" - info Each use of this command line option totally overrides the data in Info.ini file. In order to use these commands, Power Manager must have already been launched. 8. EG-PM1W-001 SDK For advanced users we offer a software development kit (SDK) to manage the device.
  • Page 47 EG-PM1W-001 SMART HOME SOCKET This product is tested and complies with the essential requirements of the laws of member states concerning R&TTE(1999/5/EC). The CE declaration can be found under www.gembird.eu Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen...
  • Page 48 EG-PM1W-001 SMART HOME SOCKET Waste disposal: Entsorgungshinweise: Do not deposit this equipment with the Werfen Sie dieses Gerät nicht in den household waste. Improper disposal can harm Hausmüll. Unsachgemäße Entsorgung kann both the environment and human health. For sowohl der Umwelt als auch der menschlichen...
  • Page 49 EG-PM1W-001 SMART HOME SOCKET WARRANTY CONDITIONS GARANTIE BEDINGUNGEN The receipt must clearly list the date of purchase Das Kaufdatum und der Gerätetyp sind durch and the part number, in addition it should be eine maschinell erstellte Kaufquittung zu printed. Keep the receipt for the entire warranty belegen.
  • Page 50 EG-PM1W-001 SMART HOME SOCKET GARANTIE VOORWAARDEN CONDITIONS DE GARANTIE Op de aankoopbon moeten de aankoopdatum en Le talon de garantie doit énumérer clairement la date d'achat et le type d'appareil. productomschrijving duidelijk vermeld staan. Conservez le reçu d'achat pendant toute la durée de la Gelieve de aankoopbon de gehele garantie car elle est nécessaire pour toute réclamation.
  • Page 51 EG-PM1W-001 SMART HOME SOCKET ГАРАНТИЙНЫЙ ТАЛОН УМОВИ ГАРАНТІЙНОГО ОБСЛУГОВУВАННЯ 1. Гарантийное обслуживание предоставляется в течение 1. Гарантійне обслуговування надається протягом терміну срока гарантии, при наличии правильно и четко заполненного гарантії, при наявності Гарантійного талону, заповненого гарантийного талона, и изделия в полной комплектации.
