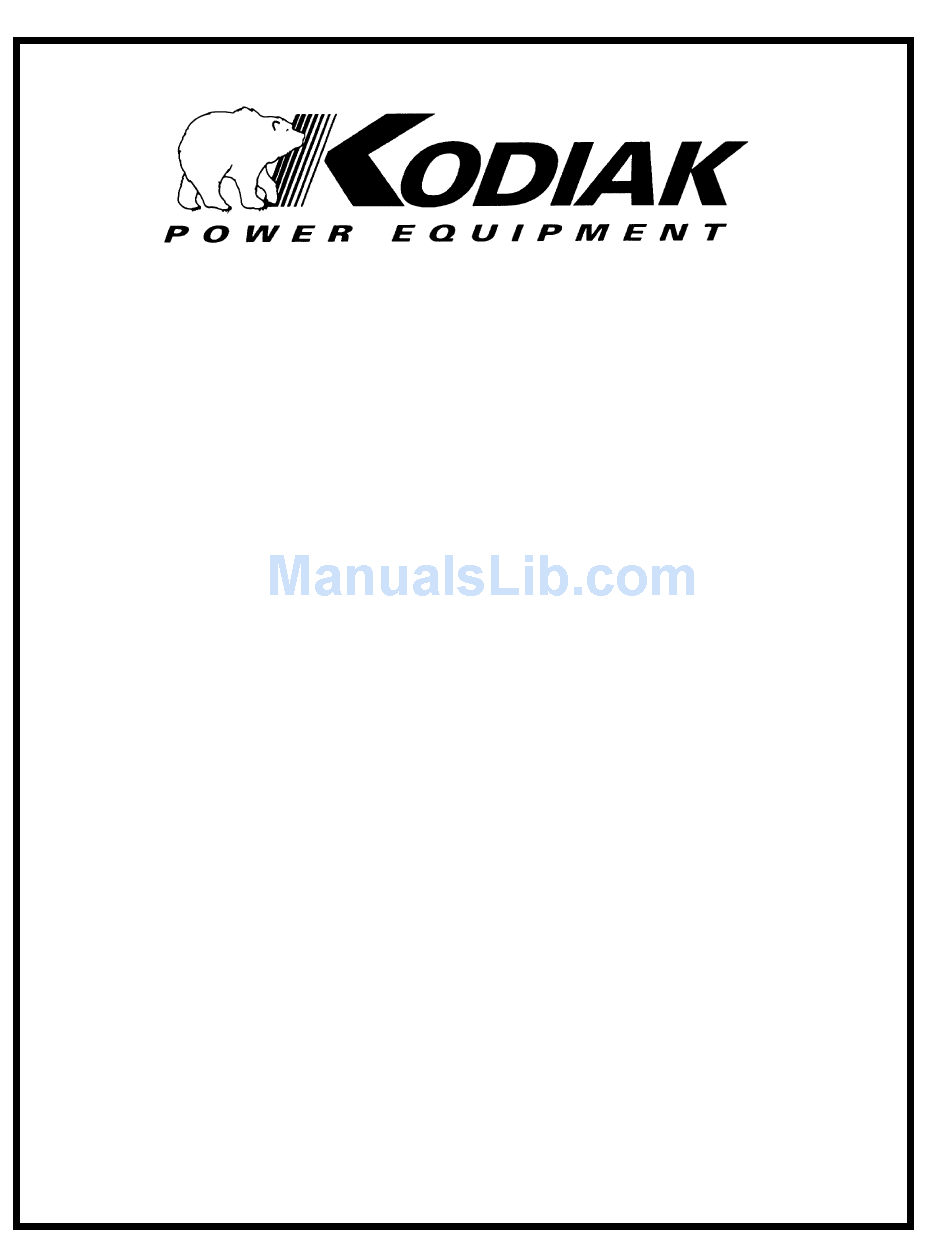

GASOLINE POWERED PORTABLE GENERATORS
OPERATING AND MAINTENANCE INSTRUCTIONS
Generator Models
SXA1900HX, SXA2800HX,SXB2800HX
SXB4000HX, SXB5500HX(S), SXB7000HX(S)
JOHN BROOKS COMPANY LIMITED
TORONTO - MONTREAL - CALGARY - EDMONTON - VANCOUVER
COMPAGNIE JOHN BROOKS LTEE
TORONTO - MONTREAL - CALGARY - EDMONTON - VANCOUVER
SXA MAN 04/05
Page1
Advertisement
Table of Contents
Related Manuals for Kodiak SXA1900HX,
Summary of Contents for Kodiak SXA1900HX,
-
Page 1: Generator Models
GASOLINE POWERED PORTABLE GENERATORS OPERATING AND MAINTENANCE INSTRUCTIONS Generator Models SXA1900HX, SXA2800HX,SXB2800HX SXB4000HX, SXB5500HX(S), SXB7000HX(S) JOHN BROOKS COMPANY LIMITED TORONTO - MONTREAL - CALGARY - EDMONTON - VANCOUVER COMPAGNIE JOHN BROOKS LTEE TORONTO - MONTREAL - CALGARY - EDMONTON - VANCOUVER SXA MAN 04/05 Page1... -
Page 2: Dear Customer
GASOLINE POWERED PORTABLE GENERATORS Dear Customer: You are now the proud owner of a Kodiak generator. Kodiak generators are carefully designed and manufactured to give you safe, dependable service. To obtain the best use of your generator, please read and understand this manual as well as the Honda Engine Owner’s Manual. -
Page 3: Specifications
Specifications Model SXA1900HX SXA2800HX SXB2800HX SXB4000HX SXB5500HX(S) SXB7000HX(S) Generator Type Brushless, self exciting 2 pole single phase Engine: Model GX120 GX160 GX160 GX240 GX340 GX390 Tank Capacity US gal (l) 0.66 (2.5) 0.95 (3.6) 2.90(11) 4.49(17) 4.49(17) 4.49(17) Operating Hours AC Output 120V 120V... - Page 4 DO NOT operate generator in the rain or with wet hands. If you ignore this condition, you may suffer severe electric shock. REFUELING DO NOT refuel the generator while it is in operation or still hot. DO NOT refuel while smoking or near flames, pilot lights, sparking electrical devices, etc.
-
Page 5: Before Starting Engine
CAUTION: Operate your unit only on a firm supporting, level surface. Sophisticated electronics (ie computers, phone systems…etc) should not be CAUTION: connected to this type of generator Fill Engine with oil. Refer to the Honda Engine Owner’s Manual for Notice oil recommendations. -
Page 6: Operation
Remove the tank cap and check the fuel level. If fuel level is low, refill with unleaded automotive gasoline. OPERATION Starting the engine: (a) Read Honda Engine Owners Manual. (b) Open fuel cock. (c) Set choke lever towards the “close” position when engine is cold. If engine is warm, choke lever should be moved to the “Open”... - Page 7 (c) Allow the engine to warm up for 2 - 3 minutes before connecting tools or appliances. (d) Insert the plug of the electrical appliance into the “AC receptacle”. (e) Place generator’s “no fuse breaker switch” in the “1” position. (f) Reset the GFCI receptacle Tee Slot GFCI Receptacle...
- Page 8 Output voltage meter Engine ON/OFF 12 V DC output switch “Power On” Indicator Light No Fuse Breaker Tee Slot GFCI Receptacle Ground Terminal Be sure to ground the generator if the connected electrical equipment is grounded. CAUTION: When the generator is overloaded or a short circuit is made, the ‘no-fuse breaker”...
- Page 9 Check the appliance and/or generator for overloading or defect, make necessary corrections or repairs before use. Dual voltage type (SXB4000HX,SXB5500HX(S),SXB7000HX(S) only) (a) Select the voltage using the “select” switch in accordance with the electrical appliance. Refer to table below. (b) Operate in the same way as single voltage type.
- Page 10 “Power On” Indicator Output voltage Light selector switch Output voltage meter 4 wire Twist lock 12 V DC output receptacle NEMA L14-30 No Fuse Breaker Auto Throttle Engine ON/OFF switch switch 120 volt Twist lock receptacle NEMA L5-30 Tee Slot GFCI Receptacle SXA MAN 04/05 Page10...
- Page 11 “Power On” Indicator Light Output voltage meter Output voltage selector switch 12 V DC output 4 wire Twist lock receptacle NEMA L14-30 No Fuse Breaker Auto Throttle Engine ON/OFF switch switch 120 volt Twist lock receptacle NEMA L5-30 Tee Slot GFCI Receptacle ...
-
Page 12: Stopping Operation
STOPPING OPERATION (Please refer to the Honda Owner’s manual) In an emergency: (a)To stop the engine in an emergency, move the engine switch to the “off” position. In normal use: (a) Turn the “no-fuse” breaker to the “0” position. (b) Unplug all appliances. (c) Move the engine switch to the “off”... -
Page 13: Wattage Information
Never use water to clean the generator WATTAGE INFORMATION Some appliances need a “surge” or ”in rush” of power at start up. This means that the amount of electrical power needed to start the appliance may exceed the amount needed to maintain its use. -
Page 14: Customer Service Hot-Line
Voltage is too low Engine speed is too low Contact your local Kodiak dealer for assistance If problem persist please call the Kodiak toll free hot-line below for the service center nearest you. Customer Service hot-line: 1-800-461-1323 SXA MAN 04/05... - Page 15 SXA MAN 04/05 Page15...
