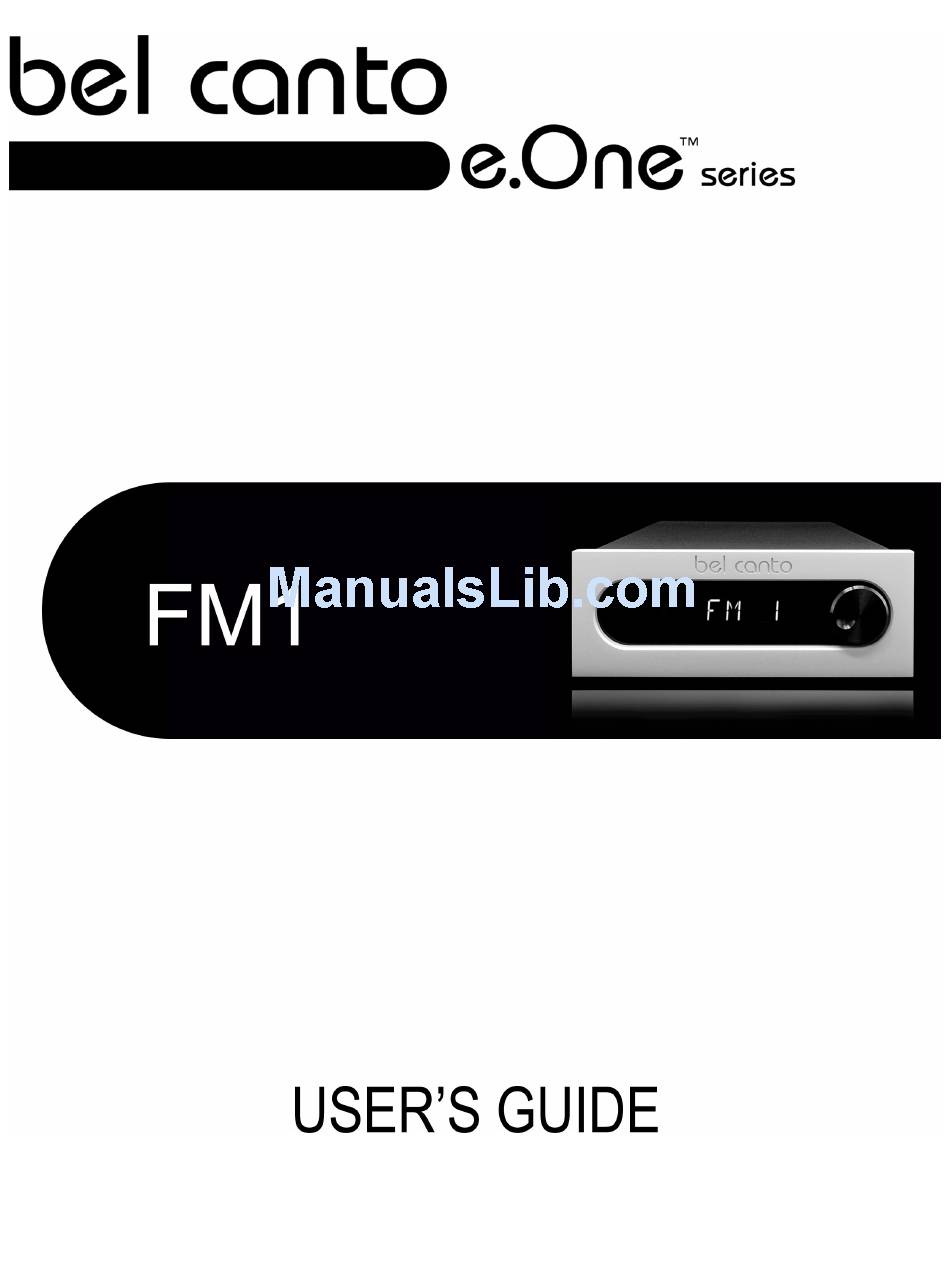

Summary of Contents for Bel Canto e.One FM1
- Page 2 Trademarks used in this publication: Bel Canto and the Bel Canto logo are registered trademarks of Bel Canto Design Limited. FM1 and Ultra-Clock are trademarks of Bel Canto Design Limited.
- Page 3 Explanation of symbols used in this manual or on the CAUTION rear/underside of the apparatus: • To reduce the risks of electric shock, do not remove the cover. • No user serviceable parts inside. This symbol is intended to alert the user to •...
- Page 4 Fit a new 10 amp BS1362 approved fuse into the carrier GROUNDED. and push the carrier back into the plug. Bel Canto Design Ltd. declare that this product is in conformance The conformity of the designated product with the provisions of with the Low Voltage Directive 73/23/EEC and Electromagnetic...
- Page 5 Bel Canto before attempting to transport your unit This product, like any electrical component, can be The power supply on the FM1 is preset for the dangerous and cause injury unless correct handling proper power voltage. The power cable should have procedures are observed and used.
- Page 6 10 Station Presets • The Bel Canto FM1 uses a patented analog FM receiver architecture, the FM1 delivers superior RF performance and interference rejection through the use of digital IF processing. The FM1 includes advanced seek algorithms, adjustable soft mute, auto-calibrated digital tuning, and FM stereo processing. The FM1 utilizes digital processing to achieve high fidelity and optimal performance, providing excellent pilot rejection, selectivity, and unmatched audio performance.
- Page 7 When switched on, the FM1 will perform its startup sequence followed by displaying the firmware revision. The FM1 will be set for one particular world region, notated by one of three letters after the firmware revision: U for US, E for Europe, J for Japan.
- Page 8 Tuner: To access all functions of the Tuner, this button Presets: The FM1 can have up to 10 presets which are must be selected noted as P0 – P9 on the display. To program each preset, hold the number button on the remote for 2 seconds while Mute (remote only): The FM1 is a fixed output device.
- Page 9 2) Use the correct 75 ohm coaxial cabling to connect from the antenna to the FM1. RG6 type coax is the best for cable runs over 75-100 feet while RG59/U type cable can be used for shorter runs.
- Page 10 Besides the included power supply, the FM1 may be powered by either the VBS1 or the LNS1. If using • the VBS1, please refer to the VBS1 User’s Guide for connectivity. If using the LNS1, please read the following The LNS1 is designed to power Bel Canto VB equipped products only. Use of any cable other than the •...
- Page 11 FM Section: Input Frequency Range: 76-108 MHz Sensitivity with 75 ohm input: 1.1uV EMF (S+N)/N=26dB Input IP3: 105 dBuV |f2 – f1| > 1 MHz; f0 = 2 x f1 – f2 Adjacent Channel Selectivity: 50 dB +/- 200KHz Alternate Channel Selectivity: 70 dB +/- 400KHz Frequency Response:...
- Page 12 version 1.0...
