Summary of Contents for i-Lan KP-97BT

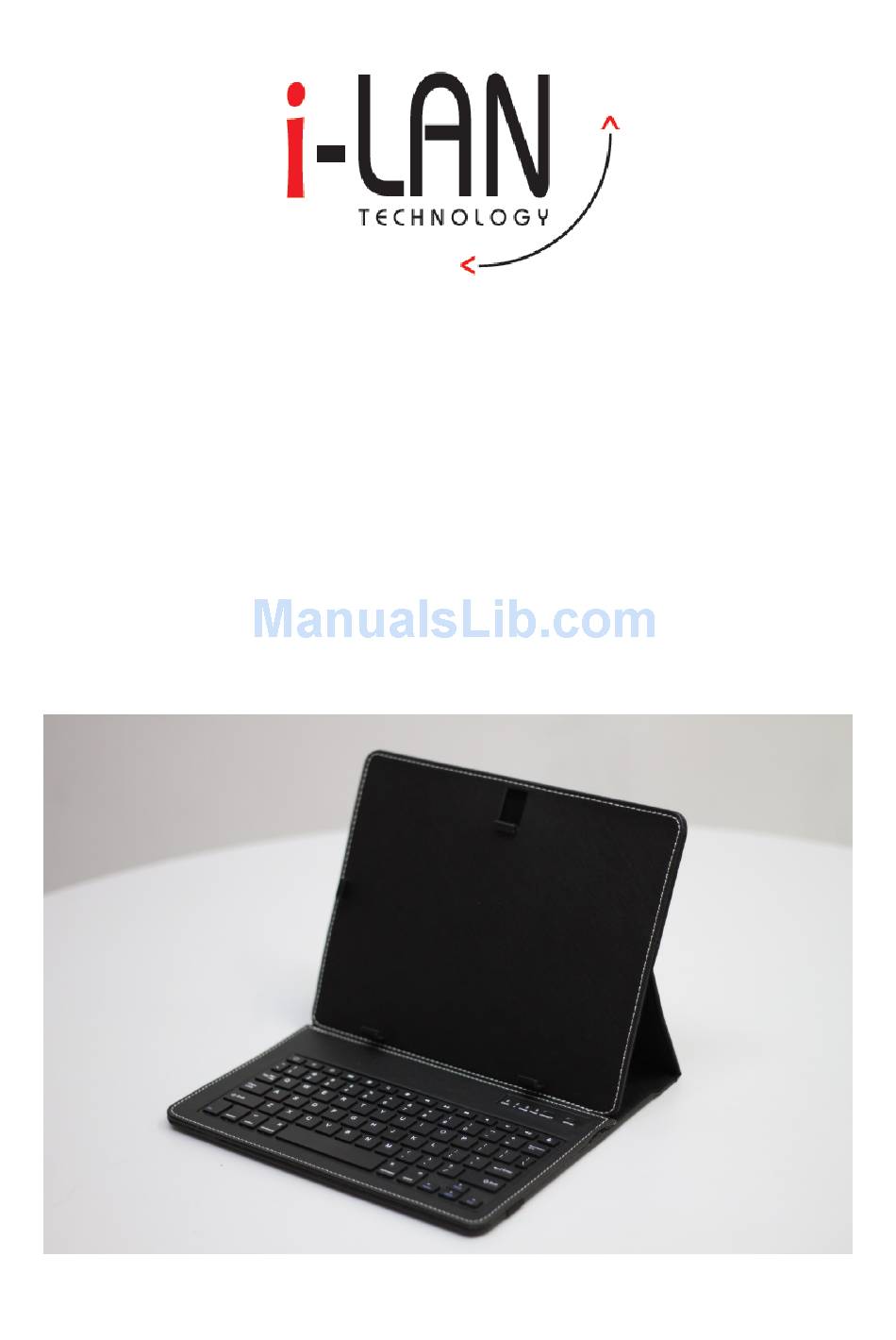

- Page 1 KP-97BT Keyboard 9.7" Bluetooth Keyboard Case for Android Tablet PC...
-
Page 3: Copyright Notice
Copyright Notice © i-LAN Tablet PCs 2013. No part of this publication may be copied, reproduced, stored in a retrieval device, transmitted in any form or by any means without the prior written consent from i-LAN Technology Pty Ltd. Warranty terms i-LAN Technology Pty Ltd provides a back to base warranty service should the device become faulty during the 12 months warranty period. -
Page 4: Table Of Contents
Table of Contents Copyright Notice .................... 1 Important Safety Precautions ..................3 Part Names and Functions ................4 Specifications ....................5 Getting Started ....................6 First Time Use ......................6 Charge the Battery ......................6 Using the Tablet PC with the Keyboard ............7 Step 1 ........................... -
Page 5: Important Safety Precautions
PC does not accidently fall out when moving the Keyboard cover with the tablet PC installed For any hardware related problems with your device please contact i-LAN Technology. Details are listed in the “Service and Support” section in this guide. -
Page 6: Part Names And Functions
Part Names and Functions 1. Adjustable spring loaded clip 2. LED indicators 3. ON / OFF Switch 4. USB Charging Port 5. Elastic Pouch Strap 6. Keyboard Page 4... -
Page 7: Specifications
Specifications Multifunction Design: 9.7 Inch Tablet Leather Case + USB QWERTY Keyboard Material: Leatherette Ports: 1 x Micro USB port for charging Colour: Black, black keyboard Power: RE-chargeable Li-Ion Battery (280mAh capacity) Connection: Bluetooth L: 215 (cover folded) x W: 268 x D: 30 (mm) Dimensions: Note: The adjustable spring loaded clip at the top of the cover is designed to accommodate a tablet PCs ranging in height from 17.5cm to 19cm. -
Page 8: Getting Started
Getting Started First Time Use Charge the Battery Since the battery in the keyboard will not be fully charged when you use it for the first time, it is recommended that you charge the battery for at least 8 hours before use or until the “Charge”... -
Page 9: Using The Tablet Pc With The Keyboard
Using the Tablet PC with the Keyboard Step 1 Slide the tablet PC sideways into the holding clips located on the top part of the keyboard cover. You will need to lift the spring clip at the top to allow the tablet to be placed and held in position. -
Page 10: Step 3
Step 3 Switch on the keyboard by sliding the OFF/ON switch to the ON position. Step 4 A. Switch on the tablet PC. Now go to Settings menu in the Tablet PC and turn on the Bluetooth option. B. On the keyboard press the “CONNECT” Button for about 2 seconds until the Bluetooth LED starts flashing. - Page 11 E. The tablet PC has now been paired with the keyboard and now the keyboard is ready for use. Note: Once the keyboard has been paired with the Tablet PC, the settings will be retained. If the Tablet PC and keyboard have been powered off, it is recommended to first power on the Tablet PC.
-
Page 12: Led Indicators
LED Indicators There are four, light emitting diodes (LEDs) near the top right hand side of the keyboard. The LED indicators from left to right are: CAPS Activated and de-activated by pressing Caps Lock key Bluetooth Activated by pressing CONNECT button to Pair with Tablet PC Charge Red LED shows battery is being charged. -
Page 13: Function Keys
Function Keys ] function key is used whenever you need to select a key function that is shown in blue on the keyboard. You will need to press simultaneously the key and the other key. This is used for Page Up, Page Down, Home and End keys. Pre-Programmed function keys Located on top row of keyboard. -
Page 14: Arrow Keys
Other Commonly Used Buttons Enter: Shift key: Shift Tab key: Arrow keys: Move cursor on screen corresponding to the direction of the arrow selected. Note: This function will depend on the app that is running. Fn+←（ （ （ （ Home): Back to Home Fn+→（... -
Page 15: Stowing The Keyboard
Stowing the Keyboard When you have finished using the keyboard with the tablet PC, it is recommended to fold the keyboard case and use the elastic strap to secure the keyboard and tablet Keyboard case folded and secured with elastic strap Page 13... -
Page 16: Caring For Your Keyboard
Shake the keyboard vigorously to remove liquid trapped inside. Air dry the keyboard at room temperature at least overnight (preferably for several days). If the keyboard does not operate after it has dried completely, contact i-LAN Technology Technical Support. Note A sticky spill (coffee, juice or any other sticky liquid) may cause damage to the keyboard and is not covered by the warranty. -
Page 17: Service And Support
Service and Support Warranty Terms i-LAN Technology Pty Ltd provides a back to base warranty service should the device become faulty during the warranty period of 12 months. Warranty excludes any damage sustained by the customer through act or circumstance beyond i-LAN Technology's reasonable control, for instance, accidental spillage of liquid over the keyboard or misuse. - Page 18 Page 16...
- Page 20 Version 1.1 Printed In Australia...
