Octet Matrix Audio Home Theater Speaker User Manual

Home theater speaker 2010
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Overview
A properly set up home theater system can provide a surround sound experience better than most
commercial theaters and is a great way to enjoy movies, television programming, sporting events, and
video games with family and friends. The primary concept one must grasp about home theater speaker
setup is that each room, set of speakers, and primary listening position will have its own optimum setup.
The optimum setup can only be determined by experimentation once the initial setup is complete. This
process can be confusing and time consuming, but by following the guidelines outlined in this
document, you will create a great sounding home theater system with a minimum of difficulty.

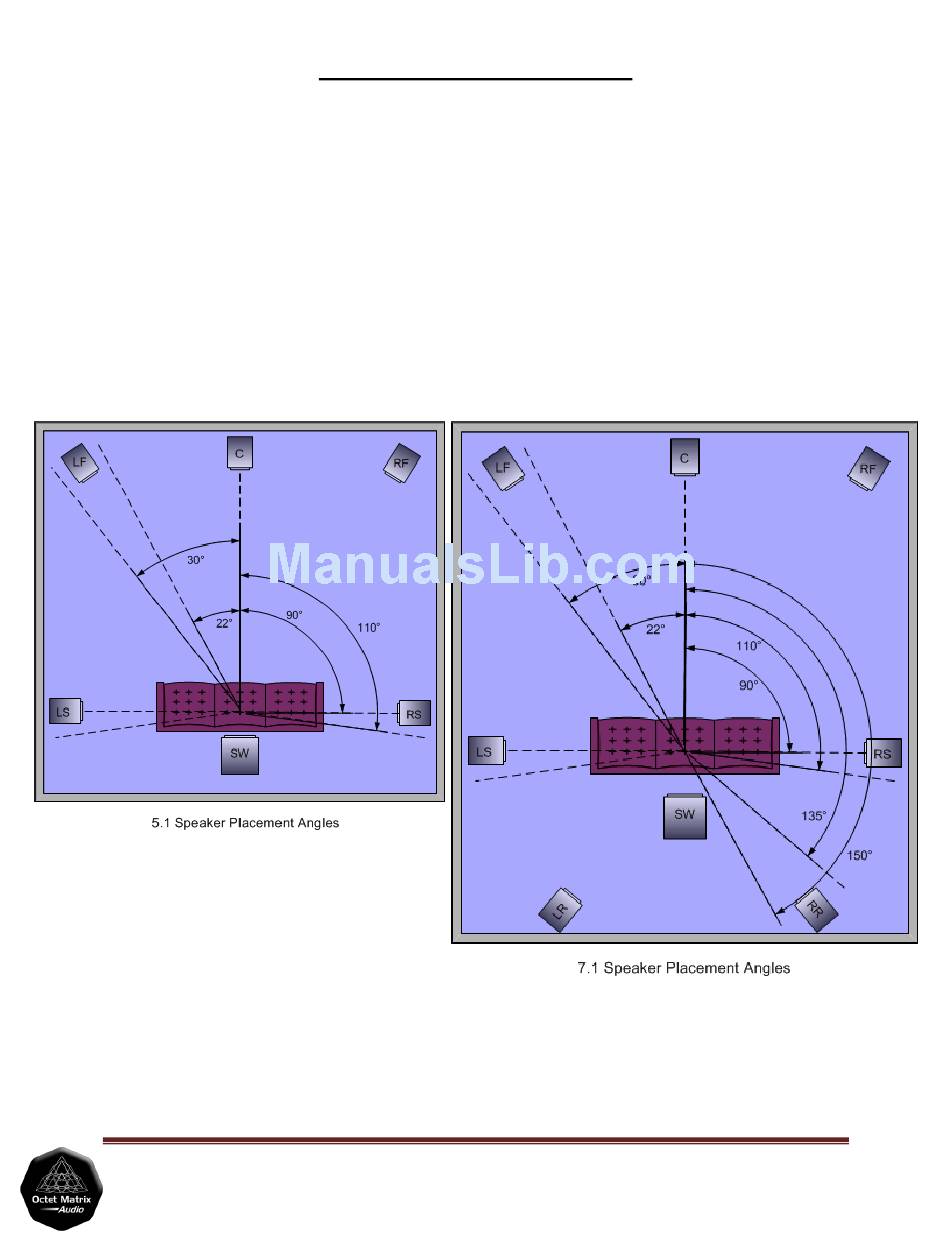

The diagrams below show the recommended layouts for 5.1 and 7.1 systems. Tables are included in
each of the following sections providing conversions of the angles into easily measurable dimensions
which are referenced from the center of the screen or the primary listening position.
LF - Left Front
C - Center Channel
RF - Right Front
Octet Matrix Audio -2010
Home Theater Speaker Placement
LS - Left Surround
RS - Right Surround
SW - Subwoofer
LR - Left Rear (7.1 only)
RR - Right Rear (7.1 only)
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Home Theater Speaker and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Octet Matrix Audio Home Theater Speaker

  • Page 1 The primary concept one must grasp about home theater speaker setup is that each room, set of speakers, and primary listening position will have its own optimum setup.
  • Page 2 Home Theater Speaker Placement Left and Right Front Speakers The front main speakers, along with the center channel speaker, are used to provide effects across the front soundstage. Examples include a car moving from one side of the screen to the other, dialog originating from one of the sides of the screen, or the origin of an overhead effect.

  • Page 3: Center Channel

    Home Theater Speaker Placement Center Channel The center channel is used to anchor the dialog to the screen from all off center listening positions, and to work with the left and right front speakers to reproduce audio effects across the front soundstage.
  • Page 4 Home Theater Speaker Placement Max. Listening Position to Listening Position to Surround Speaker Distance Surround Speaker (DS1) (DS2) 6 ft. 2 ft. 2 in. 7 ft. 2 ft. 7 in. 8 ft. 2 ft. 11 in. 9 ft. 3 ft. 3 in.
  • Page 5 A fairly simple test will let you know if your subwoofer settings or placement will give up its location: 1) Download the Octet Matrix Audio Subwoofer Setup DVD ISO image in the Tech Center. You will need to burn this image to a DVD using software designed specifically to burn DVD ISO images.

  • Page 6: Final Thoughts

    Home Theater Speaker Placement 4) The Subwoofer Location Test file contains pink noise that is routed to the front left and front right speakers for the duration of the test. Another signal is fed to the LFE channel that alternates between off and pink noise in 4 second intervals.
