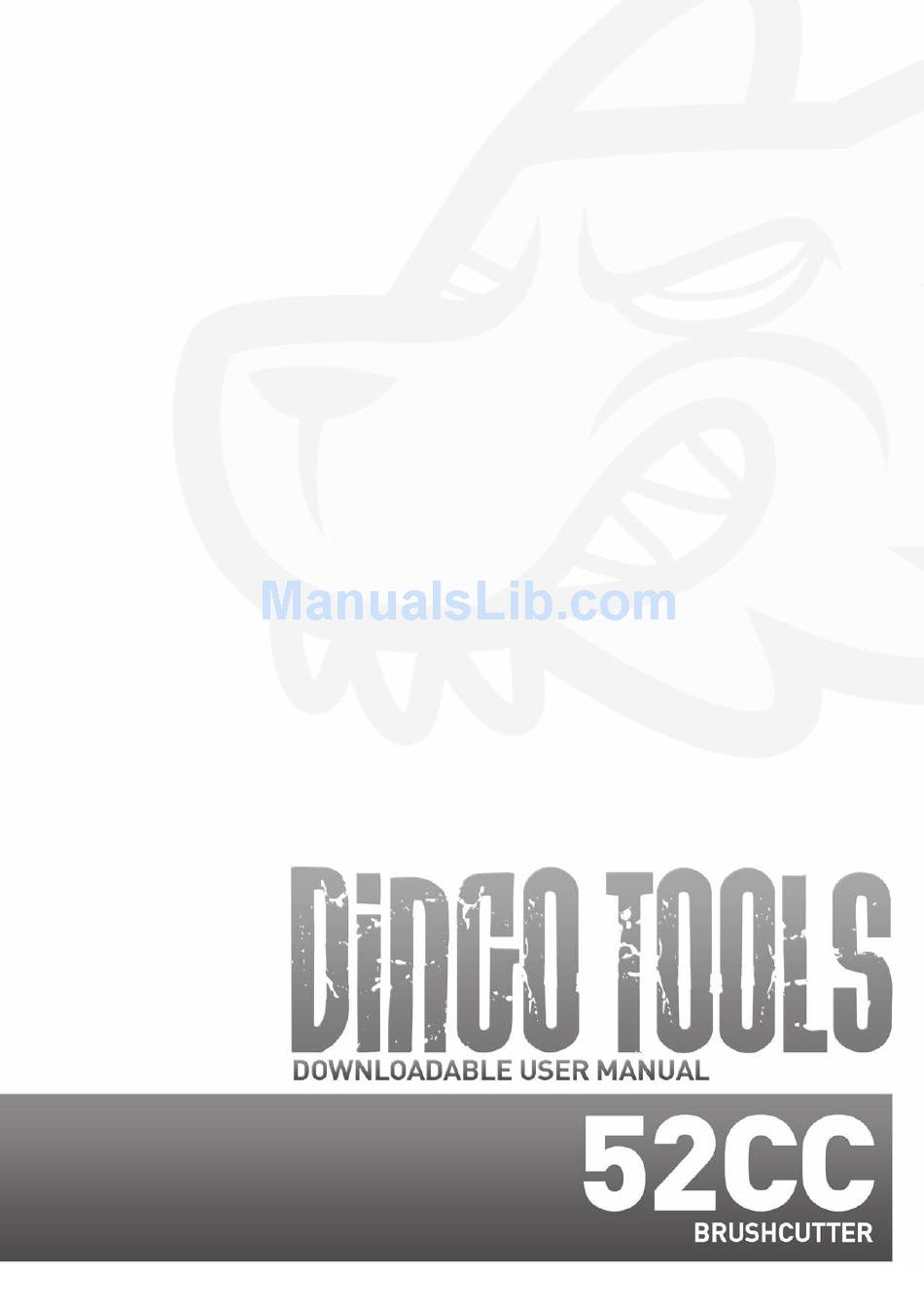

Dingo Tools 52CC User Manual

52cc brushcutter
Hide thumbs Also See for 52CC:
Table of Contents

Advertisement

Quick Links

See also: User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 52CC and is the answer not in the manual?

Questions and answers

Related Manuals for Dingo Tools 52CC

Summary of Contents for Dingo Tools 52CC

  • Page 2 DINGO TOOLS BRUSHCUTTER Contents of Booklet Warnings/Product Check List Page 2 ALWAYS MAINTAIN THIS BRUSHCUTTER ACCORDING TO THE OWNER’S MANUAL AND FOLLOW THE RECOMMENDED SCHEDULED MAINTENANCE. What is in Your box/Assembly Page 3 NEVER MODIFY OR DISABLE ANY OF THE BRUSHCUTTER SAFETY DEVICES.

  • Page 3: Standard Components

    WHAT IS IN YOUR BOX STANDARD COMPONENTS A. Bracket and 2 bolts for Guard B. Nylon Cutter and Screw C. Hex Screw (for assembly of Airfi lter) D. 2x plastic ties E. Tools for Assembly ACCESSORIES F. Handle Bar Attachment G.

  • Page 4: Blade Assembly

    BLADE ASSEMBLY M. EIGHT TOOTH M. THREE TOOTH M. TWO TOOTH (please note that quantities of blades will vary per model - 5in1, 6in1, 7in1, 8in1) M. FOURTY TOOTH M. FOUR TOOTH M. PLASTEC (please note that quantities of blades will vary per model.) HOW TO CONNECT HANDLE BARS STEP 1 STEP 2...
  • Page 5 ATTACHING BUMPER HEAD STEP 1 STEP 2 Locate outer and inner indexing hole. Apply screw driver through outer and into inner indexing hole (this is to stop the head spinning when changing over attachments.) STEP 3 STEP 4 Remove off bottom nut and silver cover. Apply bumper head for tightening and turn anti-clockwise until fi...
  • Page 6 ATTACHING BLADES ATTACHING BLADES Step 1 Step 2 Step 3 Remove top nut, top plate and Position center of blade over raised Position 3 (bottom plate) onto assembly. resting plate. circular lip (fi tting into blade.) Step 4 Step 5 Position 2 (top plate) onto assembly.
  • Page 7 HOW TO OPEN WHIPPER SNIPPER HEAD STEP 1 STEP 2 STEP 3 To attach lid correctly please line up Push down on tab and Rotate base Continue rotation and seperate lid markers on base and lid. clockwise. from base. HOW TO CLOSE WHIPPER SNIPPER HEAD STEP 4 STEP 5 STEP 6...
  • Page 8 STEPS FOR STARTING YOUR MACHINE STEP 1 STEP 2 STEP 3 Mix the 2 stroke fuel to the correct Press the fuel bubble 5–7 times (no Slide the choke to the up position. ratio (25:1)-(30:1) and fi ll the tank. more than 7).
  • Page 9 AS RECOMMENDED. INCORRECT MIX COULD DAMAGE YOUR ENGINE VOIDING YOUR WARRANTY, USE THIS FUEL MIX EVERY TIME YOUR MACHINE IS IN OPERATION FOR THE BEST DINGO TOOLS PERFORMANCE YOU CAN EXPECT OUT OF YOUR DINGO TOOLS MACHINE. HOW TO MIX YOUR FUEL 576.92...
  • Page 10 ADJUSTING IDLE SCREW ON YOUR MACHINE If your Idling of your brushcutter needs adjusting e.g it is idling too fast or slow or is cutting out please follow the steps below on how to adjust this on your machine. When looking down in a birds eye view at the carby or Choke area, at the the top of the Carby where the throttle control cable attaches to the side of the mechanism, you will see a silver screw on the right hand side at the top.

  • Page 11: Cutting Operation

    PLEASE BE AWARE THAT THE CUTTING ATTACHMENTS CAN CONTINUE ROTATING AFTER THE ENGINE IS SWITCHED OFF! SO PLEASE WATCH OUT FOR THIS. WE RECOMMEND USING 20:1 UNLEADED FUEL TO OIL MIXTURE FOR THIS BRUSHCUTTER. CUTTING OPERATION » Always Cut by Guiding the head from your right to left. »...
