Summary of Contents for Apprentice ACD18K2

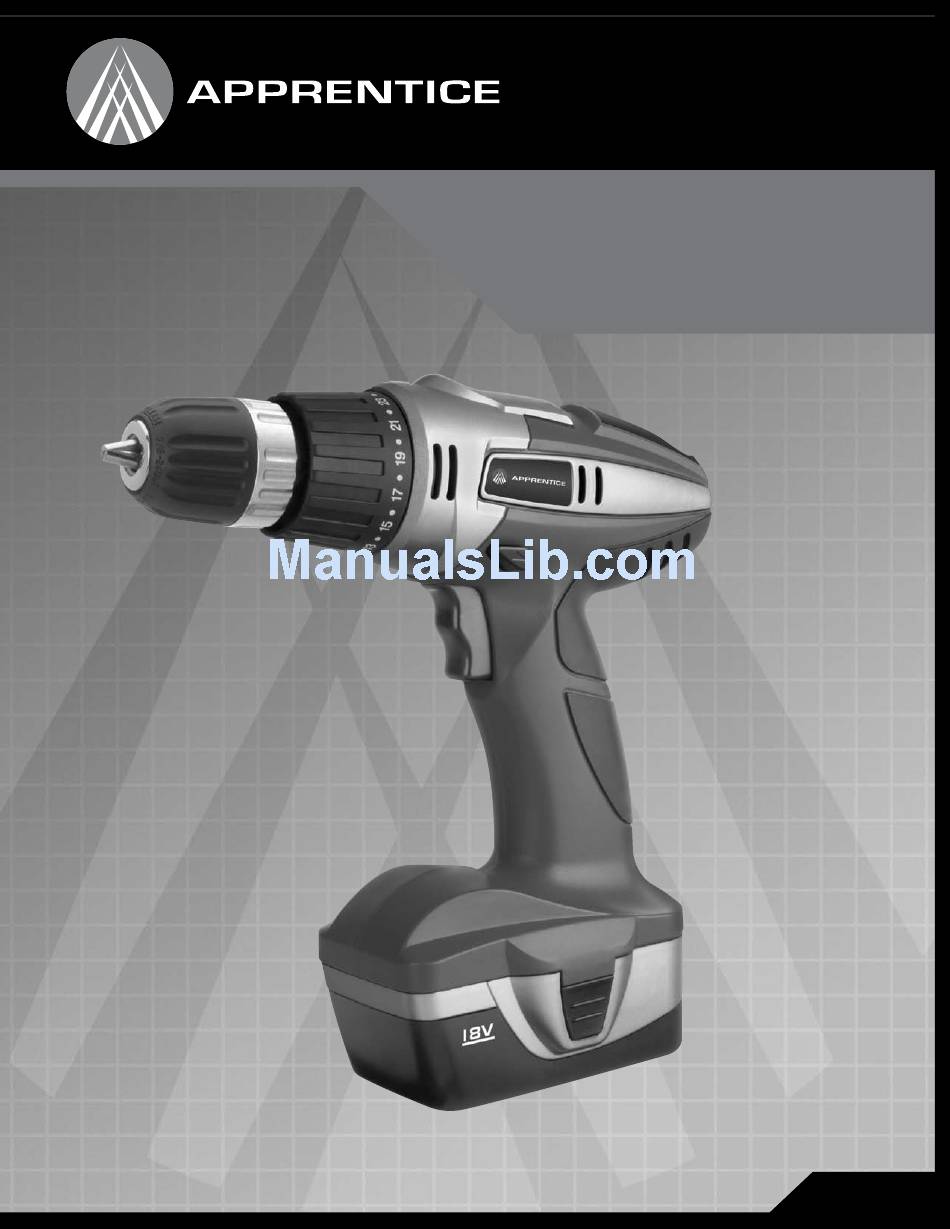

- Page 1 Cordless 18 Volt Drill Kit Operator’s Manual Ensemble de perceuse sans fil 18 V Manuel d’utilisation Taladro Inalámbrico de 18 Voltios Manual del Operario ACD18K2...
-
Page 2: Specifications
Cordless 18 Volt Drill Kit ACD18K2 Operator’s Manual Specifications: • Model # ACD18K2 • Charger Input: 120 Volts AC. • Drill Motor: 18 Volt DC. • No-Load Speed: 0-550 RPM/Reversible. • Chuck Capacity: 3/8” • Electric Brake • 24 Clutch Settings • Net weight: 3.8 lbs. • Kit includes drill, Charger, Two Batteries, 6- Drill Bits, 7-Driver Bits, One double ended bit and Storage Case WArning: To reduce the risk of injury, user must read and understand this operator’s manual before operating this tool. Save this Manual for future reference. - Page 3 WArning: rEAD AnD UnDErSTAnD ALL WArningS, CAUTiOnS AnD OPErATing inSTrUCTiOnS BEFOrE USing THiS EQUiPMEnT. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS 1. rEAD THE OPErATOr’S MAnUAL BEFOrE OPErATing THE MACHinE. To minimize the possible occurrence of accidents and personal injury, learn the tool’s application, limitations, and specific potential hazards peculiar to this tool.
- Page 4 Always use properly fitting niOSH/ OSHA approved respiratory protection appropriate for dust exposure, and wash exposed areas with soap and water. Cordless 18 Volt Drill Kit Operator’s Manual ACD18K2...
-
Page 5: Extension Cords
DO nOT allow the comfort, confidence or familiarity with your drill from repeated use replace strictly following all operating rules. if the tool is used unsafely or incorrectly, you or a bystander can suffer serious personal injury! 1. Be aware that this tool is always in an operating condition, because it does not have to be plugged into an electric outlet. 2. Before using battery charger read all instructions and cautionary markings on battery charger, battery, and product using battery. 3. Charge only Apprentice rechargeable batteries marked on the charger label. Other battery types may burst causing personal injury or damage. 4. Do not expose charger to rain or snow. 5. use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons. 6. When operating the tool from an elevated position, be aware of people or things beneath you. - Page 6 Always be sure that the tool is switched off before insertion or removal of the battery cartridge. Installing or Removing Battery Cartridge: • To remove the battery cartridge, withdraw it from the tool while depressing the tabs on both sides of the cartridge. • To insert the battery cartridge, align the rib on the side of the battery with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. Lightly pull on the battery cartridge to ensure it is locked into place and will not accidentally fall out of the drill, causing an injury. • Do not use force when inserting the battery cartridge. If the battery does not slide in easily, it is not being inserted correctly. Important Battery Information: • Your batteries are Nickel-Cadmium rechargeable batteries. Certain Local, State and federal laws prohibit disposal of these batteries in ordinary trash. • Consult your local waste authorities for your disposal/recycling options. • More information regarding battery disposal in u.S. and Canada is available at http://www.rbrc.org/index.html, or by calling 1-800-822-8837 (1-800-8BATTERY). Cordless 18 Volt Drill Kit Operator’s Manual ACD18K2...
- Page 7 Operating the Trigger Switch: • Turn the drill on by depressing the trigger switch. • Depressing the switch further will produce more speed and torque. • use the reversing switch to change the direction of rotation of the drill. • The Reversing Switch has three positions: forward, Reverse, and Off (middle). • Always check the rotation before beginning your work. Electric Brake: This drill is equipped with an electric brake. Like the torque settings, an electric brake provides you with another element of control during various operations. If the tool consistently fails to quickly stop after switch trigger release, have a qualified serviceman examine the tool. Chuck: • Your drill is equipped with a keyless chuck, so you can quickly change bits with no extra tools required. • To insert or change bits, put the reversing switch in the off position. hold the collar of the chuck with one hand and rotate the body of the chuck to tighten or loosen. • Always make sure that bits are seated firmly between the chuck jaws. Never attempt to operate a bit that is wobbly, unstable, or broken. Clutch (Torque) Settings: • During screw driving applications, you can adjust the maximum torque that the drill will produce. • This feature can be used to prevent the stripping and breaking of screws, or to set a series of screws to a depth that fits your project. • Set the clutch ring at the front of the drill to settings from 1 (lightest) to 23 (heaviest). Setting 24 is direct drive (torque is not limited) and used primarily for drilling operations. • In general, you will find the lower settings more useful with smaller screws and the higher settings more useful for larger screws. General Screwdriving: • Clamp your work piece.
- Page 8 5. Bit Storage 6. Battery Pack Two-Year Warranty This product is warranted free from defects in material and workmanship for 2 years after date of purchase. This limited warranty does not cover normal wear and tear or damage from neglect or accident. The original purchaser is covered by this warranty and it is not transferable. Please return the tool to store location of purchase along with your receipt, and you will receive a new drill or a refund. THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. Toll-Free Help Line: for questions about this or any other APPRENTICE Product, please call Toll-free: 888-552-8665. Cordless 18 Volt Drill Kit Cordless 18 Volt Drill Kit Operator’s Manual Operator’s Manual ACD18K2 GDD18KC...
