GreenWave Reality Gateway User Manual

Gateway greenwave reality

Hide thumbs

Table Of Contents

Quick Links

Home Energy Management

Gateway

Table of Contents

Need help?

Do you have a question about the Gateway and is the answer not in the manual?

Questions and answers

Summary of Contents for GreenWave Reality Gateway

Page 1 Home Energy Management Gateway...
Page 2: Table Of Contents
Table of Contents Introduction Gateway Overview Installation Common Z-Wave Tasks Network Inclusion Process Network Exclusion Process Safety Information About GreenWave Home Energy Management Gateway...
Page 3: Introduction
You can conserve energy with minimal impact to your lifestyle by using our products to easily manage your powered devices. Simply connect our Gateway to your home network, plug your devices into our PowerNodes, and then monitor and control the devices’ power usage through a Web browser...
Page 4: Gateway Overview

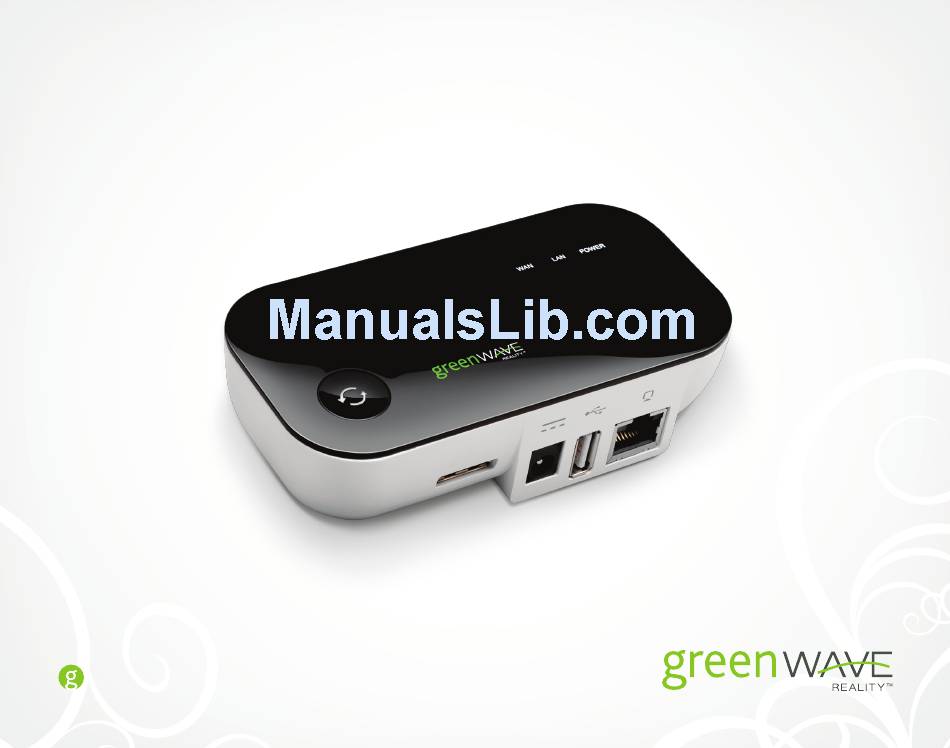

This connection enables the Gateway to securely connect the devices you have powered through PowerNodes to your home network, allowing you to monitor and control your devices’ power usage remotely through a Web browser or smartphone.

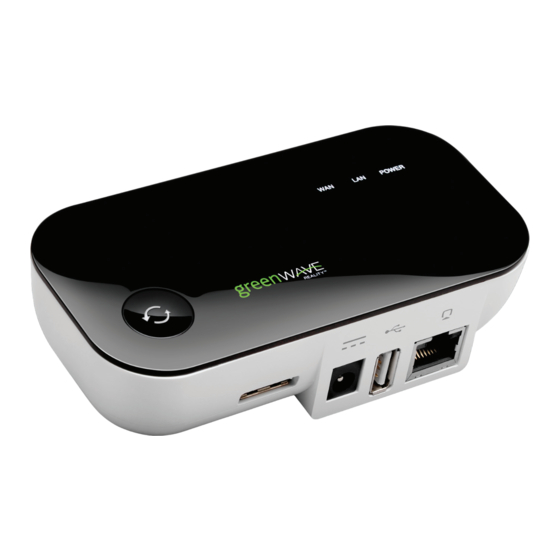

Page 5 2. WAN (Internet connection) error indicator: Indicator shows whether or not the Gateway is connected to the Internet. 3. LAN (home network) error indicator: Indicator that shows whether or not the Gateway is connected to your network. 4. Power indicator: Indicator that shows whether or not the Gateway is powered.
Page 6 Your Gateway has sync and network indicators that display the following patterns and colors to show its current status: Sync button—off (no color): Gateway is off. Network indicator—off (no color): Gateway is connected to the network. Sync button—steady white: Gateway is on.
Page 7: Installation
Installation Before you install your Gateway, make sure that your home network is operating and connected to the Internet. There are four basic steps to install your Gateway: 1. Connect the Gateway to your network router. 2. Power the Gateway.
Page 8 1. Connect the Gateway to Your Network Router Connect the Gateway to any available port in your home network router using the included Ethernet cable. 2. Power the Gateway Power the Gateway by plugging it into an electrical outlet using the included power adaptor.
Page 9 4. Ready to Install Your PowerNodes The GreenWave Reality PowerNode is a smart outlet adapter that connects your appliances and electronics to elec- trical outlets and your GreenWave Reality home network. This connection allows you to monitor and control your devices’...
Page 10 Just as you might experience reception problems on your mobile phone inside a building, your Gateway can have trouble communicating with PowerNodes if their radio signals are blocked by obstacles such as large metal panels or walls containing wire mesh. When placing these devices in your home, imagine invisible lines connecting between them.
Page 11: Common Z-Wave Tasks
The process for adding a PowerNode to your home network is called “inclusion.” It must only be performed once, and you must have the Gateway plugged in and working first. You can start the inclusion process by pressing and holding the Gateway network button for two seconds so the rotating “inclusion mode” pattern appears on the Gate- way activity Indicator.
Page 12: Network Exclusion Process
GreenWave Reality home network. This process is called “exclusion” and requires two steps: one that must be performed with the Gateway and then one that is performed with the PowerNode. You can start the exclusion process through your Gateway user interface or by pressing and holding the Gateway network button for five seconds until the “exclusion mode”...
Page 13 Your PowerNode is now free of its former association, and you can perform an inclusion process to include it in your GreenWave Reality home network (refer to the “Network Inclusion Process” section above).
Page 14: Safety Information
Safety Information Indoor Use Only - Your Gateway should be used only in dry, indoor locations. Do not use your Gateway in high-humidity locations such as greenhouses, saunas, washrooms, or patios. Do not use your Gateway in locations where it can get wet such as near aquariums or running water.
Page 15: About Greenwave
About GreenWave Reality GreenWave Reality is a global innovator in the emerging Home Energy Management market. GreenWave Reality provides an affordable, easy-to-use, standards-based platform that allows utilities enhance their relationship with consumers and better balance energy on the grid while consumers can conserve energy with a minimal impact to their lifestyle by easily monitoring and controlling their appliances and adding intelligent LED lighting.
Page 16 Environmental Conditions Operating Temperature: 0°C ~ +40°C Storage Temperature: -20°C ~ +60°C Operating Humidity: 20% ~ 85% RH Storage Humidity: 5% ~ 95% RH Size and Weight 120 x 60 x 33 mm 101 g www.greenwavereality.com Home Energy Management Gateway...
