Summary of Contents for Connect2Car ANYWHERE GSM KIT

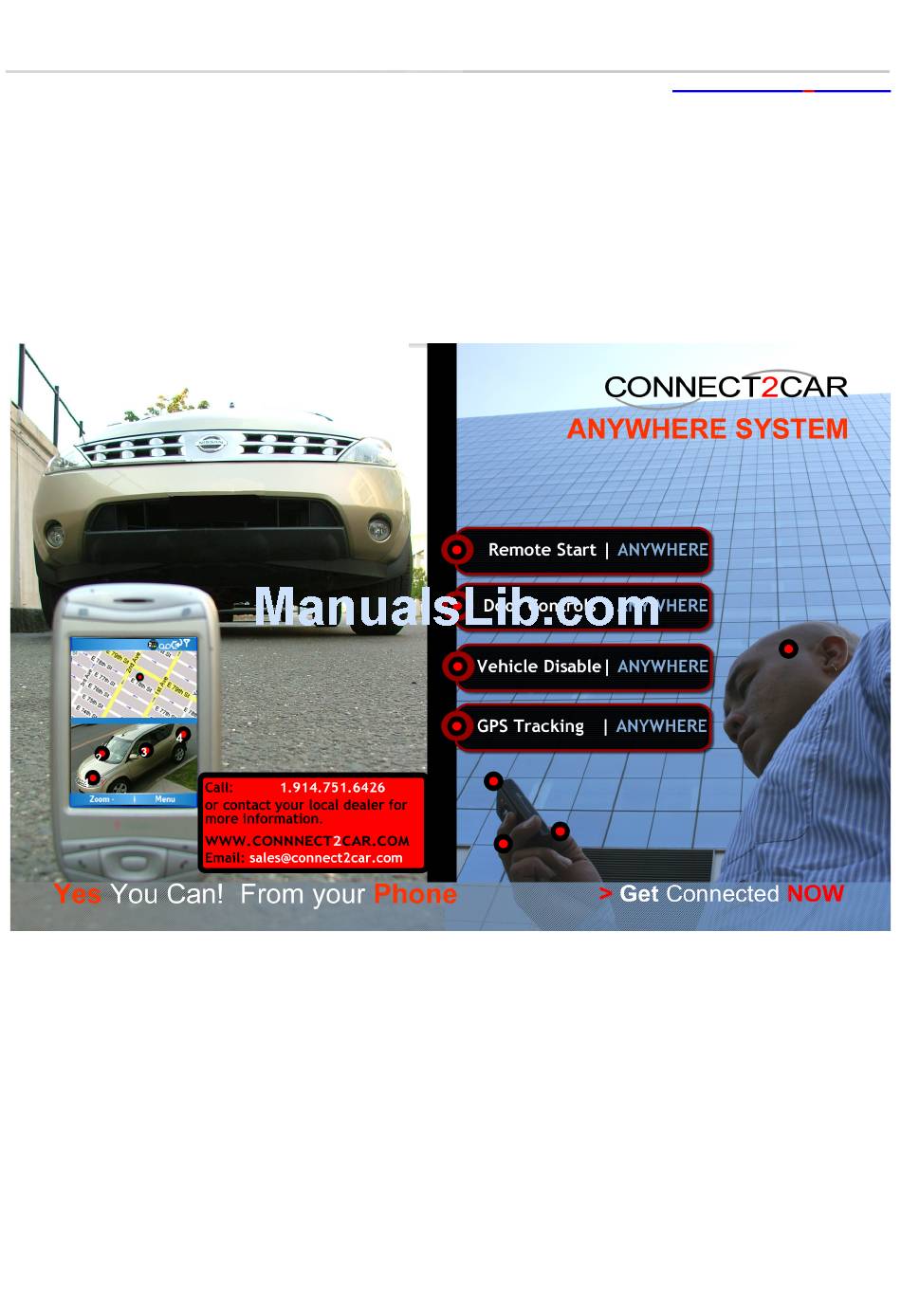

- Page 1 Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com ANYWHERE GSM KIT INSTALLATION MANUAL (REV E)
-
Page 2: Table Of Contents
COPYRIGHT ..................................4 1.2. SAFETY ISSUES ..................................4 2. SYSTEMS OVERVIEW: ........................5 2.1. About the Connect2Car Anywhere Hardware Device ....................5 2.1.1. Other optional hardware that might be needed for Installation............... 6 2.1.1.1. Remote Starter or Remote Starter and Alarm System ..................6 2.1.1.2. - Page 3 11.16. Orange/White Wire NOT CONNECTED (Pin 1): ..................... 24 GENERAL SPECIFICATIONS OF CONNECT2CAR GSM KIT ............25 Instructions on how to use or operate this device may be found in the operations manual. This manual explains the installation and connection of this unit including its interface with an existing remote start/security alarm system.
-
Page 4: Disclaimer
(including damage that caused any financial loss, and similar consequences), arising from the use or improper use of this manual, not even in the case where it was pointed out to Connect2Car Inc. or an agent of Connect2Car Inc. that such damage might be sustained. Contact your Connect2Car representative, should you require clarification on information contained in this document or to request of copy of the latest version of this document. -
Page 5: Systems Overview
2. SYSTEMS OVERVIEW: 2.1. About the Connect2Car Anywhere Hardware Device The ANYWHERE GSM KIT is specially designed to interface with any vehicle to instantly empower Remote Control of the Vehicle conveniently with a mobile phone as well as Remote tracking/monitoring. The hardware utilizes any available GSM network to communicate with the controlling master (owner) as well as the Connect2Car data logging server. -
Page 6: Other Optional Hardware That Might Be Needed For Installation
Any Remote Starter that has a Remote Trigger Interface. For vehicles without an already existing alarm system, the Connect2Car unit is all you need, as it provides all the typical alarm/security functions from unlimited range. 2.1.1.2. Ignition Bypass Kit This module is usually needed when installing with a Remote starter. - Page 7 Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com Figure 3 In traditional Installation, connections are made individually to all components Figure 4 The Data interface Kit simplifies Installation by utilizing the factory data bus...
-
Page 8: About The Software Controller
Apple iPhone and all other java enabled phones. Some phones might require loading of a Java application Manager if not already preinstalled on the device. Connect2Car maintains an active online support forum, phone line and email to aid with any installation issues. -
Page 9: About The Web Controller Interface
Connect2Car Anywhere GSM Kit www.connect2car.com 2.3. About the web controller interface The Connect2Car ANYWHERE can also be controlled from the web controller interface if the user has access to an internet enabled computer or device. Simply visit www.anywheretracking.com and log in with your account credentials. -
Page 10: The Text Message Control Interface
The units assigned phone number is provided to you upon activation of your device if you are using a • Connect2Car assigned SIM card. If you are using this unit with your own GSM sim card, the assigned phone number is the phone number of the SIM card you place in the unit. - Page 11 Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com Connect2Car Anywhere Software on a Mobile Device.
-
Page 12: How It Works
The access phone numbers on the device can be changed from the website, or from the menu on the phone device, or also by calling the Connect2Car phone operator at +1.914.239.3826 or emailing support@connect2car.com... -
Page 13: Installation Considerations
Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com 3. INSTALLATION CONSIDERATIONS: First thing to do: You are required to go through the entire contents of this manual before the commencement of installation. A good understanding of which control wires are to be used and their functions is essential. -
Page 14: Mounting The Backup Battery (If Included)
On request, some of the Connect2Car kits also include an external backup battery. The backup battery should be mounted at the same place with the device. This is in order to minimize energy losses due to resistance of wire. -
Page 15: General Wiring Diagram
Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com 8. General wiring diagram Figure 9 General Wiring Diagram of Connect2Car Anywhere Unit with a Remote Starter Alarm... -
Page 16: Guideline Of System Features To Install
9. Guideline of system features to install. The Connect2car Anywhere G2 kit can perform various functions depending on what your primary objective is. Some people want the remote security operations of GPS tracking and disabling of the vehicle or the convenience of remote control functions such as remote engine start, door lock/unlock, while some want all the features active. - Page 17 To test the unit, you can either test from the internet account at www.connect2car.com/track using the TEXT INTERFACE described in section 2.4. Using the Text interface or the Connect2Car software on your phone, you can send commands to the unit and check to see that each command executes properly. The unit also replies confirmation of the commands via a text message alert to the user authorized phone, or an email alert to the users email account.
-
Page 18: Wiring Descriptions
Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com Figure 10 The 16 Pin Connector 11. Wiring Descriptions 11.1. Brown Wire GROUND WIRE (Pin16): This wire (brown) supplies negative ground to the Device. This terminal must be connected properly in order to prevent malfunctioning of the system. -
Page 19: Black/White Wire (Pin11) Engine Enable/Disable Output
Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com Figure 11 Wire test matrix for ignition wire 11.4. Black/White Wire (Pin11) ENGINE ENABLE/DISABLE output (ALSO FOR FUEL CUTOFF OR ANY OTHER KILL SWITCH: This wire (black/white) is the Engine disable wire. Connection: The pin-11 (black/white) terminal should be connected to a relay. - Page 20 Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com In this example the fuel cut/Engine disable wire is used to disable the electrical ignition of the vehicle. This produces an instant disabling effect of a moving vehicle, since the engine shuts down immediately and vehicle will not restart until the Engine is enabled by the owner/controller.
-
Page 21: Red/White Wire (Pin9) Remote Start/Stop Activation Output
Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com 11.5. Red/White Wire (Pin9) REMOTE START/STOP ACTIVATION output: This wire (red/white) is the remote start/stop activation wire. Connection: The pin-12 (red/white) terminal should be connected to the “start activation” terminal of an already installed and working remote start device. -
Page 22: White Wire / Arm Trigger Wire (Pin12) Input (+Ve)
Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com Figure 15 Door Lock/Unlock using a Remote Starter with Trigger input Figure 16 Direct Connection to Negative Door Lock System/Trigger Figure 17 Direct Connection to Positive Door Lock Triggers 11.8. White Wire / ARM TRIGGER WIRE (Pin12) input (+ve): This wire (white) is the Arm Monitor wire. -
Page 23: Yellow Wire (Pin8) Door, Hood And Trunk Trigger Input (+Ve)
Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com Doors/Trunk/Hood/Ignition/Alarm siren. The disarm command is also activated anytime you send the unlock command via the phone interface. In essence this input synchronizes the Anywhere unit with your factory alarm system, incase you disarm/arm the car with your local key fob unit when you are in range of the vehicle. -
Page 24: Orange Wire (Pin2) Tachometer Wire (Optional)
Orange Wire (Pin2) CONNECTED: 11.14. Green Wire Zimi Proximity Detect Wire (Pin14): This wire is used to detect the Bluetooth proximity trigger for the Connect2Car Zimi add on module. www.connect2car.com/zimi 11.15. Green/White Wire NOT CONNECTED (Pin3): Leave Disconnected. Do not connect this wire. -
Page 25: General Specifications Of Connect2Car Gsm Kit
Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com GENERAL SPECIFICATIONS OF CONNECT2CAR GSM KIT Architecture integrates: High-performance Dual Band GSM/GPRS core 12 parallel channel low-power GPS core ARM7TDMI processor that controls all functions of the system Power Control circuitry for Li-Ion backup batteries... -
Page 26: Technical Data
Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com TECHNICAL DATA Technical specifications of GSM/GPRS engine Frequency bands: Quad band: EGSM 900, EGSM 850, GSM 1800, GSM 1900 Compliant to GSM Phase 2/2+ GSM class: Small MS Transmit power: ... - Page 27 Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com Technical specifications of GPS receiver features: OEM single board high sensitive 20 channel GPS receiver, L1 1575.42 MHz, C/A code 1,023 MHz chip rate. GPS receiver with SiRFstarIII chip set Processor type ARM7/TDMI SiRF GSW3 Horizontal position accuracy: Autonomous <...
- Page 28 Installation Manual Connect2Car Anywhere GSM Kit www.connect2car.com...
