Summary of Contents for Alpha Solar SolaStat-Eco

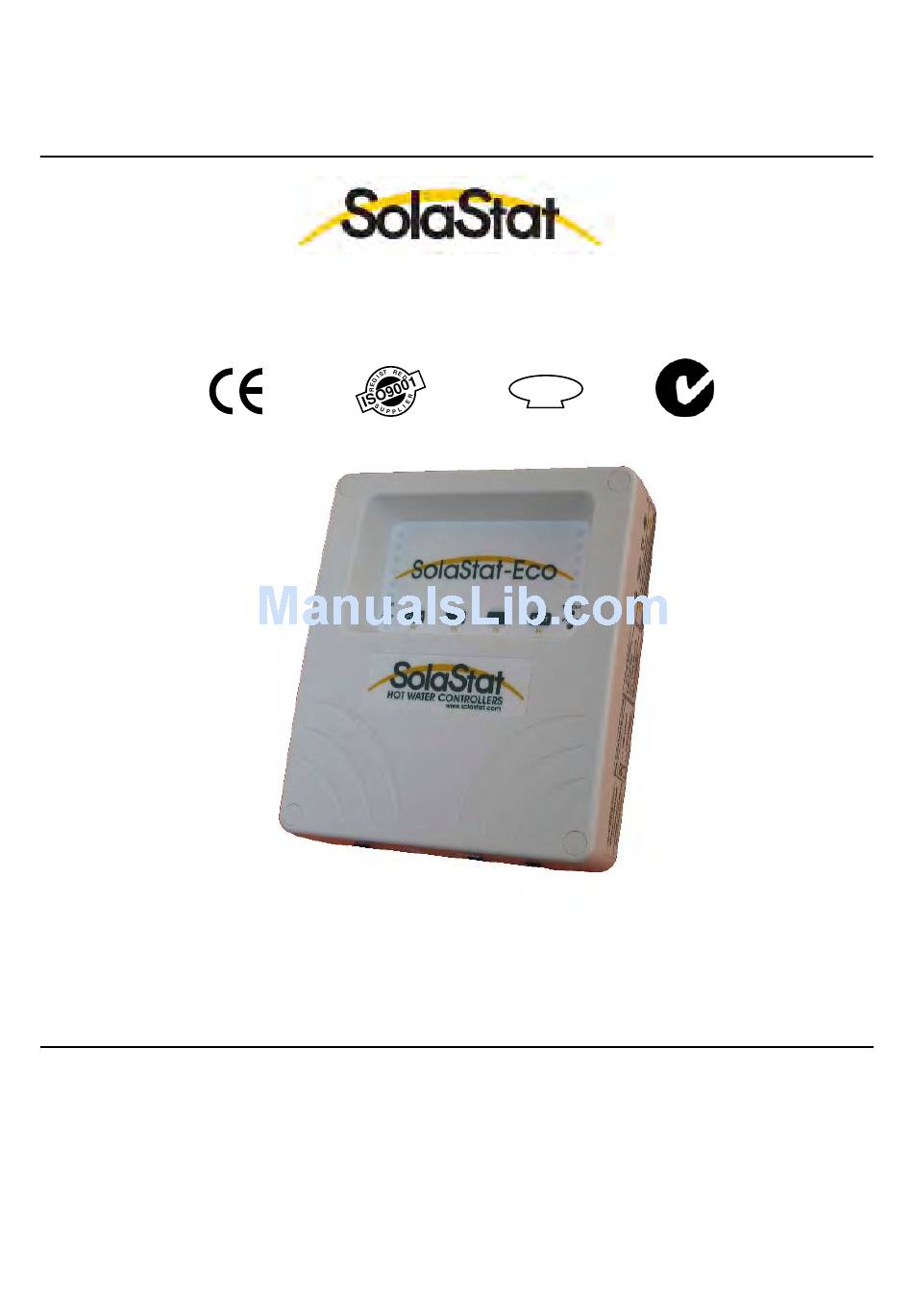

- Page 1 SolaStat-Eco TECHNOLOGY & QUALITY Z495 Installation Guide. 19.03-1...
-
Page 2: Table Of Contents
SolaStat-Eco Sensor Resistance Table page 10 SolaStat-Eco Programming. SolaStat-Eco Programming. page 11 SolaStat-Eco Programming Table. page 12 SolaStat-Eco Pump ON / Pump OFF Adjustable Range. page 12 Notes on SolaStat-Eco Programming. page 12 SolaStat-Eco Specifications and Limit of Liability. Specifications page 13 Product Liability. -
Page 3: Features
Introduction. SolaStat-Eco is Easy to Use with the advanced generation of smart, microprocessor based Differential Solar Hot Water Controllers. The SolaStat-Eco is easy to install, easy to use, easy to programme and visually appealing. SolaStat-Eco has Advanced Functions and takes the basics of differential control, frost protec- tion, topout and add to these sensor diagnostics, smart shutdown, comprehensive status lights with the option of a Pump Timer for Pump Cavitation Recovery. -
Page 4: Solastat-Eco Users Guide
The SolaStat-Eco has advanced features that; protect the system from damage, run self diagnostics, self correction of some problems and will keep you informed as to what the SolaStat-Eco is measuring and what decisions it is making. -
Page 5: Pump Override
SolaStat-Eco Users Guide, Cont. Pump override: For added flexibility you can make the pump operate manually. The pump · will turn on as long as the ‘Pump’ button is held down unless of course the pump is already on in normal operation. -
Page 6: Solastat-Eco System Adjustable Values
SolaStat-Eco System Adjustable Values. Installer to fill in at installation time or after any change in program adjustable values. a l l o i t o i t Notes. Pump ON must always be higher than Pump OFF. Installer Details. -
Page 7: Solastat-Eco Safety Instructions
Read safety instructions and limit of liability before proceeding with the installation. General Safety Instructions. This installation guide is for the installation of SolaStat-Eco solar hot water controllers only and is not an installation guide for any other part. The complete installation should be checked at least annually for damage or malfunction. -
Page 8: Solastat-Eco Mounting
Mounting the Sensors. This is Critical to the Success of the Installation. The sensors are the only way the SolaStat-Eco can efficiently control and protect the system. The 10m ROOF Sensor. The ‘ROOF’ sensor is best fitted into a metal immersion ‘pocket’ just inside the solar collector in the hot water outlet pipe. -
Page 9: Solastat-Eco Operation
SolaStat-Eco Operation. Connect the Pump. Plug in the pump to the ‘PUMP’ socket on the SolaStat-Eco. This should be the correct type of pump for domestic solar hot water circulation and not exceed the horse power (hp) rating as specified on the label on the side of the enclosure. -
Page 10: Solastat-Eco Sensor Maintenance
12. Reconnect the SolaStat-Eco and turn on the power. 13. Check sensor is reading correctly and check SolaStat-Eco operation as per “What You Should See” section of this manual. The table below has the correct resistance values of the sensor at different temperatures. The sensor must be removed from the SolaStat-Eco to measure these values correctly. -
Page 11: Solastat-Eco Programming
Once new values are ‘stored’ they are permanently written into memory and will be retained when power is removed SolaStat-Eco Panel Description. F1 Light F3 Light... -
Page 12: Solastat-Eco Programming Table
SolaStat-Eco Pump ON / Pump OFF Adjustable Range. Roof Sensor Solar Collector Temperature Pump ON Pump ON Temperature Roof Sensor Solar Collector Temperature Pump OFF Deg. Celsius Pump OFF Inlet Sensor Cylinder or Pool Temperature Note. Pump ON / Pump OFF; Four Ranges available: Pump ON = 12C, Pump OFF = 6 C. -
Page 13: Specifications
SolaStat-Eco Specifications. Power Supply Voltage: Supply Voltage. 230Vac ±10% (207~264Vac) 50/60Hz. Max power usage. 2VA + external loads. Relay Outputs. - Two Options can be ordered. (All ratings at 240Vac.) 1 x 1hp motor or 10A resistive. 1 x 2hp motor or 10A resistive. -
Page 14: Solastat-Eco Trouble-Shooting Guide
SolaStat-Eco Trouble-shooting Guide. This is intended as an initial guide to minimise service calls. t e l e l i o i t . t n o i t g i l . s t . t u t i n... -
Page 15: Solastat-Eco Plumbing Issues
SolaStat-Eco Plumbing Issues. Disclaimer. For full information on compliance and safety standards for solar hot water systems the appropriate local standards must be referred to. All plumbing to be carried out by qualified plumbers only. We provide the following information as a guideline only to help obtain the greatest efficiency from the system. -
Page 16: Cavitation
Convert the system to mains pressure. he SolaStat-Eco controllers have an optional factory setting called ‘Pump Timer’ to assist in pump cavitation recovery. After the pump has run continuously for approximately ten minutes, it will turn off for one minute. This cycle is repeated as long as the pump is required to run and will not affect normal operation in a standard hot water collector and cylinder installation.
