Aarow Nouveau 7 Operating & Installation Manual

Multifuel stove

Advertisement

Operating & Installation Manual
Nouveau 7
Multifuel Stove
Nouveau 7 Multifuel Stove
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Rev 2
August 2004
AFS1120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nouveau 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aarow Nouveau 7

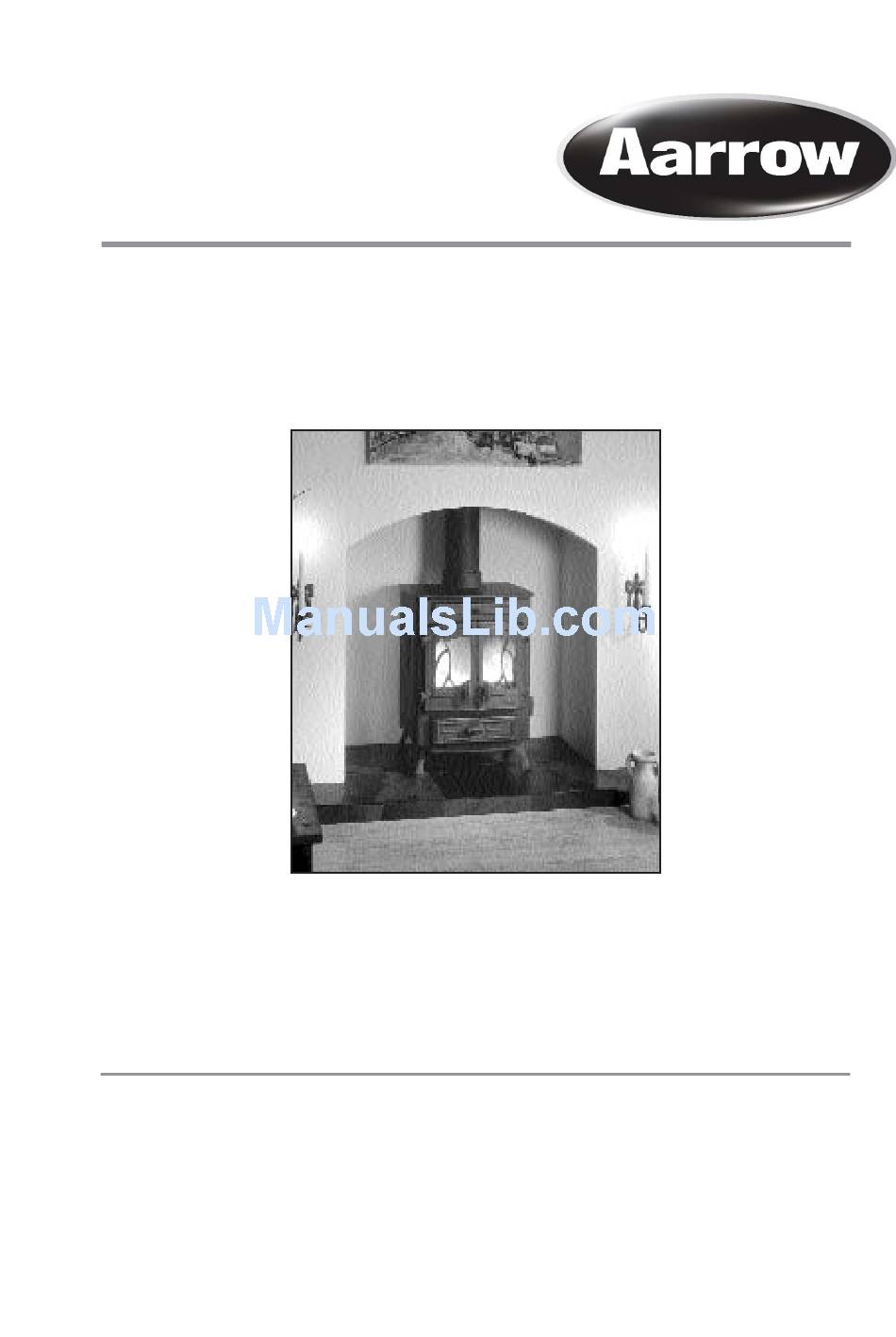

  • Page 1 Operating & Installation Manual Nouveau 7 Multifuel Stove Nouveau 7 Multifuel Stove PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE Rev 2 August 2004 AFS1120...
  • Page 2: Lifetime Guarantee

    Congratulations on your choice of an Aarrow Stove. More than 20 years experience has been put into the development of our Nouveau Family to ensure ultimate performance and years of trouble free enjoyment. Every detail on the fire has been carefully engineered and designed which is why we are so confident in the reliability of our product that we offer a Lifetime Guarantee.
  • Page 3: Table Of Contents

    Final Check List Fire Door Glass 9-10 Parts List 26-28 Door Adjustment GUARANTEE Fuels Lifetime Guarantee Lighting The Fire Customer Registration Over-Firing SERVICE RECORD Cleaning & Annual Maintenance 13/14 Service Record Accessories Final Factory Check List Nouveau 7 Multifuel Stoves...
  • Page 4 TO USE THESE FUELS WILL INVALIDATE THE APPLIANCE GUARANTEE IF IN DOUBT CONTACT THE SOLID FUEL ASSOCIATION TELEPHONE NUMBER 0800 600 000 www.solidfuel.co.uk THE USE OF SPARE PARTS OTHER THAN THOSE SUPPLIED BY ARADA LTD WILL INVALIDATE THE APPLIANCE GUARANTEE. Nouveau 7 Multifuel Stoves...
  • Page 5: Introduction

    The lifetime of heating satisfaction. optimum settings will only be established by experience in firing the appliance, and will depend on type of fuel, the position of the appliance in the house, condition of chimney etc. Nouveau 7 Multifuel Stoves...
  • Page 6: Check List

    2. Fuel Retainers 3. Throat Plate 4. Flue Spigot 1(5”) 5. Hot Plate 1(5”) 6. Ashpan 7. Operating Tool 8. Rear Liners 9. Side Liners 10. Cast Fire Door Handle 11. Feet & Fixings 12. Instructions Nouveau 7 Multifuel Stoves...
  • Page 7: Technical Data

    Max Output to Room (kW) Max Output to Water (kW) Height (mm) Width (mm) Depth (mm) Height to Centre of Rear Flue Depth from Back to Centre of Flue Flue Diameter 127 (5”) Weight Packed (Kg) 73 Kg Nouveau 7 Multifuel Stoves...
  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS FIREBOX LININGS & THROAT PLATE The Nouveau 7 Multifuel stoves firebox has reflective liners to the sides and rear) and a Fig. 1 Fully Closed Fig. 2 Fully Open specially shaped throat plate which sits on the liners. If these are not in place please refer to page 17 to install these.
  • Page 9: Interlock

    This means that effective de-ashing (See page 13) takes place, and also allows the grate to be set in the coal burning or wood burning position, as Fig. 5c Tightening glass clips indicated on the right hand side of the appliance. Nouveau 7 Multifuel Stoves...
  • Page 10: Door Adjustment

    Slide and lift the bar until it is clear of the guides at each side, and Nouveau 7 Multifuel Stoves are fitted with bolt on remove through the fire door opening. hinges. These should not normally require The bars are symmetrical and of even lengths adjustment.
  • Page 11: Fuels

    Phurnacite, Phurnacite Plus, system is frozen. Centurion, Maxibrite, Extracite, Pureheat, Blazebrite, Taybrite, Sunbrite (Doubles/Singles), Anthracite (Large Nuts), and Welsh Dry Steam Coal (Large/Small Nuts). Nouveau 7 Multifuel Stoves...
  • Page 12: Overnight Burning

    Do not attempt to re-light the fire until the are non-toxic, but which certain persons may find cause of the fume emission has been identified and have an unpleasant or irritant effect. Ensure that corrected. the area is well ventilated during this time. Nouveau 7 Multifuel Stoves...
  • Page 13: Over-Firing

    Do not over fire your appliance. Using flammable liquids or too much wood or firing the fire at maximum for prolonged periods may result in over-firing. If the chimney connector or casing glows red it is being over-fired. If this occurs Nouveau 7 Multifuel Stoves...
  • Page 14: Annual Maintenance

    This could ruin the finish The door glass should remain clear during normal and invalidate the guarantee. daytime burning. However under certain conditions-such as burning at a low rate with damp wood, or overnight Nouveau 7 Multifuel Stoves...
  • Page 15: Accessories

    •Engage the rear clips and pull fully forward. •Fit the front clamps and tighten. •Fit the required blanking plates as shown in stage 2. Traditional canopies (High or Low) are available for Nouveau 7. Fig 7 Nouveau 7 Multifuel Stoves...
  • Page 16: Installation

    Care should be taken to make sure that the hinges are not damaged during installation. Nouveau 7 Multifuel Stoves...
  • Page 17: Firebox Liner Panels

    FIREBOX LINER PANELS The Nouveau 7 Multifuel stoves use firebox liner panels to the base, sides and back. The Nouveau 7 Multifuel stoves have reflective liners to the sides and back. The throat plate sits on top of the side and rear panels.
  • Page 18: Assembling The Multifuel Grate

    The upper bar is fitted in a similar manner, but with the end marked "L" inserted in the rear channel, and the end marked "H" seated on the high section of the comb. Nouveau 7 Multifuel Stoves...
  • Page 19: Flues & Chimneys

    Factory made insulated chimney complying with BS 4543: Part 2 (often called "Class 1 prefabricated metal chimney"). These types of chimney should be installed in accordance with the Building Regulations and BS 7566: Parts 1 to 4. Nouveau 7 Multifuel Stoves...
  • Page 20 The Stationery Bookshops and can also be www.nace.org.uk viewed ODPM website www.safety.odpm.gov.uk/bregs/brads.htm NACS (National Association of Chimney Sweeps): telephone 01785 811732 Details on the relevant Building Regulations and www.chimneyworks.co.uk BS British Standards are given in the "General Nouveau 7 Multifuel Stoves...
  • Page 21 INSTALLATION Nouveau 7 Multifuel Stoves...
  • Page 22 BS7566 P WITH BUILDING REGULATIONS AND IEW OF REGISTER PLATE AND CLEARANCES FOR NON INSULATED FLUES A is minimum clearance for non-insulated flue = 1.5 x D to a non-combustible surface/material 3 x D to combustible surface/material Nouveau 7 Multifuel Stoves...
  • Page 23: Add In Boilers/Water Connections

    Design and calculations for individual heating systems should be carried out Nouveau 7 multifuel stoves offer the option of a by a qualified heating engineer. In many cases your cantilever boiler or a slab boiler, which occupies supplier will be able to offer advice and assistance.
  • Page 24: Final Check List

    What is the height and distance of the A checklist (Pre-lighting Checks) appears in the hot water tank above the stove? Operating Instructions, but in addition to this the installer should: Nouveau 7 Multifuel Stoves...
  • Page 25 I/we the undersigned confirm that the above details are correct. In my opinion, these works comply with the relevant requirements in Part J of Schedule 1 to the Building regulations. Print name and title....................Profession................Capacity........................Telephone................Address................................Post code........Signed......................Date......... Registered membership of..(e.g. CORGI, OFTEC, HETAS, NACE, NACS)..........Nouveau 7 Multifuel Stoves...
  • Page 26: Parts List

    2. Throat Plate AFS1019 3. Grate Bar Set AFS001 4. Hot Plate AFS010 5. Operating Tool AFS008 6. Ashpan AFS058 7. Flue Spigot AFS009 *Pictures shown above may not represent actual parts and are as a guide only Nouveau 7 Multifuel Stoves...
  • Page 27 Complete with AFS1009 Gasket 12. Glass Clips AFS1010 13. Hinge kit Comprises 2 Hinges & 4 Fixings Per Set. AFS1035 14. Airwash AFS1077 *Pictures shown above may not represent actual parts and are as a guide only Nouveau 7 Multifuel Stoves...
  • Page 28: Parts List

    Gaskets,Clips and Seal. 17. Nouveau Feet Including Fixings AFS1007 18. Cast Fire Door Locking Assembly AFS040 19. Aarrow Fires Gauntlet Gloves AFS997 *Pictures shown above may not represent actual parts and are as a guide only Nouveau 7 Multifuel Stoves...
  • Page 29: Guarantee

    Our Lifetime Guarantee is offered as an addition to your statutory rights. The Nouveau 7 Multifuel Stove comes with a Lifetime Guarantee against splitting or If you think your fire is not working correctly or in cracking of the main body.
  • Page 30: Service Record

    Work Carried Out Signature Date of Visit Should you have any questions about your Nouveau 7 Multifuel Stove that is not covered in this manual please contact your Aarrow retailer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits as they will complete the service record chart.
  • Page 31 For full details contact your local Aarrow dealer. All guarantees are in addition to your statutory rights. Please see page 24 for further information regarding the guarantee. *The main body defined as the steel outer casing and items fixed immovably on to this casing. Nouveau 7 Multifuel Stoves...
  • Page 32: Final Factory Check List

    FINAL FACTORY CHECK LIST Model........Serial No......QUALITY FINISH I’ve checked it PARTS and it’s O.K. FLUE OUTLET HOT PLATE FUEL RETAINERS GRATE BARS Assembled by......FIREBOX LININGS THROAT PLATE Checked by ........ AIR WASH DOOR CATCHES INTERLOCK ASH PAN OPERATING TOOL OPERATING INSTRUCTIONS FEET &...
