MediaMatrix CAB 4n CobraNet Hardware Manual

Hide thumbs Also See for CAB 4n CobraNet:
Table of Contents

Advertisement

Quick Links

Download this manual
CAB 4n CobraNet Hardware Manual
Version 1.7.1.1
September 19, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAB 4n CobraNet and is the answer not in the manual?

Questions and answers

Related Manuals for MediaMatrix CAB 4n CobraNet

Summary of Contents for MediaMatrix CAB 4n CobraNet

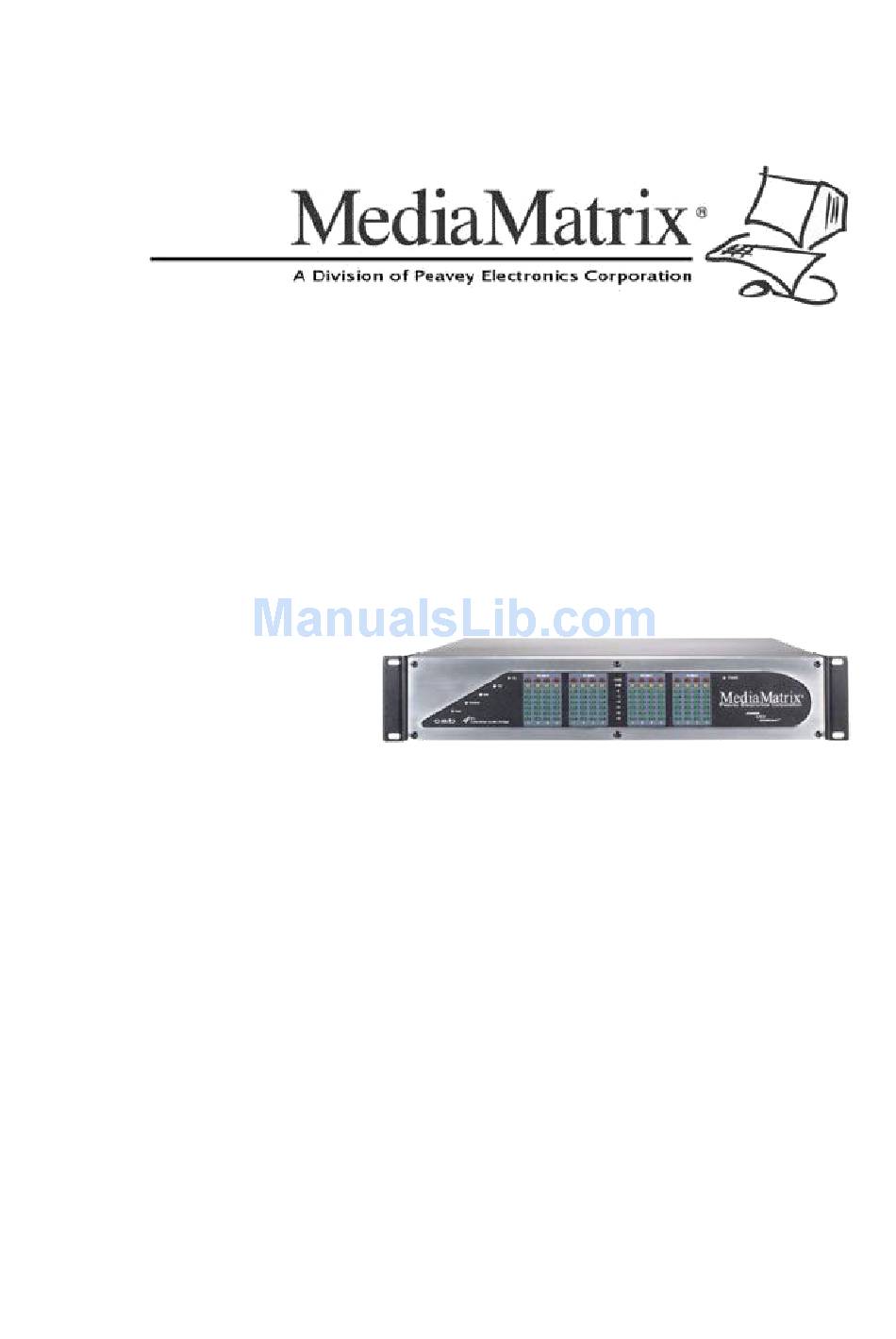

  • Page 1 CAB 4n CobraNet Hardware Manual Version 1.7.1.1 September 19, 2014...
  • Page 2 Copyright notice The information contained in this manual is subject to change without notice. Peavey Electronics is not liable for improper installation or configuration. The information contained herein is intended only as an aid to qualified personnel in the design, installation and maintenance of engineered audio systems. The installing contractor or end user is ultimately responsible for the successful implementation of these systems.

  • Page 3: Table Of Contents

    Contents Chapter 1 Important safety instructions ..............1 Safety warnings ............................2 Chapter 2 Before you start ..................5 Important network considerations ......................6 Thank You! ............................... 6 Warranty Registration ..........................6 What's in the box? ............................ 6 Chapter 3 Introduction to CAB 4n ................. 7 Description ..............................

  • Page 5: Chapter 1 Important Safety Instructions

    C h a p t e r 1 Important safety instructions In This Chapter Safety warnings ....................2 September 19, 2014 Version 1.7.1.1...

  • Page 6: Safety Warnings

    Chapter 1 - Important safety instructions Safety warnings Warning: When using electrical products, basic cautions should always be followed, including the following: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6.
  • Page 7 CAB 4n CobraNet Hardware Manual 18. This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects containing liquids, such as vases, upon the apparatus. 19. The on/off switch in this unit does not break both sides of the primary mains. Hazardous energy can be present inside the chassis when the on/off switch is in the off position.

  • Page 9: Chapter 2 Before You Start

    C h a p t e r 2 Before you start In This Chapter Important network considerations ..............6 Thank You! ....................... 6 Warranty Registration ..................6 What's in the box? ..................... 6 September 19, 2014 Version 1.7.1.1...

  • Page 10: Important Network Considerations

    Thank You! Thank you for purchasing this MediaMatrix product. It is designed to provide years of trouble-free operation and high quality performance. We are confident that you will find this product and other MediaMatrix products to be of the highest quality.

  • Page 11: Chapter 3 Introduction To Cab 4N

    C h a p t e r 3 Introduction to CAB 4n In This Chapter Description ......................8 Features ......................8 Applications ...................... 8 Audio input and output modules ............... 9 Using a CAB 4n with a NION ................10 Front Panel ......................

  • Page 12: Description

     Fan cooled 2U package with new NION cosmetics  Front panel audio metering  Front panel network status and fault indicators  Word clock sync option supports MediaMatrix Buddy Link  Universal power supply. Applications   Stadiums Cruise ships ...

  • Page 13: Audio Input And Output Modules

    CAB 4n CobraNet Hardware Manual Audio input and output modules The CAB 4n supports a number of different input and output modules. These modules are factory fitted into the four-channel bays at the rear of the unit. Note: A CAB 4n may be ordered short loaded, that is, with some of the bays empty. In this case, blanking panels will be fitted.

  • Page 14: Using A Cab 4N With A Nion

    Chapter 3 - Introduction to CAB 4n Using a CAB 4n with a NION The CAB 4n is designed to work in conjunction with a NION. In the example below, a project is created in NWare, then deployed to a NION, so it can control the CAB 4ns on the network.

  • Page 15: Front Panel

    CAB 4n CobraNet Hardware Manual Front Panel 1. HARDWARE ID SWITCHES Four rotary switches for setting the hardware ID. Located behind tamperproof panel. 2. FAULT LED Indicates an unexpected condition within the network interface. Some fault conditions will also light the RX Error and/or TX Error LEDs; this is to indicate whether the unexpected condition is in the receive or transmit processes.

  • Page 16: Rear Panel

    Chapter 3 - Introduction to CAB 4n Rear panel 1. IEC POWER CABLE RECEPTACLE The removable IEC power cable connects here. Use only the supplied cable or an equivalent international version. 2. POWER SWITCH Applies mains AC power to the CAB 4n. 3.

  • Page 17: Chapter 4 Installing The Cab 4N

    C h a p t e r 4 Installing the CAB 4n In This Chapter Introduction ....................... 14 What you will need ................... 14 Connections....................... 15 Setting the Hardware ID ................... 21 What to do next ....................21 September 19, 2014 Version 1.7.1.1...

  • Page 18: Introduction

    CobraNet audio systems. In MediaMatrix, the minimum CobraNet network consists of a single NION, a CAB 4n audio bridge loaded with appropriate MM™ I/O 4 ch cards and a single Ethernet switch. Many systems will include more NIONs and CAB devices, but this is the most basic configuration.

  • Page 19: Connections

    CAB 4n CobraNet Hardware Manual Connections CobraNet network connection The first priority is the CobraNet™ network connection. The RJ-45 connectors on the CobraNet interface are designed to connect with standard, off-the-shelf Category 5, 5e or 6 cable for use with standard Ethernet network switches.

  • Page 20: Audio Connections

    Chapter 4 - Installing the CAB 4n Configuration 2 Instead of using a switch, you can connect the CAB CobraNet port directly to the CobraNet port on your NION. However, this type of direct connection requires a crossover cable. For more information, we recommend that you search the internet.
  • Page 21 CAB 4n CobraNet Hardware Manual If you want to connect an unbalanced audio source to the CAB or NION, make the connections as shown in the table below. Unbalanced input cable CAB or NION input connector Positive (+) Positive (+)
  • Page 22 Chapter 4 - Installing the CAB 4n Pin outs The RS-485 connector has two sets of terminations that are wired in parallel. This allows you to bus adjacent serial data connections at each network location. With this type of connection, there is no input or output.
  • Page 23 CAB 4n CobraNet Hardware Manual All cable types must be properly installed and terminated to meet specifications. The cable must not be kinked or bent too tightly (the bend radius should be at least four times the outer diameter of the cable). The wire pairs must not be untwisted and the outer jacket must not be stripped back more than 1/2 inch (1.27 cm).
  • Page 24 Chapter 4 - Installing the CAB 4n Link connections The CAB 4n features built-in Buddy Link functionality for creating backup I/O configurations in mission critical systems. Each CAB 4n features rear panel, dual BNC connectors labeled LINK IN and LINK OUT. These connectors enable you to connect adjacent CAB units for redundancy.

  • Page 25: Setting The Hardware Id

    CAB 4n CobraNet Hardware Manual For input audio, the secondary CAB 4n is prevented from transmitting onto the CobraNet network by the action of the Buddy Link. The fact that audio is present, but is muted by relays for output, and by the CobraNet transmission being turned off by the Buddy Link, means the quick response of the redundant CAB is greatly enhanced.

  • Page 27: Appendix A Reference Information

    A p p e n d i x A Reference Information In This Appendix GPIO overview ....................24 Technical specifications ..................27 Gain structure ....................30 Technical Support ..................... 30 September 19, 2014 Version 1.7.1.1...

  • Page 28: Gpio Overview

    Appendix A - Reference Information GPIO overview NION and CAB products include a versatile GPIO (General Purpose Input Output) system at the rear for terminating external logic, controls, relays and other external systems. Each control pin is supported by NWare for configuration, control and monitoring. Any combination of control pins may be used simultaneously, regardless of the configuration.
  • Page 29 CAB 4n CobraNet Hardware Manual Connection A 25-pin DSub connector (DB-25) is used for accessing the GPIO functions. Although you can terminate GPIO functions directly to the DB-25 connector, we recommend that you use the optional breakout accessory (GPIO-25: Peavey Part# 00510490).
  • Page 30 Appendix A - Reference Information GPIO connector pin-out table Function Function Configurable GPIO Configurable GPIO Configurable GPIO Configurable GPIO Configurable GPIO Configurable GPIO Configurable GPIO Configurable GPIO Ground Ground Relay 1 Common Relay 3 Common Relay 1 N.C. Relay 3 N.C. Relay 1 N.O.

  • Page 31: Technical Specifications

    CAB 4n CobraNet Hardware Manual Technical specifications Mechanical Dimensions (H x W x D) 19" W x 12-7/8" D x 3-1/2" H (48.26 x 29.71 x 8.78 cm) Weight 9.5 lbs. (4.3 kg) Mounting Double EIA Space Rack Mount (2U) September 19, 2014 Version 1.7.1.1...
  • Page 32 Appendix A - Reference Information Performance Frequency Response +0 / -0.3 dB, 20 ~ 20 kHz, referenced @ 1 kHz THD + Noise Line Level: 0.006%, Mic Level: < 0.01% Dynamic Range 106 dB Equivalent Input Noise Mic Level: < -126 dBu (EIN) Common Mode Rejection 55 dB...
  • Page 33 CAB 4n CobraNet Hardware Manual General A/D, D/A Quantization 24 bit Audio Transmission 20 or 24-bit. CobraNet truncates to 20 bits unless Quantization used in reduced channel mode Sample Rate (Fs) 32, 44.1 or 48 kHz (user selectable) Master Clock Speed (256 Fs) 12.888 MHz...

  • Page 34: Gain Structure

    If you cannot find the information you require, contact your dealer or distributor. If you are still unable to solve the issue, you can contact us directly using the details below. MediaMatrix has an extensive Technical Services Group that provides technical support, repair and implementation services.

  • Page 35: Warranty Statement

    End Users: Take the defective product and your dated sales receipt What This Warranty Does Not Cover or other proof of purchase to your Authorized MediaMatrix Systems Integrator or Authorized Peavey Service Center. System The Warranty does not cover: (1) damage caused by accident,...
  • Page 36 MediaMatrix® A Division of Peavey Electronics Corp. 5022 Hartley Peavey Drive, Meridian Mississippi, 39305, USA Phone: 866.662.8750 http://mediamatrix.peavey.com Features & Specifications subject to change without notice Copyright © 2014, All Rights Reserved 80307504...
