  • Page 1 ACR122S Serial NFC Reader Communication Protocol V2.01 Subject to change without prior notice info@acs.com.hk www.acs.com.hk...
  • Page 2: Table Of Contents

    Appendix D. Jewel96 ......................55 Appendix E. ACR122 Error Codes .................. 56 List of Figures Figure 1 : ACR122S Communication Flowchart ..................7 Figure 2 : Tag Address “ADD” ......................33 Figure 3 : Tag Address “ADD8” ......................34 Page 2 of 57 ACR122S –...
  • Page 3 Table 3 : Mifare 4K Memory Map ......................41 Table 4 : Mifare Ultralight Memory Map ....................44 Table 5 : Mifare Ultralight C Memory Map .................... 48 Page 3 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 4: Introduction

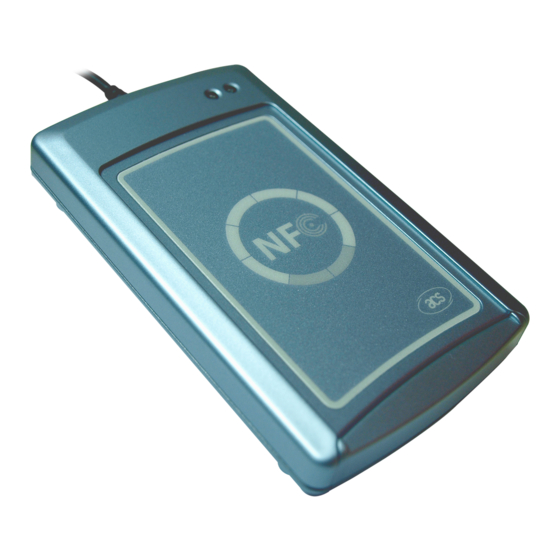

    1.0. Introduction The ACR122S is a contactless smart card reader/writer used for accessing ISO 14443-4 Type A and B, Mifare, ISO 18092 or NFC, and FeliCa tags using the serial interface. This document will discuss the command set in implementing a smart card application using the ACR122S.
  • Page 5: Features

    ISO 14443 VCCI RoHS 2.1. Serial Interface The ACR122S is connected to a Host through the RS-232C Serial Interface at 9600 bps, 8-N-1. Signal Function +5 V power supply for the reader (max. 200 mA; normal 100 mA) The signal from the reader to the host...
  • Page 6: Buzzer

    Loop inductance is approximately 1.6 µH – 2.5 µH. • Operating distance for a different tag is approximately up to 50 mm (depends on the tag). • Only one tag can be accessed at a time. Page 6 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 7: Communication Between The Host And Contactless Interface, Sam And Peripherals

    SAM and peripherals The contactless interface and peripherals are accessed through the use of pseudo-APDUs. The SAM interface is accessed through the use of standard APDUs. Figure 1: ACR122S Communication Flowchart Page 7 of 57 ACR122S – Communication Protocol info@acs.com.hk...
  • Page 8: Serial Interface (Ccid-Like Frame Format)

    4.0. Serial Interface (CCID-like Frame Format) Note: Communication setting: 9600 bps, 8-N-1. The communication protocol between the host and ACR122S is very similar to the CCID protocol. Command Frame Format APDU Command or STX (02h) Bulk-OUT Header Checksum ETX (03h)
  • Page 9: Protocol Flow Examples

    02 62 00 00 00 00 00 01 01 00 00 1. HOST sends a frame  [Checksum] 03 2. RDR sends back a positive status frame 02 00 00 03 (positive status frame)  immediately Page 9 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 10 The NAK Frame is only used by the HOST to get the last response. {02 00 00 00 00 00 00 00 00 00 00 00 03} // 11 zeros Page 10 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk...
  • Page 11: Sam Interface

    RDR_to_HOST_DataBlock Format Offset Field Size Value Description Indicates that a data block is bMessageType being sent from the ACR122S. dwLength Size of abData field (N Bytes). <LSB .. MSB> Identifies the slot number for Same as Bulk-OUT bSlot this command.
  • Page 12: Deactivating The Sam Interface

    RDR_to_HOST_DataBlock Format Offset Field Size Value Description Indicates that a data block is bMessageType being sent from the ACR122S. dwLength Size of abData field (0 Byte). <LSB .. MSB> Identifies the slot number for this Same as Bulk-OUT bSlot command.
  • Page 13: Exchanging Data Through The Sam Interface

    10 Bytes N Bytes (ATR) 1 Byte 1 Byte RDR_to_HOST_DataBlock Format Offset Field Size Value Description Indicates that a data block is bMessageType being sent from the ACR122S. Page 13 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 14 -> 02 80 0A 00 00 00 00 03 00 00 00 E3 51 B0 FC 88 AA 2D 18 90 00 [Checksum] 03 Response = E3 51 B0 FC 88 AA 2D 18; SW1 SW2 = 90 00 Page 14 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk...
  • Page 15: Pseudo-Apdus For Contactless Interface And Peripherals Control

    6.0. Pseudo-APDUs for contactless interface and peripherals control ACR122S comes with two primitive commands for this purpose. <Class FFh> 6.1. Direct Transmit This command is used to send a pseudo-APDU (Tag Commands), and returns the length of the Response Data.
  • Page 16 InnoVision Jewel tag. This field is not used. Data Out Tag Response returned by the reader. Direct Transmit Response Format Response Data Out D5 41 Status [DataIn[]] Result SW1 SW2 D5 4B NbTg [TargetData1[]] [TargetData2[]] Page 16 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 17 SW1 SW2. Status Code returned by the reader. Results Meaning Success The operation is completed successfully. Error The operation is failed. Time Out Error The TAG does not response. Page 17 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 18: Change Communication Speed

    The APDU Command should be “FF 00 00 00 09 D4 4A 01 01 00 FF FF 01 00” In which, Direct Transmit APDU = “FF 00 00 00” Length of the Tag Command = “09” Tag Command (InListPassiveTarget 212Kbps) = “D4 4A 01 01” Page 18 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 19 FF 00 00 00 21 D4 40 01 20 08 01 01 05 01 86 04 02 02 01 09 01 01 80 00 00 AA 55 AA 55 AA 55 AA 55 AA 55 AA 55 AA [Checksum] 03 Page 19 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 20 “D5 41 00 1D 07 01 01 05 01 86 04 02 02 00 00 01 00 AA 55 AA 55 AA 55 AA 55 AA 55 AA 55 AA 55 AA 90 00” Page 20 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk...
  • Page 21 The USER APDU Command should be “00 84 00 00 08” The Composed APDU Command should be “FF 00 00 00 08 D4 40 01 00 84 00 00 08” Page 21 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk...
  • Page 22: Get Firmware Version

    Get Firmware Version Response Format (10 Bytes) Response Data Out Result Firmware Version Example: Response = 41 43 52 31 32 32 53 31 30 30 (Hex) = ACR122S100 (ASCII) Page 22 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 23: Bi-Color Led And Buzzer Control

    01h = The buzzer will turn on during the T1 Duration. 02h = The buzzer will turn on during the T2 Duration. 03h = The buzzer will turn on during the T1 and T2 Duration. Page 23 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 24 Response = “90 03”. RED and Green LEDs are ON, To turn off both RED and Green LEDs, APDU = “FF 00 40 0C 04 00 00 00 00” Page 24 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 25 1 Hz = 1000 ms Time Interval = 500 ms ON + 500 ms OFF T1 Duration = 2000 ms = 14h T2 Duration = 0 ms = 00h Number of repetition = 01h Link to Buzzer = 01h Page 25 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 26 // Assume both the Red and Green LEDs are initially OFF. // // Both Initial Red and Green Blinking States are ON // // The buzzer will turn on during both the T1 and T2 duration// Page 26 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 27 // Assume both Red and Green LEDs are initially OFF. // // The Initial Red Blinking State is ON; The Initial Green Blinking States is OFF // // The buzzer will turn on during the T1 duration// Page 27 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 28: Topaz512 And Jewel96

    APDU = “FF 00 40 D0 04 05 05 03 01” Response = “90 00” 6.5. Topaz512 and Jewel96 Note: This section only applies to ACR122S with firmware version 1.03. This command is used to Write-with-erase (8 Bytes), Write-no-erase (8 Bytes), Read (8 Bytes) and Read Segment.
  • Page 29 D5 09 05 01 23 45 67 89 AB CD EF 90 00 [Checksum] 03 The APDU Response is “D5 09 05 01 23 45 67 89 AB CD EF 90 00” Page 29 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 30 Response returned by the contactless chip = “D5 09 05 FF FF FF FF FF FF FF FF 90 00” Write Tag Address = “05” Write Tag 8Bytes Data = “FF FF FF FF FF FF FF FF” Status Code returned by the reader = “90 00” Page 30 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 31 The APDU Command should be “FF 00 00 00 0D D4 40 01 10 00 00 00 00 00 00 00 00 00” In which, Direct Transmit APDU = “FF 00 00 00” Page 31 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 32 Tag Data = “00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Page 32 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk...
  • Page 33: Figure 2: Tag Address "Add

    10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47” In which, Direct Transmit APDU = “FF 00 00 00” Length of the Tag Command = “36” Page 33 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 34: Figure 3: Tag Address "Add8

    25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47” Status Code returned by the reader = “90 00” If Status Code returned by the reader = “63 00” that mean this operation is not complete. Page 34 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 35: Basic Program Flow For Iso 14443-4 Type A And B Tags

    -> 02 80 14 00 00 00 00 01 01 00 00 -> D5 4B 50 00 01 32 F4 00 00 00 00 33 81 81 01 21 90 00 [Checksum] 03 Page 35 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 36 -> 02 80 04 00 00 00 00 01 01 00 00 -> D5 33 90 00 [Checksum] 03 Note: Please refer to the Tag specification for more detailed information. Page 36 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 37: Basic Program Flow For Mifare Applications

    HOST -> 02 6F 14 00 00 00 00 01 00 00 00 HOST -> FF 00 00 00 0F D4 40 FF FF FF FF FF FF F6 8E 2A 99 [Checksum] 03 Page 37 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 38 -> 02 00 00 03 (Waiting the Tag) -> 02 80 05 00 00 00 00 01 01 00 00 -> D5 45 [00] 90 00 [Checksum] 03 Page 38 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 39: Handling The Value Blocks Of Mifare 1K/4K Tag

    Step 3. Transfer the prior calculated value of Block HOST -> 02 6F 0A 00 00 00 00 01 00 00 00 HOST -> FF 00 00 00 05 D4 40 [Checksum] 03 Page 39 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 40 101 (dec). The Adr “05 FA 05 FA” tells us the value is copied from Block 05. Note: Please refer to the Mifare specification for more detailed information. Page 40 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 41: Table 2: Mifare 1K Memory Map

    Note: Once the authentication is done, all the data blocks of the same sector are free to access. For example, once the data block 04h is successfully authenticated (Sector 1), the data blocks 04h ~ 07h are free to access. Page 41 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 42: Accessing Mifare Ultralight Tags

    01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 Note: 4 consecutive Pages will be retrieved. Pages 4, 5, 6 and 7 will be retrieved. Each data page consists of 4 bytes. Page 42 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 43 -> 02 80 05 00 00 00 00 01 01 00 00 -> D5 45 [00] 90 00 [Checksum] 03 Note: Please refer to the Mifare Ultralight specification for more detailed information. Page 43 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 44: Accessing Mifare Ultralight C Tag

    HOST -> 02 6F 09 00 00 00 00 01 00 00 00 HOST -> FF 00 00 00 04 D4 4A 01 00 [Checksum] 03 -> 02 00 00 03 (Waiting the Tag) Page 44 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 45 -> 02 80 15 00 00 00 00 01 01 00 00 -> D5 41 [00] 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 90 00 [Checksum] 03 Page 45 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 46 Step 7. Halt the tag (optional). HOST -> 02 6F 08 00 00 00 00 01 00 00 00 HOST -> FF 00 00 00 03 D4 44 [Checksum] 03 Page 46 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 47 Data88 Data89 Data90 Data91 Data read/write Data92 Data93 Data94 Data95 Data read/write Data96 Data97 Data98 Data99 Data read/write Data100 Data101 Data102 Data103 Data read/write Data104 Data105 Data106 Data107 Page 47 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 48: Table 5: Mifare Ultralight C Memory Map

    Authentication Authentication Authentication Authentication Authentication Authentication Authentication Authentication Authentication Authentication Authentication Authentication Authentication Table 5: Mifare Ultralight C Memory Map Total Page Size: 792 bits of 198 Bytes. Page 48 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 49: Basic Program Flow For Felica Applications

    -> 02 00 00 03 (Waiting the Tag) -> 02 80 0C 00 00 00 00 01 01 00 00 -> D5 4B 0C 00 B5 3E 21 00 90 00 [Checksum] 03 Page 49 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 50 HOST -> 02 6F 08 00 00 00 00 01 00 00 00 FF 00 00 00 03 D4 44 01 [Checksum] 03 -> 02 00 00 03 02 80 05 00 00 00 00 01 01 00 00 D5 45 [00] 90 00 [Checksum] 03 Page 50 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk...
  • Page 51: Appendix A. Topaz

    Appendix A. Topaz Page 51 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 52: Appendix B. Topaz512

    Appendix B. Topaz512 Page 52 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 53 Page 53 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 54: Appendix C. Jewel64

    Appendix C. Jewel64 Page 54 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 55: Appendix D. Jewel96

    Appendix D. Jewel96 Page 55 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 56: Appendix E. Acr122 Error Codes

    ISO/IEC 14443-3B only: the ID of the card does not match, meaning that the expected card has been exchanged with another one. ISO/IEC 14443-3B only: the card previously activated has disappeared. Page 56 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
  • Page 57 Error Code Error Mismatch between the NFCID3 initiator and the NFCID3 target in DEP 212/424 kbps passive. An over-current event has been detected. NAD missing in DEP frame. Page 57 of 57 ACR122S – Communication Protocol info@acs.com.hk www.acs.com.hk Version 2.01...
