M2CV FT245 Manual

FT245 USB

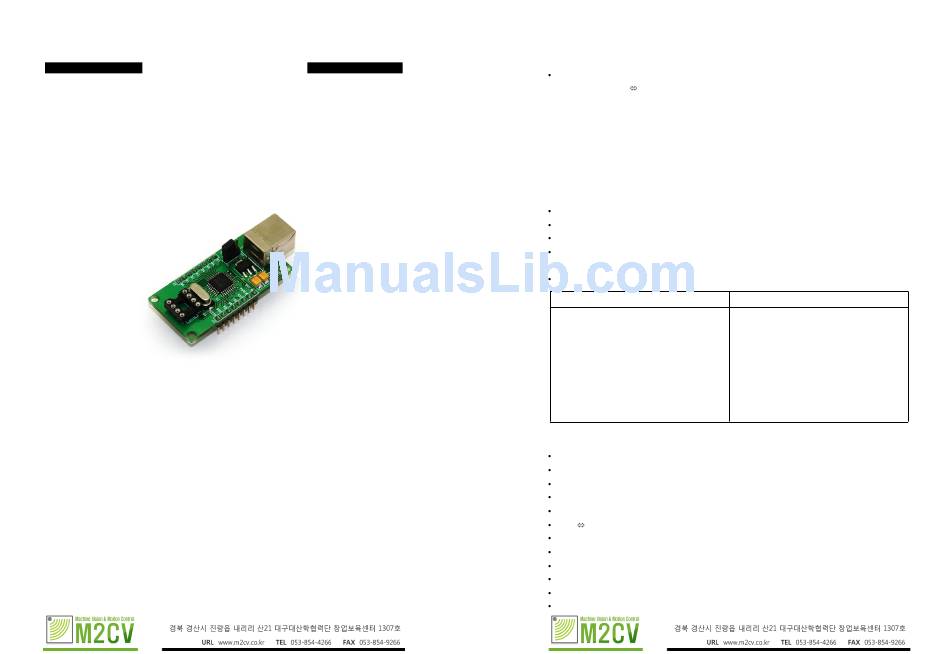

FT245 USB Module v1.0 Manual
s

1. Features

FTDI chip사의 FT245 채용
- Single Chip USB Parallel FIFO bi-directional Data Transfer
- Transfer Data rate to 1M Byte / Sec - D2XX Drivers
- Transfer Data rate to 300 Kilobyte / Sec - VCP Drivers
- Simple to interface to MCU / PLD/ FPGA logic with a 4 wire handshake interface
- 384 Byte FIFO Tx buffer / 128 Byte FIFO Rx Buffer for high data throughput
- Adjustable RX buffer timeout
- Integrated Power-On-Reset circuit
- Integrated 3.3V regulator for USB IO
- USB 1.1 and USB 2.0 compatible
D2XX Driver 사용 시 최대 1MByte 전송
1열 Pin Header에 Data, Control Pin 입출력
외부 I/O 전원 선택 가능(3.3V, 5V)
USB 정보 저장을 위한 EEPROM Socket
Bit Bang mode, D2XX를 이용한 Board Test Program 제공
Support Operating System
• VIRTUAL COM PORT (VCP) DRIVERS for
Windows 98 and Windows 98 SE
Windows 2000/ME/Server 2003/XP
Windows XP 64 Bit
Windows XP Embedded
Windows CE 4.2
MAC OS-8 and OS-9
MAC OS-X
Linux 2.40 and greater

2. APPLICATION AREAS

Easy MCU / PLD / FPGA interface to USB
Upgrading Legacy Peripheral Designs to USB
USB Instrumentation
USB Industrial Control
USB Audio and Low Bandwidth Video data
PDA USB data transfer
USB MP3 Player Interface
USB FLASH Card Reader / Writers
Set Top Box (S.T.B.) PC - USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
• D2XX (USB Direct Drivers + DLL S/W Interface)
Windows 98 and Windows 98 SE
Windows 2000/ME/Server2003/XP
Windows XP 64 Bit
Windows XP Embedded
Windows CE 4.2
Linux 2.4 and Greater
