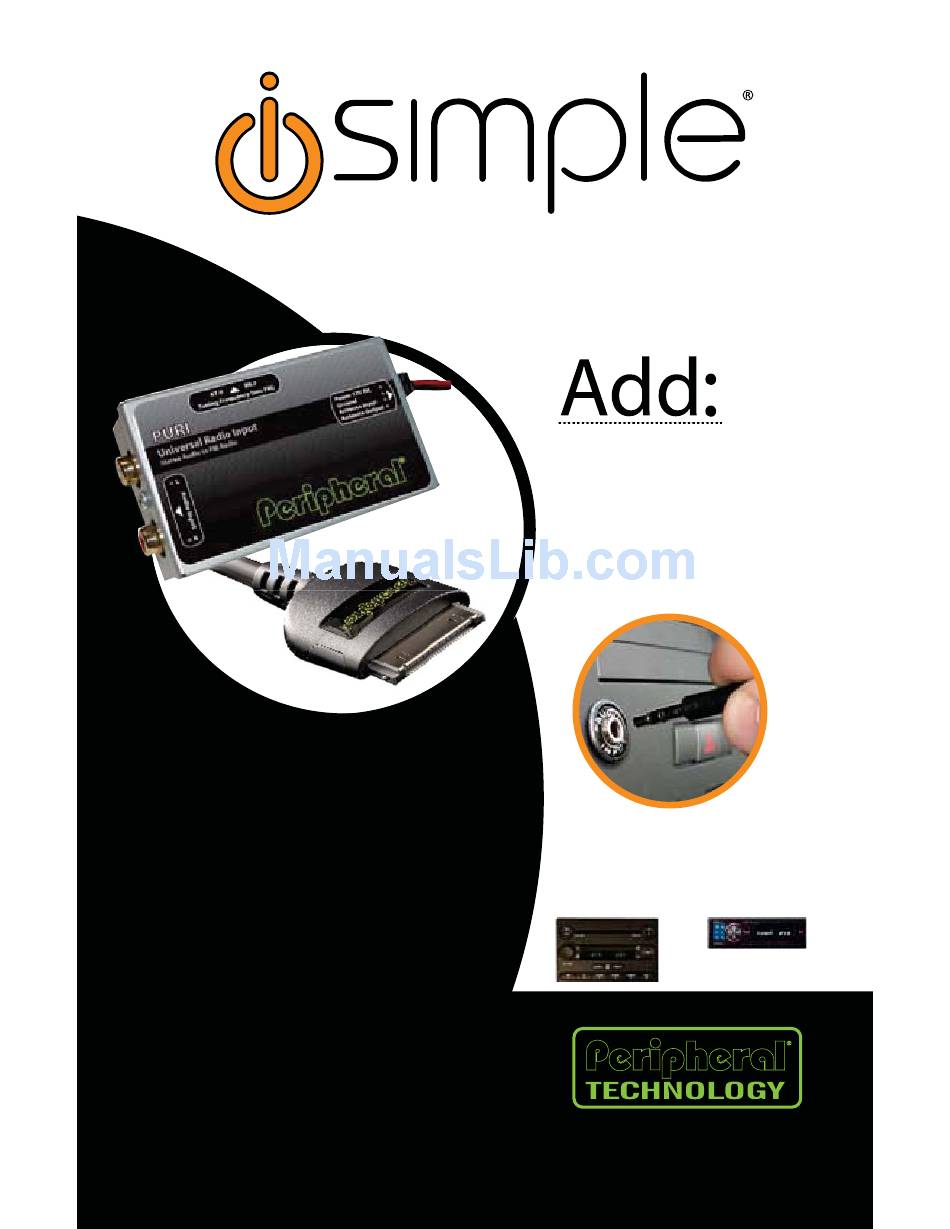

    MP3 Players other audio sources Owner’s Universal Manual Owner’s Manual Factory Aftermarket Media Gateway IS77 Radio Radio PXAMG Peripheral Electronics ® Peripheral Electronics ® a division of AAMP of America™ a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 13160 56th Court Clearwater, Florida 33760 Ph.

  • Page 2: Table Of Contents

    Table of Contents Pages 1. Introduction 2. IS77 Components 3. Installation Options 4. Radio Input Interface (PURI) Installarion Troubleshooting Warranty Information...

  • Page 3: Introduction

    1. Introduction Thank you for choosing the iSimple IS77 as your audio input solution. The IS77 is designed to provide the connecting link between your audio source and your FM radio. Using the supplied accessories, you can connect virtually any audio source into any FM equipped radio. This interface has a universal input that can be configured to accept an audio signal from any source...

  • Page 4: Radio Input Interface (Puri)

    B. Connecting a Source with a Headphone or Line Output iPod Conection Connects to Connect To Not USE SWITCH On/Off Switch Fuse (not included) 3/8” hole Antenna Out* PURI 3.5 mm to 3.5 mm “factory look” 3.5 mm 3.5 mm to RCA Audio Cable (4 ft.) Dash/Panel Mount Adapter...
  • Page 5 PURI Gain Adjustment LEVEL Gain Adjustment Use to match volume of PURI to volume of FM radio stations 1) The PURI is designed to install Inline with the radio antenna connection usually located on the back of the radio in the dash. In some cases this connection may be at a remote radio tuner location.

  • Page 6: Troubleshooting

    IS77 interface. 2) local radio station is interfering Change the frequency setting on the with the Auxiliary input device side of the IS77 to the other position, and use the new frequency to access the audio source Low audio...

  • Page 7: Warranty Information

    6. Warranty Information One Year Limited Warranty The quality controls used in the manufacture of this product will ensure your satisfaction. This warranty applies only to the original purchaser of this product from an authorized Peripheral Electronics dealer. This warranty covers any supplied or manufactured parts of this product that, upon inspection by Peripheral Electronics authorized personnel, is found to have failed in normal use due to defects in material or workmanship.
  • Page 8 www.peripheralelectronics.com Peripheral Electronics ® a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 Ph. 800-477-2267 ext. 230 support@peripheralelectronics.com ©2009 AAMP of Florida, Inc.
