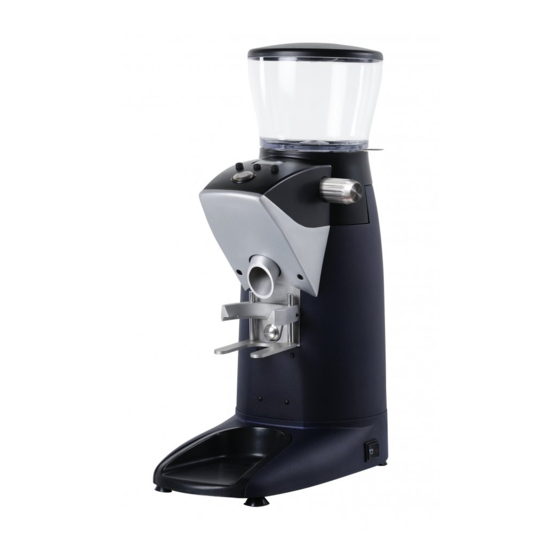

Summary of Contents for Compak fresh K-10 Conic Fresh

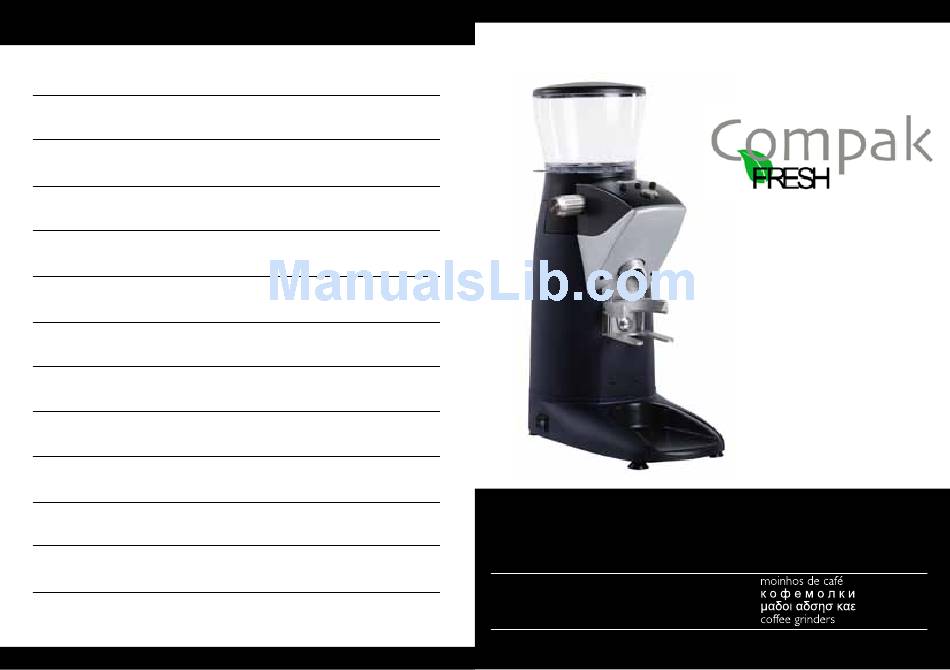

- Page 1 Notes K-10 Conic Fresh K- 8 Fresh Instructions Manual K-10 Conic Fresh K-8 Fresh molinos de café moulins à café kaffeemühlen macinadosatori...
- Page 2 FUNCTION STOP 6 - Adjustments K-8 Fresh 5 sec. 20 sec. 5 sec. K-10 Conic Fresh 20 sec. 7 - Functions 8 - Configuration 9 - Cleaning 10 - Maintenance 11 - Safety measures 12 - Declaration of EC Conformity...
-
Page 3: Technical Characteristics
The Fresh line of grinders is available in single phase, with a choice of The following information is printed indelibly on the technical features plate: 110V or 220V-240V, depending on local requirements. Further electrical/ technical specifications are as follow: K-8 Fresh K-10 Conic Fresh 110 v 280w/150w 680w/370w 60 hz 1030 rpm... -
Page 4: External Features
External Features Installation ORIGINAL INSTRUCTIONS All models in the Fresh line of grinders share the following external The grinder should rest on a flat, hard surface in close proximity to the coffee machine. To guarantee proper operation, the minimum work space features, independent of burr size, voltage or model. - Page 5 Functions Adjustments ORIGINAL INSTRUCTIONS Portafilter Forks – Loosen the two adjustment screws (13), found on To activate the grind function, the dosis button (11) must be pressed each side of the upper portafilter fork (10), and slide downward on the using the portafilter which should be resting in the portafilter fork adjustable lower portafilter fork (12) until the appropriate space remains to assembly (10, 12).
- Page 6 ORIGINAL INSTRUCTIONS 7.1. Automatic Mode timed counter which will continue counting up as the dosis button (11) In this mode, user should press/release the dosis button (11) once for is held down. a single dosis and twice for a double dosis. The display screen (6) will indicate an icon representing either a single or double dose, along with the 7.4.
- Page 7 ORIGINAL INSTRUCTIONS 8.1. Configuration of time for a single or double dose. The following options can be selected and changed through the The grind times for a single or double dose can be configured for the configuration Menu: Automatic and Pre-Select functions. Both Automatic and Pre-Select share the same time setting so modifying either will result in the same time for Level 1 Level 2...
- Page 8 Cleaning ORIGINAL INSTRUCTIONS 9.1. General cleaning holders (10,12) should be wiped periodically to prevent build up of To guarantee the correct operation of the machine as well as the quality coffee grounds and oils It is recommending to clean the outer portions of the ground coffee, we should periodically clean the parts that come into of the grinder with a damp cloth and mild cleaning soap.
-
Page 9: Maintenance
Note: Based on extensive experience and a medium-hard coffee supply and dry all surfaces carefully. Should it be necessary to access the blend, we recommend replacing the burrs on the K-10 Conic Fresh after internal parts of the machine, where the electrical components are loca- grinding 1500 Kg/3300 Lbs of coffee and on the K-8 Fresh after grinding ted, take the machine to your local technical service. -
Page 10: Declaration Of Ec Conformity
Notes Declaration of EC Conformity In accordance with European community directives, quality cer- 06/95/EC of 12/12/2006 on the tificates have been applied. All harmonization of the laws of materials have been adapted and the Member States relating to technical reports are available at electrical equipment designed for our offices.
Need help?
Do you have a question about the K-10 Conic Fresh and is the answer not in the manual?
Questions and answers
Coffee grinder not working, hasn’t been used for a while and I think it needs cleaning. Trying to pull out grinder mechanism from the top but won’t come out, need advice on how to clean
To clean the Compak Fresh K-10 Conic coffee grinder when the grinder mechanism is stuck:
1. Turn off the machine using the 3-position switch.
2. Disconnect from power to ensure safety.
3. Ensure the grinder is free of beans before adjusting or cleaning.
4. Remove the hopper by closing the hopper opening lever, turning it counter-clockwise until it detaches.
5. Clean the hopper with a damp cloth or mild soap and water, then dry it completely.
6. Check the grind chamber for blockages. If burrs are blocked, ensure no beans are present and gently clear any debris.
7. Do not use water jets or submerge the grinder in water.
After cleaning, reassemble the parts and turn the hopper clockwise into place. Make sure it's correctly positioned to avoid warning messages.
